Returns Distribution Histogram — Seaborn

A histogram showing the distribution of financial returns (daily, weekly, or monthly) with a normal distribution overlay for comparison. This visualization is essential for risk analysis, allowing analysts to assess whether returns follow a normal distribution, identify fat tails indicating higher-than-expected extreme events, and measure asymmetry through skewness. Key statistics are displayed directly on the plot for quick interpretation.

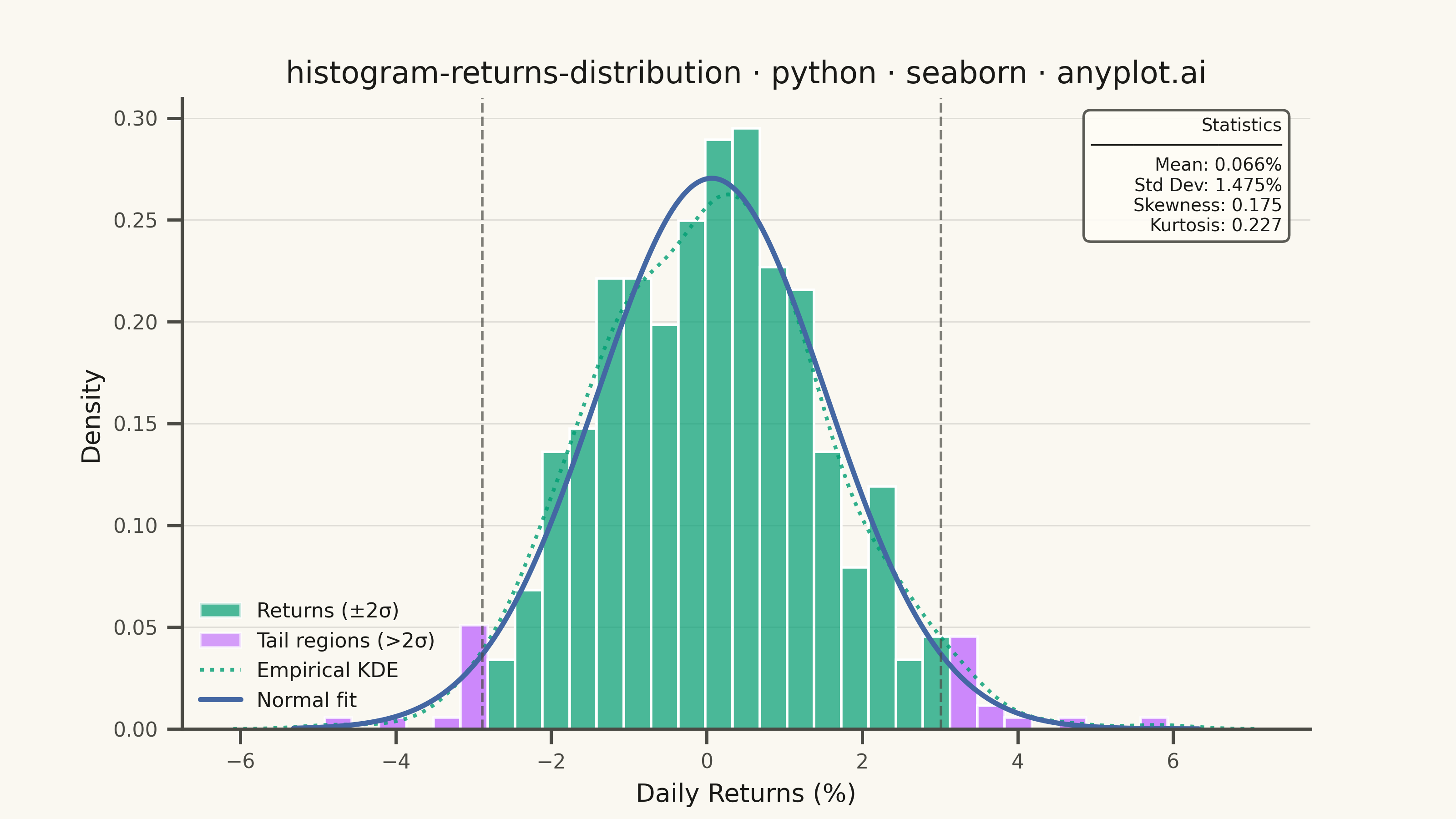

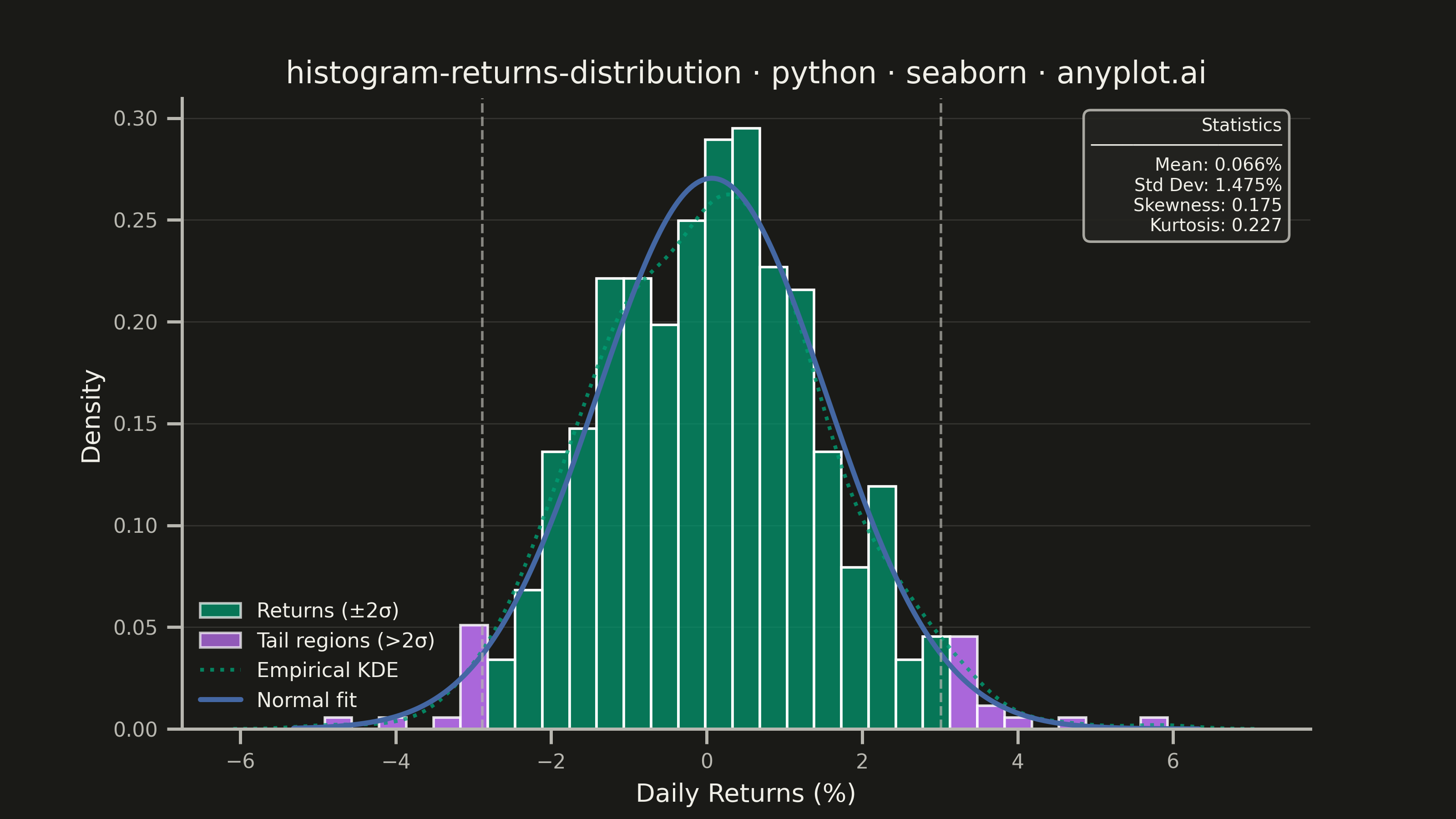

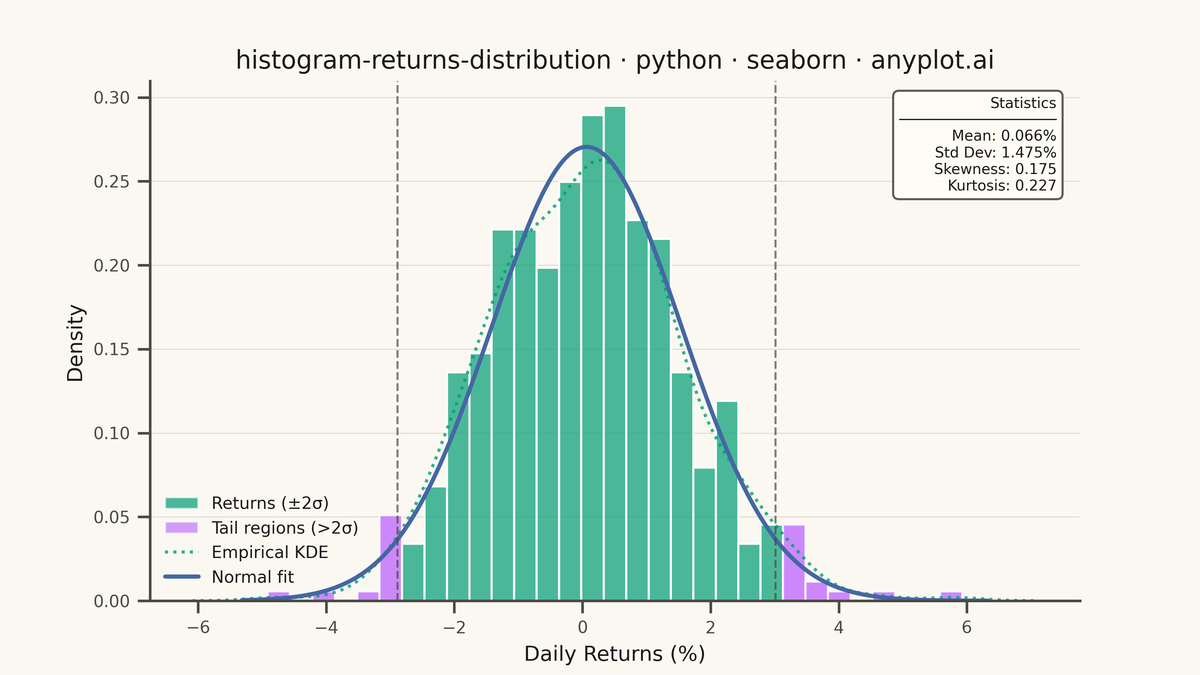

Returns Distribution Histogram rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
histogram-returns-distribution: Returns Distribution Histogram
Library: seaborn 0.13.2 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-20
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
from matplotlib.patches import Patch
from scipy import stats


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.10,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

np.random.seed(42)
n_days = 504
daily_returns = np.random.normal(loc=0.05, scale=1.5, size=n_days)  # % units

mean_ret = np.mean(daily_returns)
std_ret = np.std(daily_returns)
skewness = stats.skew(daily_returns)
kurtosis = stats.kurtosis(daily_returns)

lower_tail = mean_ret - 2 * std_ret
upper_tail = mean_ret + 2 * std_ret

fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400)

bins = np.linspace(daily_returns.min() - 0.1, daily_returns.max() + 0.1, 32)

# Single histplot on the full dataset so all bars share the same density normalization;
# recolor tail-region bars afterward (two-call approach normalizes each subset independently)
sns.histplot(daily_returns, bins=bins, stat="density", color=IMPRINT[0], alpha=0.7, ax=ax)
for patch in ax.patches:
    bin_center = patch.get_x() + patch.get_width() / 2
    if bin_center < lower_tail or bin_center > upper_tail:
        patch.set_facecolor(IMPRINT[1])
        patch.set_alpha(0.85)

# Empirical KDE via seaborn (seaborn-native feature for distribution comparison)
sns.kdeplot(daily_returns, ax=ax, color=IMPRINT[0], linewidth=1.5, linestyle=":", alpha=0.8)
kde_line = ax.lines[-1]

# Normal distribution curve fitted to the data
x_range = np.linspace(daily_returns.min() - 0.5, daily_returns.max() + 0.5, 300)
normal_pdf = stats.norm.pdf(x_range, mean_ret, std_ret)
ax.plot(x_range, normal_pdf, color=IMPRINT[2], linewidth=2.0)
normal_line = ax.lines[-1]

# Vertical dashed lines at ±2σ boundaries
ax.axvline(lower_tail, color=INK_SOFT, linestyle="--", linewidth=1.0, alpha=0.7)
ax.axvline(upper_tail, color=INK_SOFT, linestyle="--", linewidth=1.0, alpha=0.7)

# Statistics text box — header with separator for visual hierarchy
stats_text = (
    f"Statistics\n"
    f"{'─' * 18}\n"
    f"Mean: {mean_ret:.3f}%\n"
    f"Std Dev: {std_ret:.3f}%\n"
    f"Skewness: {skewness:.3f}\n"
    f"Kurtosis: {kurtosis:.3f}"
)
ax.text(
    0.975,
    0.97,
    stats_text,
    transform=ax.transAxes,
    fontsize=7,
    verticalalignment="top",
    horizontalalignment="right",
    bbox={"boxstyle": "round,pad=0.4", "facecolor": ELEVATED_BG, "edgecolor": INK_SOFT, "alpha": 0.9},
    color=INK,
)

ax.set_xlabel("Daily Returns (%)", fontsize=10)
ax.set_ylabel("Density", fontsize=10)
ax.set_title("histogram-returns-distribution · python · seaborn · anyplot.ai", fontsize=12, fontweight="medium")
ax.tick_params(axis="both", labelsize=8)
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

# Legend: histogram bars first (primary data), then analytical curves; no frame
center_patch = Patch(facecolor=IMPRINT[0], alpha=0.7, label="Returns (±2σ)")
tail_patch = Patch(facecolor=IMPRINT[1], alpha=0.7, label="Tail regions (>2σ)")
kde_line.set_label("Empirical KDE")
normal_line.set_label("Normal fit")
ax.legend(handles=[center_patch, tail_patch, kde_line, normal_line], fontsize=8, loc="lower left", frameon=False)

ax.yaxis.grid(True, alpha=0.12, linewidth=0.5)
ax.set_axisbelow(True)

plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)
plt.close()

Part of Returns Distribution Histogram on anyplot.ai.
