Returns Distribution Histogram — plotnine

A histogram showing the distribution of financial returns (daily, weekly, or monthly) with a normal distribution overlay for comparison. This visualization is essential for risk analysis, allowing analysts to assess whether returns follow a normal distribution, identify fat tails indicating higher-than-expected extreme events, and measure asymmetry through skewness. Key statistics are displayed directly on the plot for quick interpretation.

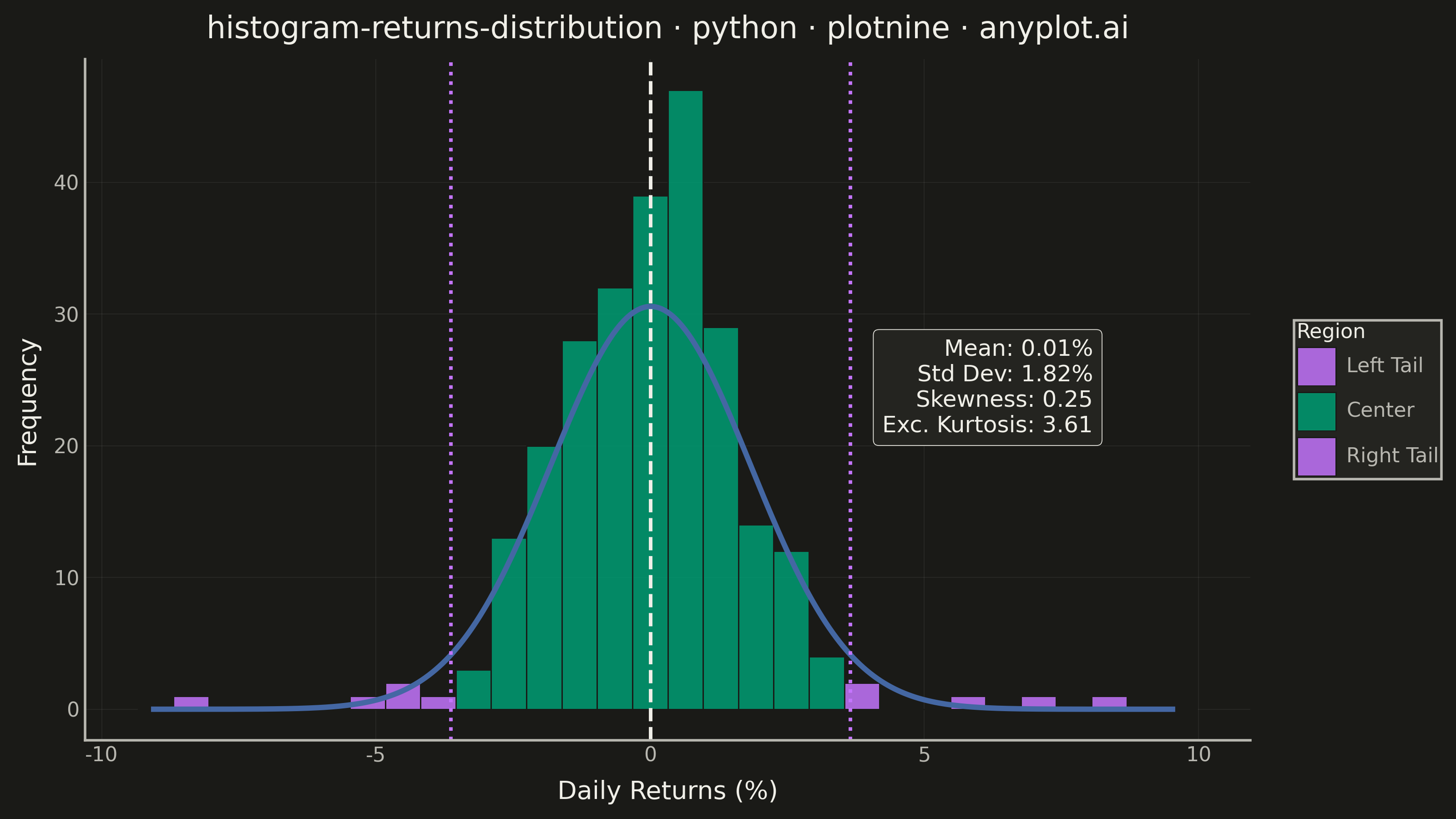

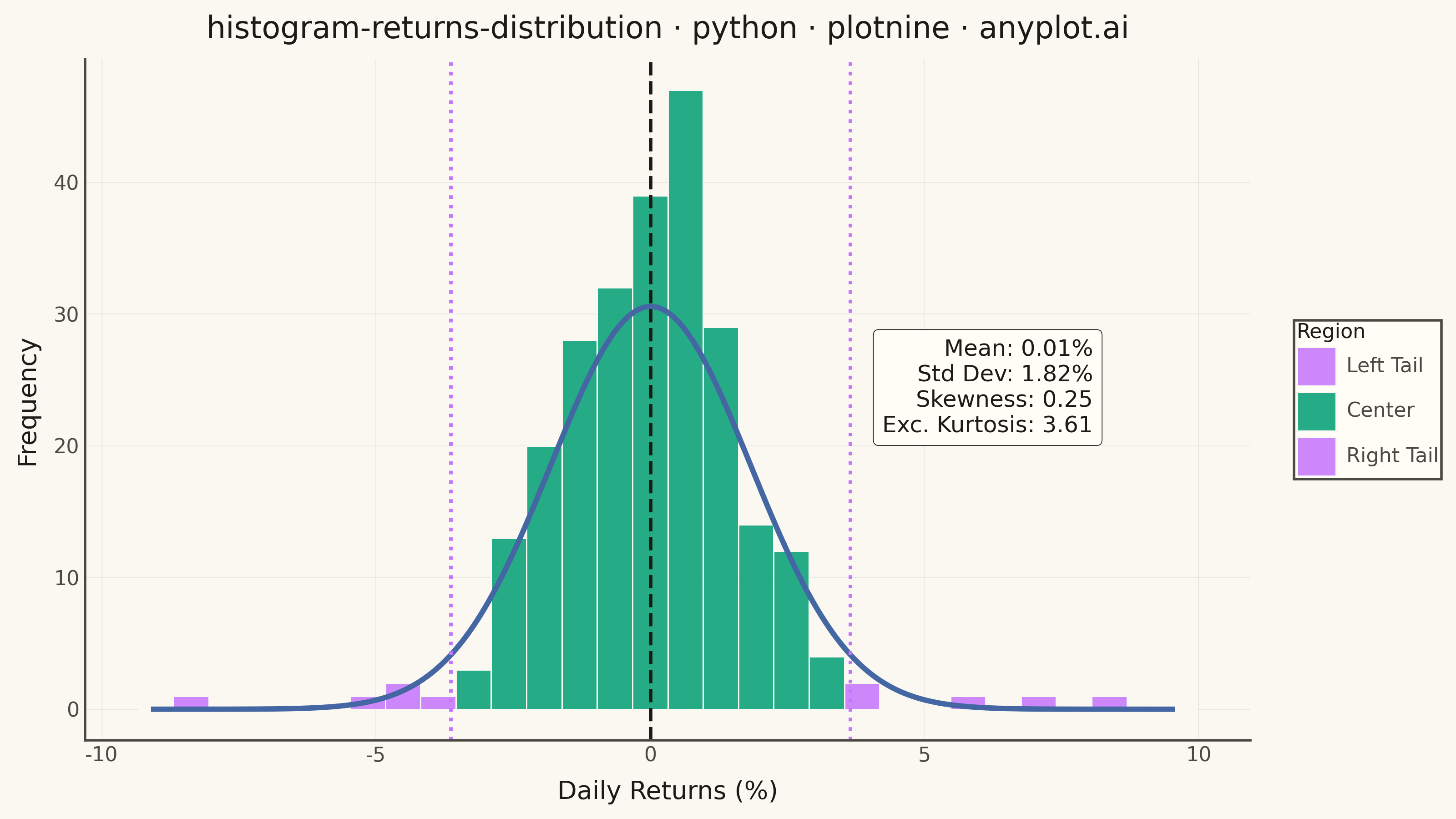

Returns Distribution Histogram rendered with plotnine

Python source (plotnine)

""" anyplot.ai
histogram-returns-distribution: Returns Distribution Histogram
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-20
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    annotate,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_histogram,
    geom_line,
    geom_vline,
    ggplot,
    labs,
    scale_fill_manual,
    theme,
    theme_minimal,
)
from scipy import stats


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data - 252 trading days with slight fat tails (mixture of normals)
np.random.seed(42)
n_days = 252
normal_returns = np.random.normal(0.0005, 0.015, int(n_days * 0.9))
fat_tail_returns = np.random.normal(0, 0.04, int(n_days * 0.1))
returns = np.concatenate([normal_returns, fat_tail_returns])
np.random.shuffle(returns)
returns = returns[:n_days]
returns_pct = returns * 100

mean_ret = np.mean(returns_pct)
std_ret = np.std(returns_pct)
skewness = stats.skew(returns_pct)
kurtosis = stats.kurtosis(returns_pct)

lower_tail = mean_ret - 2 * std_ret
upper_tail = mean_ret + 2 * std_ret

df = pd.DataFrame({"returns": returns_pct})
df["region"] = pd.cut(
    df["returns"], bins=[-np.inf, lower_tail, upper_tail, np.inf], labels=["Left Tail", "Center", "Right Tail"]
)

# Normal distribution overlay (count scale to match histogram)
x_range = np.linspace(returns_pct.min() - 1, returns_pct.max() + 1, 300)
normal_pdf = stats.norm.pdf(x_range, mean_ret, std_ret)
bin_width = (returns_pct.max() - returns_pct.min()) / 30
normal_scaled = normal_pdf * len(returns_pct) * bin_width
df_normal = pd.DataFrame({"x": x_range, "y": normal_scaled})

stats_label = f"Mean: {mean_ret:.2f}%\nStd Dev: {std_ret:.2f}%\nSkewness: {skewness:.2f}\nExc. Kurtosis: {kurtosis:.2f}"

# Okabe-Ito fill: center green (pos 1), both tails vermillion (pos 2)
fill_colors = {"Left Tail": IMPRINT[1], "Center": IMPRINT[0], "Right Tail": IMPRINT[1]}

# Plot
plot = (
    ggplot(df, aes(x="returns", fill="region"))
    + geom_histogram(bins=30, color=PAGE_BG, alpha=0.85, size=0.3)
    + geom_line(data=df_normal, mapping=aes(x="x", y="y"), color=IMPRINT[2], size=1.2, inherit_aes=False)
    + geom_vline(xintercept=mean_ret, linetype="dashed", color=INK, size=0.8)
    + geom_vline(xintercept=lower_tail, linetype="dotted", color=IMPRINT[1], size=0.8)
    + geom_vline(xintercept=upper_tail, linetype="dotted", color=IMPRINT[1], size=0.8)
    + scale_fill_manual(values=fill_colors, name="Region")
    + annotate(
        "label",
        x=returns_pct.max() - 0.5,
        y=max(normal_scaled) * 0.92,
        label=stats_label,
        ha="right",
        va="top",
        size=9,
        fill=ELEVATED_BG,
        color=INK,
        label_size=0.3,
        label_padding=0.4,
    )
    + labs(
        x="Daily Returns (%)", y="Frequency", title="histogram-returns-distribution · python · plotnine · anyplot.ai"
    )
    + theme_minimal()
    + theme(
        figure_size=(8, 4.5),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG),
        panel_border=element_blank(),
        axis_line=element_line(color=INK_SOFT),
        panel_grid_major=element_line(color=INK_SOFT, size=0.3, alpha=0.10),
        panel_grid_minor=element_blank(),
        plot_title=element_text(color=INK, size=12),
        axis_title=element_text(color=INK, size=10),
        axis_text=element_text(color=INK_SOFT, size=8),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        legend_text=element_text(color=INK_SOFT, size=8),
        legend_title=element_text(color=INK, size=8),
        legend_position="right",
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in", verbose=False)

Part of Returns Distribution Histogram on anyplot.ai.
