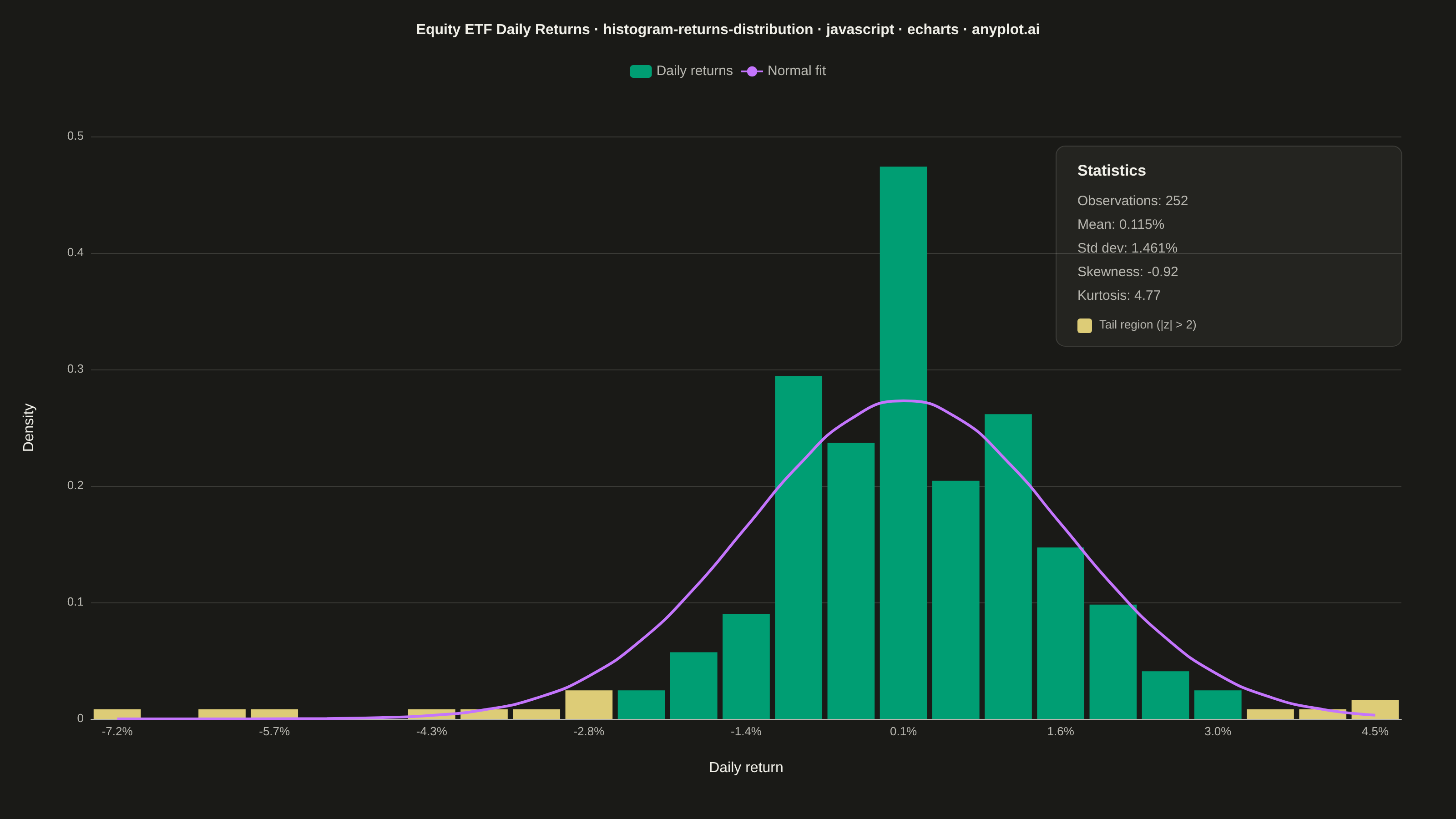

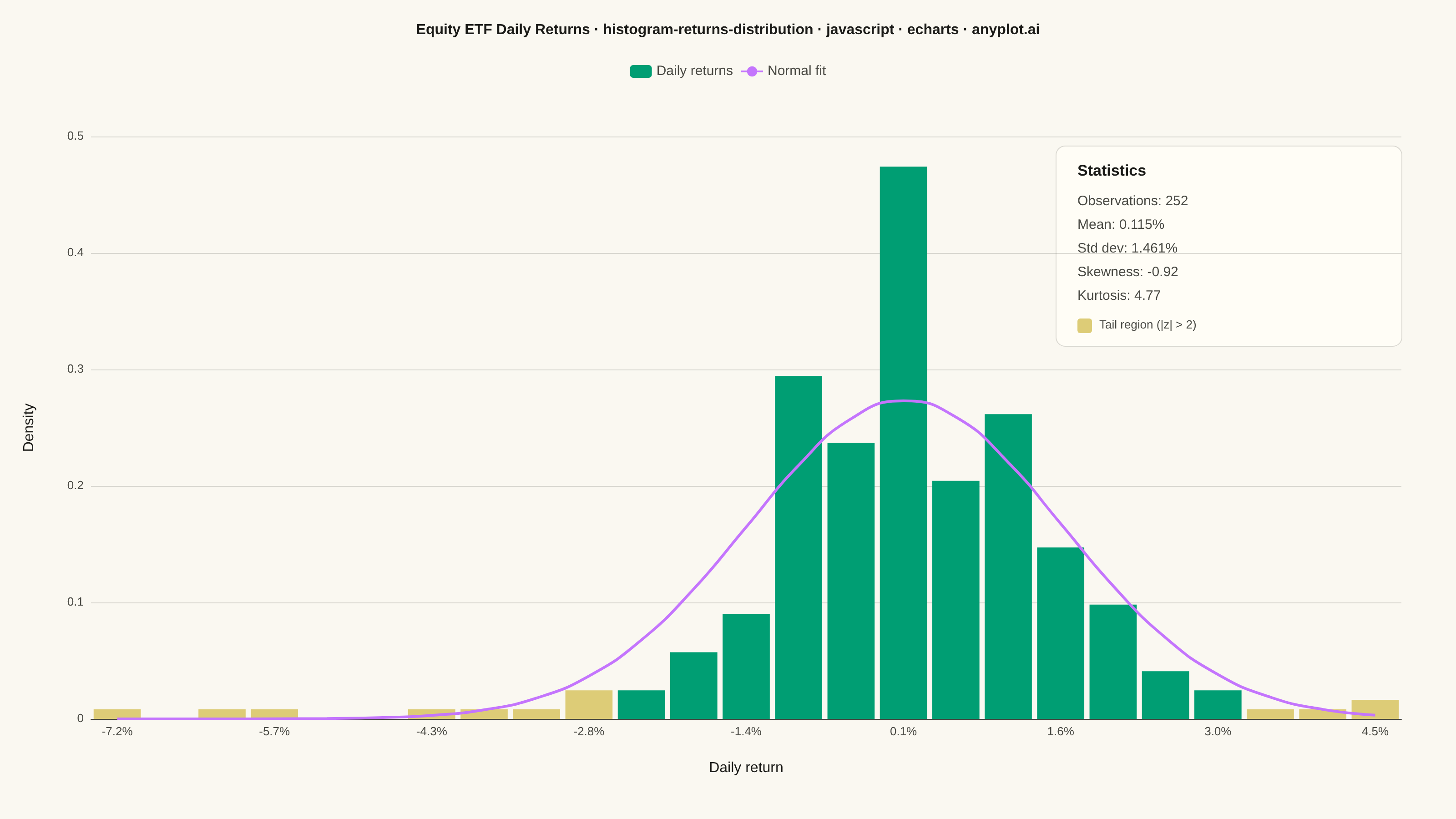

A histogram showing the distribution of financial returns (daily, weekly, or monthly) with a normal distribution overlay for comparison. This visualization is essential for risk analysis, allowing analysts to assess whether returns follow a normal distribution, identify fat tails indicating higher-than-expected extreme events, and measure asymmetry through skewness. Key statistics are displayed directly on the plot for quick interpretation.
// anyplot.ai
// histogram-returns-distribution: Returns Distribution Histogram
// Library: echarts 6.1.0 | JavaScript 22.23.2
// Quality: 91/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width: W, height: H } = window.ANYPLOT_SIZE;
// --- Data (in-memory, deterministic fixed-seed LCG) -------------------------
let seed = 42;
function rand() {
seed = (seed * 1103515245 + 12345) & 0x7fffffff;
return seed / 0x7fffffff;
}
function randNormal() {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const n = 252; // one trading year of daily returns
const returns = [];
for (let i = 0; i < n; i++) {
let r = 0.0004 + 0.011 * randNormal(); // ~0.04% mean, 1.1% daily std
if (rand() < 0.06) {
// occasional volatility-cluster shock, skewed toward downside (crash risk)
const sign = rand() < 0.65 ? -1 : 1;
r += sign * (0.02 + 0.025 * rand());
}
returns.push(r * 100); // percent
}
// --- Statistics ---------------------------------------------------------------
const mean = returns.reduce((a, r) => a + r, 0) / n;
const variance = returns.reduce((a, r) => a + (r - mean) ** 2, 0) / n;
const std = Math.sqrt(variance);
const skewness = returns.reduce((a, r) => a + ((r - mean) / std) ** 3, 0) / n;
const kurtosis =
returns.reduce((a, r) => a + ((r - mean) / std) ** 4, 0) / n - 3;
function normalPdf(x) {
return (
(1 / (std * Math.sqrt(2 * Math.PI))) *
Math.exp(-0.5 * ((x - mean) / std) ** 2)
);
}
// --- Histogram binning (density-normalized) ----------------------------------
const binCount = 25;
const min = Math.min(...returns);
const max = Math.max(...returns);
const binWidth = (max - min) / binCount;
const counts = new Array(binCount).fill(0);
for (const r of returns) {
const idx = Math.min(binCount - 1, Math.floor((r - min) / binWidth));
counts[idx]++;
}
const binCenters = counts.map((_, i) => min + (i + 0.5) * binWidth);
const densities = counts.map((c) => c / (n * binWidth));
const normalCurve = binCenters.map((x) => normalPdf(x));
const tailLo = mean - 2 * std;
const tailHi = mean + 2 * std;
const barData = binCenters.map((x, i) => ({
value: densities[i],
itemStyle: { color: x < tailLo || x > tailHi ? t.amber : t.palette[0] },
}));
const categories = binCenters.map((x) => `${x.toFixed(1)}%`);
// --- Title (fontsize scales with title length, 67-char baseline) ------------
const titleText =
"Equity ETF Daily Returns · histogram-returns-distribution · javascript · echarts · anyplot.ai";
const titleFontSize = Math.round(22 * Math.min(1, 67 / titleText.length));
// --- Stats box (spec explicitly requires a stats text box) ------------------
const boxW = 380;
const boxH = 220;
const boxX = W - 60 - boxW;
const boxY = 160;
const statLines = [
`Observations: ${n}`,
`Mean: ${mean.toFixed(3)}%`,
`Std dev: ${std.toFixed(3)}%`,
`Skewness: ${skewness.toFixed(2)}`,
`Kurtosis: ${kurtosis.toFixed(2)}`,
];
// --- Init ---------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option ---------------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: titleText,
left: "center",
top: 20,
textStyle: { color: t.ink, fontSize: titleFontSize },
},
legend: {
top: 66,
left: "center",
data: ["Daily returns", "Normal fit"],
itemWidth: 24,
itemHeight: 14,
textStyle: { color: t.inkSoft, fontSize: 15 },
},
tooltip: { trigger: "axis" },
grid: { left: 100, right: 60, top: 150, bottom: 110 },
xAxis: {
type: "category",
data: categories,
name: "Daily return",
nameLocation: "middle",
nameGap: 46,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 13, interval: 2 },
axisLine: { lineStyle: { color: t.inkSoft } },
axisTick: { show: false },
splitLine: { show: false },
},
yAxis: {
type: "value",
name: "Density",
nameLocation: "middle",
nameGap: 60,
nameTextStyle: { color: t.ink, fontSize: 16 },
axisLabel: { color: t.inkSoft, fontSize: 13 },
axisLine: { show: false },
axisTick: { show: false },
splitLine: { lineStyle: { color: t.grid } },
},
series: [
{
name: "Daily returns",
type: "bar",
data: barData,
barCategoryGap: "10%",
z: 2,
},
{
name: "Normal fit",
type: "line",
data: normalCurve,
symbol: "none",
smooth: true,
lineStyle: { width: 3, color: t.palette[1] },
itemStyle: { color: t.palette[1] },
z: 3,
},
],
graphic: [
{
type: "rect",
left: boxX,
top: boxY,
shape: { width: boxW, height: boxH, r: 10 },
style: { fill: t.elevatedBg, stroke: t.grid, lineWidth: 1 },
},
{
type: "text",
left: boxX + 24,
top: boxY + 20,
style: { text: "Statistics", fill: t.ink, fontSize: 17, fontWeight: "bold" },
},
...statLines.map((line, i) => ({
type: "text",
left: boxX + 24,
top: boxY + 54 + i * 26,
style: { text: line, fill: t.inkSoft, fontSize: 15 },
})),
{
type: "rect",
left: boxX + 24,
top: boxY + boxH - 30,
shape: { width: 16, height: 16, r: 3 },
style: { fill: t.amber },
},
{
type: "text",
left: boxX + 48,
top: boxY + boxH - 29,
style: { text: "Tail region (|z| > 2)", fill: t.inkSoft, fontSize: 13 },
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/histogram-returns-distribution/echarts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "histogram-returns-distribution",
"language": "javascript",
"library": "echarts",
"page": "https://anyplot.ai/histogram-returns-distribution/javascript/echarts",
"hub": "https://anyplot.ai/histogram-returns-distribution",
"code_json": "https://api.anyplot.ai/specs/histogram-returns-distribution/echarts/code",
"spec_json": "https://api.anyplot.ai/specs/histogram-returns-distribution",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/echarts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/echarts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/echarts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/histogram-returns-distribution/javascript/echarts/plot-dark.html",
"quality_score": 91.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Returns Distribution Histogram on anyplot.ai.
