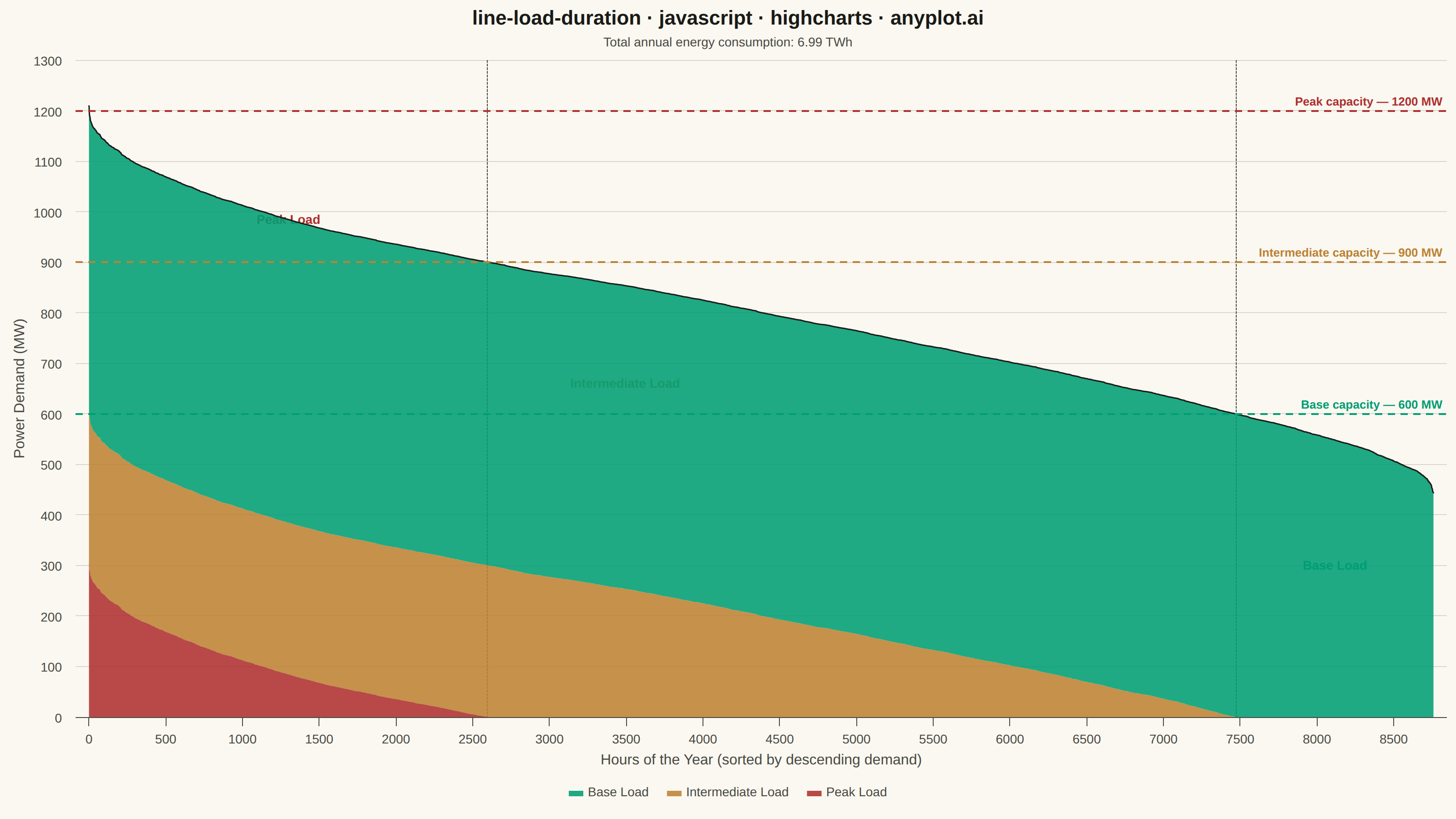

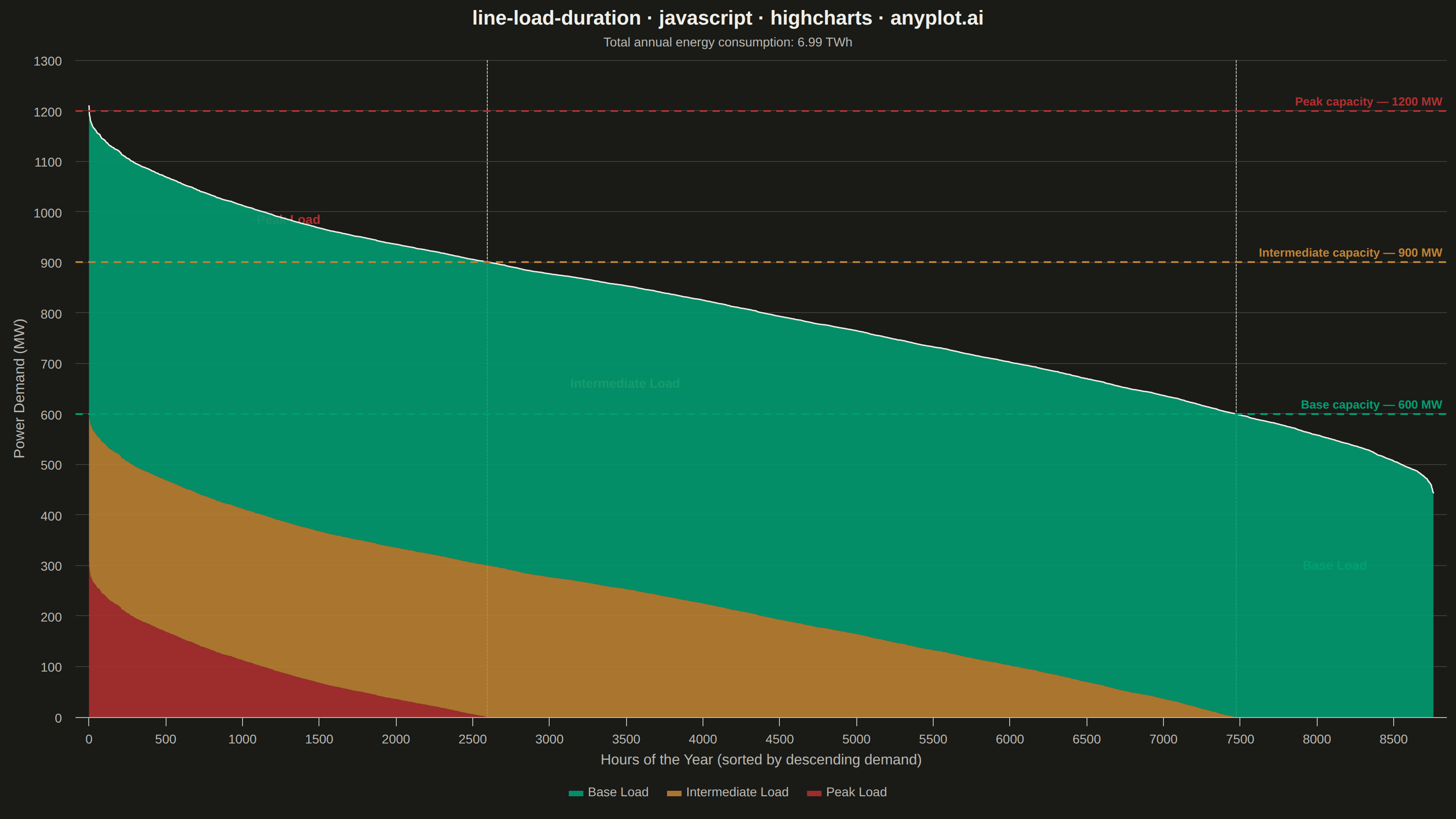

A load duration curve displays electrical power demand (MW) sorted from highest to lowest across all hours of a year (8,760 hours), forming a monotonically decreasing curve. It is a fundamental tool in power system planning, revealing the proportion of time that load exceeds a given level. The curve naturally segments into peak, intermediate, and base load regions, helping utilities determine the optimal generation capacity mix. The area under the curve represents total annual energy consumption.
// anyplot.ai
// line-load-duration: Load Duration Curve for Energy Systems
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-10
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
// Deterministic LCG — browser has no seeded Math.random
let _seed = 42;
function rand() {
_seed = (_seed * 1664525 + 1013904223) >>> 0;
return _seed / 4294967296;
}
// Generate 8760 hourly loads (MW) with seasonal + morning/evening peak patterns
const rawLoads = Array.from({length: 8760}, (_, h) => {
const dayOfYear = Math.floor(h / 24);
const hourOfDay = h % 24;
const seasonal = 200 * Math.cos(2 * Math.PI * dayOfYear / 365);
const morning = 250 * Math.exp(-0.5 * Math.pow((hourOfDay - 9) / 2, 2));
const evening = 220 * Math.exp(-0.5 * Math.pow((hourOfDay - 19) / 2, 2));
const noise = 60 * (rand() * 2 - 1);
return 700 + seasonal + morning + evening + noise;
});
// Sort descending to form the load duration curve
rawLoads.sort((a, b) => b - a);
// Generation capacity thresholds (MW)
const BASE_CAP = 600;
const INTER_CAP = 900;
const PEAK_CAP = 1200;
// Find hour indices where load first drops below each threshold
const interHour = rawLoads.findIndex(v => v < INTER_CAP);
const baseHour = rawLoads.findIndex(v => v < BASE_CAP);
// Stacked series data — each layer's sum equals the total load
const baseData = rawLoads.map(v => Math.min(v, BASE_CAP));
const interData = rawLoads.map(v => Math.max(0, Math.min(v, INTER_CAP) - BASE_CAP));
const peakData = rawLoads.map(v => Math.max(0, v - INTER_CAP));
// Total annual energy (sum of hourly MWh → TWh)
const totalTWh = rawLoads.reduce((s, v) => s + v, 0) / 1e6;
// Semantic colors: green = base (always-on), ochre = intermediate, red = peak (critical)
const GREEN = t.palette[0]; // #009E73
const OCHRE = t.palette[3]; // #BD8233
const RED = t.palette[4]; // #AE3030
Highcharts.chart("container", {
chart: {
type: "area",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "line-load-duration · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Total annual energy consumption: " + totalTWh.toFixed(2) + " TWh",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
title: {
text: "Hours of the Year (sorted by descending demand)",
style: { color: t.inkSoft, fontSize: "16px" },
},
lineColor: t.inkSoft,
tickColor: t.inkSoft,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
// Vertical dashed dividers at region boundaries
plotLines: [
{ value: interHour, color: t.inkSoft, dashStyle: "ShortDash", width: 1, zIndex: 3 },
{ value: baseHour, color: t.inkSoft, dashStyle: "ShortDash", width: 1, zIndex: 3 },
],
// Region labels — y offset positions label within its respective colored band
plotBands: [
{
from: 0, to: interHour, color: "transparent",
label: {
text: "Peak Load",
style: { color: RED, fontSize: "14px", fontWeight: "700" },
align: "center", y: 180,
},
},
{
from: interHour, to: baseHour, color: "transparent",
label: {
text: "Intermediate Load",
style: { color: OCHRE, fontSize: "14px", fontWeight: "700" },
align: "center", x: -260, y: 360,
},
},
{
from: baseHour, to: 8760, color: "transparent",
label: {
text: "Base Load",
style: { color: GREEN, fontSize: "14px", fontWeight: "700" },
align: "center", y: 560,
},
},
],
},
yAxis: {
min: 0,
max: 1300,
title: {
text: "Power Demand (MW)",
style: { color: t.inkSoft, fontSize: "16px" },
},
gridLineColor: t.grid,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
// Horizontal dashed lines at capacity tiers
plotLines: [
{
value: BASE_CAP,
color: GREEN,
dashStyle: "Dash",
width: 2,
zIndex: 4,
label: {
text: "Base capacity — " + BASE_CAP + " MW",
style: { color: GREEN, fontSize: "13px", fontWeight: "600" },
align: "right",
x: -5,
y: -6,
},
},
{
value: INTER_CAP,
color: OCHRE,
dashStyle: "Dash",
width: 2,
zIndex: 4,
label: {
text: "Intermediate capacity — " + INTER_CAP + " MW",
style: { color: OCHRE, fontSize: "13px", fontWeight: "600" },
align: "right",
x: -5,
y: -6,
},
},
{
value: PEAK_CAP,
color: RED,
dashStyle: "Dash",
width: 2,
zIndex: 4,
label: {
text: "Peak capacity — " + PEAK_CAP + " MW",
style: { color: RED, fontSize: "13px", fontWeight: "600" },
align: "right",
x: -5,
y: -6,
},
},
],
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
plotOptions: {
series: { animation: false, turboThreshold: 0 },
area: {
stacking: "normal",
lineWidth: 0,
marker: { enabled: false },
fillOpacity: 0.88,
},
},
series: [
{
name: "Base Load",
data: baseData,
color: GREEN,
},
{
name: "Intermediate Load",
data: interData,
color: OCHRE,
},
{
name: "Peak Load",
data: peakData,
color: RED,
},
{
type: "line",
name: "Load Duration Curve",
data: rawLoads,
color: t.ink,
lineWidth: 1.5,
marker: { enabled: false },
showInLegend: false,
enableMouseTracking: false,
zIndex: 10,
},
],
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/line-load-duration/highcharts/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "line-load-duration",
"language": "javascript",
"library": "highcharts",
"page": "https://anyplot.ai/line-load-duration/javascript/highcharts",
"hub": "https://anyplot.ai/line-load-duration",
"code_json": "https://api.anyplot.ai/specs/line-load-duration/highcharts/code",
"spec_json": "https://api.anyplot.ai/specs/line-load-duration",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/line-load-duration/javascript/highcharts/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/line-load-duration/javascript/highcharts/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/line-load-duration/javascript/highcharts/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/line-load-duration/javascript/highcharts/plot-dark.html",
"quality_score": 88.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Load Duration Curve for Energy Systems on anyplot.ai.
