Multi-Line Comparison Plot — Makie.jl

A multi-line plot displays multiple data series on the same axes for direct comparison. Each series is represented by a distinct line with its own color and optional style, making it easy to identify trends, correlations, and divergences between variables. This visualization is essential for comparing related metrics over a common sequence or time period.

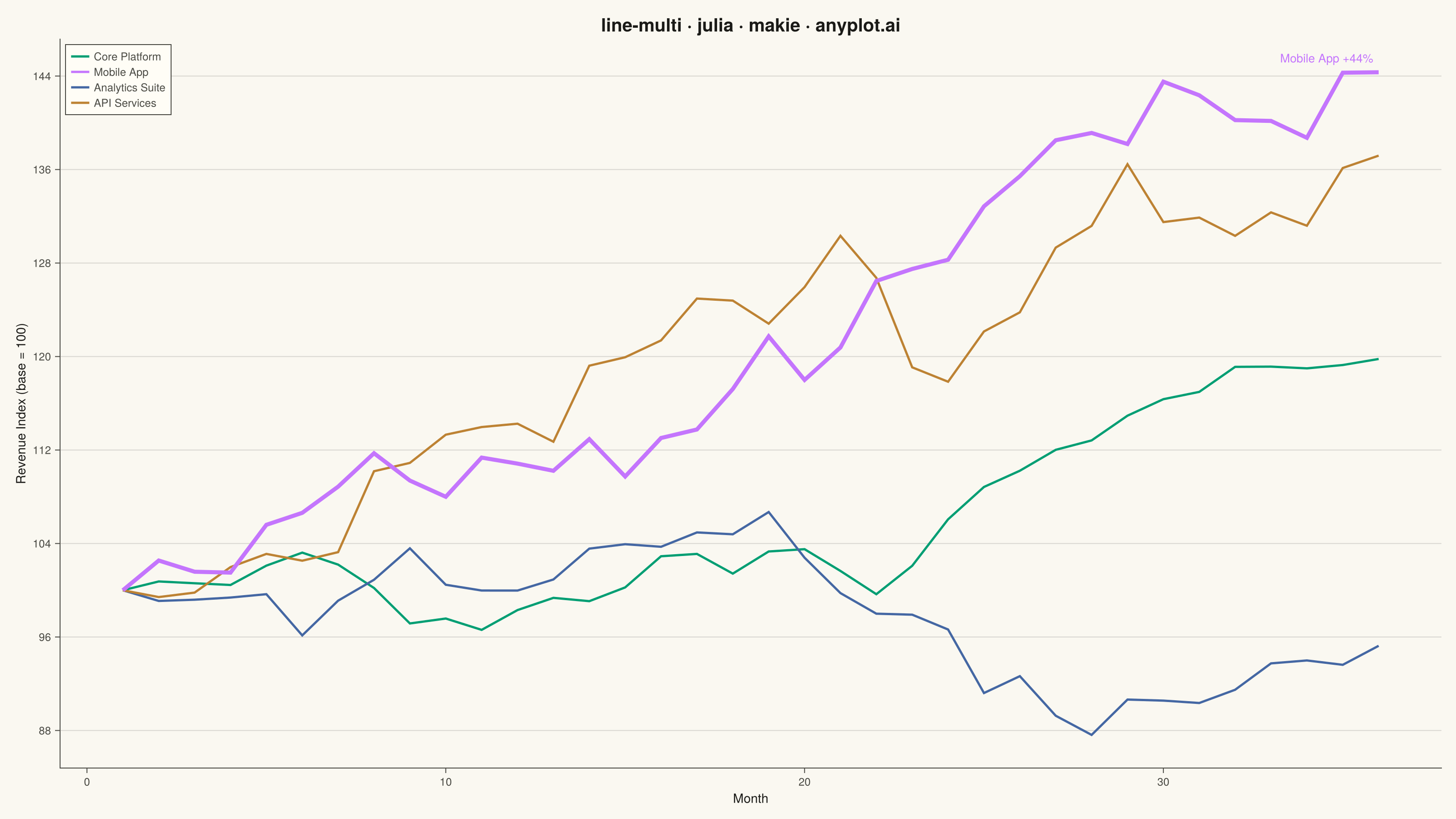

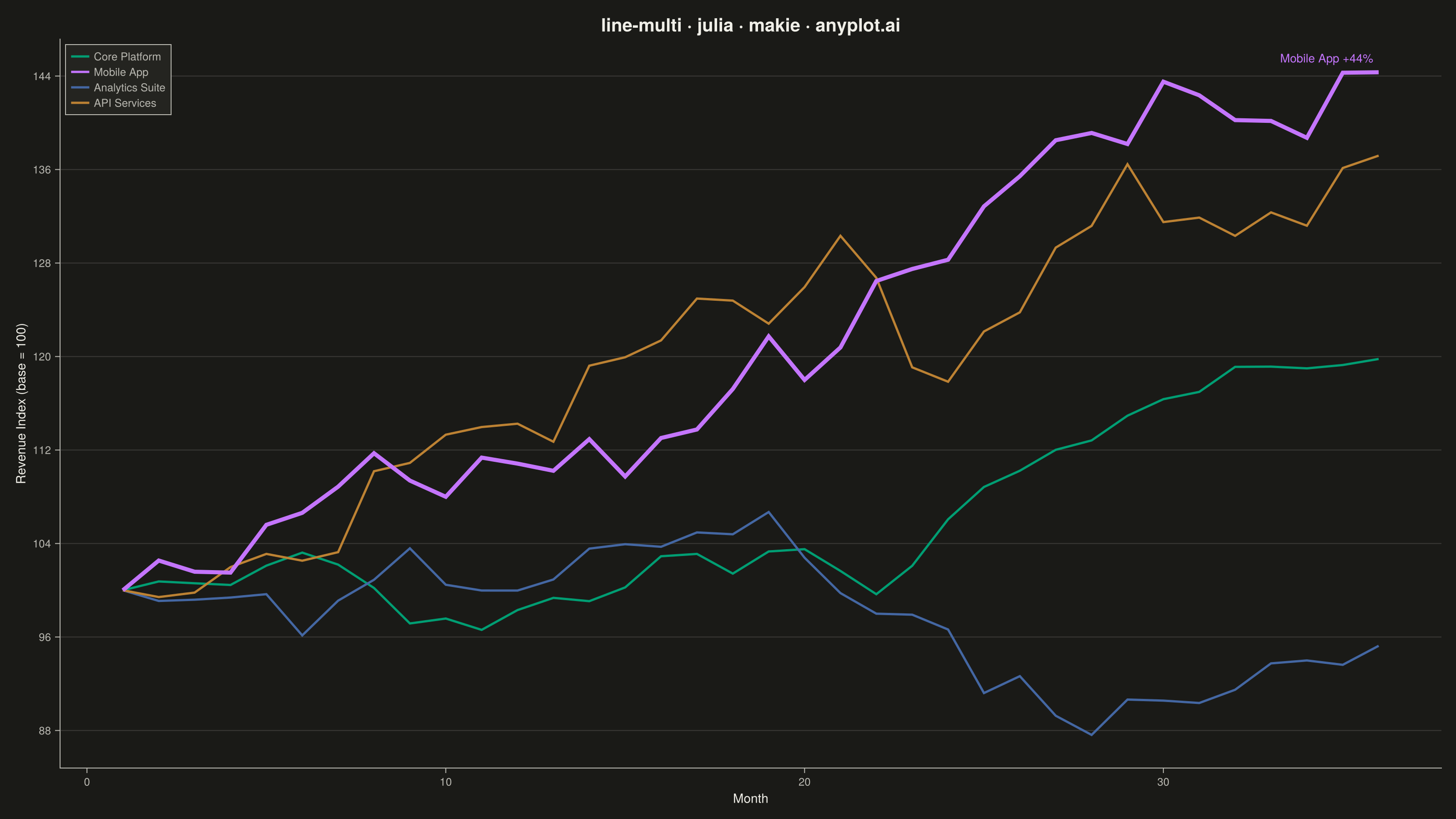

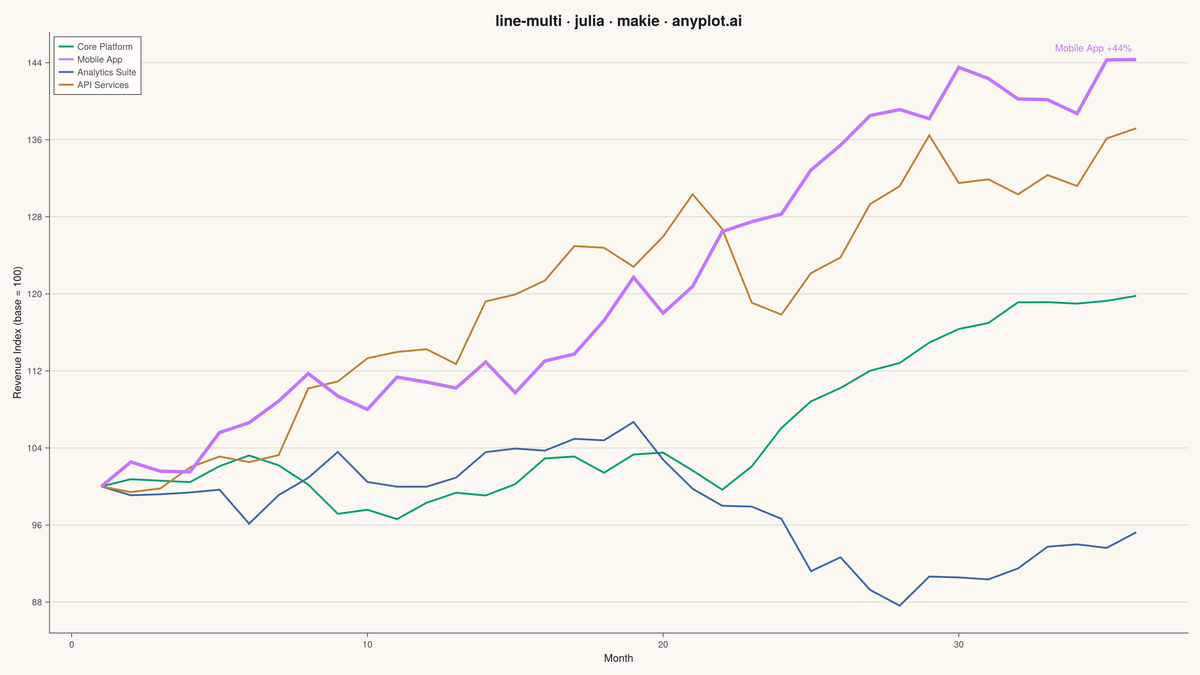

Multi-Line Comparison Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# line-multi: Multi-Line Comparison Plot
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 93/100 | Created: 2026-08-05

using CairoMakie
using Colors
using Random

Random.seed!(42)

# --- Theme tokens -----------------------------------------------------------
const THEME       = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG     = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK         = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT    = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
    colorant"#009E73", colorant"#C475FD", colorant"#4467A3", colorant"#BD8233",
]

# --- Data ---------------------------------------------------------------
# Indexed revenue (base = 100) for 4 product lines over 36 months, each
# following a random walk with its own drift so the lines diverge visibly.
n_months = 36
months = 1:n_months
product_lines = ["Core Platform", "Mobile App", "Analytics Suite", "API Services"]
drifts = [0.35, 1.15, -0.25, 0.75]
vols = [1.6, 2.4, 2.0, 2.8]

revenue_index = Array{Float64}(undef, n_months, length(product_lines))
for (i, (drift, vol)) in enumerate(zip(drifts, vols))
    steps = drift .+ vol .* randn(n_months)
    revenue_index[:, i] = 100.0 .+ cumsum(steps) .- steps[1]
end

# Headline series: the largest cumulative % change gets a bolder line and a
# callout so the chart guides the eye instead of reading as four
# equally-weighted lines.
pct_change = (revenue_index[end, :] .- 100.0) ./ 100.0 .* 100.0
headline = argmax(pct_change)

# --- Plot -----------------------------------------------------------------
title_str = "line-multi · julia · makie · anyplot.ai"

fig = Figure(
    resolution      = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = Axis(
    fig[1, 1];
    title              = title_str,
    titlesize          = 20,
    titlecolor         = INK,
    xlabel             = "Month",
    ylabel             = "Revenue Index (base = 100)",
    xlabelsize         = 14,
    ylabelsize         = 14,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelsize     = 12,
    yticklabelsize     = 12,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xtickcolor         = INK_SOFT,
    ytickcolor         = INK_SOFT,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridvisible       = false,
    ygridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15),
    yticks             = LinearTicks(9),
)

series!(ax, months, revenue_index'; color = IMPRINT_PALETTE, labels = product_lines, linewidth = 2.5)

# Overlay the headline series with a bolder line + endpoint callout.
lines!(ax, months, revenue_index[:, headline]; color = IMPRINT_PALETTE[headline], linewidth = 4.5)
text!(ax, months[end], revenue_index[end, headline];
    text     = "$(product_lines[headline]) $(pct_change[headline] >= 0 ? "+" : "")$(round(Int, pct_change[headline]))%",
    color    = IMPRINT_PALETTE[headline],
    fontsize = 13,
    align    = (:right, :bottom),
    offset   = (-6, 8),
)

axislegend(ax; position = :lt, framevisible = true, backgroundcolor = ELEVATED_BG,
    framecolor = INK_SOFT, labelcolor = INK_SOFT, labelsize = 12, patchsize = (20, 12))

# --- Save -------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)

Part of Multi-Line Comparison Plot on anyplot.ai.
