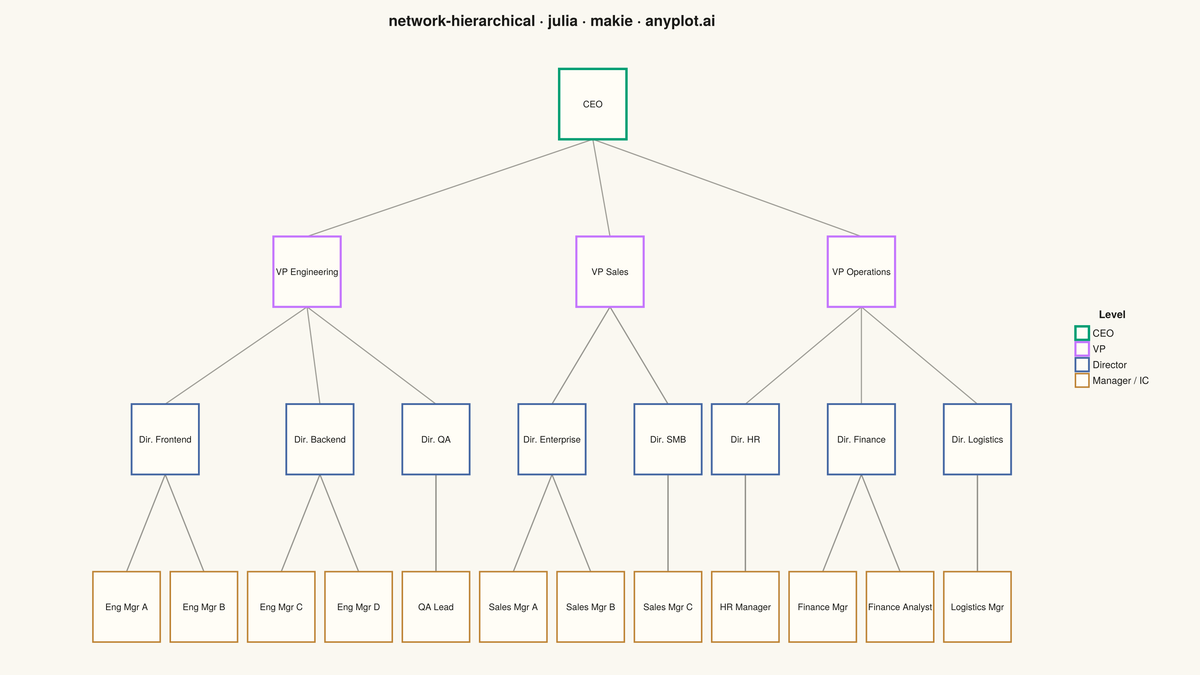

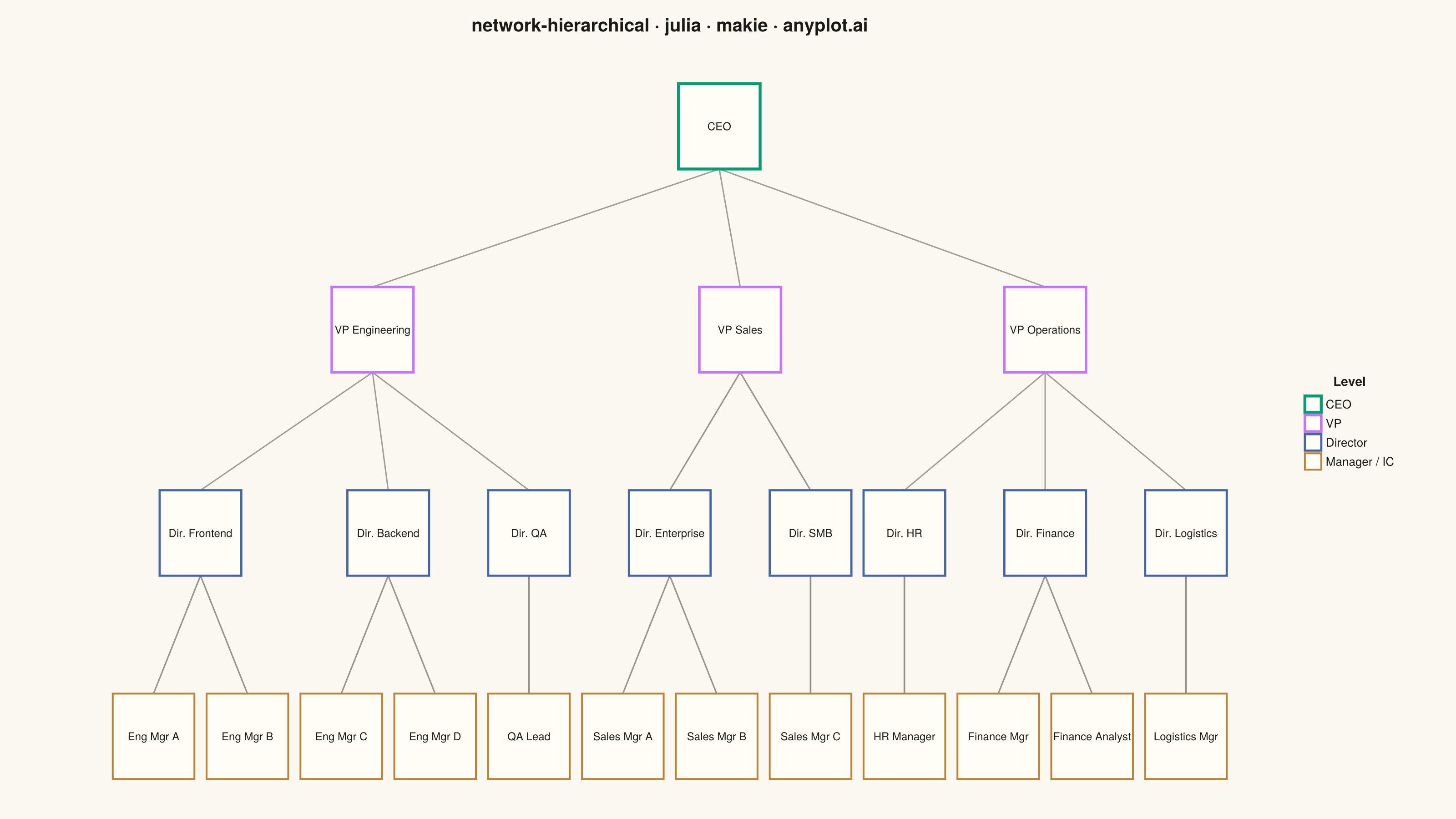

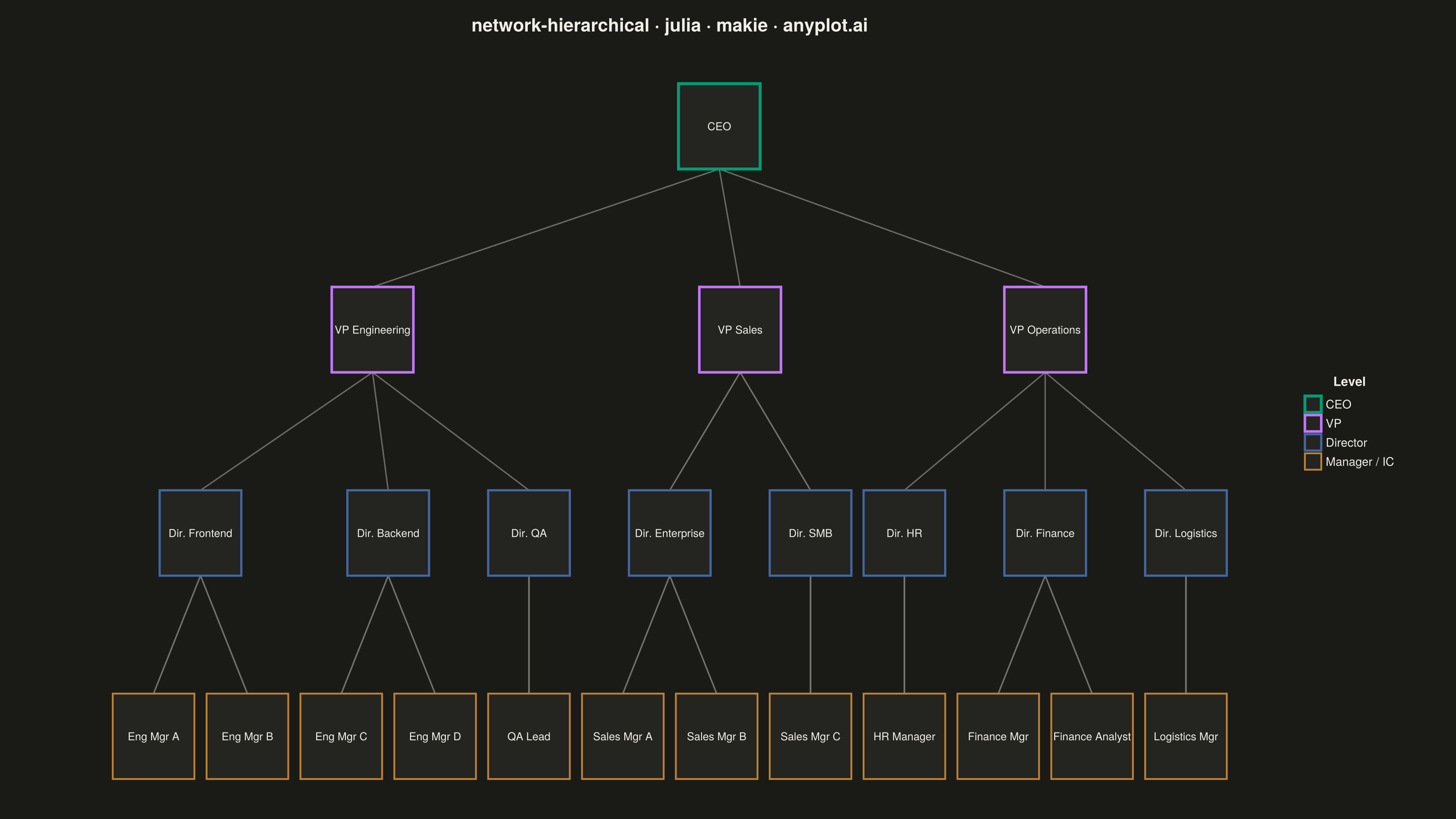

A hierarchical network graph organizes nodes in distinct levels from root to leaves, with edges showing parent-child relationships between levels. Unlike force-directed layouts that optimize for aesthetic spacing, hierarchical layouts explicitly encode tree structure by positioning nodes at fixed vertical or horizontal levels. This visualization reveals organizational depth, branching patterns, and the overall tree structure at a glance.
# anyplot.ai
# network-hierarchical: Hierarchical Network Graph with Tree Layout
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 89/100 | Created: 2026-09-02
using CairoMakie
using Colors
using Statistics
# --- Theme tokens ------------------------------------------------------------
const THEME = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
# Imprint palette — one hue per organizational level (level 0 = root)
const IMPRINT_PALETTE = [
colorant"#009E73", # level 0 — CEO (brand green)
colorant"#C475FD", # level 1 — VPs (lavender)
colorant"#4467A3", # level 2 — Directors (blue)
colorant"#BD8233", # level 3 — Managers / ICs (ochre)
]
# --- Data: a 4-level organizational chart, 24 employees ----------------------
nodes = [
(id = "ceo", label = "CEO", level = 0, parent = ""),
(id = "vp_eng", label = "VP Engineering", level = 1, parent = "ceo"),
(id = "vp_sales", label = "VP Sales", level = 1, parent = "ceo"),
(id = "vp_ops", label = "VP Operations", level = 1, parent = "ceo"),
(id = "dir_fe", label = "Dir. Frontend", level = 2, parent = "vp_eng"),
(id = "dir_be", label = "Dir. Backend", level = 2, parent = "vp_eng"),
(id = "dir_qa", label = "Dir. QA", level = 2, parent = "vp_eng"),
(id = "dir_ent", label = "Dir. Enterprise", level = 2, parent = "vp_sales"),
(id = "dir_smb", label = "Dir. SMB", level = 2, parent = "vp_sales"),
(id = "dir_hr", label = "Dir. HR", level = 2, parent = "vp_ops"),
(id = "dir_fin", label = "Dir. Finance", level = 2, parent = "vp_ops"),
(id = "dir_log", label = "Dir. Logistics", level = 2, parent = "vp_ops"),
(id = "mgr_fe_a", label = "Eng Mgr A", level = 3, parent = "dir_fe"),
(id = "mgr_fe_b", label = "Eng Mgr B", level = 3, parent = "dir_fe"),
(id = "mgr_be_a", label = "Eng Mgr C", level = 3, parent = "dir_be"),
(id = "mgr_be_b", label = "Eng Mgr D", level = 3, parent = "dir_be"),
(id = "lead_qa", label = "QA Lead", level = 3, parent = "dir_qa"),
(id = "mgr_sales_a", label = "Sales Mgr A", level = 3, parent = "dir_ent"),
(id = "mgr_sales_b", label = "Sales Mgr B", level = 3, parent = "dir_ent"),
(id = "mgr_sales_c", label = "Sales Mgr C", level = 3, parent = "dir_smb"),
(id = "mgr_hr", label = "HR Manager", level = 3, parent = "dir_hr"),
(id = "mgr_fin", label = "Finance Mgr", level = 3, parent = "dir_fin"),
(id = "analyst_fin", label = "Finance Analyst", level = 3, parent = "dir_fin"),
(id = "mgr_log", label = "Logistics Mgr", level = 3, parent = "dir_log"),
]
children = Dict(n.id => String[] for n in nodes)
for n in nodes
n.parent != "" && push!(children[n.parent], n.id)
end
# --- Tree layout: leaves get sequential x, parents average their children ----
const LEAF_SPACING = 1.0
const LEVEL_SPACING = 1.6
x_pos = Dict{String,Float64}()
leaf_nodes = [n for n in nodes if n.level == 3]
for (i, n) in enumerate(leaf_nodes)
x_pos[n.id] = i * LEAF_SPACING
end
for lvl in (2, 1, 0)
for n in nodes
n.level == lvl && (x_pos[n.id] = mean(x_pos[k] for k in children[n.id]))
end
end
y_pos = Dict(n.id => -n.level * LEVEL_SPACING for n in nodes)
const BOX_W = 0.87 * LEAF_SPACING
const BOX_H = 0.42 * LEVEL_SPACING
# Level-coded emphasis: thicker borders at senior levels reinforce the
# hierarchy beyond color alone (CEO thickest, Manager/IC thinnest)
const STROKE_WIDTHS = [3.2, 2.8, 2.4, 2.0]
# --- Figure --------------------------------------------------------------
title_str = "network-hierarchical · julia · makie · anyplot.ai"
fig = Figure(
resolution = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
ax = Axis(
fig[1, 1];
title = title_str,
titlesize = 20,
titlecolor = INK,
backgroundcolor = PAGE_BG,
)
hidedecorations!(ax)
hidespines!(ax)
# Edges — straight lines from parent box bottom to child box top, drawn first.
# Thinner + more transparent where a parent has many children, so dense
# fan-outs (e.g. a VP with 3 directors) read less cluttered than single-child
# edges.
for n in nodes
n.parent == "" && continue
px, py = x_pos[n.parent], y_pos[n.parent]
cx, cy = x_pos[n.id], y_pos[n.id]
nsiblings = length(children[n.parent])
edge_alpha = clamp(0.6 - 0.04 * (nsiblings - 1), 0.35, 0.6)
edge_width = clamp(1.8 - 0.15 * (nsiblings - 1), 1.1, 1.8)
lines!(
ax, [px, cx], [py - BOX_H / 2, cy + BOX_H / 2];
color = (INK_SOFT, edge_alpha), linewidth = edge_width,
)
end
# Nodes — box per employee, border colored by organizational level, with
# stroke width tapering from CEO (thickest) to Manager/IC (thinnest)
for n in nodes
x, y = x_pos[n.id], y_pos[n.id]
poly!(
ax, Rect2f(x - BOX_W / 2, y - BOX_H / 2, BOX_W, BOX_H);
color = ELEVATED_BG,
strokecolor = IMPRINT_PALETTE[n.level + 1],
strokewidth = STROKE_WIDTHS[n.level + 1],
)
text!(
ax, x, y; text = n.label,
color = INK, fontsize = 12,
align = (:center, :center),
)
end
xs, ys = collect(values(x_pos)), collect(values(y_pos))
xlims!(ax, minimum(xs) - BOX_W / 2 - 0.6, maximum(xs) + BOX_W / 2 + 0.6)
ylims!(ax, minimum(ys) - BOX_H / 2 - 0.2, maximum(ys) + BOX_H / 2 + 0.35)
# Legend — organizational level key
level_labels = ["CEO", "VP", "Director", "Manager / IC"]
legend_elems = [
PolyElement(color = ELEVATED_BG, strokecolor = IMPRINT_PALETTE[i], strokewidth = STROKE_WIDTHS[i])
for i in 1:4
]
Legend(
fig[1, 2], legend_elems, level_labels, "Level";
framevisible = false,
labelcolor = INK,
titlecolor = INK,
labelsize = 13,
titlesize = 14,
patchsize = (18, 18),
)
colsize!(fig.layout, 1, Relative(0.87))
# --- Save ------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
