A hierarchical network graph organizes nodes in distinct levels from root to leaves, with edges showing parent-child relationships between levels. Unlike force-directed layouts that optimize for aesthetic spacing, hierarchical layouts explicitly encode tree structure by positioning nodes at fixed vertical or horizontal levels. This visualization reveals organizational depth, branching patterns, and the overall tree structure at a glance.
""" anyplot.ai
network-hierarchical: Hierarchical Network Graph with Tree Layout
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 90/100 | Updated: 2026-05-17
"""
import os
import numpy as np
import pandas as pd
from lets_plot import (
LetsPlot,
aes,
element_blank,
element_rect,
element_text,
geom_point,
geom_segment,
geom_text,
ggplot,
ggsize,
labs,
scale_color_manual,
scale_size_identity,
scale_x_continuous,
scale_y_continuous,
theme,
)
from lets_plot.export import ggsave
LetsPlot.setup_html()
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
np.random.seed(42)
# Data: Small tech company organizational chart with 30 employees across 4 levels
nodes = [
# Level 0 - CEO
{"id": 0, "label": "CEO", "level": 0, "parent": None},
# Level 1 - VPs
{"id": 1, "label": "VP Eng", "level": 1, "parent": 0},
{"id": 2, "label": "VP Sales", "level": 1, "parent": 0},
{"id": 3, "label": "VP Ops", "level": 1, "parent": 0},
# Level 2 - Managers under VP Engineering
{"id": 4, "label": "Mgr FE", "level": 2, "parent": 1},
{"id": 5, "label": "Mgr BE", "level": 2, "parent": 1},
{"id": 6, "label": "Mgr QA", "level": 2, "parent": 1},
# Level 2 - Managers under VP Sales
{"id": 7, "label": "Mgr West", "level": 2, "parent": 2},
{"id": 8, "label": "Mgr East", "level": 2, "parent": 2},
# Level 2 - Managers under VP Ops
{"id": 9, "label": "Mgr HR", "level": 2, "parent": 3},
{"id": 10, "label": "Mgr IT", "level": 2, "parent": 3},
{"id": 11, "label": "Mgr Fin", "level": 2, "parent": 3},
# Level 3 - Engineers under Mgr FE
{"id": 12, "label": "Dev 1", "level": 3, "parent": 4},
{"id": 13, "label": "Dev 2", "level": 3, "parent": 4},
{"id": 14, "label": "Dev 3", "level": 3, "parent": 4},
# Level 3 - Engineers under Mgr BE
{"id": 15, "label": "Dev 4", "level": 3, "parent": 5},
{"id": 16, "label": "Dev 5", "level": 3, "parent": 5},
{"id": 17, "label": "Dev 6", "level": 3, "parent": 5},
# Level 3 - QA under Mgr QA
{"id": 18, "label": "QA 1", "level": 3, "parent": 6},
{"id": 19, "label": "QA 2", "level": 3, "parent": 6},
# Level 3 - Sales reps under Mgr West
{"id": 20, "label": "Rep 1", "level": 3, "parent": 7},
{"id": 21, "label": "Rep 2", "level": 3, "parent": 7},
# Level 3 - Sales reps under Mgr East
{"id": 22, "label": "Rep 3", "level": 3, "parent": 8},
{"id": 23, "label": "Rep 4", "level": 3, "parent": 8},
{"id": 24, "label": "Rep 5", "level": 3, "parent": 8},
# Level 3 - Ops staff under HR
{"id": 25, "label": "HR 1", "level": 3, "parent": 9},
# Level 3 - IT staff
{"id": 26, "label": "IT 1", "level": 3, "parent": 10},
{"id": 27, "label": "IT 2", "level": 3, "parent": 10},
# Level 3 - Finance staff
{"id": 28, "label": "Fin 1", "level": 3, "parent": 11},
{"id": 29, "label": "Fin 2", "level": 3, "parent": 11},
]
# Build edges from parent-child relationships
edges = [(node["parent"], node["id"]) for node in nodes if node["parent"] is not None]
# Build tree structure for layout calculation
children = {node["id"]: [] for node in nodes}
for parent, child in edges:
children[parent].append(child)
# Calculate x positions using a tree layout algorithm
x_pos = {}
y_pos = {}
def count_leaves(node_id):
"""Count number of leaf nodes in subtree."""
if not children[node_id]:
return 1
return sum(count_leaves(c) for c in children[node_id])
def assign_x_positions(node_id, left_bound, right_bound):
"""Assign x positions recursively, centering parents over children."""
if not children[node_id]:
x_pos[node_id] = (left_bound + right_bound) / 2
return
child_leaves = [(c, count_leaves(c)) for c in children[node_id]]
total_leaves = sum(leaves for _, leaves in child_leaves)
current_left = left_bound
for child_id, num_leaves in child_leaves:
proportion = num_leaves / total_leaves
child_width = (right_bound - left_bound) * proportion
child_right = current_left + child_width
assign_x_positions(child_id, current_left, child_right)
current_left = child_right
child_x_values = [x_pos[c] for c in children[node_id]]
x_pos[node_id] = (min(child_x_values) + max(child_x_values)) / 2
# Assign x positions starting from root
assign_x_positions(0, 0, 1)
# Assign y positions based on level (root at top)
max_level = max(node["level"] for node in nodes)
for node in nodes:
y_pos[node["id"]] = 1 - (node["level"] / max_level)
# Okabe-Ito palette: first level always #009E73, then follow canonical order
okabe_ito = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
level_names = ["Executive", "VP", "Manager", "Staff"]
# Create edges dataframe
edge_data = []
for parent, child in edges:
x0, y0 = x_pos[parent], y_pos[parent]
x1, y1 = x_pos[child], y_pos[child]
edge_data.append({"x": x0, "y": y0, "xend": x1, "yend": y1})
df_edges = pd.DataFrame(edge_data)
# Create nodes dataframe
node_data = []
for node in nodes:
nid = node["id"]
level = node["level"]
size = 18 - level * 3
node_data.append(
{
"x": x_pos[nid],
"y": y_pos[nid],
"label": node["label"],
"level_name": level_names[level],
"size": size,
"label_y": y_pos[nid] + 0.035,
}
)
df_nodes = pd.DataFrame(node_data)
# Build the plot with theme-adaptive styling
plot = (
ggplot()
+ geom_segment(aes(x="x", y="y", xend="xend", yend="yend"), data=df_edges, color=INK_SOFT, size=1.5, alpha=0.6)
+ geom_point(aes(x="x", y="y", color="level_name", size="size"), data=df_nodes, stroke=2, alpha=0.95)
+ geom_text(aes(x="x", y="label_y", label="label"), data=df_nodes, size=8, color=INK, fontface="bold")
+ scale_color_manual(values=okabe_ito, name="Level")
+ scale_size_identity()
+ scale_x_continuous(limits=(-0.05, 1.05))
+ scale_y_continuous(limits=(-0.08, 1.12))
+ labs(title="network-hierarchical · letsplot · anyplot.ai")
+ ggsize(1600, 900)
+ theme(
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
plot_title=element_text(size=24, face="bold", color=INK),
axis_title=element_blank(),
axis_text=element_blank(),
axis_ticks=element_blank(),
axis_line=element_blank(),
panel_grid=element_blank(),
legend_background=element_rect(fill=PAGE_BG, color=INK_SOFT),
legend_text=element_text(size=14, color=INK_SOFT),
legend_title=element_text(size=16, face="bold", color=INK),
legend_position="right",
)
)

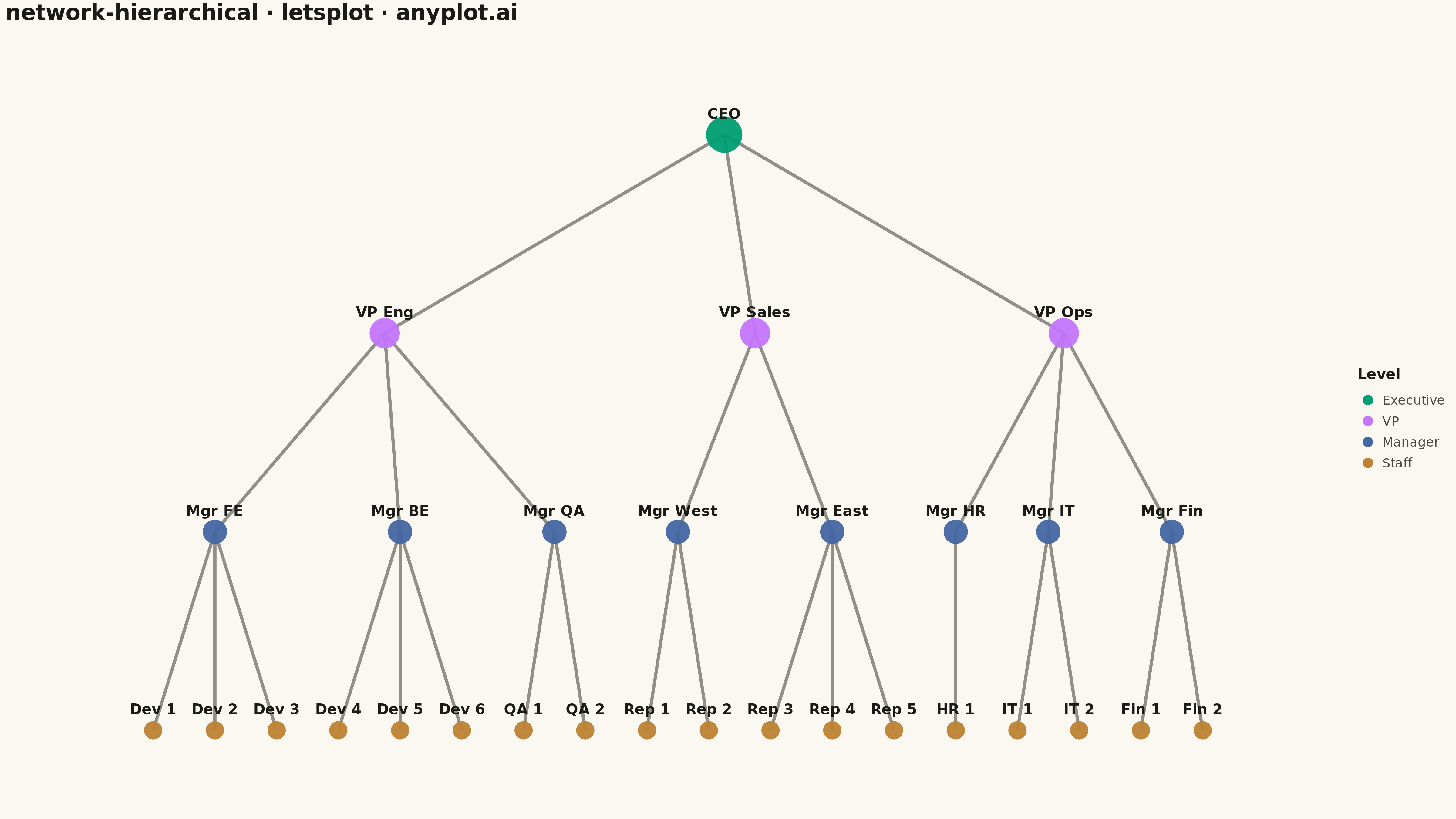

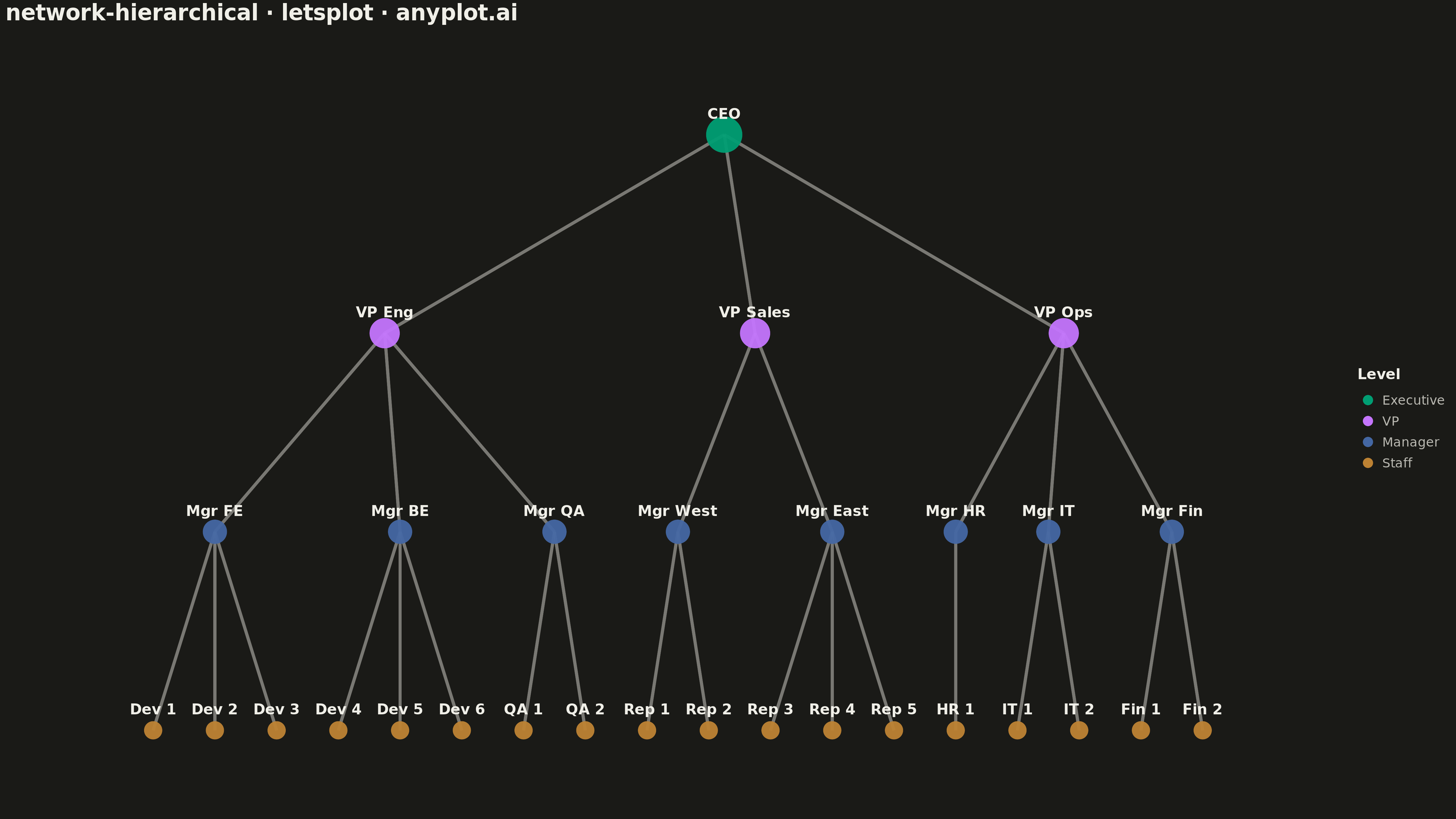

# Save as PNG (scale 3x to get 4800 x 2700 px)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)
# Save as HTML for interactivity
ggsave(plot, f"plot-{THEME}.html", path=".")
Part of Hierarchical Network Graph with Tree Layout on anyplot.ai.
