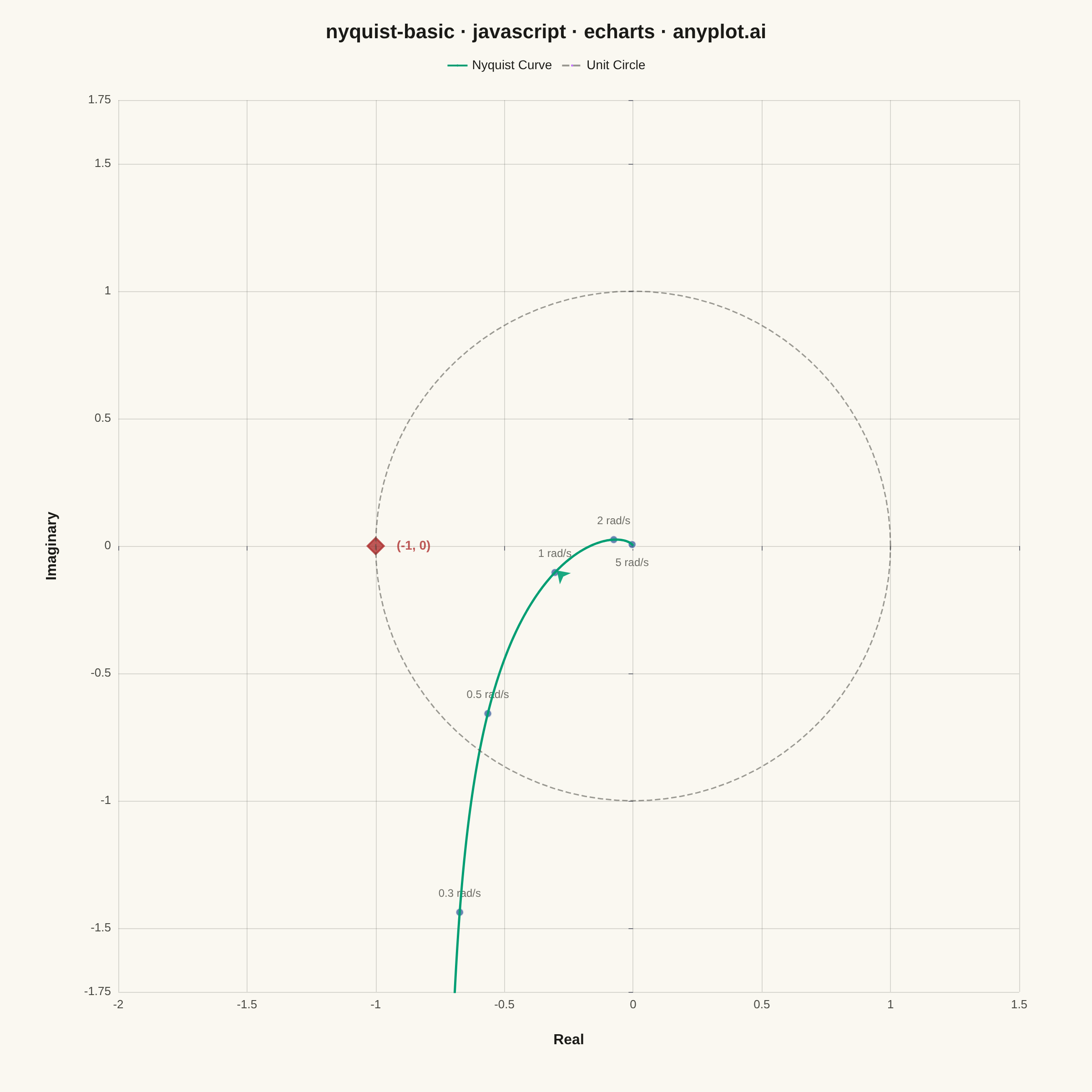

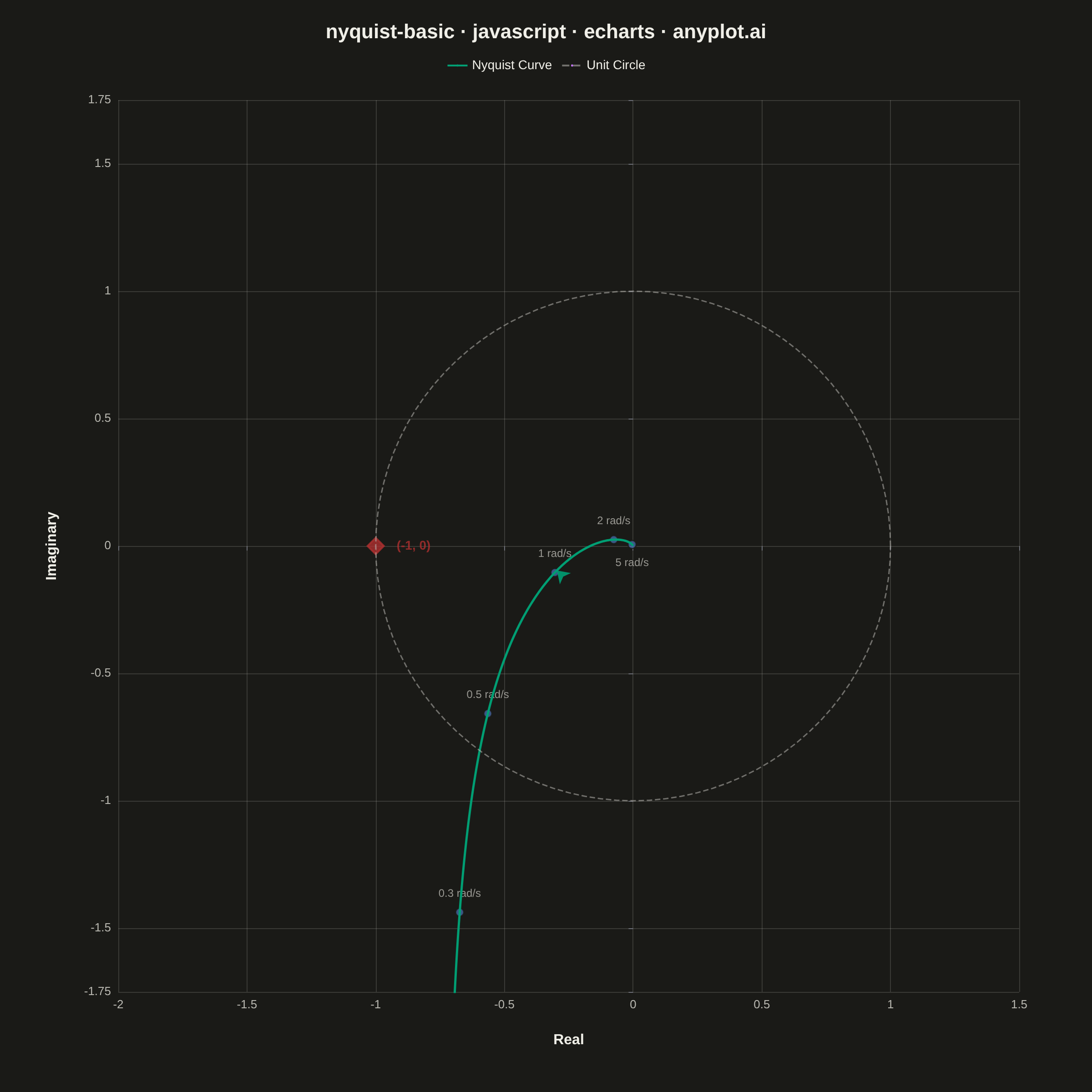

A Nyquist plot maps a system's open-loop frequency response onto the complex plane by plotting the imaginary part against the real part of the transfer function as frequency varies from zero to infinity. It is the primary tool for applying the Nyquist stability criterion to determine whether a closed-loop control system is stable. The plot visually reveals gain and phase margins and is widely used in classical control theory and electronic circuit design.
// anyplot.ai
// nyquist-basic: Nyquist Plot for Control Systems
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-17
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// --- Data (deterministic Nyquist curve for a 3rd-order system) ---------------
// Transfer function: G(s) = 1 / (s(s+1)(s+2))
// G(jw) = 1 / (jw * (jw+1) * (jw+2))
// Denominator: D = jw*(1+jw)*(2+jw)
// jw*(1+jw) = -w^2 + jw
// (-w^2+jw)*(2+jw) = -3w^2 + j(2w - w^3)
// G(jw) = 1/D => multiply by conjugate: Re = -3w^2 / |D|^2, Im = -(2w-w^3)/|D|^2
function logspace(start, end, n) {
const result = [];
const logStart = Math.log10(start);
const logEnd = Math.log10(end);
for (let i = 0; i < n; i++) {
result.push(Math.pow(10, logStart + (i / (n - 1)) * (logEnd - logStart)));
}
return result;
}
const freqs = logspace(0.01, 100, 500);
const realParts = [];
const imagParts = [];
for (let i = 0; i < freqs.length; i++) {
const w = freqs[i];
const denom = Math.pow(3 * w * w, 2) + Math.pow(2 * w - w * w * w, 2);
realParts.push((-3 * w * w) / denom);
imagParts.push(-(2 * w - w * w * w) / denom);
}
const curveData = realParts.map((r, i) => [r, imagParts[i]]);
// Unit circle (101 points)
const unitCircle = [];
for (let i = 0; i <= 100; i++) {
const angle = (i / 100) * 2 * Math.PI;
unitCircle.push([Math.cos(angle), Math.sin(angle)]);
}
// Frequency annotation points at key frequencies
const annotFreqs = [0.3, 0.5, 1.0, 2.0, 5.0];
const annotPoints = annotFreqs.map((fw) => {
let bestIdx = 0;
let bestDiff = Infinity;
for (let i = 0; i < freqs.length; i++) {
const diff = Math.abs(freqs[i] - fw);
if (diff < bestDiff) { bestDiff = diff; bestIdx = i; }
}
return { freq: fw, re: realParts[bestIdx], im: imagParts[bestIdx] };
});
// Arrow direction indices (evenly spaced along visible curve segment)
const arrowIndices = [60, 150, 250];
// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
// --- Option -----------------------------------------------------------------
chart.setOption({
animation: false,
color: t.palette,
backgroundColor: "transparent",
title: {
text: "nyquist-basic · javascript · echarts · anyplot.ai",
left: "center",
top: 20,
textStyle: { color: t.ink, fontSize: 22, fontWeight: "bold" }
},
legend: {
data: ["Nyquist Curve", "Unit Circle"],
top: 60,
left: "center",
textStyle: { color: t.ink, fontSize: 14 },
itemWidth: 22,
itemHeight: 3,
},
grid: { left: 130, right: 80, top: 110, bottom: 110 },
xAxis: {
type: "value",
name: "Real",
nameLocation: "middle",
nameGap: 45,
nameTextStyle: { color: t.ink, fontSize: 16, fontWeight: "bold" },
axisLabel: { color: t.inkSoft, fontSize: 13 },
axisLine: { show: false },
splitLine: { lineStyle: { color: t.grid } },
min: -2.0,
max: 1.5,
},
yAxis: {
type: "value",
name: "Imaginary",
nameLocation: "middle",
nameGap: 65,
nameTextStyle: { color: t.ink, fontSize: 16, fontWeight: "bold" },
axisLabel: { color: t.inkSoft, fontSize: 13 },
axisLine: { show: false },
splitLine: { lineStyle: { color: t.grid } },
min: -1.75,
max: 1.75,
},
tooltip: {
trigger: "item",
formatter: (params) => {
if (params.seriesName === "Nyquist Curve") {
return `Re: ${params.data[0].toFixed(4)}<br/>Im: ${params.data[1].toFixed(4)}`;
}
return "";
},
backgroundColor: t.elevatedBg,
borderColor: t.grid,
textStyle: { color: t.ink, fontSize: 13 }
},
series: [
// Main Nyquist curve
{
name: "Nyquist Curve",
type: "line",
data: curveData,
smooth: false,
symbol: "none",
lineStyle: { color: t.palette[0], width: 2.5 },
emphasis: { disabled: true },
},
// Unit circle reference
{
name: "Unit Circle",
type: "line",
data: unitCircle,
smooth: false,
symbol: "none",
lineStyle: { color: t.inkSoft, width: 1.5, type: "dashed", opacity: 0.55 },
emphasis: { disabled: true },
},
// Critical point (-1, 0) — red diamond marker with label
{
name: "Critical Point",
type: "scatter",
data: [[-1, 0]],
symbol: "diamond",
symbolSize: 18,
itemStyle: { color: t.palette[4], borderColor: t.palette[4], borderWidth: 2 },
label: {
show: true,
formatter: "(-1, 0)",
position: "right",
color: t.palette[4],
fontSize: 14,
fontWeight: "bold",
offset: [8, 0],
},
emphasis: { disabled: true },
},
// Frequency annotation markers with labels
{
name: "Frequency Markers",
type: "scatter",
data: annotPoints.map((pt, i) => ({
value: [pt.re, pt.im],
label: { position: i === 4 ? "bottom" : "top", offset: [0, i === 4 ? 4 : -4] },
})),
symbol: "circle",
symbolSize: 9,
itemStyle: { color: t.palette[2], borderColor: t.pageBg, borderWidth: 1.5 },
label: {
show: true,
formatter: (params) => `${annotPoints[params.dataIndex].freq} rad/s`,
color: t.inkSoft,
fontSize: 12,
},
emphasis: { disabled: true },
},
// Direction arrows showing increasing frequency
{
name: "Direction",
type: "scatter",
data: arrowIndices.map((idx) => curveData[idx]),
symbol: "arrow",
symbolSize: 13,
symbolRotate: (value, params) => {
const idx = arrowIndices[params.dataIndex];
const dx = realParts[Math.min(idx + 2, freqs.length - 1)] - realParts[Math.max(idx - 2, 0)];
const dy = imagParts[Math.min(idx + 2, freqs.length - 1)] - imagParts[Math.max(idx - 2, 0)];
return (Math.atan2(dy, dx) * 180) / Math.PI;
},
itemStyle: { color: t.palette[0], opacity: 0.9 },
emphasis: { disabled: true },
},
],
});
Part of Nyquist Plot for Control Systems on anyplot.ai.
