A semicircular parliament seat chart visualizes political party representation by arranging seats in concentric arcs. Each seat is displayed as an individual dot or segment, colored by party affiliation. This visualization is ideal for showing the composition of legislative bodies, election results, and voting bloc distributions at a glance.

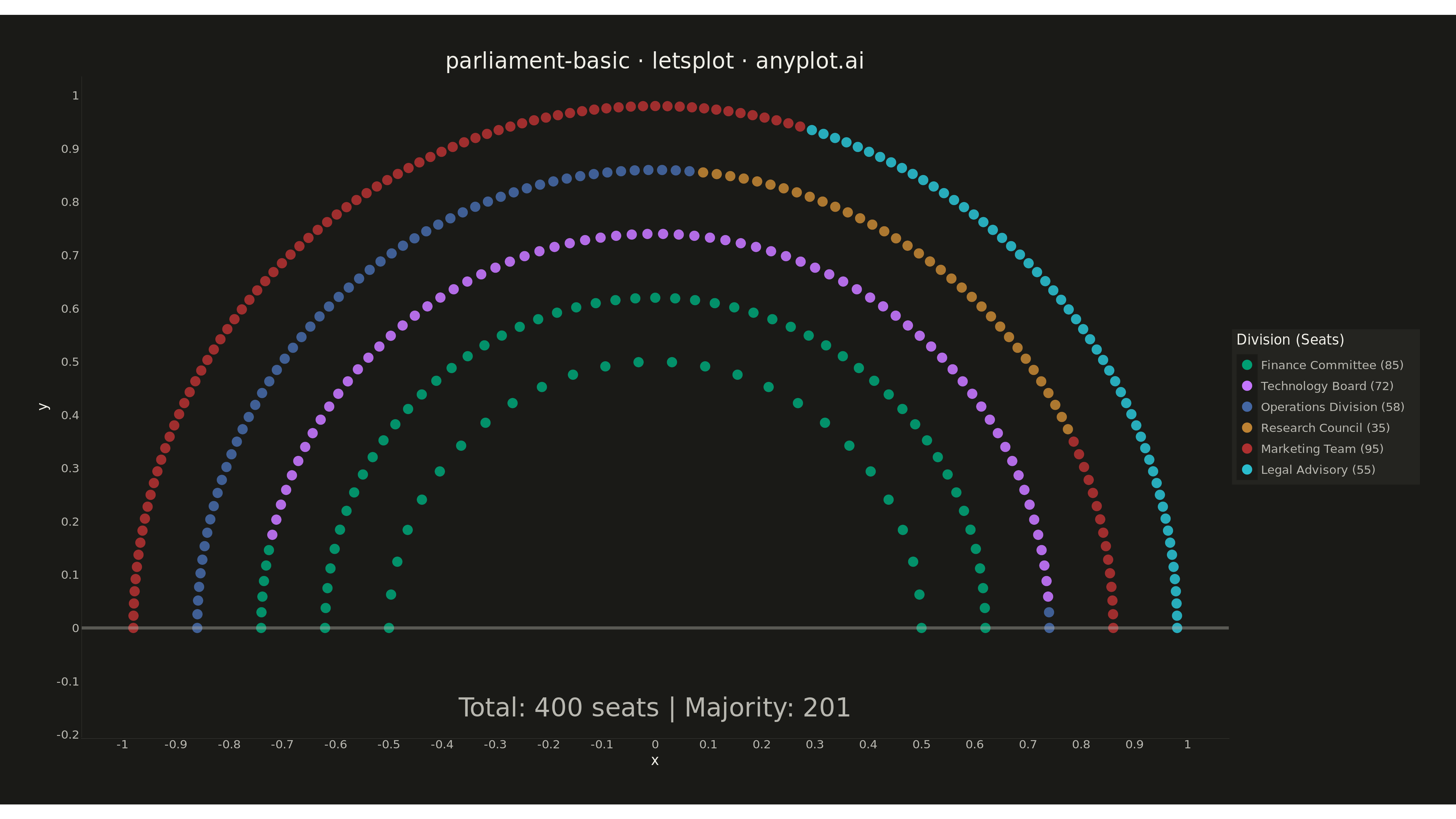

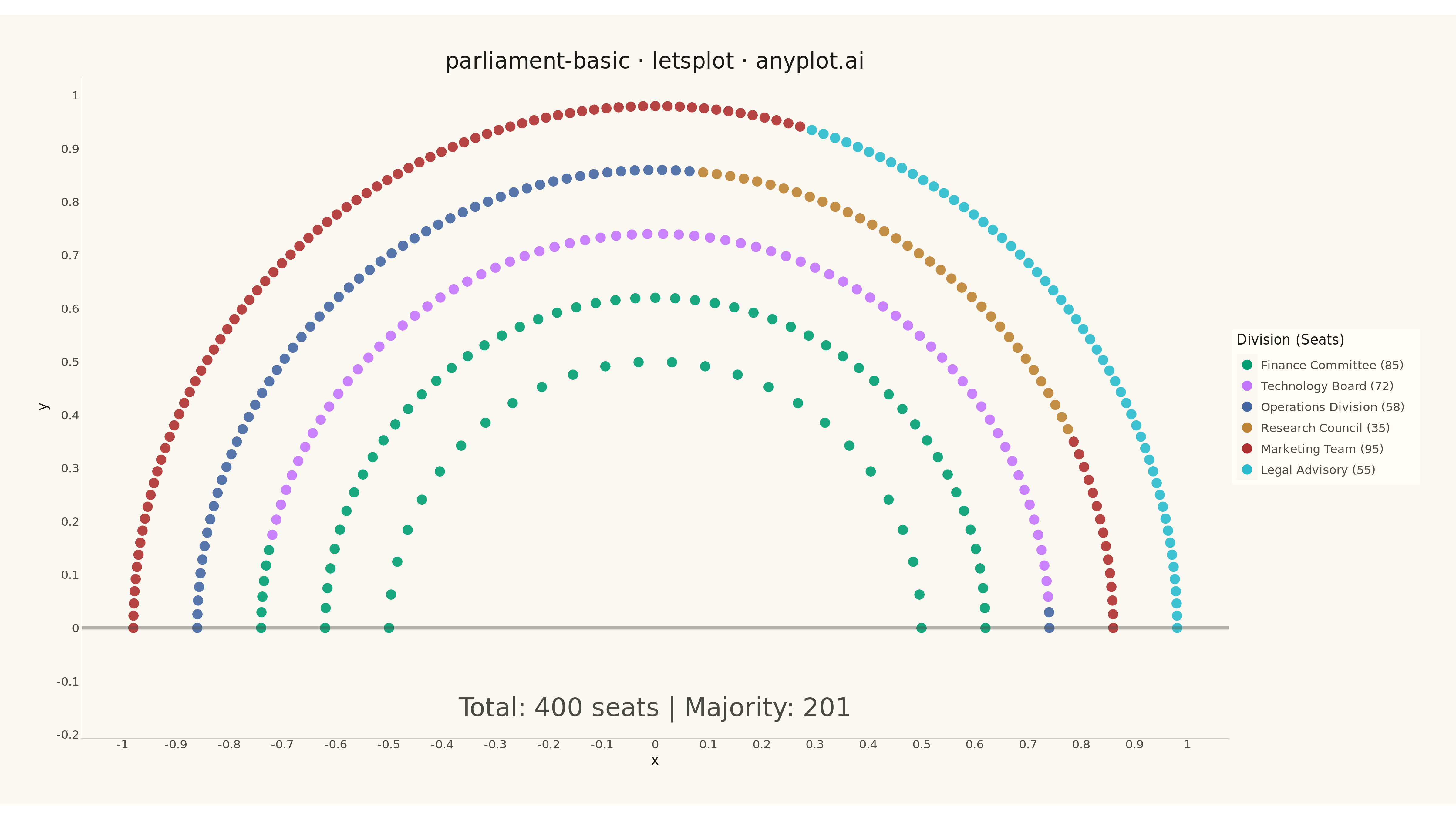

Parliament Seat Chart rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
parliament-basic: Parliament Seat Chart
Library: letsplot 4.9.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-17
"""
# ruff: noqa: F405
"""anyplot.ai
parliament-basic: Parliament Seat Chart
Library: letsplot | Python 3.13
Quality: pending | Updated: 2026-05-17
"""

import os

import numpy as np
import pandas as pd
from lets_plot import *


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette - first series ALWAYS #009E73
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD"]

# Data - Board of Directors composition (neutral, non-political)
parties = [
    "Finance Committee",
    "Technology Board",
    "Operations Division",
    "Research Council",
    "Marketing Team",
    "Legal Advisory",
]
seats = [85, 72, 58, 35, 95, 55]

total_seats = sum(seats)
n_rows = 5

# Calculate seat positions in semicircular arrangement
row_weights = np.array([i + 1 for i in range(n_rows)])
seats_per_row = (row_weights / row_weights.sum() * total_seats).astype(int)
seats_per_row[-1] += total_seats - seats_per_row.sum()  # Adjust for rounding

x_positions = []
y_positions = []
party_labels = []

party_index = 0
remaining_in_party = seats[0]

for row_idx, row_seats in enumerate(seats_per_row):
    radius = 0.5 + row_idx * 0.12  # Radius increases for outer rows
    angles = np.linspace(np.pi, 0, row_seats)  # Semicircle from left to right

    for angle in angles:
        x = radius * np.cos(angle)
        y = radius * np.sin(angle)
        x_positions.append(x)
        y_positions.append(y)
        party_labels.append(parties[party_index])

        remaining_in_party -= 1
        if remaining_in_party == 0 and party_index < len(seats) - 1:
            party_index += 1
            remaining_in_party = seats[party_index]

# Create DataFrame
df = pd.DataFrame({"x": x_positions, "y": y_positions, "party": party_labels})

# Create legend labels with seat counts
party_seat_counts = dict(zip(parties, seats, strict=True))
df["party_label"] = df["party"].apply(lambda p: f"{p} ({party_seat_counts[p]})")

# Create color mapping (Okabe-Ito in order)
color_map = {
    f"{p} ({s})": IMPRINT[i]
    for i, (p, s) in enumerate(zip(parties, seats, strict=True))
}
color_values = [color_map[label] for label in df["party_label"].unique()]

# Theme-adaptive styling
anyplot_theme = theme(
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    axis_title=element_text(color=INK),
    axis_text=element_text(color=INK_SOFT),
    axis_line=element_line(color=INK_SOFT),
    plot_title=element_text(color=INK, size=24, hjust=0.5),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT),
    legend_title=element_text(color=INK),
    plot_margin=[40, 40, 40, 40],
)

# Build the plot
plot = (
    ggplot(df, aes(x="x", y="y", color="party_label"))
    + geom_point(size=5, alpha=0.9)
    + scale_color_manual(values=color_values)
    + coord_fixed(ratio=1)
    + theme_void()
    + anyplot_theme
    + labs(title="parliament-basic · letsplot · anyplot.ai", color="Division (Seats)")
    + ggsize(1600, 900)
)

# Add majority line annotation (horizontal line at y=0)
plot = plot + geom_hline(yintercept=0, color=INK_SOFT, size=1.5, alpha=0.4)

# Add total seats annotation
annotation_df = pd.DataFrame(
    {"x": [0], "y": [-0.15], "label": [f"Total: {total_seats} seats | Majority: {total_seats // 2 + 1}"]}
)
plot = plot + geom_text(data=annotation_df, mapping=aes(x="x", y="y", label="label"), size=14, color=INK_SOFT)

# Save as PNG and HTML with theme suffix
ggsave(plot, f"plot-{THEME}.png", path=".", scale=3)
ggsave(plot, f"plot-{THEME}.html", path=".")
