Parliament Seat Chart — Matplotlib

A semicircular parliament seat chart visualizes political party representation by arranging seats in concentric arcs. Each seat is displayed as an individual dot or segment, colored by party affiliation. This visualization is ideal for showing the composition of legislative bodies, election results, and voting bloc distributions at a glance.

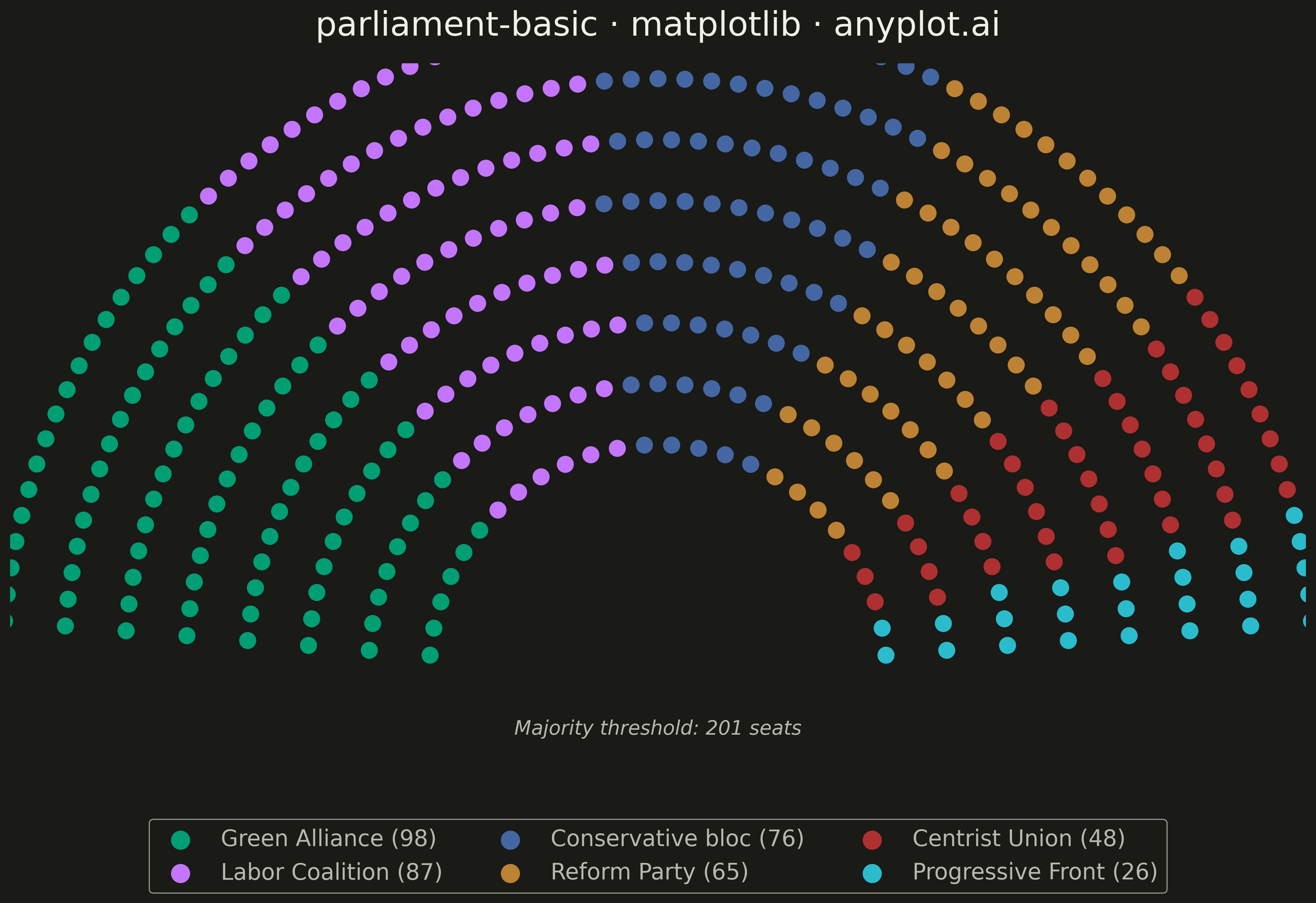

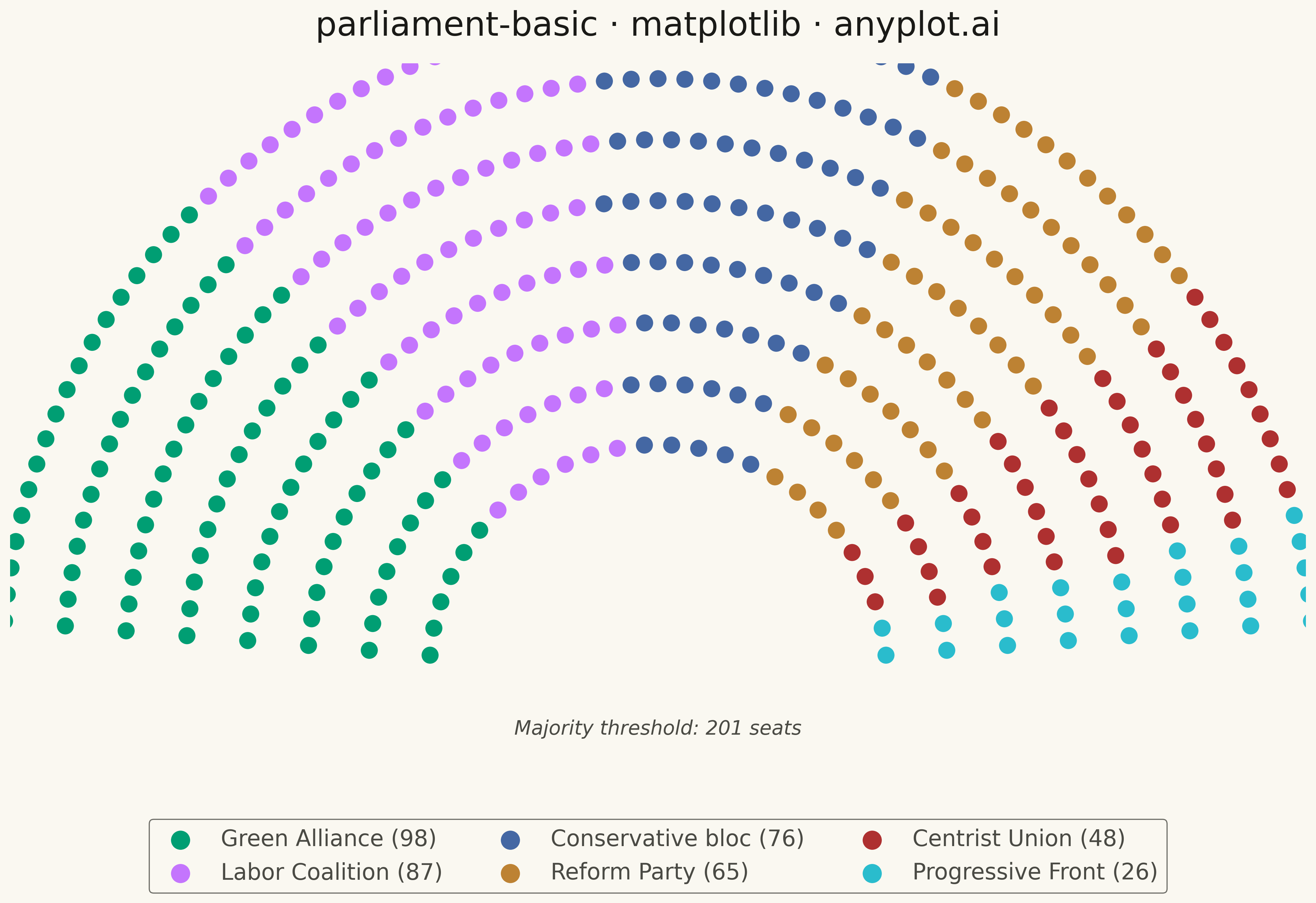

Parliament Seat Chart rendered with Matplotlib

Python source (Matplotlib)

""" anyplot.ai
parliament-basic: Parliament Seat Chart
Library: matplotlib 3.10.9 | Python 3.13.13
Quality: 92/100 | Updated: 2026-05-17
"""

import os

import matplotlib.pyplot as plt
import numpy as np


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette (canonical order, starting with brand green)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477"]

# Data - fictional parliament with 6 parties (400 total seats)
parties = [
    "Green Alliance",
    "Labor Coalition",
    "Conservative bloc",
    "Reform Party",
    "Centrist Union",
    "Progressive Front",
]
seats = [98, 87, 76, 65, 48, 26]
colors = IMPRINT[: len(parties)]
total_seats = sum(seats)

# Parliament layout parameters
n_rows = 8
inner_radius = 3.0
row_gap = 0.8
angle_margin = 0.08

# Calculate seats per row (more seats in outer rows)
row_weights = np.array([inner_radius + i * row_gap for i in range(n_rows)])
row_weights = row_weights / row_weights.sum()
seats_per_row = np.round(row_weights * total_seats).astype(int)

# Adjust to match total
diff = total_seats - seats_per_row.sum()
seats_per_row[-1] += diff

# Generate all seat positions with angles
seat_positions = []
for row_idx in range(n_rows):
    radius = inner_radius + row_idx * row_gap
    n_seats_in_row = seats_per_row[row_idx]
    angles = np.linspace(np.pi - angle_margin, angle_margin, n_seats_in_row)
    for angle in angles:
        seat_positions.append((radius, angle))

# Sort all seats by angle (left to right = pi to 0)
seat_positions.sort(key=lambda p: -p[1])

# Assign colors based on sorted position
all_x = []
all_y = []
all_colors = []

party_idx = 0
cumulative_seats = np.cumsum([0] + seats)

for i, (radius, angle) in enumerate(seat_positions):
    x = radius * np.cos(angle)
    y = radius * np.sin(angle)
    all_x.append(x)
    all_y.append(y)

    while party_idx < len(seats) - 1 and i >= cumulative_seats[party_idx + 1]:
        party_idx += 1
    all_colors.append(colors[party_idx])

all_x = np.array(all_x)
all_y = np.array(all_y)

# Create figure
fig, ax = plt.subplots(figsize=(16, 9), facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

# Plot seats as circles
ax.scatter(all_x, all_y, c=all_colors, s=160, edgecolors=PAGE_BG, linewidth=0.5, zorder=2)

# Create legend entries with seat counts
legend_elements = []
for party, seat_count, color in zip(parties, seats, colors, strict=True):
    legend_elements.append(
        plt.scatter([], [], c=color, s=200, edgecolors=PAGE_BG, linewidth=0.5, label=f"{party} ({seat_count})")
    )

leg = ax.legend(
    handles=legend_elements, loc="lower center", ncol=3, fontsize=16, frameon=True, bbox_to_anchor=(0.5, -0.05)
)
leg.get_frame().set_facecolor(PAGE_BG)
leg.get_frame().set_edgecolor(INK_SOFT)
leg.get_frame().set_linewidth(0.8)
for text in leg.get_texts():
    text.set_color(INK_SOFT)

# Add majority threshold annotation
majority = total_seats // 2 + 1
ax.text(0, -0.8, f"Majority threshold: {majority} seats", ha="center", fontsize=14, color=INK_SOFT, style="italic")

# Styling
ax.set_xlim(-8.5, 8.5)
ax.set_ylim(-2.5, 8)
ax.set_aspect("equal")
ax.axis("off")

# Title
ax.set_title("parliament-basic · matplotlib · anyplot.ai", fontsize=24, pad=20, fontweight="medium", color=INK)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=300, bbox_inches="tight", facecolor=PAGE_BG)

Part of Parliament Seat Chart on anyplot.ai.
