Parliament Seat Chart — plotnine

A semicircular parliament seat chart visualizes political party representation by arranging seats in concentric arcs. Each seat is displayed as an individual dot or segment, colored by party affiliation. This visualization is ideal for showing the composition of legislative bodies, election results, and voting bloc distributions at a glance.

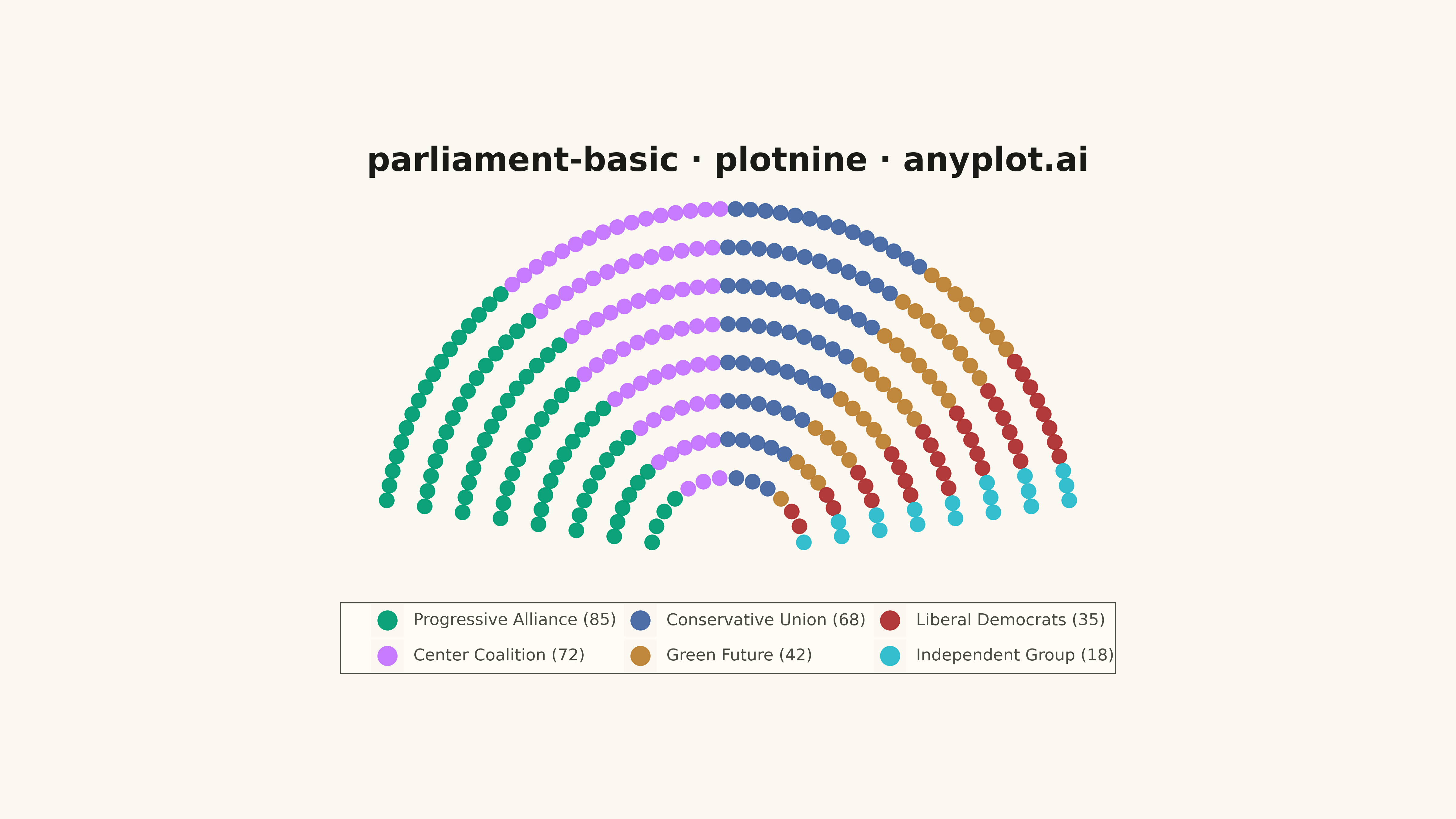

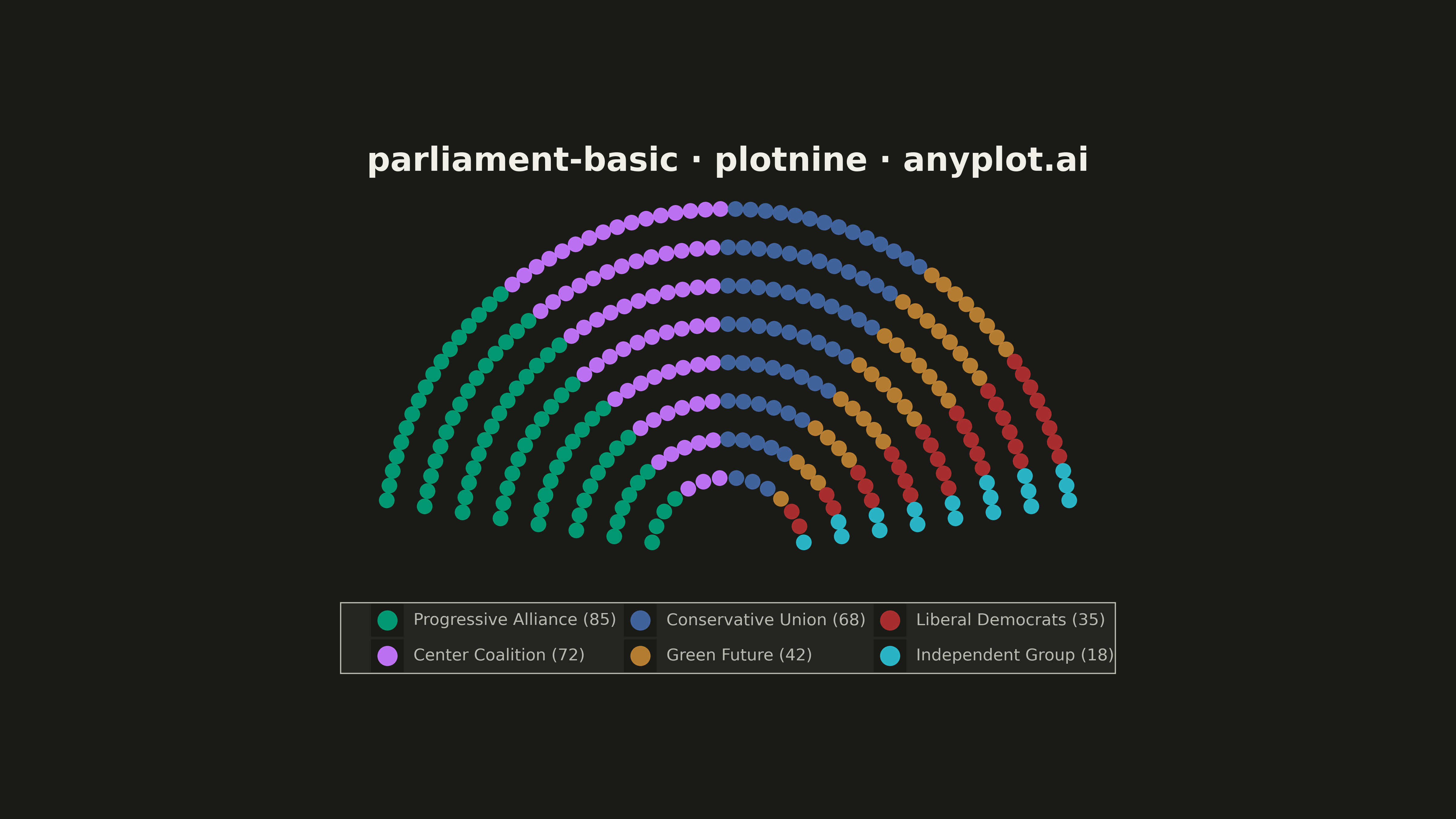

Parliament Seat Chart rendered with plotnine

Python source (plotnine)

""" anyplot.ai
parliament-basic: Parliament Seat Chart
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 93/100 | Updated: 2026-05-17
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    coord_fixed,
    element_rect,
    element_text,
    geom_point,
    ggplot,
    guide_legend,
    guides,
    labs,
    scale_color_manual,
    theme,
    theme_void,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Okabe-Ito palette - first series is always #009E73
IMPRINT = [
    "#009E73",  # bluish green (brand)
    "#C475FD",  # vermillion
    "#4467A3",  # blue
    "#BD8233",  # reddish purple
    "#AE3030",  # orange
    "#2ABCCD",  # sky blue
]

# Data - fictional parliament with neutral party names
parties = [
    {"party": "Progressive Alliance", "seats": 85},
    {"party": "Center Coalition", "seats": 72},
    {"party": "Conservative Union", "seats": 68},
    {"party": "Green Future", "seats": 42},
    {"party": "Liberal Democrats", "seats": 35},
    {"party": "Independent Group", "seats": 18},
]

# Assign Okabe-Ito colors to parties
for i, party in enumerate(parties):
    party["color"] = IMPRINT[i % len(IMPRINT)]

total_seats = sum(p["seats"] for p in parties)

# Calculate seat positions in semicircular arcs
n_rows = 8
inner_radius = 2.0
row_spacing = 1.0

# Calculate seats per row (more seats in outer rows)
seats_per_row = []
for i in range(n_rows):
    radius = inner_radius + i * row_spacing
    row_seats = int(np.ceil(radius * 3.5))
    seats_per_row.append(row_seats)

# Adjust to match total seats
total_calc = sum(seats_per_row)
scale = total_seats / total_calc
seats_per_row = [max(3, int(round(s * scale))) for s in seats_per_row]

# Fine-tune to exact total
diff = total_seats - sum(seats_per_row)
for i in range(abs(diff)):
    idx = i % n_rows
    if diff > 0:
        seats_per_row[n_rows - 1 - idx] += 1
    else:
        seats_per_row[n_rows - 1 - idx] -= 1

# Generate all seat positions with angles
all_seats = []
for row_idx, num_seats in enumerate(seats_per_row):
    radius = inner_radius + row_idx * row_spacing
    angles = np.linspace(np.pi * 0.95, np.pi * 0.05, num_seats)
    for angle in angles:
        all_seats.append({"angle": angle, "radius": radius, "x": radius * np.cos(angle), "y": radius * np.sin(angle)})

# Sort seats by angle (left to right) for party assignment
all_seats.sort(key=lambda s: -s["angle"])

# Assign parties to seats (left to right across the hemicycle)
seat_data = []
cumulative = 0
for seat in all_seats:
    running_total = 0
    for party in parties:
        running_total += party["seats"]
        if cumulative < running_total:
            seat_data.append({"x": seat["x"], "y": seat["y"], "party": party["party"]})
            break
    cumulative += 1

df = pd.DataFrame(seat_data)

# Create color mapping and legend labels
party_colors = {p["party"]: p["color"] for p in parties}
party_order = [p["party"] for p in parties]
seat_counts = {p["party"]: p["seats"] for p in parties}
legend_labels = {p: f"{p} ({seat_counts[p]})" for p in party_order}

# Convert party to categorical with order
df["party"] = pd.Categorical(df["party"], categories=party_order, ordered=True)

# Create plot
plot = (
    ggplot(df, aes(x="x", y="y", color="party"))
    + geom_point(size=6, alpha=0.95)
    + scale_color_manual(values=party_colors, labels=lambda x: [legend_labels.get(p, p) for p in x])
    + labs(title="parliament-basic · plotnine · anyplot.ai", color="")
    + coord_fixed(ratio=1)
    + theme_void()
    + theme(
        figure_size=(16, 9),
        plot_title=element_text(size=26, ha="center", weight="bold", color=INK),
        legend_title=element_text(size=16, color=INK),
        legend_text=element_text(size=13, color=INK_SOFT),
        legend_position="bottom",
        legend_direction="horizontal",
        legend_key_size=20,
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
        plot_margin=0.1,
    )
    + guides(color=guide_legend(nrow=2, override_aes={"size": 8}))
)

# Save
plot.save(f"plot-{THEME}.png", dpi=300, width=16, height=9, verbose=False)
