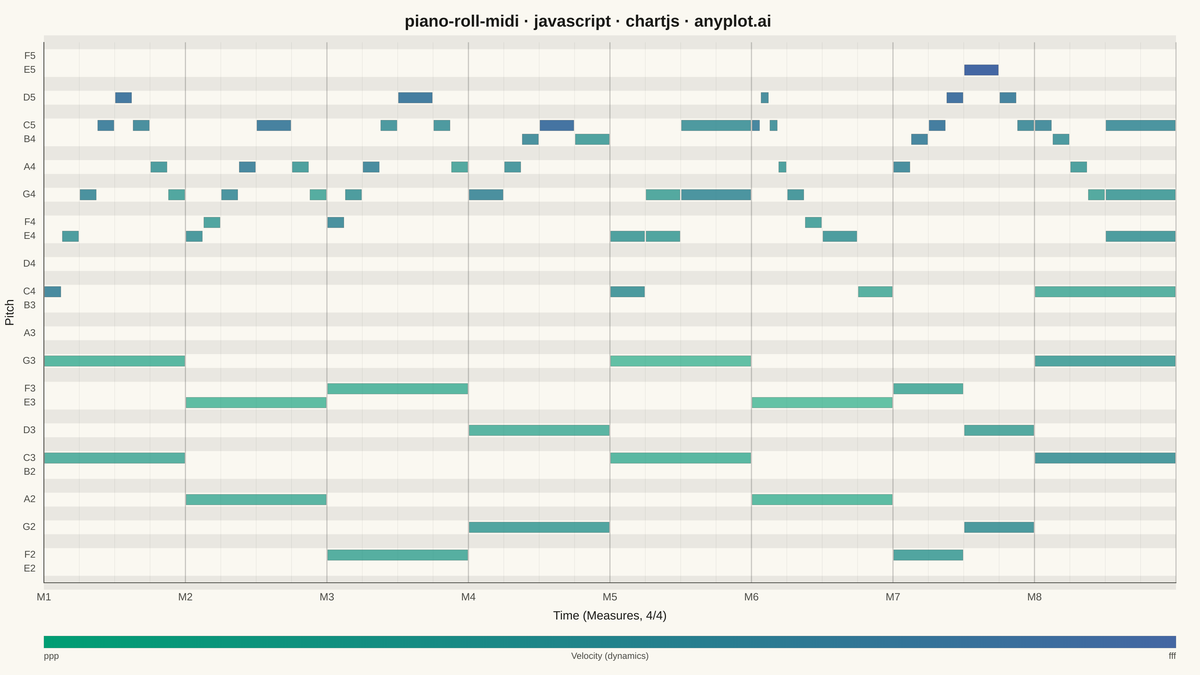

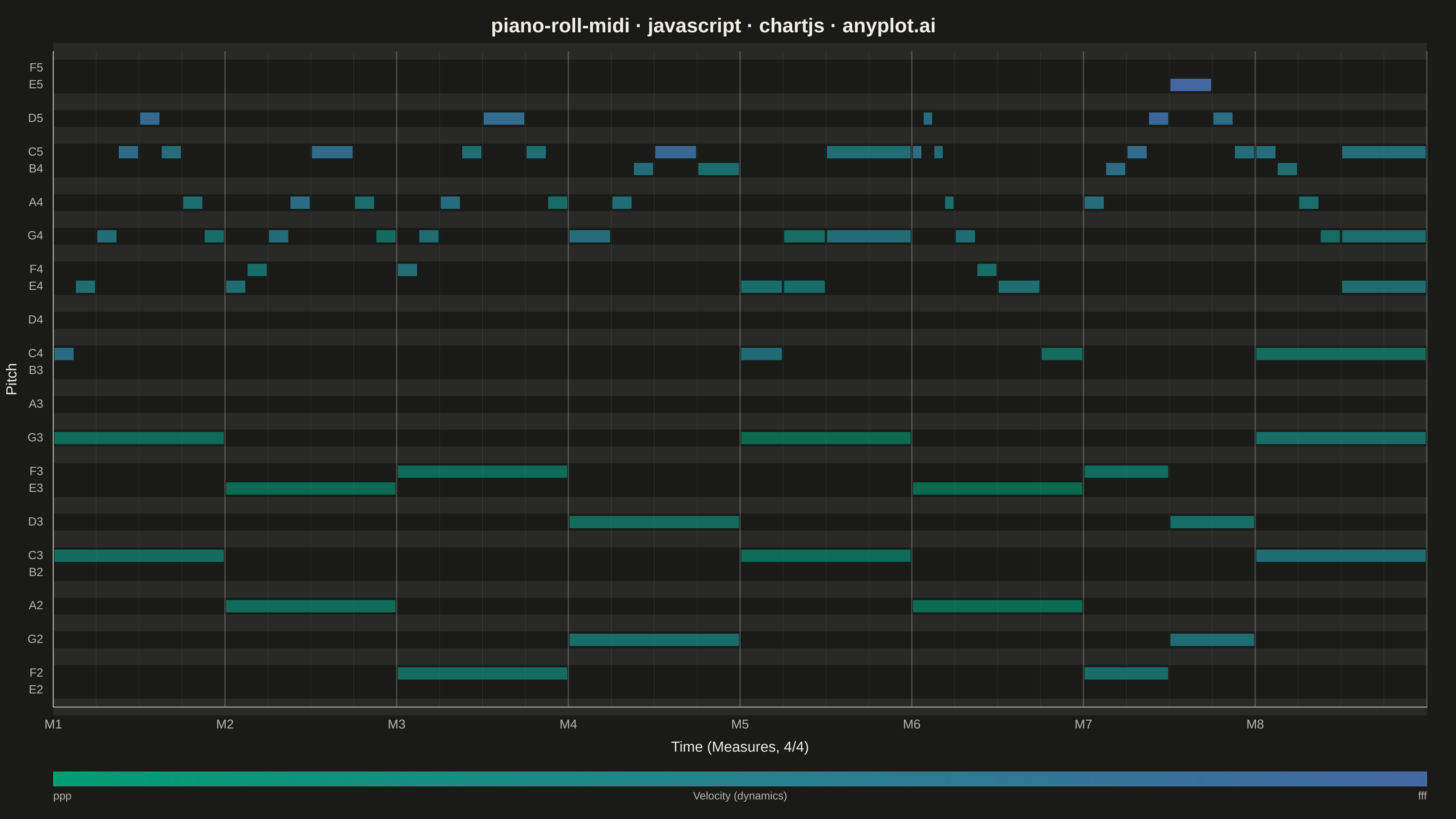

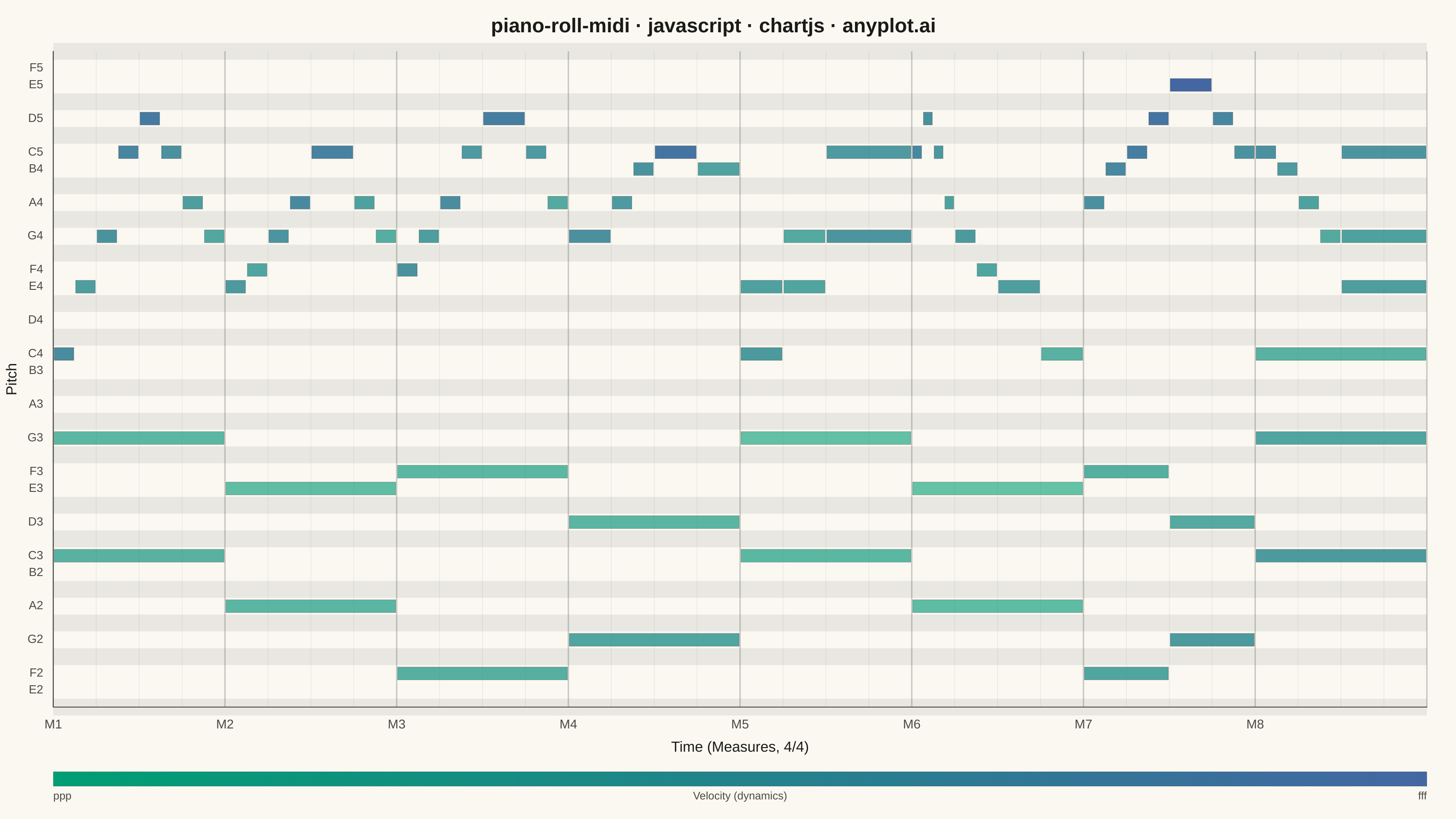

A grid-based visualization of musical notes over time, as seen in digital audio workstations (DAWs). Each note is represented as a horizontal rectangle positioned by pitch (y-axis) and time (x-axis), with bar length indicating note duration and color indicating velocity (dynamics). The background alternates between white and dark rows to mirror piano keyboard layout, with vertical grid lines marking beats and measures.
// anyplot.ai
// piano-roll-midi: MIDI Piano Roll Visualization
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-03
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const THEME = window.ANYPLOT_THEME;
// Note name helpers
const NOTE_NAMES = ['C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#', 'A', 'A#', 'B'];
const pitchName = (p) => NOTE_NAMES[p % 12] + (Math.floor(p / 12) - 1);
const isBlackKey = (p) => [1, 3, 6, 8, 10].includes(p % 12);
// Imprint sequential colormap: green (#009E73) → blue (#4467A3) for velocity
const lerpColor = (hex1, hex2, ratio) => {
const parse = (h) => [parseInt(h.slice(1, 3), 16), parseInt(h.slice(3, 5), 16), parseInt(h.slice(5, 7), 16)];
const [r1, g1, b1] = parse(hex1);
const [r2, g2, b2] = parse(hex2);
return [Math.round(r1 + (r2 - r1) * ratio), Math.round(g1 + (g2 - g1) * ratio), Math.round(b1 + (b2 - b1) * ratio)];
};
// MIDI data: 8-measure classical phrase in C major (4/4 time, 32 beats total)
// Fields: start (beat), duration (beats), pitch (MIDI number), velocity (0–127)
const notes = [
// Measure 1: C major — rising arpeggio melody over held bass 5th
{ start: 0, duration: 4, pitch: 48, velocity: 72 }, // C3 whole
{ start: 0, duration: 4, pitch: 55, velocity: 68 }, // G3 whole
{ start: 0, duration: 0.5, pitch: 60, velocity: 90 }, // C4
{ start: 0.5, duration: 0.5, pitch: 64, velocity: 82 }, // E4
{ start: 1, duration: 0.5, pitch: 67, velocity: 87 }, // G4
{ start: 1.5, duration: 0.5, pitch: 72, velocity: 93 }, // C5
{ start: 2, duration: 0.5, pitch: 74, velocity: 98 }, // D5
{ start: 2.5, duration: 0.5, pitch: 72, velocity: 88 }, // C5
{ start: 3, duration: 0.5, pitch: 69, velocity: 82 }, // A4
{ start: 3.5, duration: 0.5, pitch: 67, velocity: 77 }, // G4
// Measure 2: A minor — stepwise melody with lyrical shaping
{ start: 4, duration: 4, pitch: 45, velocity: 70 }, // A2 whole
{ start: 4, duration: 4, pitch: 52, velocity: 65 }, // E3 whole
{ start: 4, duration: 0.5, pitch: 64, velocity: 83 }, // E4
{ start: 4.5, duration: 0.5, pitch: 65, velocity: 78 }, // F4
{ start: 5, duration: 0.5, pitch: 67, velocity: 86 }, // G4
{ start: 5.5, duration: 0.5, pitch: 69, velocity: 91 }, // A4
{ start: 6, duration: 1, pitch: 72, velocity: 94 }, // C5 quarter
{ start: 7, duration: 0.5, pitch: 69, velocity: 80 }, // A4
{ start: 7.5, duration: 0.5, pitch: 67, velocity: 74 }, // G4
// Measure 3: F major — wider leap to high register
{ start: 8, duration: 4, pitch: 41, velocity: 73 }, // F2 whole
{ start: 8, duration: 4, pitch: 53, velocity: 68 }, // F3 whole
{ start: 8, duration: 0.5, pitch: 65, velocity: 87 }, // F4
{ start: 8.5, duration: 0.5, pitch: 67, velocity: 82 }, // G4
{ start: 9, duration: 0.5, pitch: 69, velocity: 89 }, // A4
{ start: 9.5, duration: 0.5, pitch: 72, velocity: 84 }, // C5
{ start: 10, duration: 1, pitch: 74, velocity: 96 }, // D5 quarter
{ start: 11, duration: 0.5, pitch: 72, velocity: 84 }, // C5
{ start: 11.5, duration: 0.5, pitch: 69, velocity: 76 }, // A4
// Measure 4: G dominant — leading tone tension to first climax
{ start: 12, duration: 4, pitch: 43, velocity: 78 }, // G2 whole
{ start: 12, duration: 4, pitch: 50, velocity: 70 }, // D3 whole
{ start: 12, duration: 1, pitch: 67, velocity: 88 }, // G4 quarter
{ start: 13, duration: 0.5, pitch: 69, velocity: 84 }, // A4
{ start: 13.5, duration: 0.5, pitch: 71, velocity: 87 }, // B4
{ start: 14, duration: 1, pitch: 72, velocity: 100 }, // C5 — forte
{ start: 15, duration: 1, pitch: 71, velocity: 79 }, // B4 quarter
// Measure 5: C major — harmonized dyads (parallel 3rds)
{ start: 16, duration: 4, pitch: 48, velocity: 68 }, // C3 whole
{ start: 16, duration: 4, pitch: 55, velocity: 63 }, // G3 whole
{ start: 16, duration: 1, pitch: 60, velocity: 83 }, // C4 with E4
{ start: 16, duration: 1, pitch: 64, velocity: 80 }, // E4
{ start: 17, duration: 1, pitch: 64, velocity: 78 }, // E4 with G4
{ start: 17, duration: 1, pitch: 67, velocity: 76 }, // G4
{ start: 18, duration: 2, pitch: 67, velocity: 86 }, // G4 half with C5
{ start: 18, duration: 2, pitch: 72, velocity: 84 }, // C5
// Measure 6: A minor — 16th-note ornament + descending close
{ start: 20, duration: 4, pitch: 45, velocity: 66 }, // A2 whole
{ start: 20, duration: 4, pitch: 52, velocity: 62 }, // E3 whole
{ start: 20, duration: 0.25, pitch: 72, velocity: 92 }, // C5 16th
{ start: 20.25,duration: 0.25, pitch: 74, velocity: 88 }, // D5 16th
{ start: 20.5, duration: 0.25, pitch: 72, velocity: 85 }, // C5 16th
{ start: 20.75,duration: 0.25, pitch: 69, velocity: 80 }, // A4 16th
{ start: 21, duration: 0.5, pitch: 67, velocity: 83 }, // G4
{ start: 21.5, duration: 0.5, pitch: 65, velocity: 78 }, // F4
{ start: 22, duration: 1, pitch: 64, velocity: 82 }, // E4 quarter
{ start: 23, duration: 1, pitch: 60, velocity: 72 }, // C4 quarter
// Measure 7: F → G — building intensity toward final climax
{ start: 24, duration: 2, pitch: 41, velocity: 78 }, // F2 half
{ start: 24, duration: 2, pitch: 53, velocity: 73 }, // F3 half
{ start: 26, duration: 2, pitch: 43, velocity: 83 }, // G2 half
{ start: 26, duration: 2, pitch: 50, velocity: 76 }, // D3 half
{ start: 24, duration: 0.5, pitch: 69, velocity: 88 }, // A4
{ start: 24.5, duration: 0.5, pitch: 71, velocity: 92 }, // B4
{ start: 25, duration: 0.5, pitch: 72, velocity: 96 }, // C5
{ start: 25.5, duration: 0.5, pitch: 74, velocity: 100 }, // D5
{ start: 26, duration: 1, pitch: 76, velocity: 105 }, // E5 — peak
{ start: 27, duration: 0.5, pitch: 74, velocity: 93 }, // D5
{ start: 27.5, duration: 0.5, pitch: 72, velocity: 87 }, // C5
// Measure 8: C major — descending resolution over final chord
{ start: 28, duration: 4, pitch: 48, velocity: 83 }, // C3 whole
{ start: 28, duration: 4, pitch: 55, velocity: 78 }, // G3 whole
{ start: 28, duration: 4, pitch: 60, velocity: 72 }, // C4 whole (chord)
{ start: 28, duration: 0.5, pitch: 72, velocity: 88 }, // C5
{ start: 28.5, duration: 0.5, pitch: 71, velocity: 84 }, // B4
{ start: 29, duration: 0.5, pitch: 69, velocity: 80 }, // A4
{ start: 29.5, duration: 0.5, pitch: 67, velocity: 75 }, // G4
{ start: 30, duration: 2, pitch: 64, velocity: 82 }, // E4 half
{ start: 30, duration: 2, pitch: 67, velocity: 80 }, // G4 half (chord)
{ start: 30, duration: 2, pitch: 72, velocity: 86 }, // C5 half (chord)
];
// Pitch display range with margins
const MIN_PITCH = Math.min(...notes.map((n) => n.pitch)) - 1;
const MAX_PITCH = Math.max(...notes.map((n) => n.pitch)) + 1;
const MIN_VEL = Math.min(...notes.map((n) => n.velocity));
const MAX_VEL = Math.max(...notes.map((n) => n.velocity));
// Velocity → rgba: hue shifts green→blue, alpha scales with loudness (soft=60%, loud=100%)
const velColor = (vel) => {
const ratio = (vel - MIN_VEL) / (MAX_VEL - MIN_VEL);
const [r, g, b] = lerpColor(t.seq[0], t.seq[1], ratio);
const alpha = (0.60 + 0.40 * ratio).toFixed(2);
return `rgba(${r},${g},${b},${alpha})`;
};
// Integer bounds so stepSize:1 generates integer ticks (non-integer min+stepSize = non-integer ticks)
const DISPLAY_MIN = MIN_PITCH - 1;
const DISPLAY_MAX = MAX_PITCH + 1;
// Mount
const canvas = document.createElement('canvas');
document.getElementById('container').appendChild(canvas);
// Custom plugin: piano key backgrounds + beat grid + note rectangles
const pianoRollPlugin = {
id: 'pianoRoll',
beforeDraw(chart) {
const { ctx, chartArea: { left, right, top, bottom }, scales: { x, y } } = chart;
// Black key row shading
for (let p = Math.floor(y.min); p <= Math.ceil(y.max); p++) {
if (isBlackKey(p)) {
const rowTop = y.getPixelForValue(p + 0.5);
const rowBottom = y.getPixelForValue(p - 0.5);
ctx.fillStyle = THEME === 'light'
? 'rgba(26,26,23,0.07)'
: 'rgba(240,239,232,0.07)';
ctx.fillRect(left, rowTop, right - left, rowBottom - rowTop);
}
}
// Beat gridlines (between measure boundaries)
ctx.lineWidth = 0.5;
ctx.strokeStyle = THEME === 'light'
? 'rgba(26,26,23,0.10)'
: 'rgba(240,239,232,0.10)';
for (let beat = 1; beat < 32; beat++) {
if (beat % 4 !== 0) {
const px = x.getPixelForValue(beat);
ctx.beginPath();
ctx.moveTo(px, top);
ctx.lineTo(px, bottom);
ctx.stroke();
}
}
// Measure boundary lines (stronger)
ctx.lineWidth = 1.5;
ctx.strokeStyle = THEME === 'light'
? 'rgba(26,26,23,0.22)'
: 'rgba(240,239,232,0.22)';
for (let m = 0; m <= 8; m++) {
const px = x.getPixelForValue(m * 4);
ctx.beginPath();
ctx.moveTo(px, top);
ctx.lineTo(px, bottom);
ctx.stroke();
}
},
afterDraw(chart) {
const { ctx, chartArea: { left, right }, scales: { x, y } } = chart;
const borderCol = THEME === 'light' ? 'rgba(0,0,0,0.30)' : 'rgba(0,0,0,0.55)';
notes.forEach((note) => {
const x1 = x.getPixelForValue(note.start) + 1;
const x2 = x.getPixelForValue(note.start + note.duration) - 1;
const y1 = y.getPixelForValue(note.pitch + 0.38);
const y2 = y.getPixelForValue(note.pitch - 0.38);
const nw = Math.max(x2 - x1, 2);
const nh = y2 - y1;
ctx.fillStyle = velColor(note.velocity);
ctx.fillRect(x1, y1, nw, nh);
ctx.strokeStyle = borderCol;
ctx.lineWidth = 0.5;
ctx.strokeRect(x1, y1, nw, nh);
});
// --- Velocity colorbar ---
const cbW = right - left;
const cbH = 16;
const cbTop = chart.height - 52;
const grad = ctx.createLinearGradient(left, 0, left + cbW, 0);
grad.addColorStop(0, t.seq[0]);
grad.addColorStop(1, t.seq[1]);
ctx.fillStyle = grad;
ctx.fillRect(left, cbTop, cbW, cbH);
ctx.strokeStyle = THEME === 'light' ? 'rgba(26,26,23,0.20)' : 'rgba(240,239,232,0.20)';
ctx.lineWidth = 0.5;
ctx.strokeRect(left, cbTop, cbW, cbH);
// Labels: "ppp" left, title center, "fff" right
const labelY = cbTop + cbH + 5;
ctx.fillStyle = t.inkSoft;
ctx.font = '12px sans-serif';
ctx.textBaseline = 'top';
ctx.textAlign = 'left';
ctx.fillText('ppp', left, labelY);
ctx.textAlign = 'center';
ctx.fillText('Velocity (dynamics)', left + cbW / 2, labelY);
ctx.textAlign = 'right';
ctx.fillText('fff', left + cbW, labelY);
},
};
// Title length scaling (per plot-generator.md)
const title = 'piano-roll-midi · javascript · chartjs · anyplot.ai';
const titleSize = Math.max(18, Math.round(22 * Math.min(1, 67 / title.length)));
new Chart(canvas, {
type: 'scatter',
// Invisible anchor points force Chart.js to initialize the scales and generate ticks
data: {
datasets: [{
data: [{ x: 0, y: DISPLAY_MIN }, { x: 32, y: DISPLAY_MAX }],
pointRadius: 0,
borderWidth: 0,
backgroundColor: 'transparent',
}],
},
plugins: [pianoRollPlugin],
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
layout: { padding: { top: 16, right: 32, bottom: 65, left: 0 } },
plugins: {
title: {
display: true,
text: title,
color: t.ink,
font: { size: titleSize },
padding: { bottom: 14 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: {
type: 'linear',
min: 0,
max: 32,
grid: { display: false },
border: { color: t.inkSoft },
ticks: {
stepSize: 4,
callback: (val) => (val % 4 === 0 && val < 32) ? `M${val / 4 + 1}` : null,
color: t.inkSoft,
font: { size: 14 },
maxRotation: 0,
autoSkip: false,
},
title: {
display: true,
text: 'Time (Measures, 4/4)',
color: t.ink,
font: { size: 16 },
},
},
y: {
type: 'linear',
min: DISPLAY_MIN,
max: DISPLAY_MAX,
grid: { display: false },
border: { color: t.inkSoft },
ticks: {
stepSize: 1,
callback: (val) => (Number.isInteger(val) && !isBlackKey(val)) ? pitchName(val) : null,
color: t.inkSoft,
font: { size: 13 },
autoSkip: false,
maxTicksLimit: 100,
},
title: {
display: true,
text: 'Pitch',
color: t.ink,
font: { size: 16 },
},
},
},
},
});
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/piano-roll-midi/chartjs/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "piano-roll-midi",
"language": "javascript",
"library": "chartjs",
"page": "https://anyplot.ai/piano-roll-midi/javascript/chartjs",
"hub": "https://anyplot.ai/piano-roll-midi",
"code_json": "https://api.anyplot.ai/specs/piano-roll-midi/chartjs/code",
"spec_json": "https://api.anyplot.ai/specs/piano-roll-midi",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/chartjs/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/chartjs/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/chartjs/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/chartjs/plot-dark.html",
"quality_score": 88.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of MIDI Piano Roll Visualization on anyplot.ai.
