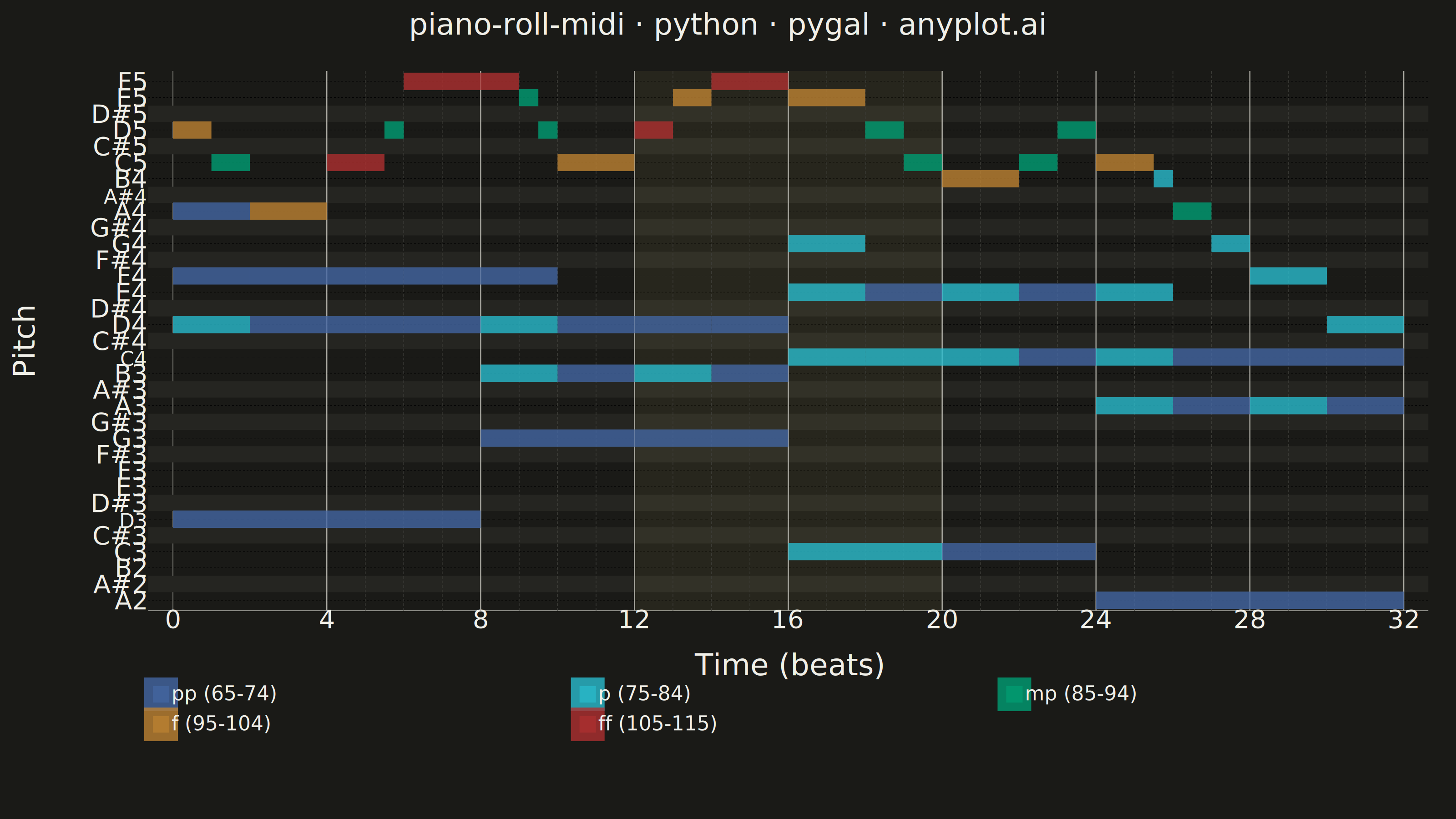

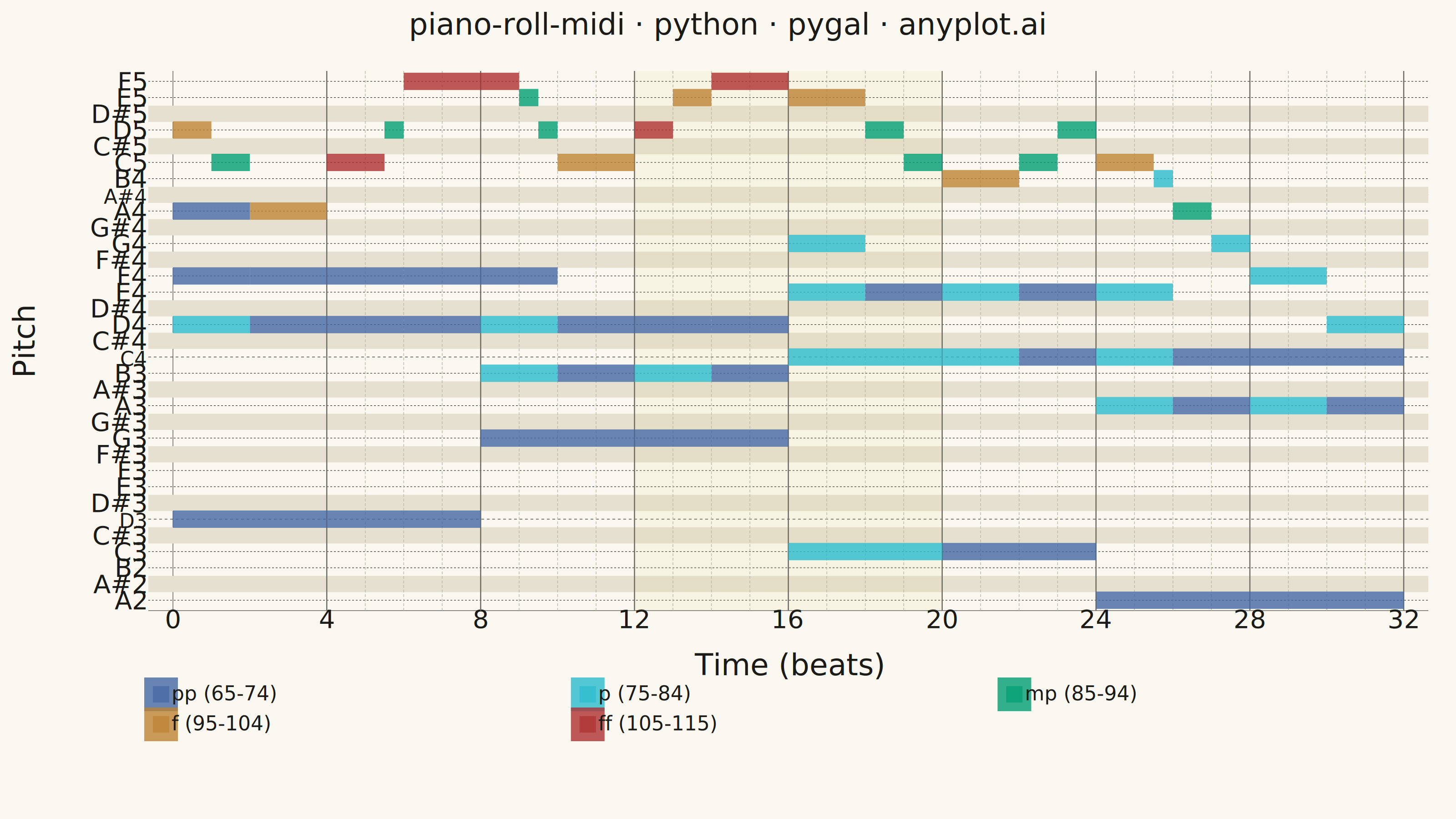

A grid-based visualization of musical notes over time, as seen in digital audio workstations (DAWs). Each note is represented as a horizontal rectangle positioned by pitch (y-axis) and time (x-axis), with bar length indicating note duration and color indicating velocity (dynamics). The background alternates between white and dark rows to mirror piano keyboard layout, with vertical grid lines marking beats and measures.
""" anyplot.ai
piano-roll-midi: MIDI Piano Roll Visualization
Library: pygal 3.1.0 | Python 3.13.13
Quality: 84/100 | Updated: 2026-06-03
"""
import os
import re
import sys
# This file is named pygal.py; remove its directory from sys.path so the
# import below resolves to the installed pygal package, not this file.
_here = os.path.dirname(os.path.abspath(__file__))
sys.path = [p for p in sys.path if p not in ("", _here)]
import pygal
from pygal.style import Style
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
ROW_SHADE = "#E5E0D0" if THEME == "light" else "#252521" # black-key row tint
# Velocity colormap: Imprint soft(blue)→loud(red) matches spec "piano→forte" semantic
VELOCITY_COLORS = ("#4467A3", "#2ABCCD", "#009E73", "#BD8233", "#AE3030")
# Data: D-minor jazz ii–V–I–vi (Dm7–G7–Cmaj7–Am7), 8 measures, 4/4 time
# Three layers: bass (bottom), chord voicings (middle), melody (top)
notes = [
# M1-2: Dm7 — bass D3, chord D4/F4/A4, melody D5→F5
{"start": 0, "duration": 4, "pitch": 50, "velocity": 70},
{"start": 4, "duration": 4, "pitch": 50, "velocity": 65},
{"start": 0, "duration": 2, "pitch": 62, "velocity": 75},
{"start": 0, "duration": 2, "pitch": 65, "velocity": 72},
{"start": 0, "duration": 2, "pitch": 69, "velocity": 72},
{"start": 2, "duration": 2, "pitch": 62, "velocity": 70},
{"start": 2, "duration": 2, "pitch": 65, "velocity": 68},
{"start": 4, "duration": 2, "pitch": 62, "velocity": 73},
{"start": 4, "duration": 2, "pitch": 65, "velocity": 70},
{"start": 6, "duration": 2, "pitch": 62, "velocity": 68},
{"start": 6, "duration": 2, "pitch": 65, "velocity": 65},
{"start": 0, "duration": 1, "pitch": 74, "velocity": 95},
{"start": 1, "duration": 1, "pitch": 72, "velocity": 88},
{"start": 2, "duration": 2, "pitch": 69, "velocity": 100},
{"start": 4, "duration": 1.5, "pitch": 72, "velocity": 105},
{"start": 5.5, "duration": 0.5, "pitch": 74, "velocity": 88},
{"start": 6, "duration": 2, "pitch": 77, "velocity": 110},
# M3-4: G7 — bass G3, chord B3/D4/F4, melody climbs to F5 (dominant tension)
{"start": 8, "duration": 4, "pitch": 55, "velocity": 72},
{"start": 12, "duration": 4, "pitch": 55, "velocity": 67},
{"start": 8, "duration": 2, "pitch": 59, "velocity": 78},
{"start": 8, "duration": 2, "pitch": 62, "velocity": 75},
{"start": 8, "duration": 2, "pitch": 65, "velocity": 73},
{"start": 10, "duration": 2, "pitch": 59, "velocity": 73},
{"start": 10, "duration": 2, "pitch": 62, "velocity": 70},
{"start": 12, "duration": 2, "pitch": 59, "velocity": 76},
{"start": 12, "duration": 2, "pitch": 62, "velocity": 73},
{"start": 14, "duration": 2, "pitch": 59, "velocity": 70},
{"start": 14, "duration": 2, "pitch": 62, "velocity": 68},
{"start": 8, "duration": 1, "pitch": 77, "velocity": 105},
{"start": 9, "duration": 0.5, "pitch": 76, "velocity": 92},
{"start": 9.5, "duration": 0.5, "pitch": 74, "velocity": 87},
{"start": 10, "duration": 2, "pitch": 72, "velocity": 100},
{"start": 12, "duration": 1, "pitch": 74, "velocity": 108},
{"start": 13, "duration": 1, "pitch": 76, "velocity": 95},
{"start": 14, "duration": 2, "pitch": 77, "velocity": 112},
# M5-6: Cmaj7 — bass C3, chord C4/E4/G4, melody resolves E5→B4
{"start": 16, "duration": 4, "pitch": 48, "velocity": 75},
{"start": 20, "duration": 4, "pitch": 48, "velocity": 70},
{"start": 16, "duration": 2, "pitch": 60, "velocity": 80},
{"start": 16, "duration": 2, "pitch": 64, "velocity": 77},
{"start": 16, "duration": 2, "pitch": 67, "velocity": 77},
{"start": 18, "duration": 2, "pitch": 60, "velocity": 75},
{"start": 18, "duration": 2, "pitch": 64, "velocity": 73},
{"start": 20, "duration": 2, "pitch": 60, "velocity": 78},
{"start": 20, "duration": 2, "pitch": 64, "velocity": 75},
{"start": 22, "duration": 2, "pitch": 60, "velocity": 72},
{"start": 22, "duration": 2, "pitch": 64, "velocity": 70},
{"start": 16, "duration": 2, "pitch": 76, "velocity": 100},
{"start": 18, "duration": 1, "pitch": 74, "velocity": 92},
{"start": 19, "duration": 1, "pitch": 72, "velocity": 88},
{"start": 20, "duration": 2, "pitch": 71, "velocity": 95},
{"start": 22, "duration": 1, "pitch": 72, "velocity": 90},
{"start": 23, "duration": 1, "pitch": 74, "velocity": 87},
# M7-8: Am7 — bass A2, chord A3/C4/E4, melody winds down to D4
{"start": 24, "duration": 4, "pitch": 45, "velocity": 72},
{"start": 28, "duration": 4, "pitch": 45, "velocity": 68},
{"start": 24, "duration": 2, "pitch": 57, "velocity": 78},
{"start": 24, "duration": 2, "pitch": 60, "velocity": 75},
{"start": 24, "duration": 2, "pitch": 64, "velocity": 75},
{"start": 26, "duration": 2, "pitch": 57, "velocity": 73},
{"start": 26, "duration": 2, "pitch": 60, "velocity": 72},
{"start": 28, "duration": 2, "pitch": 57, "velocity": 76},
{"start": 28, "duration": 2, "pitch": 60, "velocity": 73},
{"start": 30, "duration": 2, "pitch": 57, "velocity": 70},
{"start": 30, "duration": 2, "pitch": 60, "velocity": 68},
{"start": 24, "duration": 1.5, "pitch": 72, "velocity": 95},
{"start": 25.5, "duration": 0.5, "pitch": 71, "velocity": 83},
{"start": 26, "duration": 1, "pitch": 69, "velocity": 88},
{"start": 27, "duration": 1, "pitch": 67, "velocity": 82},
{"start": 28, "duration": 2, "pitch": 65, "velocity": 78},
{"start": 30, "duration": 2, "pitch": 62, "velocity": 75},
]
CHROMATIC = ["C", "C#", "D", "D#", "E", "F", "F#", "G", "G#", "A", "A#", "B"]
BLACK_KEYS = {1, 3, 6, 8, 10}
min_pitch = min(n["pitch"] for n in notes)
max_pitch = max(n["pitch"] for n in notes)
pitch_range = list(range(min_pitch, max_pitch + 1))
pitch_names = {p: f"{CHROMATIC[p % 12]}{p // 12 - 1}" for p in pitch_range}
total_beats = max(n["start"] + n["duration"] for n in notes)
velocity_bands = [
("pp (65-74)", 65, 74),
("p (75-84)", 75, 84),
("mp (85-94)", 85, 94),
("f (95-104)", 95, 104),
("ff (105-115)", 105, 115),
]
custom_style = Style(
background=PAGE_BG,
plot_background=PAGE_BG,
foreground=INK,
foreground_strong=INK,
foreground_subtle=INK_MUTED,
colors=VELOCITY_COLORS,
title_font_size=66,
label_font_size=56,
major_label_font_size=44,
legend_font_size=44,
value_font_size=36,
stroke_width=38,
font_family="'DejaVu Sans', Arial, sans-serif",
)
chart = pygal.XY(
width=3200,
height=1800,
style=custom_style,
title="piano-roll-midi · python · pygal · anyplot.ai",
x_title="Time (beats)",
y_title="Pitch",
show_x_guides=True,
show_y_guides=True,
show_dots=False,
stroke=True,
fill=False,
allow_interruptions=True,
margin_left=140,
margin_right=60,
margin_top=80,
margin_bottom=130,
legend_at_bottom=True,
legend_box_size=36,
x_labels=list(range(0, int(total_beats) + 1, 4)),
truncate_legend=-1,
)
chart.y_labels = [{"value": p, "label": pitch_names[p]} for p in pitch_range]
for band_name, v_lo, v_hi in velocity_bands:
pts = []
for n in notes:
if v_lo <= n["velocity"] <= v_hi:
pts.append((n["start"], n["pitch"]))
pts.append((n["start"] + n["duration"], n["pitch"]))
pts.append(None)
chart.add(band_name, pts if pts else [])
# SVG post-processing: inject grid layers and row shading behind the data
svg_bytes = chart.render()
svg_str = svg_bytes.decode("utf-8")
try:
h_guides = [] # (y, width) — horizontal pitch-row guides
v_guides = [] # (x, y0, height) — vertical measure guides
for m in re.finditer(r"<path\b([^>]+)>", svg_str):
tag = m.group(1)
if "guide" not in tag:
continue
# Horizontal guide: M{x} {y} h{w}
hm = re.search(r'\bd="M[\d.]+\s+([\d.]+)\s+h([\d.]+)"', tag)
if hm:
y, w = float(hm.group(1)), float(hm.group(2))
if w > 200:
h_guides.append((y, w))
# Vertical guide: M{x} {y0} v{h} OR M{x} {y0} L{x} {y1}
vm = re.search(r'\bd="M([\d.]+)\s+([\d.]+)\s+(?:v([\d.]+)|L[\d.]+\s+([\d.]+))"', tag)
if vm:
x, y0 = float(vm.group(1)), float(vm.group(2))
h = float(vm.group(3)) if vm.group(3) else float(vm.group(4)) - y0
if h > 200:
v_guides.append((x, y0, h))
h_guides = sorted({(round(y, 3), w) for y, w in h_guides}, key=lambda t: t[0])
v_guides = sorted({(round(x, 1), round(y0, 1), round(h, 1)) for x, y0, h in v_guides}, key=lambda t: t[0])
inject_parts = []
# 1. Black-key row shading
if len(h_guides) == len(pitch_range) and len(h_guides) > 1:
pitch_sorted = sorted(pitch_range)
y_map = {pitch_sorted[-(i + 1)]: h_guides[i][0] for i in range(len(pitch_sorted))}
plot_w = h_guides[0][1]
row_h = abs(h_guides[1][0] - h_guides[0][0])
for p in pitch_range:
if p % 12 in BLACK_KEYS and p in y_map:
inject_parts.append(
f'<rect x="0" y="{y_map[p] - row_h / 2:.3f}" '
f'width="{plot_w:.1f}" height="{row_h:.3f}" '
f'fill="{ROW_SHADE}"/>'
)
# 2. G7 dominant climax highlight (measures 3-4, beats 8-16): amber wash
# Emphasizes the harmonic tension peak of the ii-V-I-vi progression
if len(v_guides) >= 5:
gy0, gh = v_guides[0][1], v_guides[0][2]
cx1, cx2 = v_guides[2][0], v_guides[4][0]
climax_fill = "rgba(221,204,119,0.10)" if THEME == "light" else "rgba(221,204,119,0.07)"
inject_parts.append(
f'<rect x="{cx1:.2f}" y="{gy0:.2f}" width="{cx2 - cx1:.2f}" height="{gh:.2f}" fill="{climax_fill}"/>'
)
# 3. Beat subdivision lines (quarter-note grid, thinner/muted vs measure lines)
BEAT_COLOR = "#C0B8A8" if THEME == "light" else "#3C3C37"
if len(v_guides) >= 2:
dx_per_measure = v_guides[1][0] - v_guides[0][0]
dx_per_beat = dx_per_measure / 4
gy0, gh = v_guides[0][1], v_guides[0][2]
for i, (mx, _, _) in enumerate(v_guides):
if i < len(v_guides) - 1:
for b in range(1, 4):
bx = mx + b * dx_per_beat
inject_parts.append(
f'<line x1="{bx:.2f}" y1="{gy0:.2f}" x2="{bx:.2f}" y2="{gy0 + gh:.2f}" '
f'stroke="{BEAT_COLOR}" stroke-width="1.5" stroke-dasharray="6,4"/>'
)
# 4. Measure boundary lines re-injected above row shading (stronger than beat lines)
if len(v_guides) >= 1:
gy0, gh = v_guides[0][1], v_guides[0][2]
for mx, _, _ in v_guides:
inject_parts.append(
f'<line x1="{mx:.2f}" y1="{gy0:.2f}" x2="{mx:.2f}" y2="{gy0 + gh:.2f}" '
f'stroke="{INK_MUTED}" stroke-width="2.5"/>'
)
if inject_parts:
inject_svg = "\n".join(inject_parts) + "\n"
svg_str = re.sub(
r'(<g\b[^>]*\bclass="[^"]*\bserie\b[^"]*"[^>]*>)', lambda mo: inject_svg + mo.group(1), svg_str, count=1
)
except Exception:
pass # graceful degradation: render without custom grid/shading
import cairosvg
cairosvg.svg2png(bytestring=svg_str.encode("utf-8"), write_to=f"plot-{THEME}.png")
with open(f"plot-{THEME}.html", "w", encoding="utf-8") as f:
f.write(svg_str)
Part of MIDI Piano Roll Visualization on anyplot.ai.
