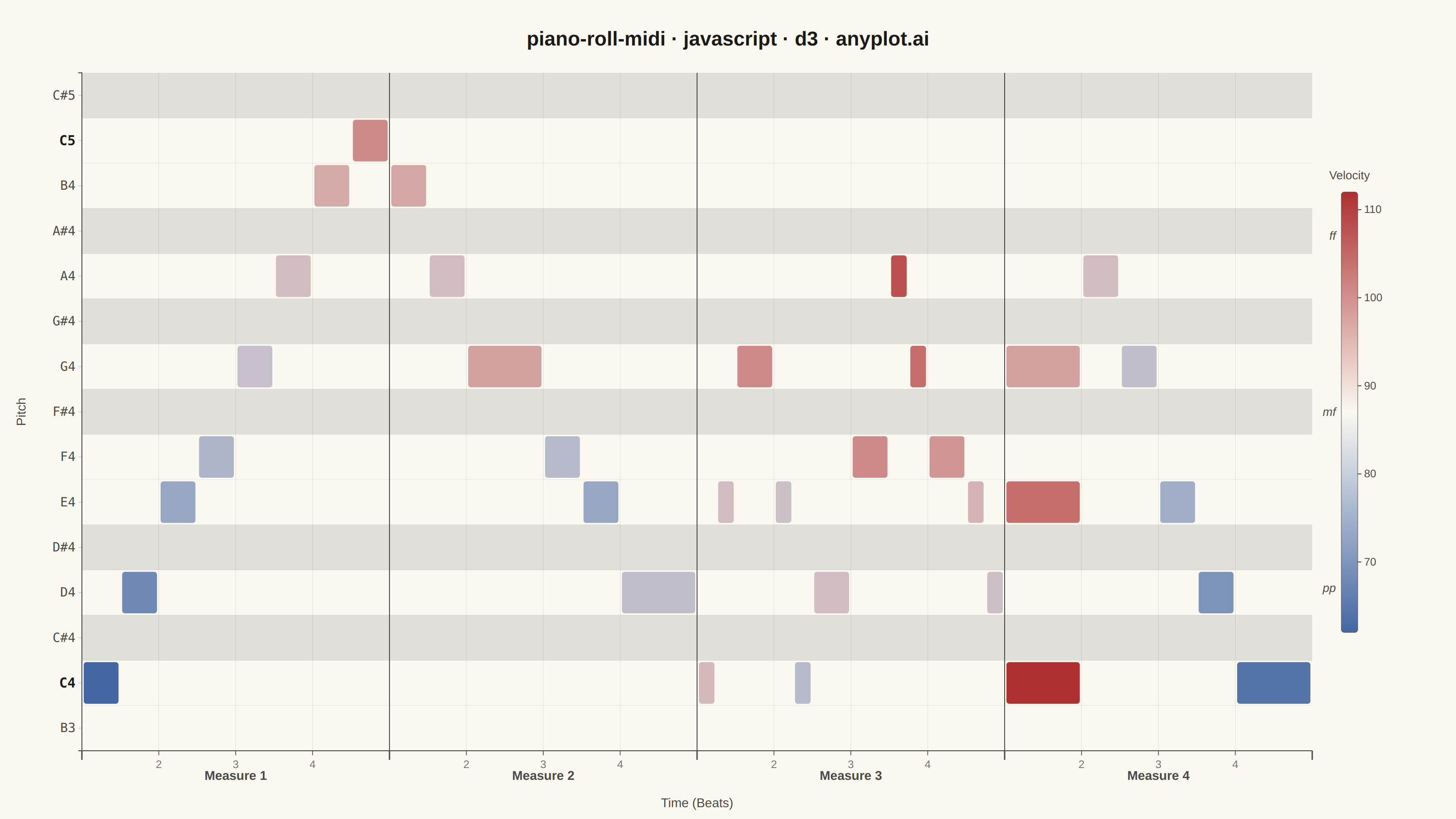

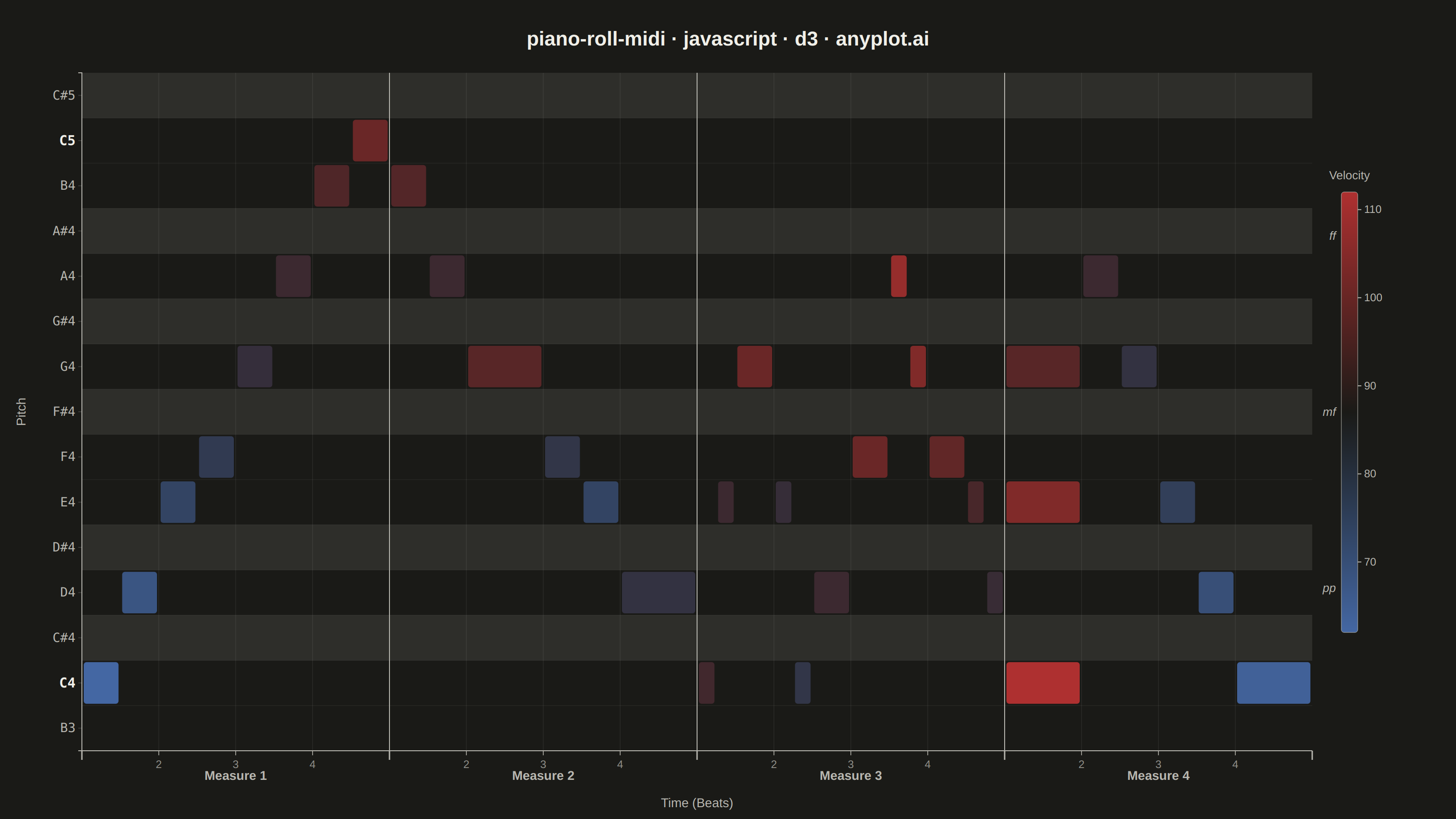

A grid-based visualization of musical notes over time, as seen in digital audio workstations (DAWs). Each note is represented as a horizontal rectangle positioned by pitch (y-axis) and time (x-axis), with bar length indicating note duration and color indicating velocity (dynamics). The background alternates between white and dark rows to mirror piano keyboard layout, with vertical grid lines marking beats and measures.
// anyplot.ai
// piano-roll-midi: MIDI Piano Roll Visualization
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 92/100 | Created: 2026-06-03
const t = window.ANYPLOT_TOKENS;
const theme = window.ANYPLOT_THEME;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 80, right: 158, bottom: 75, left: 90 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- MIDI notes: 4-measure C major melody with crescendo/decrescendo arc ---
const notes = [
// Measure 1 — ascending scale, pp to mf
{ pitch: 60, start: 0, duration: 0.5, velocity: 62 },
{ pitch: 62, start: 0.5, duration: 0.5, velocity: 68 },
{ pitch: 64, start: 1.0, duration: 0.5, velocity: 74 },
{ pitch: 65, start: 1.5, duration: 0.5, velocity: 78 },
{ pitch: 67, start: 2.0, duration: 0.5, velocity: 84 },
{ pitch: 69, start: 2.5, duration: 0.5, velocity: 88 },
{ pitch: 71, start: 3.0, duration: 0.5, velocity: 94 },
{ pitch: 72, start: 3.5, duration: 0.5, velocity: 100 },
// Measure 2 — descending, f to mp
{ pitch: 71, start: 4.0, duration: 0.5, velocity: 95 },
{ pitch: 69, start: 4.5, duration: 0.5, velocity: 88 },
{ pitch: 67, start: 5.0, duration: 1.0, velocity: 96 },
{ pitch: 65, start: 6.0, duration: 0.5, velocity: 80 },
{ pitch: 64, start: 6.5, duration: 0.5, velocity: 74 },
{ pitch: 62, start: 7.0, duration: 1.0, velocity: 82 },
// Measure 3 — syncopated rhythm, building to climax
{ pitch: 60, start: 8.0, duration: 0.25, velocity: 90 },
{ pitch: 64, start: 8.25, duration: 0.25, velocity: 88 },
{ pitch: 67, start: 8.5, duration: 0.5, velocity: 100 },
{ pitch: 64, start: 9.0, duration: 0.25, velocity: 85 },
{ pitch: 60, start: 9.25, duration: 0.25, velocity: 80 },
{ pitch: 62, start: 9.5, duration: 0.5, velocity: 88 },
{ pitch: 65, start: 10.0, duration: 0.5, velocity: 100 },
{ pitch: 69, start: 10.5, duration: 0.25, velocity: 108 },
{ pitch: 67, start: 10.75, duration: 0.25, velocity: 104 },
{ pitch: 65, start: 11.0, duration: 0.5, velocity: 98 },
{ pitch: 64, start: 11.5, duration: 0.25, velocity: 92 },
{ pitch: 62, start: 11.75, duration: 0.25, velocity: 86 },
// Measure 4 — final resolution: C major chord + fade out
{ pitch: 60, start: 12.0, duration: 1.0, velocity: 112 },
{ pitch: 64, start: 12.0, duration: 1.0, velocity: 104 },
{ pitch: 67, start: 12.0, duration: 1.0, velocity: 96 },
{ pitch: 69, start: 13.0, duration: 0.5, velocity: 88 },
{ pitch: 67, start: 13.5, duration: 0.5, velocity: 82 },
{ pitch: 64, start: 14.0, duration: 0.5, velocity: 76 },
{ pitch: 62, start: 14.5, duration: 0.5, velocity: 70 },
{ pitch: 60, start: 15.0, duration: 1.0, velocity: 64 },
];
const totalBeats = 16;
// Note name helpers
const NOTE_NAMES = ['C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#', 'A', 'A#', 'B'];
const isBlackKey = (midi) => [1, 3, 6, 8, 10].includes(midi % 12);
const midiToName = (midi) => `${NOTE_NAMES[midi % 12]}${Math.floor(midi / 12) - 1}`;
// Auto-fit pitch range with 1-semitone padding
const minPitch = d3.min(notes, (d) => d.pitch) - 1; // 59 = B3
const maxPitch = d3.max(notes, (d) => d.pitch) + 1; // 73 = C#5
const domainSpan = maxPitch - minPitch + 1; // 15 semitones
const rowH = ih / domainSpan;
// Velocity range
const velMin = d3.min(notes, (d) => d.velocity);
const velMax = d3.max(notes, (d) => d.velocity);
// Scales
const x = d3.scaleLinear().domain([0, totalBeats]).range([0, iw]);
const y = d3.scaleLinear()
.domain([minPitch - 0.5, maxPitch + 0.5])
.range([ih, 0]);
// Velocity color: blue (t.div[2], low) → neutral (t.div[1]) → red (t.div[0], high)
const velColor = d3.scaleSequential()
.domain([velMin, velMax])
.interpolator(d3.interpolateRgbBasis([t.div[2], t.div[1], t.div[0]]));
// Black key row background (slightly darker than page bg)
const blackKeyBg = theme === "light" ? "rgba(26,26,23,0.11)" : "rgba(240,239,232,0.09)";
const pitchRange = d3.range(minPitch, maxPitch + 1);
// --- SVG setup ---
const svg = d3.select("#container").append("svg")
.attr("width", width)
.attr("height", height);
const defs = svg.append("defs");
defs.append("clipPath").attr("id", "notes-clip")
.append("rect").attr("width", iw).attr("height", ih);
// Velocity gradient for colorbar: bottom=low=blue, top=high=red
const grad = defs.append("linearGradient")
.attr("id", "vel-grad")
.attr("x1", "0%").attr("x2", "0%")
.attr("y1", "100%").attr("y2", "0%");
grad.append("stop").attr("offset", "0%").attr("stop-color", t.div[2]);
grad.append("stop").attr("offset", "50%").attr("stop-color", t.div[1]);
grad.append("stop").attr("offset", "100%").attr("stop-color", t.div[0]);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Background: alternating rows for black / white keys ---
g.selectAll(".key-row")
.data(pitchRange)
.join("rect")
.attr("class", "key-row")
.attr("x", 0)
.attr("y", (p) => y(p + 0.5))
.attr("width", iw)
.attr("height", rowH)
.attr("fill", (p) => (isBlackKey(p) ? blackKeyBg : "transparent"));
// --- Horizontal row dividers ---
g.selectAll(".row-line")
.data(pitchRange)
.join("line")
.attr("class", "row-line")
.attr("x1", 0).attr("x2", iw)
.attr("y1", (p) => y(p - 0.5))
.attr("y2", (p) => y(p - 0.5))
.attr("stroke", t.grid)
.attr("stroke-width", 0.3);
// --- Vertical gridlines: beat and measure boundaries (skip borders at 0 and totalBeats) ---
d3.range(1, totalBeats).forEach((beat) => {
const isMeasure = beat % 4 === 0;
g.append("line")
.attr("x1", x(beat)).attr("x2", x(beat))
.attr("y1", 0).attr("y2", ih)
.attr("stroke", isMeasure ? t.inkSoft : t.grid)
.attr("stroke-width", isMeasure ? 1 : 0.4);
});
// --- Note rectangles ---
const noteGap = 2;
const notesG = g.append("g").attr("clip-path", "url(#notes-clip)");
notesG.selectAll(".note")
.data(notes)
.join("rect")
.attr("class", "note")
.attr("x", (d) => x(d.start) + noteGap)
.attr("y", (d) => y(d.pitch + 0.5) + noteGap)
.attr("width", (d) => Math.max(x(d.start + d.duration) - x(d.start) - noteGap * 2, 6))
.attr("height", Math.max(rowH - noteGap * 2, 2))
.attr("fill", (d) => velColor(d.velocity))
.attr("rx", 3)
.attr("ry", 3);
// --- Y axis: note names ---
const yAxisG = g.append("g")
.call(d3.axisLeft(y)
.tickValues(pitchRange)
.tickFormat(midiToName)
.tickSize(4)
);
yAxisG.selectAll("text")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.style("font-family", "monospace");
yAxisG.selectAll("line").attr("stroke", t.grid);
yAxisG.select(".domain").attr("stroke", t.inkSoft);
// Emphasize C notes (octave markers)
yAxisG.selectAll("text")
.filter((d) => d % 12 === 0)
.attr("fill", t.ink)
.style("font-weight", "700")
.style("font-size", "15px");
// Y axis label
svg.append("text")
.attr("transform", `translate(${28},${margin.top + ih / 2}) rotate(-90)`)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text("Pitch");
// --- X axis: beats and measure labels ---
const xAxisG = g.append("g").attr("transform", `translate(0,${ih})`);
xAxisG.append("line")
.attr("x1", 0).attr("x2", iw)
.attr("y1", 0).attr("y2", 0)
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1);
// Measure labels (centered within each measure)
xAxisG.selectAll(".measure-label")
.data(d3.range(4))
.join("text")
.attr("class", "measure-label")
.attr("x", (m) => x(m * 4 + 2))
.attr("y", 32)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.style("font-weight", "600")
.text((m) => `Measure ${m + 1}`);
// Beat tick marks and sub-beat labels
d3.range(0, totalBeats + 1).forEach((beat) => {
xAxisG.append("line")
.attr("x1", x(beat)).attr("x2", x(beat))
.attr("y1", 0)
.attr("y2", beat % 4 === 0 ? 10 : 5)
.attr("stroke", t.inkSoft)
.attr("stroke-width", beat % 4 === 0 ? 1.5 : 0.8);
});
// Beat numbers within measures (2, 3, 4)
d3.range(0, totalBeats).forEach((beat) => {
const beatInMeasure = beat % 4;
if (beatInMeasure !== 0) {
xAxisG.append("text")
.attr("x", x(beat))
.attr("y", 19)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "12px")
.style("opacity", "0.75")
.text(beatInMeasure + 1);
}
});
// X axis label
g.append("text")
.attr("x", iw / 2)
.attr("y", ih + 62)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text("Time (Beats)");
// --- Velocity colorbar ---
const cbW = 18;
const cbH = Math.round(ih * 0.65);
const cbX = margin.left + iw + 32;
const cbY = margin.top + Math.round((ih - cbH) / 2);
svg.append("rect")
.attr("x", cbX).attr("y", cbY)
.attr("width", cbW).attr("height", cbH)
.attr("fill", "url(#vel-grad)")
.attr("rx", 3);
svg.append("rect")
.attr("x", cbX).attr("y", cbY)
.attr("width", cbW).attr("height", cbH)
.attr("fill", "none")
.attr("stroke", t.inkSoft)
.attr("stroke-width", 0.5)
.attr("rx", 3);
// Colorbar axis
const velScale = d3.scaleLinear()
.domain([velMin, velMax])
.range([cbY + cbH, cbY]);
const cbAxisG = svg.append("g")
.attr("transform", `translate(${cbX + cbW}, 0)`)
.call(d3.axisRight(velScale).ticks(5).tickSize(4));
cbAxisG.selectAll("text")
.attr("fill", t.inkSoft)
.style("font-size", "12px");
cbAxisG.selectAll("line").attr("stroke", t.inkSoft);
cbAxisG.select(".domain").attr("stroke", "none");
svg.append("text")
.attr("x", cbX + cbW / 2)
.attr("y", cbY - 14)
.attr("text-anchor", "middle")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.text("Velocity");
// Dynamic range markers (pp, mf, ff) to the left of the colorbar
[{ f: 0.1, label: "pp" }, { f: 0.5, label: "mf" }, { f: 0.9, label: "ff" }].forEach(({ f, label }) => {
const vel = velMin + f * (velMax - velMin);
svg.append("text")
.attr("x", cbX - 6)
.attr("y", velScale(vel) + 4)
.attr("text-anchor", "end")
.attr("fill", t.inkSoft)
.style("font-size", "13px")
.style("font-style", "italic")
.text(label);
});
// --- Title ---
svg.append("text")
.attr("x", width / 2)
.attr("y", 50)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "22px")
.style("font-weight", "600")
.text("piano-roll-midi · javascript · d3 · anyplot.ai");
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/piano-roll-midi/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "piano-roll-midi",
"language": "javascript",
"library": "d3",
"page": "https://anyplot.ai/piano-roll-midi/javascript/d3",
"hub": "https://anyplot.ai/piano-roll-midi",
"code_json": "https://api.anyplot.ai/specs/piano-roll-midi/d3/code",
"spec_json": "https://api.anyplot.ai/specs/piano-roll-midi",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/d3/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/d3/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/d3/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/piano-roll-midi/javascript/d3/plot-dark.html",
"quality_score": 92.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of MIDI Piano Roll Visualization on anyplot.ai.
