A quiver plot displays vector fields using arrows positioned at grid points. Each arrow represents a vector at that location, with direction indicating the vector's angle and length proportional to its magnitude. This visualization reveals flow patterns, gradients, and field structure in two-dimensional data.

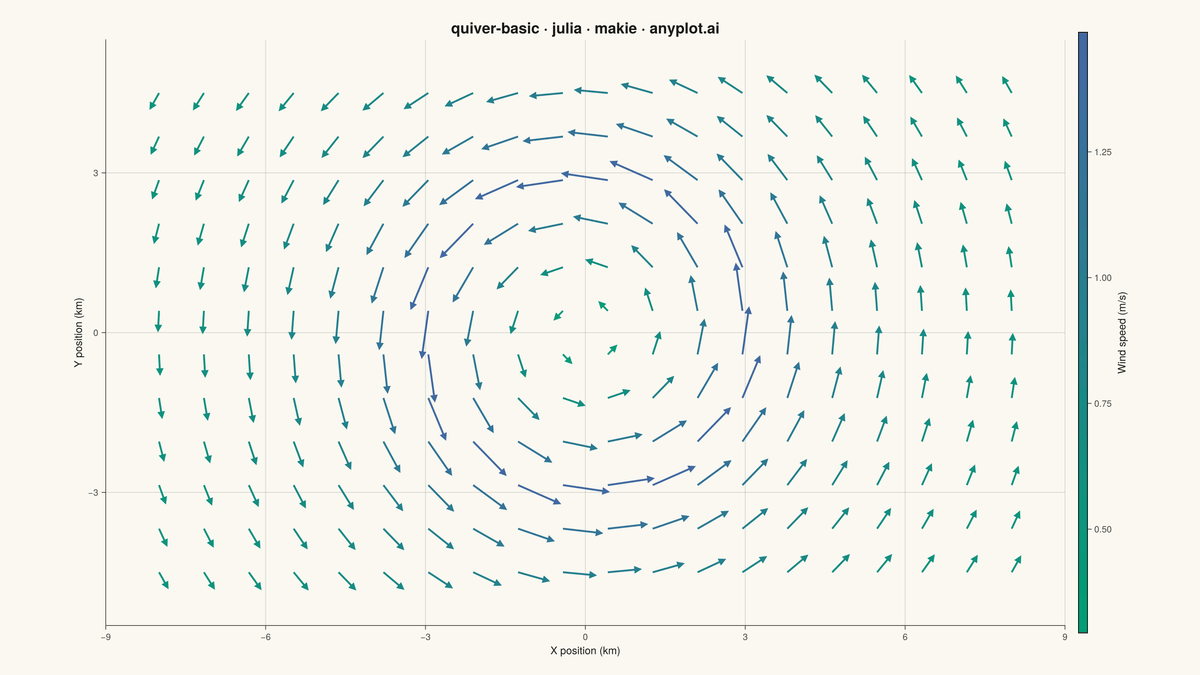

Basic Quiver Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# quiver-basic: Basic Quiver Plot
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 89/100 | Created: 2026-07-24

using CairoMakie
using Colors
using Random

Random.seed!(42)

# --- Theme tokens -----------------------------------------------------------
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"

# Imprint sequential colormap — magnitude is single-polarity (speed >= 0)
const IMPRINT_SEQ = [colorant"#009E73", colorant"#4467A3"]

# --- Data: cyclonic vortex wind field ---------------------------------------
# Rankine vortex: solid-body rotation inside the eyewall (speed rises with r),
# then decays with 1/r outside it. v_max=33 m/s matches the Category-1
# hurricane threshold, so the field genuinely mirrors a real cyclone's wind
# profile rather than a gentle breeze.
nx, ny = 20, 12
xs = range(-8.0, 8.0; length = nx)
ys = range(-4.5, 4.5; length = ny)

x = vec([xi for xi in xs, yi in ys])
y = vec([yi for xi in xs, yi in ys])

r = sqrt.(x .^ 2 .+ y .^ 2)
theta = atan.(y, x)
core_radius = 3.0
v_max = 33.0
speed = ifelse.(r .<= core_radius, v_max .* r ./ core_radius, v_max .* core_radius ./ max.(r, 1e-6))

# Floor the *displayed* arrow length (not the true speed) so the 1-2 grid
# points nearest the calm core never shrink to invisible slivers; color still
# maps to the true, unfloored speed.
min_display_speed = 0.18 * v_max
display_speed = max.(speed, min_display_speed)
u = -display_speed .* sin.(theta)
v = display_speed .* cos.(theta)

# --- Plot ---------------------------------------------------------------
fig = Figure(resolution = (1600, 900), fontsize = 14, backgroundcolor = PAGE_BG)

ax = Axis(
    fig[1, 1];
    title = "quiver-basic · julia · makie · anyplot.ai",
    titlesize = 20,
    titlecolor = INK,
    xlabel = "X position (km)",
    ylabel = "Y position (km)",
    xlabelsize = 14,
    ylabelsize = 14,
    xlabelcolor = INK,
    ylabelcolor = INK,
    xticklabelsize = 12,
    yticklabelsize = 12,
    xticklabelcolor = INK_SOFT,
    yticklabelcolor = INK_SOFT,
    xtickcolor = INK_SOFT,
    ytickcolor = INK_SOFT,
    backgroundcolor = PAGE_BG,
    topspinevisible = false,
    rightspinevisible = false,
    leftspinecolor = INK_SOFT,
    bottomspinecolor = INK_SOFT,
    xgridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
    ygridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
    xminorgridvisible = false,
    yminorgridvisible = false,
    aspect = DataAspect(),
)

# Subtle dashed ring at the eyewall radius -- the band of peak wind speed --
# drawn beneath the arrows to sharpen the storytelling without competing
# with the vector field itself.
eyewall_theta = range(0, 2 * pi; length = 100)
lines!(
    ax,
    core_radius .* cos.(eyewall_theta),
    core_radius .* sin.(eyewall_theta);
    color = RGBAf(INK_SOFT.r, INK_SOFT.g, INK_SOFT.b, 0.35),
    linestyle = :dash,
    linewidth = 1.2,
)

arrow_plot = arrows!(
    ax,
    x,
    y,
    u,
    v;
    arrowsize = 14,
    lengthscale = 0.025,
    linewidth = 2.5,
    color = speed,
    colormap = IMPRINT_SEQ,
)

Colorbar(
    fig[1, 2],
    arrow_plot;
    label = "Wind speed (m/s)",
    labelcolor = INK,
    labelsize = 14,
    ticklabelsize = 13,
    ticklabelcolor = INK_SOFT,
    tickcolor = INK_SOFT,
)

xlims!(ax, -9, 9)
ylims!(ax, -5.5, 5.5)

colsize!(fig.layout, 1, Relative(0.88))

# --- Save --------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)
