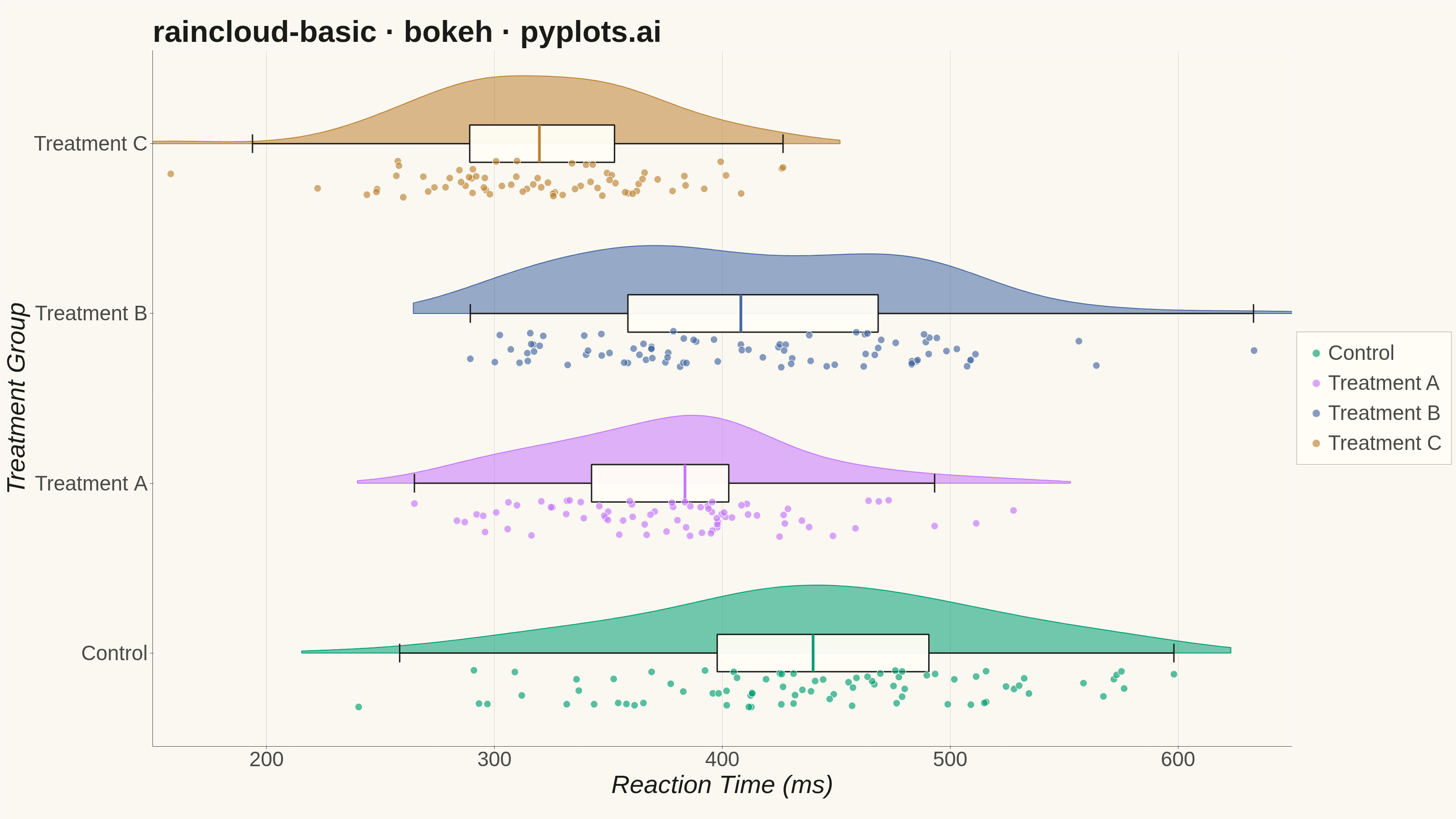

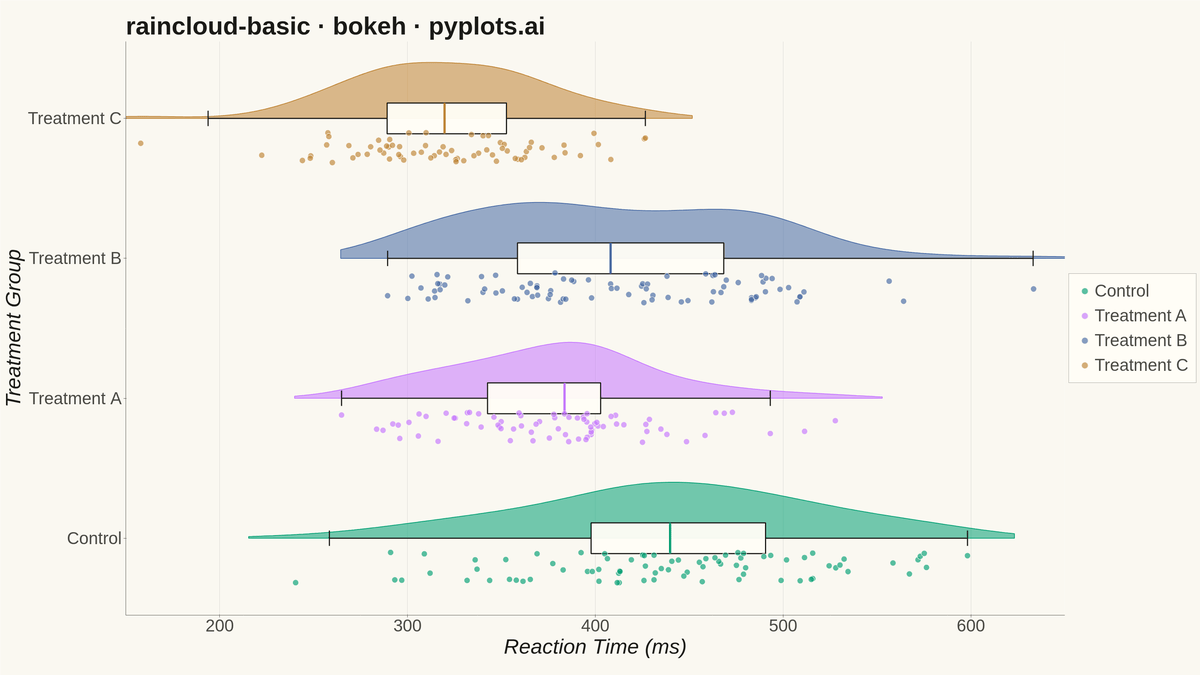

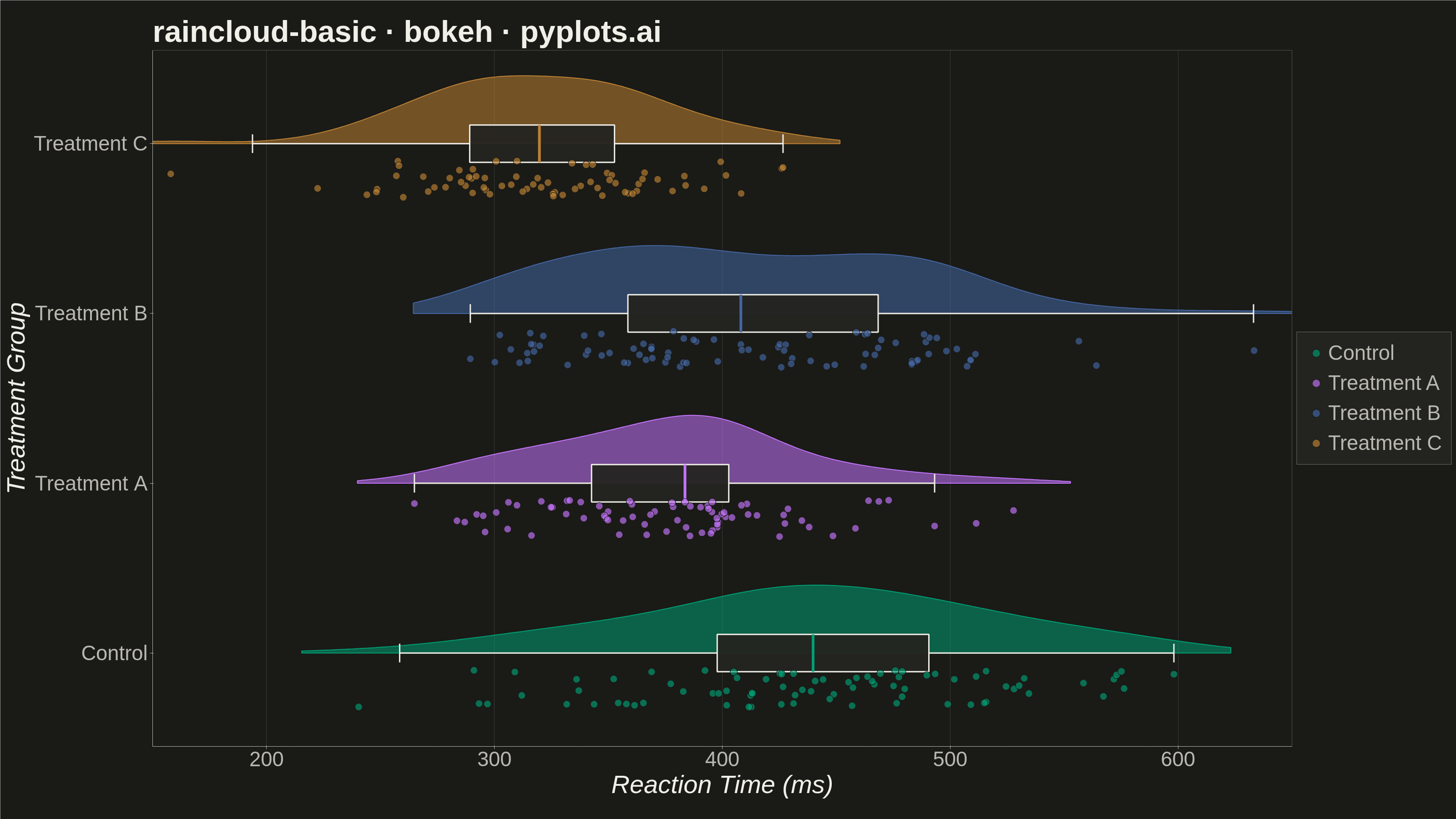

A raincloud plot combines three visualization elements—a half-violin (the "cloud"), jittered strip points (the "rain"), and a box plot—to provide a comprehensive view of data distribution. This hybrid approach shows distribution shape, summary statistics, and individual observations simultaneously, addressing the limitation of box plots that can hide multimodal distributions. Often called the "gold standard" for transparent statistical visualization in scientific publications.
""" anyplot.ai
raincloud-basic: Basic Raincloud Plot
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 88/100 | Updated: 2026-05-26
"""
import base64
import os
import time
from pathlib import Path
import numpy as np
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Label
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BOX_FILL = "#FFFDF6" if THEME == "light" else "#242420"
GRID_ALPHA = 0.15 if THEME == "light" else 0.20
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
# Data — reaction times (ms) across four experimental conditions
np.random.seed(42)
categories = ["Control", "Treatment A", "Treatment B", "Treatment C"]
n_points = [80, 75, 85, 70]
data = {
"Control": np.random.normal(450, 80, n_points[0]),
"Treatment A": np.random.normal(380, 60, n_points[1]),
"Treatment B": np.concatenate(
[np.random.normal(350, 40, n_points[2] // 2), np.random.normal(460, 45, n_points[2] - n_points[2] // 2)]
),
"Treatment C": np.random.normal(320, 50, n_points[3]),
}
W, H = 3200, 1800
p = figure(
width=W,
height=H,
title="raincloud-basic · python · bokeh · anyplot.ai",
x_axis_label="Reaction Time (ms)",
y_axis_label="Treatment Group",
y_range=(-0.55, len(categories) - 0.30),
x_range=(150, 650),
toolbar_location=None,
min_border_bottom=160,
min_border_left=220,
min_border_top=110,
min_border_right=80,
tools="",
)
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None
p.title.text_font_size = "50pt"
p.title.text_color = INK
p.xaxis.axis_label_text_font_size = "42pt"
p.yaxis.axis_label_text_font_size = "42pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.major_label_text_font_size = "34pt"
p.yaxis.major_label_text_font_size = "34pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xaxis.minor_tick_line_color = None
p.yaxis.minor_tick_line_color = None
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = None
p.xgrid.grid_line_alpha = GRID_ALPHA
p.yaxis.ticker = list(range(len(categories)))
p.yaxis.major_label_overrides = dict(enumerate(categories))
for idx, (cat, values) in enumerate(data.items()):
color = IMPRINT_PALETTE[idx]
y_base = idx
# KDE — Silverman's rule
n = len(values)
std = np.std(values)
bw = 1.06 * std * n ** (-1 / 5)
x_min, x_max = values.min() - 25, values.max() + 25
x_kde = np.linspace(x_min, x_max, 256)
y_kde = np.zeros_like(x_kde)
for point in values:
y_kde += np.exp(-0.5 * ((x_kde - point) / bw) ** 2) / (bw * np.sqrt(2 * np.pi))
y_kde /= n
y_kde_scaled = y_kde / y_kde.max() * 0.40
# Cloud — half-violin above the baseline
violin_x = np.concatenate([x_kde, x_kde[::-1]])
violin_y = np.concatenate([y_base + y_kde_scaled, np.full(len(x_kde), y_base)])
p.patch(x=violin_x, y=violin_y, fill_color=color, fill_alpha=0.55, line_color=color, line_width=2)
# Box plot — sits on the baseline
q1, q2, q3 = np.percentile(values, [25, 50, 75])
iqr = q3 - q1
whisker_low = max(values.min(), q1 - 1.5 * iqr)
whisker_high = min(values.max(), q3 + 1.5 * iqr)
box_h = 0.11
p.line(x=[whisker_low, q1], y=[y_base, y_base], line_color=INK, line_width=3)
p.line(x=[q3, whisker_high], y=[y_base, y_base], line_color=INK, line_width=3)
p.line(x=[whisker_low, whisker_low], y=[y_base - box_h / 2, y_base + box_h / 2], line_color=INK, line_width=3)
p.line(x=[whisker_high, whisker_high], y=[y_base - box_h / 2, y_base + box_h / 2], line_color=INK, line_width=3)
p.patch(
x=[q1, q3, q3, q1],
y=[y_base - box_h, y_base - box_h, y_base + box_h, y_base + box_h],
fill_color=BOX_FILL,
fill_alpha=0.95,
line_color=INK,
line_width=3,
)
p.line(x=[q2, q2], y=[y_base - box_h, y_base + box_h], line_color=color, line_width=6)
# Rain — jittered points below the baseline
jitter = np.random.uniform(-0.40, -0.08, len(values))
mean_val = float(np.mean(values))
std_val = float(np.std(values))
source_points = ColumnDataSource(
data={
"x": values,
"y": y_base + jitter,
"category": [cat] * len(values),
"mean": [f"{mean_val:.1f}"] * len(values),
"median": [f"{q2:.1f}"] * len(values),
"std": [f"{std_val:.1f}"] * len(values),
"n": [str(n)] * len(values),
}
)
scatter_glyph = p.scatter(
x="x",
y="y",
source=source_points,
size=12,
fill_color=color,
fill_alpha=0.65,
line_color=PAGE_BG,
line_width=1.0,
)
hover = HoverTool(
renderers=[scatter_glyph],
tooltips=[
("Group", "@category"),
("Value", "@x{0.1f} ms"),
("Mean", "@mean ms"),
("Median", "@median ms"),
("Std", "@std ms"),
("n", "@n"),
],
point_policy="follow_mouse",
)
p.add_tools(hover)
# Annotate Treatment B's bimodality — the most interesting feature of the synthetic data
p.add_layout(
Label(
x=475,
y=2.35,
text="bimodal distribution",
text_color=INK_SOFT,
text_font_size="28pt",
text_font_style="italic",
text_align="left",
text_baseline="middle",
)
)
# Save HTML (catalog artifact) + PNG via headless Chrome
output_file(f"plot-{THEME}.html", title="raincloud-basic · python · bokeh · anyplot.ai")
save(p)
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H + 200}",
"--hide-scrollbars",
"--force-device-scale-factor=1",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
shot = driver.execute_cdp_cmd(
"Page.captureScreenshot",
{"clip": {"x": 0, "y": 0, "width": W, "height": H, "scale": 1}, "captureBeyondViewport": True},
)
Path(f"plot-{THEME}.png").write_bytes(base64.b64decode(shot["data"]))
driver.quit()
Part of Basic Raincloud Plot on anyplot.ai.
