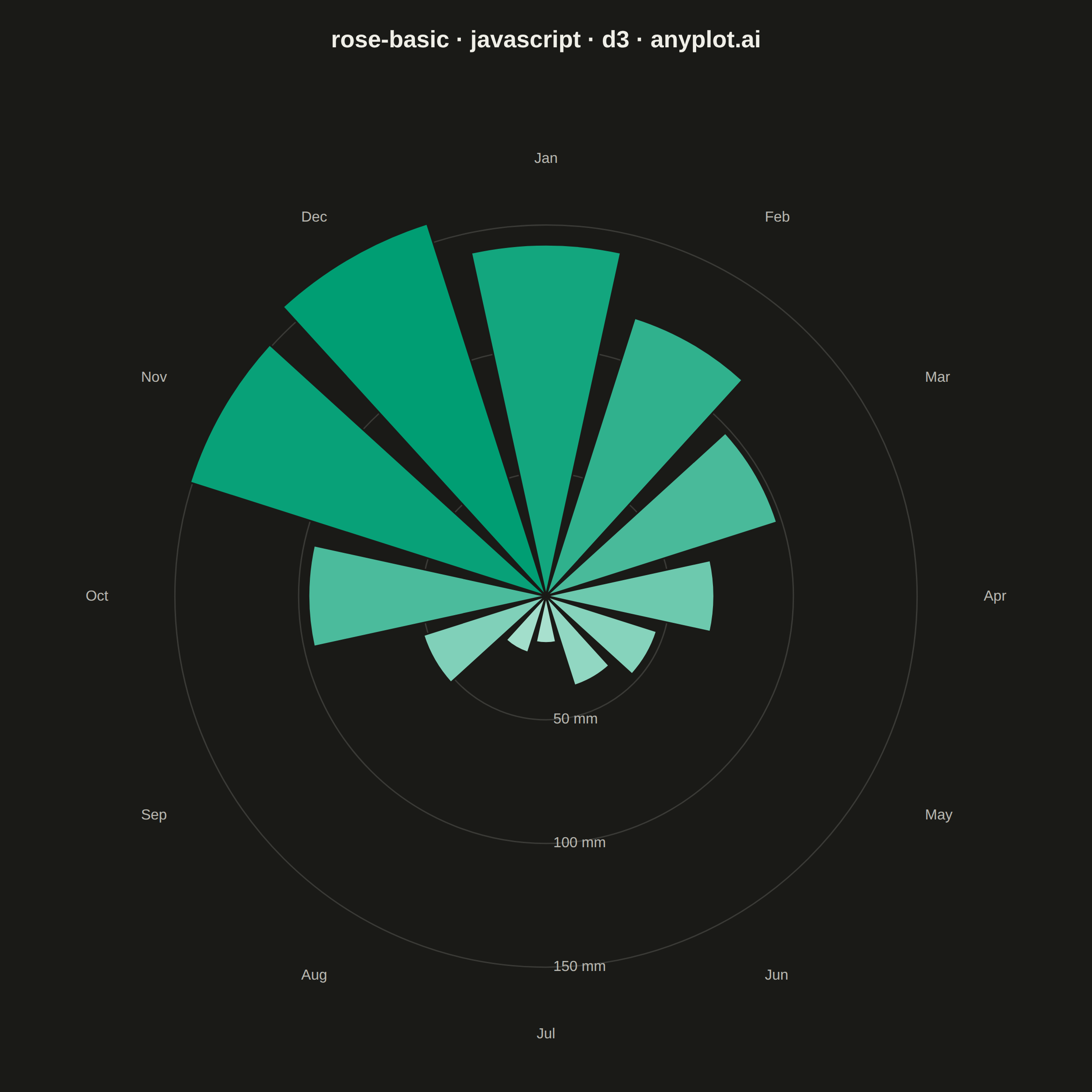

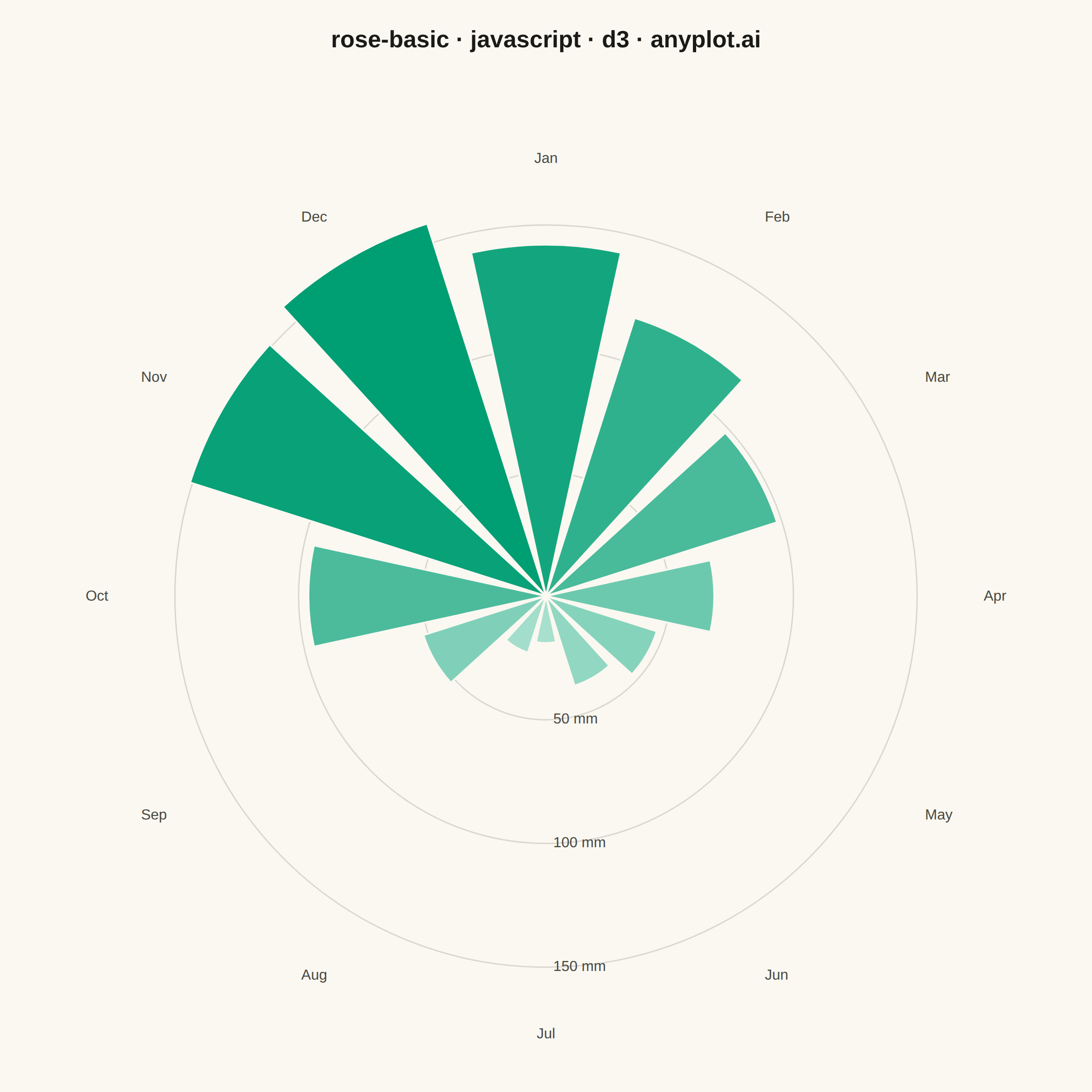

A rose chart (also called Nightingale or coxcomb diagram) displays categorical data in a circular format where segments are arranged around the center like pie slices, but with radius proportional to the value rather than angle. This visualization excels at showing cyclical or directional patterns where the circular arrangement has natural meaning. The equal-angle wedges make comparison of values across categories intuitive while emphasizing the periodic nature of the data.
// anyplot.ai
// rose-basic: Basic Rose Chart
// Library: d3 7.9.0 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-07-25
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// --- Data (in-memory, deterministic) ----------------------------------------
// Monthly rainfall for a temperate coastal city (mm), Jan at 12 o'clock
const monthlyRainfall = [
{ month: "Jan", mm: 142 },
{ month: "Feb", mm: 118 },
{ month: "Mar", mm: 98 },
{ month: "Apr", mm: 68 },
{ month: "May", mm: 47 },
{ month: "Jun", mm: 38 },
{ month: "Jul", mm: 19 },
{ month: "Aug", mm: 24 },
{ month: "Sep", mm: 52 },
{ month: "Oct", mm: 96 },
{ month: "Nov", mm: 151 },
{ month: "Dec", mm: 158 },
];
// --- Layout -------------------------------------------------------------------
const marginTop = 110;
const cx = width / 2;
const cy = marginTop + (height - marginTop) / 2;
const maxRadius = Math.min(width, height - marginTop) / 2 - 110;
// --- Scales ---------------------------------------------------------------------
const angleStep = (2 * Math.PI) / monthlyRainfall.length;
const wedgeAngle = angleStep * 0.82;
const maxRainfall = d3.max(monthlyRainfall, (d) => d.mm);
const radius = d3.scaleLinear().domain([0, maxRainfall]).nice().range([0, maxRadius]);
// Explicit lightness-scaled hex per value (not `fill-opacity`) so equal rainfall
// values read as the same color in both themes — opacity would otherwise blend
// against the theme-dependent page background and shift hue between renders.
const wedgeColor = d3.scaleLinear().domain([0, maxRainfall]).range(["#BFE9DB", t.palette[0]]);
monthlyRainfall.forEach((d, i) => {
d.centerAngle = i * angleStep;
d.startAngle = d.centerAngle - wedgeAngle / 2;
d.endAngle = d.centerAngle + wedgeAngle / 2;
});
// --- SVG mount --------------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const plot = svg.append("g").attr("transform", `translate(${cx},${cy})`);
// --- Radial gridlines (aid value estimation) ---------------------------------------
const gridTicks = radius.ticks(4).filter((v) => v > 0);
plot
.selectAll("circle.grid-ring")
.data(gridTicks)
.join("circle")
.attr("class", "grid-ring")
.attr("r", (d) => radius(d))
.attr("fill", "none")
.attr("stroke", t.grid)
.attr("stroke-width", 1.5);
// Placed along the bottom (Jul) spoke, where the shortest wedges leave the
// rings clear — every other spoke direction is crossed by a tall wedge.
plot
.selectAll("text.grid-label")
.data(gridTicks)
.join("text")
.attr("class", "grid-label")
.attr("x", 8)
.attr("y", (d) => radius(d) + 4)
.attr("fill", t.inkSoft)
.style("font-size", "16px")
.text((d) => `${d} mm`);
// --- Wedges (radius proportional to value) --------------------------------------------
const wedge = d3
.arc()
.innerRadius(0)
.outerRadius((d) => radius(d.mm))
.startAngle((d) => d.startAngle)
.endAngle((d) => d.endAngle);
plot
.selectAll("path.wedge")
.data(monthlyRainfall)
.join("path")
.attr("class", "wedge")
.attr("d", wedge)
.attr("fill", (d) => wedgeColor(d.mm))
.attr("stroke", t.pageBg)
.attr("stroke-width", 2);
// --- Month labels -----------------------------------------------------------------
const labelRadius = maxRadius + 46;
plot
.selectAll("text.month-label")
.data(monthlyRainfall)
.join("text")
.attr("class", "month-label")
.attr("x", (d) => labelRadius * Math.sin(d.centerAngle))
.attr("y", (d) => -labelRadius * Math.cos(d.centerAngle) + 5)
.attr("text-anchor", (d) => {
const s = Math.sin(d.centerAngle);
if (s > 0.15) return "start";
if (s < -0.15) return "end";
return "middle";
})
.attr("fill", t.inkSoft)
.style("font-size", "16px")
.text((d) => d.month);
// --- Title --------------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 52)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "26px")
.style("font-weight", "600")
.text("rose-basic · javascript · d3 · anyplot.ai");
