A rose chart (also called Nightingale or coxcomb diagram) displays categorical data in a circular format where segments are arranged around the center like pie slices, but with radius proportional to the value rather than angle. This visualization excels at showing cyclical or directional patterns where the circular arrangement has natural meaning. The equal-angle wedges make comparison of values across categories intuitive while emphasizing the periodic nature of the data.
// anyplot.ai
// rose-basic: Basic Rose Chart
// Library: muix 7.29.1 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-07-25
//# anyplot-orientation: square
// anyplot.ai
// rose-basic: Basic Rose Chart
// Library: MUI X Charts | React | Node 22
// License: @mui/x-charts — MIT (community). Pro/Premium are out of scope.
// Quality: pending | Created: 2026-07-25
import { PieChart } from "@mui/x-charts/PieChart";
const t = window.ANYPLOT_TOKENS;
const TITLE = "rose-basic · javascript · muix · anyplot.ai";
// --- Data (in-memory, deterministic): average monthly rainfall, mm ----------
const MONTHS = [
"Jan", "Feb", "Mar", "Apr", "May", "Jun",
"Jul", "Aug", "Sep", "Oct", "Nov", "Dec",
];
const RAINFALL_MM = [88, 65, 70, 52, 48, 32, 22, 28, 45, 78, 95, 92];
// Linear interpolation between two Imprint hex stops (imprint_seq).
function mixHex(hexA, hexB, ratio) {
const a = [1, 3, 5].map((i) => parseInt(hexA.slice(i, i + 2), 16));
const b = [1, 3, 5].map((i) => parseInt(hexB.slice(i, i + 2), 16));
const mixed = a.map((v, i) => Math.round(v + (b[i] - v) * ratio));
return `#${mixed.map((v) => v.toString(16).padStart(2, "0")).join("")}`;
}
// 0deg = 12 o'clock, positive = clockwise (matches PieChart's own arc convention).
function polarPoint(cx, cy, radius, angleDeg) {
const angleRad = (angleDeg * Math.PI) / 180;
return [cx + radius * Math.sin(angleRad), cy - radius * Math.cos(angleRad)];
}
// --- Chart (default-exported component — the harness mounts it) ------------
export default function Chart() {
const { width, height } = window.ANYPLOT_SIZE;
const titleHeight = 64;
const side = Math.min(width, height - titleHeight);
const cx = width / 2;
const cy = titleHeight + side / 2;
const outerMargin = 96;
const maxRadius = side / 2 - outerMargin;
const innerFloor = maxRadius * 0.1;
const maxValue = Math.max(...RAINFALL_MM);
const radiusFor = (value) =>
innerFloor + (value / maxValue) * (maxRadius - innerFloor);
const sliceAngle = 360 / MONTHS.length;
const gapDeg = 3;
const halfWidth = (sliceAngle - gapDeg) / 2;
// Radial gridlines — three value rings; their values are called out in a
// corner caption rather than inline (inline labels crowd the short petals).
const gridTicks = [1 / 3, 2 / 3, 1].map((frac) => Math.round(maxValue * frac));
const petals = MONTHS.map((month, i) => {
const value = RAINFALL_MM[i];
const centerAngle = i * sliceAngle;
return {
type: "pie",
id: `petal-${month}`,
data: [
{
id: month,
value: 1,
label: `${month}: ${value} mm`,
color: mixHex(t.seq[0], t.seq[1], value / maxValue),
},
],
cx,
cy,
innerRadius: 0,
outerRadius: radiusFor(value),
cornerRadius: 3,
startAngle: centerAngle - halfWidth,
endAngle: centerAngle + halfWidth,
};
});
return (
<div style={{ position: "relative", width, height }}>
<svg width={width} height={height} style={{ position: "absolute", top: 0, left: 0 }}>
<text x={width / 2} y={36} textAnchor="middle" fontSize={22} fontWeight={500} fill={t.ink}>
{TITLE}
</text>
<text x={width - 32} y={36} textAnchor="end" fontSize={14} fill={t.inkSoft}>
{`gridlines: ${gridTicks.join(" / ")} mm`}
</text>
{gridTicks.map((tick) => (
<circle
key={`ring-${tick}`}
cx={cx}
cy={cy}
r={radiusFor(tick)}
fill="none"
stroke={t.grid}
strokeWidth={1.5}
/>
))}
{MONTHS.map((month, i) => {
const [x2, y2] = polarPoint(cx, cy, maxRadius, i * sliceAngle);
return (
<line
key={`spoke-${month}`}
x1={cx}
y1={cy}
x2={x2}
y2={y2}
stroke={t.grid}
strokeWidth={1}
/>
);
})}
{MONTHS.map((month, i) => {
const angle = i * sliceAngle;
const [x, y] = polarPoint(cx, cy, maxRadius + 28, angle);
const dx = x - cx;
let anchor = "middle";
let baseline = "middle";
if (angle < 1 || angle > 359) {
baseline = "auto";
} else if (Math.abs(angle - 180) < 1) {
baseline = "hanging";
} else {
anchor = dx > 0 ? "start" : "end";
}
return (
<text key={`label-${month}`} x={x} y={y} textAnchor={anchor} dominantBaseline={baseline} fontSize={15} fill={t.inkSoft}>
{month}
</text>
);
})}
</svg>
<div style={{ position: "absolute", top: titleHeight, left: (width - side) / 2 }}>
<PieChart
width={side}
height={side}
series={petals}
margin={{ top: 0, right: 0, bottom: 0, left: 0 }}
legend={{ hidden: true }}
skipAnimation
/>
</div>
</div>
);
}
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/rose-basic/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "rose-basic",
"language": "javascript",
"library": "muix",
"page": "https://anyplot.ai/rose-basic/javascript/muix",
"hub": "https://anyplot.ai/rose-basic",
"code_json": "https://api.anyplot.ai/specs/rose-basic/muix/code",
"spec_json": "https://api.anyplot.ai/specs/rose-basic",

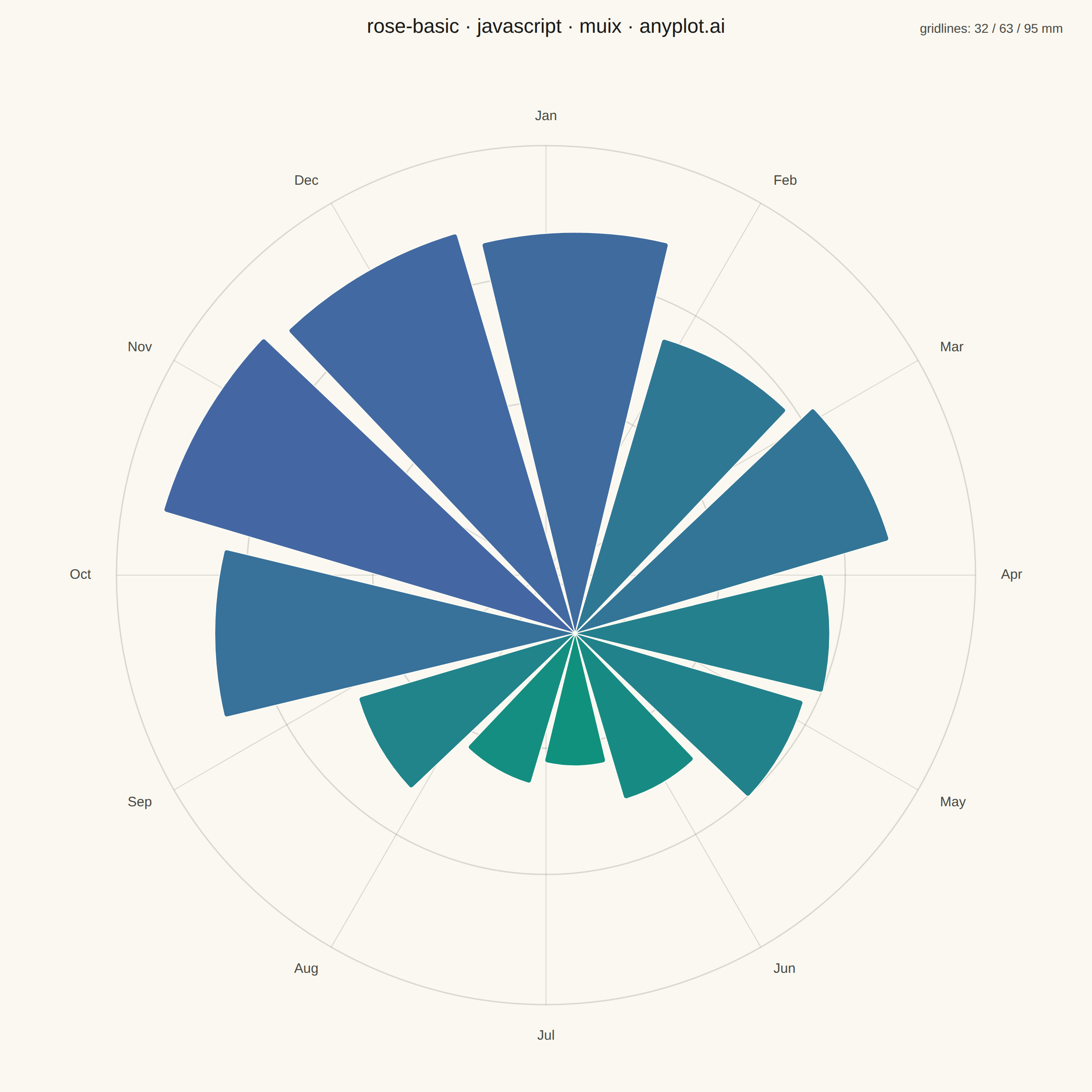

"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/rose-basic/javascript/muix/plot-light.png",

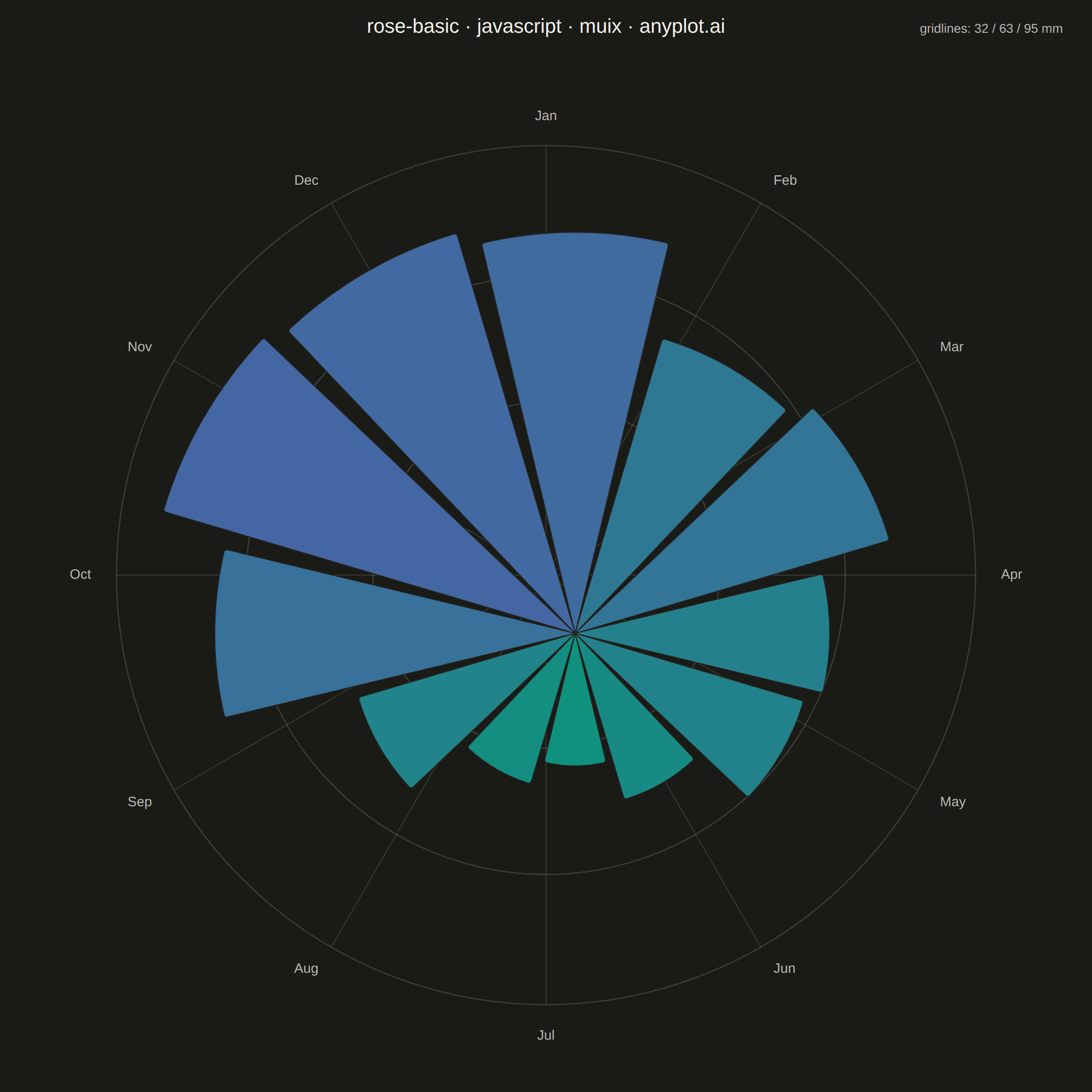

"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/rose-basic/javascript/muix/plot-dark.png",
