Basic Rose Chart — Makie.jl

A rose chart (also called Nightingale or coxcomb diagram) displays categorical data in a circular format where segments are arranged around the center like pie slices, but with radius proportional to the value rather than angle. This visualization excels at showing cyclical or directional patterns where the circular arrangement has natural meaning. The equal-angle wedges make comparison of values across categories intuitive while emphasizing the periodic nature of the data.

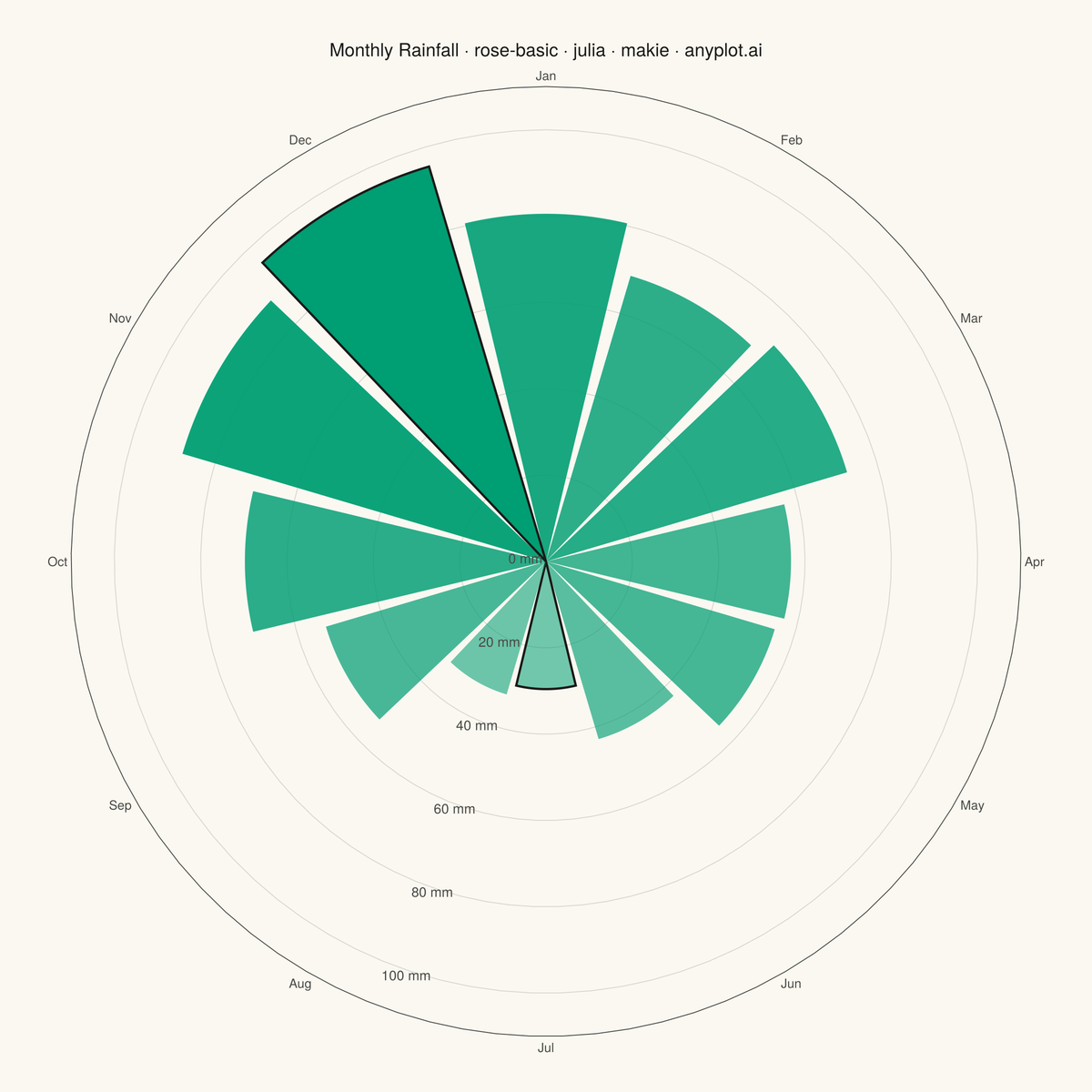

Basic Rose Chart rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# rose-basic: Basic Rose Chart
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 91/100 | Created: 2026-07-25

using CairoMakie
using Colors
using Random

Random.seed!(42)

# --- Theme tokens -----------------------------------------------------------
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const IMPRINT_PALETTE = [
    colorant"#009E73", colorant"#C475FD", colorant"#4467A3", colorant"#BD8233",
    colorant"#AE3030", colorant"#2ABCCD", colorant"#954477", colorant"#99B314",
]

# --- Data ---------------------------------------------------------------
# Monthly rainfall for a temperate coastal city — wetter autumn/winter,
# drier summer, a natural 12-month cycle where the circular layout maps
# directly onto the calendar.
months = [
    "Jan", "Feb", "Mar", "Apr", "May", "Jun",
    "Jul", "Aug", "Sep", "Oct", "Nov", "Dec",
]
n_months = length(months)
base_rainfall_mm = [82, 68, 74, 58, 52, 41, 33, 38, 54, 71, 88, 95]
rainfall_mm = base_rainfall_mm .+ randn(n_months) .* 4

# --- Plot -----------------------------------------------------------------
fig = Figure(
    resolution      = (1200, 1200),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

ax = PolarAxis(
    fig[1, 1];
    theta_0             = -pi / 2,  # January starts at 12 o'clock
    direction           = -1,       # clockwise, matching calendar order
    backgroundcolor     = PAGE_BG,
    title               = "Monthly Rainfall · rose-basic · julia · makie · anyplot.ai",
    titlesize           = 20,
    titlecolor          = INK,
    thetaticks          = (range(0, 2pi, length = n_months + 1)[1:n_months], months),
    thetaticklabelsize  = 14,
    thetaticklabelcolor = INK_SOFT,
    thetagridvisible    = false,
    rticks              = 0:20:100,
    rtickformat         = vs -> ["$(round(Int, v)) mm" for v in vs],
    rtickangle          = 13pi / 12,  # Jul–Aug gap — the driest wedges, keeps labels off the tall bars
    rticklabelsize      = 15,
    rticklabelcolor     = INK_SOFT,
    rgridvisible        = true,
    rgridcolor          = RGBAf(INK.r, INK.g, INK.b, 0.15),
    rgridwidth          = 1,
    spinecolor          = INK_SOFT,
    spinewidth          = 1,
    rlimits             = (0, 110),
)

# Equal-angle wedges, radius proportional to value — filled with `band!`
# since it (unlike `poly!`) respects the PolarAxis per-vertex transform
# and traces a true curved arc rather than a straight-edged rectangle.
# Fill alpha is ramped by value (spec's "varying saturation" option) so the
# wettest months read as the visual focal point; the peak/trough wedges also
# get a heavier outline as an explicit callout for the seasonal story.
theta = range(0, 2pi, length = n_months + 1)[1:n_months]
half_width = (2pi / n_months) * 0.9 / 2
n_arc_samples = 40
rmin, rmax = extrema(rainfall_mm)
peak_idx, trough_idx = argmax(rainfall_mm), argmin(rainfall_mm)

for (i, (t, rv)) in enumerate(zip(theta, rainfall_mm))
    ts = collect(range(t - half_width, t + half_width, length = n_arc_samples))
    alpha = 0.55 + 0.45 * (rv - rmin) / (rmax - rmin)
    wedge_color = RGBAf(IMPRINT_PALETTE[1].r, IMPRINT_PALETTE[1].g, IMPRINT_PALETTE[1].b, alpha)
    band!(
        ax, ts, zeros(n_arc_samples), fill(rv, n_arc_samples);
        color = wedge_color,
    )

    if i == peak_idx || i == trough_idx
        outline_theta = vcat(t - half_width, ts, t + half_width)
        outline_r     = vcat(0.0, fill(rv, n_arc_samples), 0.0)
        lines!(ax, outline_theta, outline_r; color = INK, linewidth = 2.5)
    end
end

# --- Save -------------------------------------------------------------------
save("plot-$(THEME).png", fig; px_per_unit = 2)

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/rose-basic/makie/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "rose-basic",
  "language": "julia",
  "library": "makie",
  "page": "https://anyplot.ai/rose-basic/julia/makie",
  "hub": "https://anyplot.ai/rose-basic",
  "code_json": "https://api.anyplot.ai/specs/rose-basic/makie/code",
  "spec_json": "https://api.anyplot.ai/specs/rose-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/rose-basic/julia/makie/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/rose-basic/julia/makie/plot-dark.png",
  "quality_score": 91.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Rose Chart on anyplot.ai.
