Basic Rug Plot — Seaborn

A rug plot displays individual data points as small tick marks along an axis, typically at the bottom or side of another plot. Unlike histograms or density plots that bin data, rug plots show the exact location of every observation. They reveal clustering patterns, gaps in data, and the precise distribution of values with minimal visual footprint.

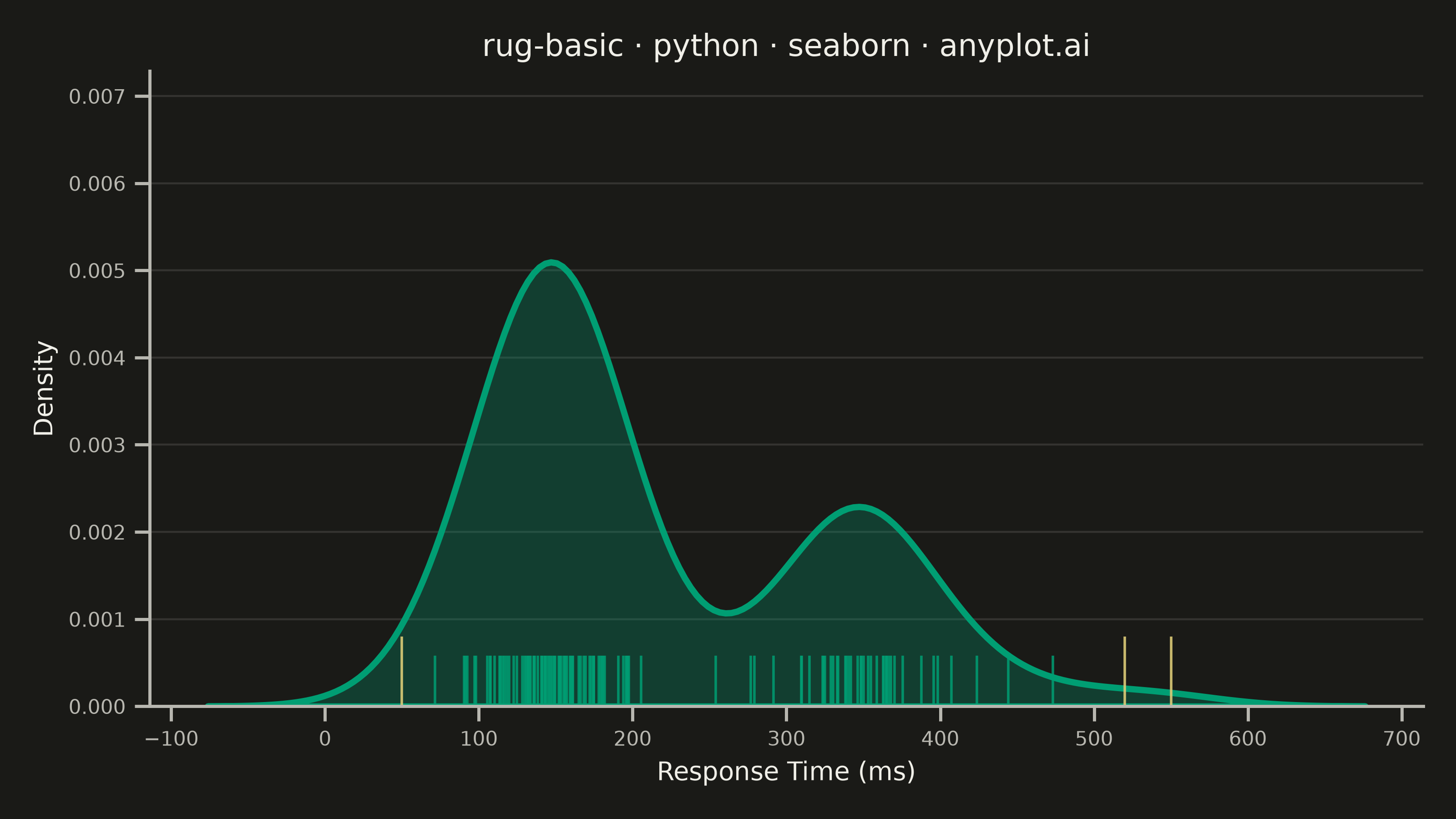

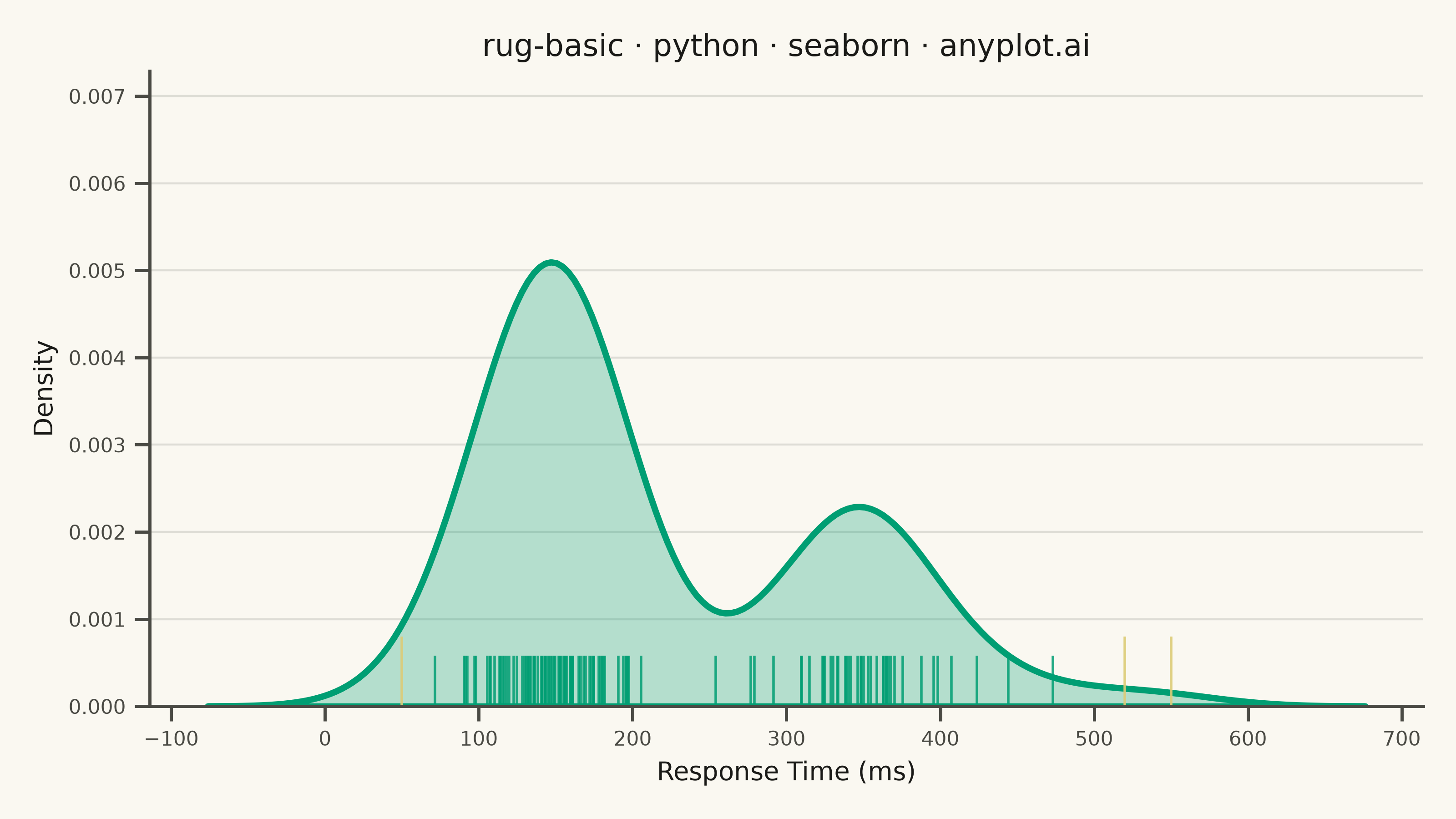

Basic Rug Plot rendered with Seaborn

Python source (Seaborn)

""" anyplot.ai
rug-basic: Basic Rug Plot
Library: seaborn 0.13.2 | Python 3.13.14
Quality: 89/100 | Updated: 2026-07-25
"""

import os

import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
BRAND = "#009E73"  # Imprint palette position 1 — ALWAYS first series
AMBER = "#DDCC77"  # semantic caution anchor — flags outlier ticks

sns.set_theme(
    style="ticks",
    rc={
        "figure.facecolor": PAGE_BG,
        "axes.facecolor": PAGE_BG,
        "axes.edgecolor": INK_SOFT,
        "axes.labelcolor": INK,
        "text.color": INK,
        "xtick.color": INK_SOFT,
        "ytick.color": INK_SOFT,
        "grid.color": INK,
        "grid.alpha": 0.12,
        "legend.facecolor": ELEVATED_BG,
        "legend.edgecolor": INK_SOFT,
    },
)

# Data - response times with bimodal pattern (fast and slow responses)
np.random.seed(42)
fast_responses = np.random.normal(loc=150, scale=30, size=80)
slow_responses = np.random.normal(loc=350, scale=50, size=40)
outliers = np.array([50, 520, 550])
response_times = np.concatenate([fast_responses, slow_responses, outliers])

# Plot - KDE with rug plot beneath
fig, ax = plt.subplots(figsize=(8, 4.5), dpi=400, facecolor=PAGE_BG)
ax.set_facecolor(PAGE_BG)

sns.kdeplot(x=response_times, color=BRAND, linewidth=2.5, fill=True, alpha=0.28, ax=ax)
# Main cluster ticks: taller + more opaque than the fill so they read distinctly on top of it
sns.rugplot(x=np.concatenate([fast_responses, slow_responses]), height=0.08, lw=1.5, alpha=0.85, color=BRAND, ax=ax)
# Outlier ticks called out in amber (caution anchor) — a focal point for the tail observations
sns.rugplot(x=outliers, height=0.11, lw=2, alpha=0.9, color=AMBER, ax=ax)

# Style
ax.set_xlabel("Response Time (ms)", fontsize=10, color=INK)
ax.set_ylabel("Density", fontsize=10, color=INK)
ax.set_title("rug-basic · python · seaborn · anyplot.ai", fontsize=12, fontweight="medium", color=INK)
ax.tick_params(axis="both", labelsize=8, colors=INK_SOFT)

ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)
ax.spines["left"].set_color(INK_SOFT)
ax.spines["bottom"].set_color(INK_SOFT)

ax.yaxis.grid(True, alpha=0.12, linewidth=0.8, color=INK)

plt.tight_layout()
plt.savefig(f"plot-{THEME}.png", dpi=400, facecolor=PAGE_BG)

Part of Basic Rug Plot on anyplot.ai.
