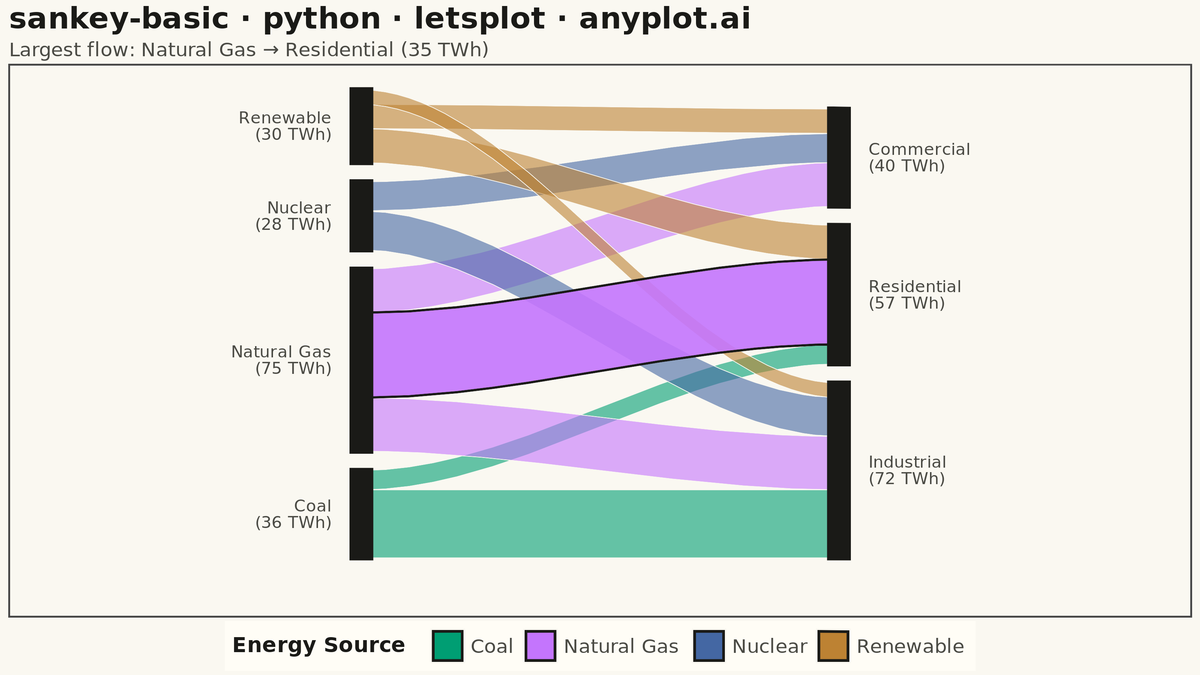

A Sankey diagram visualizes flow or transfer between nodes using links with widths proportional to flow values. It excels at showing how quantities distribute from sources to destinations, revealing patterns in resource allocation, process flows, and system transitions. The diagram makes it easy to identify major pathways and compare relative magnitudes of different flows.
""" anyplot.ai
sankey-basic: Basic Sankey Diagram
Library: letsplot 4.11.0 | Python 3.13.14
Quality: 91/100 | Updated: 2026-07-25
"""
import os
import pandas as pd
from lets_plot import (
LetsPlot,
aes,
element_blank,
element_rect,
element_text,
geom_polygon,
geom_rect,
geom_text,
ggplot,
ggsize,
labs,
layer_tooltips,
scale_fill_manual,
scale_x_continuous,
scale_y_continuous,
theme,
theme_minimal,
)
from lets_plot.export import ggsave
LetsPlot.setup_html()
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
# Imprint palette for source categories (canonical order, first = #009E73)
IMPRINT = ["#009E73", "#C475FD", "#4467A3", "#BD8233"]
# Energy flow data: sources -> sectors (realistic energy distribution)
flows = [
("Coal", "Industrial", 28),
("Coal", "Residential", 8),
("Natural Gas", "Industrial", 22),
("Natural Gas", "Residential", 35),
("Natural Gas", "Commercial", 18),
("Nuclear", "Industrial", 16),
("Nuclear", "Commercial", 12),
("Renewable", "Residential", 14),
("Renewable", "Commercial", 10),
("Renewable", "Industrial", 6),
]
sources = ["Coal", "Natural Gas", "Nuclear", "Renewable"]
targets = ["Industrial", "Residential", "Commercial"]
source_color_map = dict(zip(sources, IMPRINT, strict=True))
# The single largest flow gets a callout to give the diagram a point of view
dominant_source, dominant_target, dominant_value = max(flows, key=lambda f: f[2])
# Calculate totals for each node
source_totals = {}
for src, _, val in flows:
source_totals[src] = source_totals.get(src, 0) + val
target_totals = {}
for _, tgt, val in flows:
target_totals[tgt] = target_totals.get(tgt, 0) + val
# Layout parameters
total_flow = sum(v for _, _, v in flows)
node_gap = 0.04
x_left = 0.18
x_right = 0.82
# Position source nodes (left side)
source_positions = {}
y_offset = 0.05
for src in sources:
height = source_totals.get(src, 0) / total_flow * 0.85
source_positions[src] = {"y0": y_offset, "y1": y_offset + height, "x": x_left}
y_offset += height + node_gap
# Position target nodes (right side)
target_positions = {}
y_offset = 0.05
for tgt in targets:
height = target_totals.get(tgt, 0) / total_flow * 0.85
target_positions[tgt] = {"y0": y_offset, "y1": y_offset + height, "x": x_right}
y_offset += height + node_gap
# Track flow offsets within each node
source_offsets = dict.fromkeys(sources, 0)
target_offsets = dict.fromkeys(targets, 0)
# Build flow polygons with smooth cubic bezier curves
flow_data = []
for src, tgt, val in flows:
flow_height = val / total_flow * 0.85
src_y0 = source_positions[src]["y0"] + source_offsets[src]
src_y1 = src_y0 + flow_height
source_offsets[src] += flow_height
tgt_y0 = target_positions[tgt]["y0"] + target_offsets[tgt]
tgt_y1 = tgt_y0 + flow_height
target_offsets[tgt] += flow_height
n_points = 40
x_vals_top, y_vals_top = [], []
x_vals_bottom, y_vals_bottom = [], []
for i in range(n_points + 1):
t = i / n_points
x = x_left + t * (x_right - x_left)
ease = t * t * (3 - 2 * t)
x_vals_top.append(x)
y_vals_top.append(src_y1 + ease * (tgt_y1 - src_y1))
x_vals_bottom.append(x)
y_vals_bottom.append(src_y0 + ease * (tgt_y0 - src_y0))
x_polygon = x_vals_top + x_vals_bottom[::-1]
y_polygon = y_vals_top + y_vals_bottom[::-1]
is_dominant = src == dominant_source and tgt == dominant_target and val == dominant_value
for x, y in zip(x_polygon, y_polygon, strict=False):
flow_data.append(
{
"x": x,
"y": y,
"flow_id": f"{src} → {tgt}",
"source": src,
"target": tgt,
"value": val,
"highlight": is_dominant,
}
)
df_flows = pd.DataFrame(flow_data)
# Build node rectangles
node_rects = []
node_width = 0.025
for src in sources:
pos = source_positions[src]
node_rects.append(
{
"xmin": pos["x"] - node_width / 2,
"xmax": pos["x"] + node_width / 2,
"ymin": pos["y0"],
"ymax": pos["y1"],
"name": src,
"total": source_totals[src],
}
)
for tgt in targets:
pos = target_positions[tgt]
node_rects.append(
{
"xmin": pos["x"] - node_width / 2,
"xmax": pos["x"] + node_width / 2,
"ymin": pos["y0"],
"ymax": pos["y1"],
"name": tgt,
"total": target_totals[tgt],
}
)
df_nodes = pd.DataFrame(node_rects)
# Build labels with flow totals
labels = []
for src in sources:
pos = source_positions[src]
labels.append(
{
"x": pos["x"] - node_width - 0.015,
"y": (pos["y0"] + pos["y1"]) / 2,
"label": f"{src}\n({source_totals[src]} TWh)",
"side": "left",
}
)
for tgt in targets:
pos = target_positions[tgt]
labels.append(
{
"x": pos["x"] + node_width + 0.015,
"y": (pos["y0"] + pos["y1"]) / 2,
"label": f"{tgt}\n({target_totals[tgt]} TWh)",
"side": "right",
}
)
df_labels = pd.DataFrame(labels)
flow_tooltips = layer_tooltips().line("@flow_id").line("@value TWh")
node_tooltips = layer_tooltips().line("@name").line("@total TWh")
# Plot
plot = (
ggplot()
+ geom_polygon(
aes(x="x", y="y", group="flow_id", fill="source"),
data=df_flows[~df_flows["highlight"]],
alpha=0.6,
color=PAGE_BG,
size=0.2,
tooltips=flow_tooltips,
)
+ geom_polygon(
aes(x="x", y="y", group="flow_id", fill="source"),
data=df_flows[df_flows["highlight"]],
alpha=0.9,
color=INK,
size=0.6,
tooltips=flow_tooltips,
)
+ geom_rect(
aes(xmin="xmin", xmax="xmax", ymin="ymin", ymax="ymax"),
data=df_nodes,
fill=INK,
color=INK,
size=1.5,
tooltips=node_tooltips,
)
+ geom_text(
aes(x="x", y="y", label="label"),
data=df_labels[df_labels["side"] == "left"],
size=5.5,
hjust=1,
color=INK_SOFT,
family="sans-serif",
)
+ geom_text(
aes(x="x", y="y", label="label"),
data=df_labels[df_labels["side"] == "right"],
size=5.5,
hjust=0,
color=INK_SOFT,
family="sans-serif",
)
+ scale_fill_manual(values=[source_color_map[s] for s in sources], name="Energy Source ")
+ labs(
title="sankey-basic · python · letsplot · anyplot.ai",
subtitle=f"Largest flow: {dominant_source} → {dominant_target} ({dominant_value} TWh)",
)
+ theme_minimal()
+ theme(
plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
panel_background=element_rect(fill=PAGE_BG),
plot_title=element_text(size=20, face="bold", color=INK),
plot_subtitle=element_text(size=13, color=INK_SOFT),
axis_title=element_blank(),
axis_text=element_blank(),
axis_ticks=element_blank(),
panel_grid=element_blank(),
legend_text=element_text(size=13, color=INK_SOFT),
legend_title=element_text(size=14, face="bold", color=INK),
legend_position="bottom",
legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
)
+ scale_x_continuous(limits=[-0.22, 1.22])
+ scale_y_continuous(limits=[-0.02, 1.02])
+ ggsize(800, 450)
)

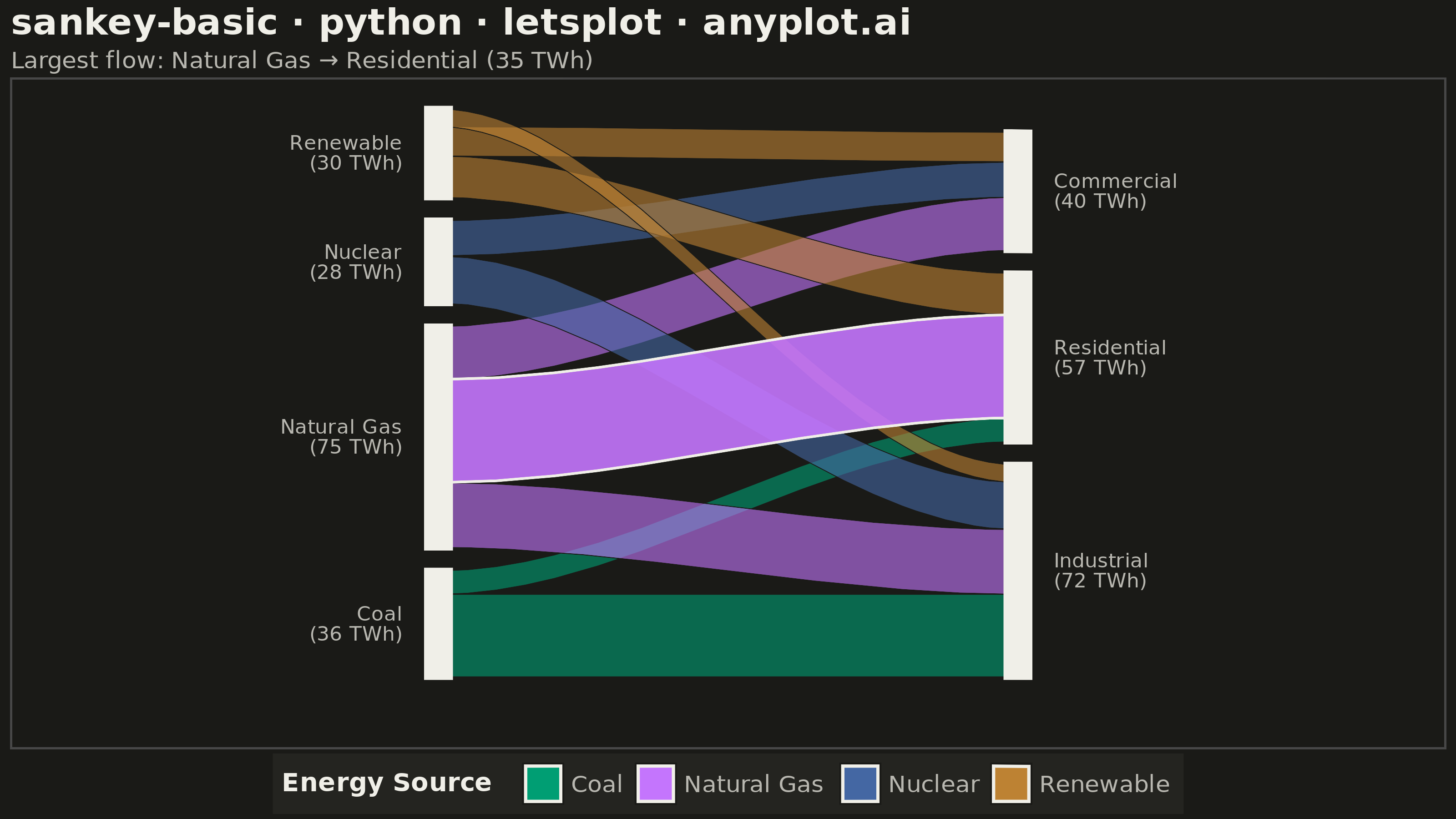

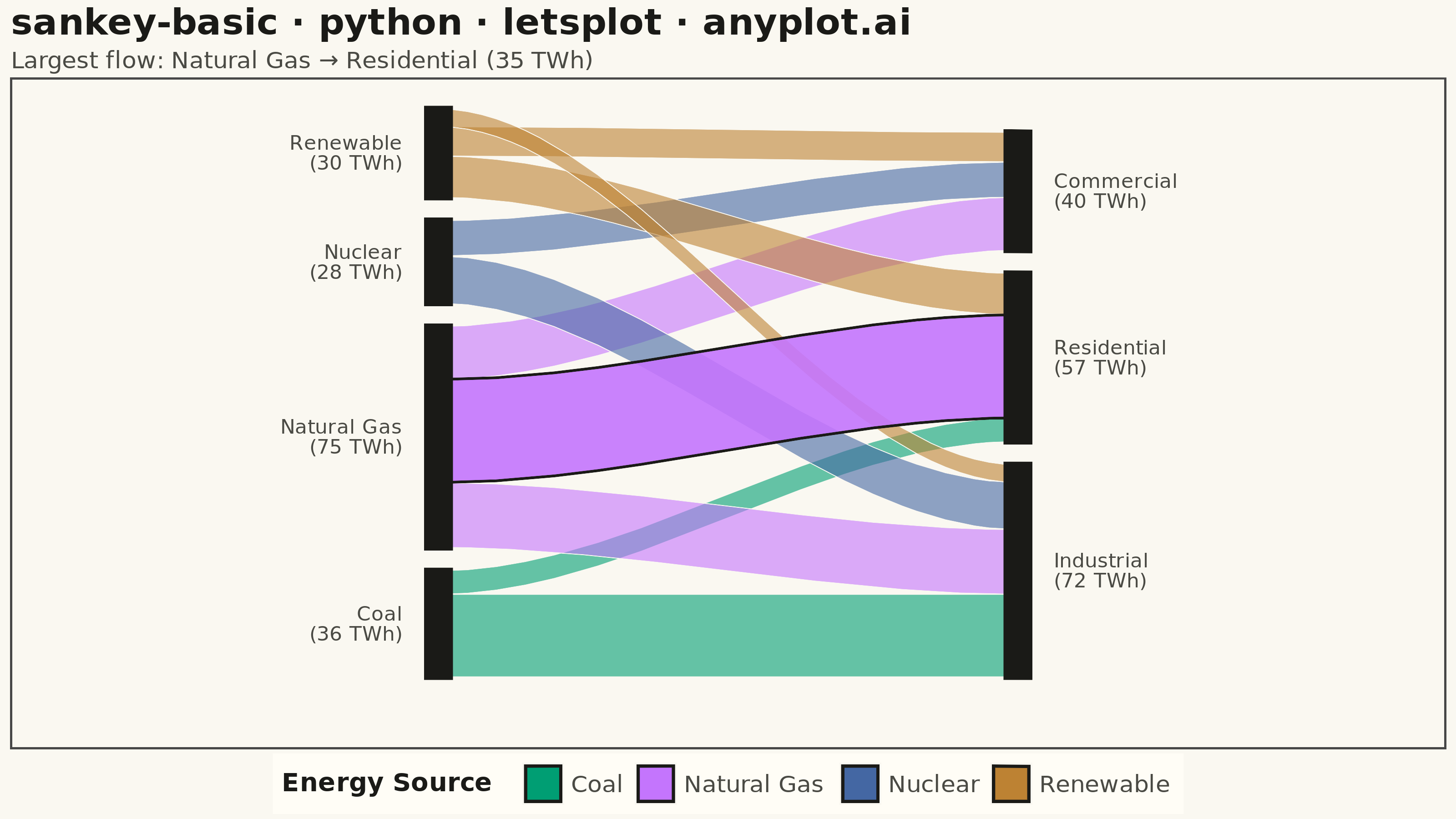

# Save PNG (3200 × 1800 px) and interactive HTML (hover tooltips on flows and nodes)
ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)
ggsave(plot, f"plot-{THEME}.html", path=".")
Part of Basic Sankey Diagram on anyplot.ai.
