Basic Scatter Plot — Makie.jl

A fundamental 2D scatter plot that displays the relationship between two numeric variables by plotting points on a Cartesian coordinate system. This visualization is essential for exploring correlations, identifying patterns, detecting outliers, and understanding the distribution of paired data points.

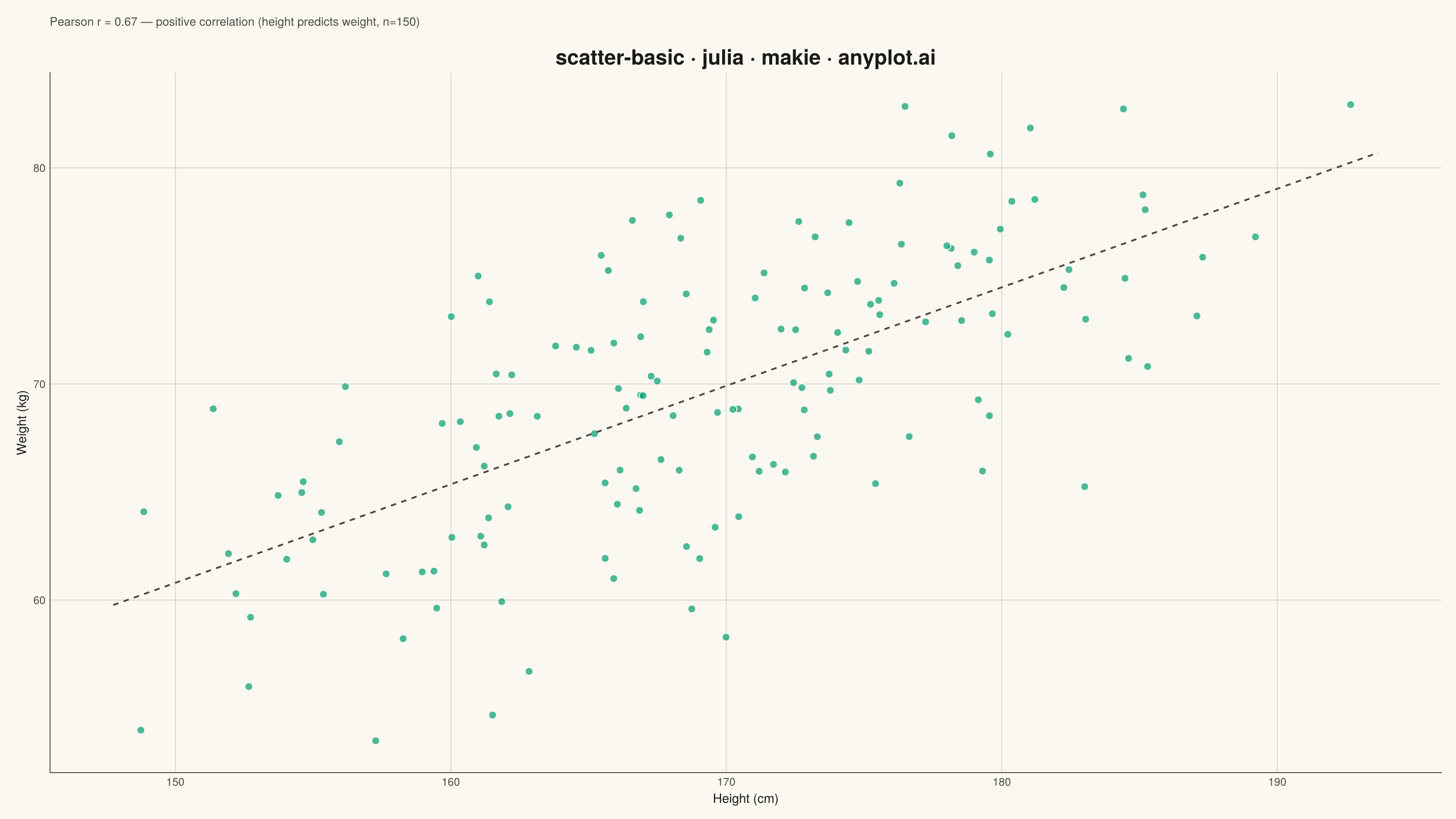

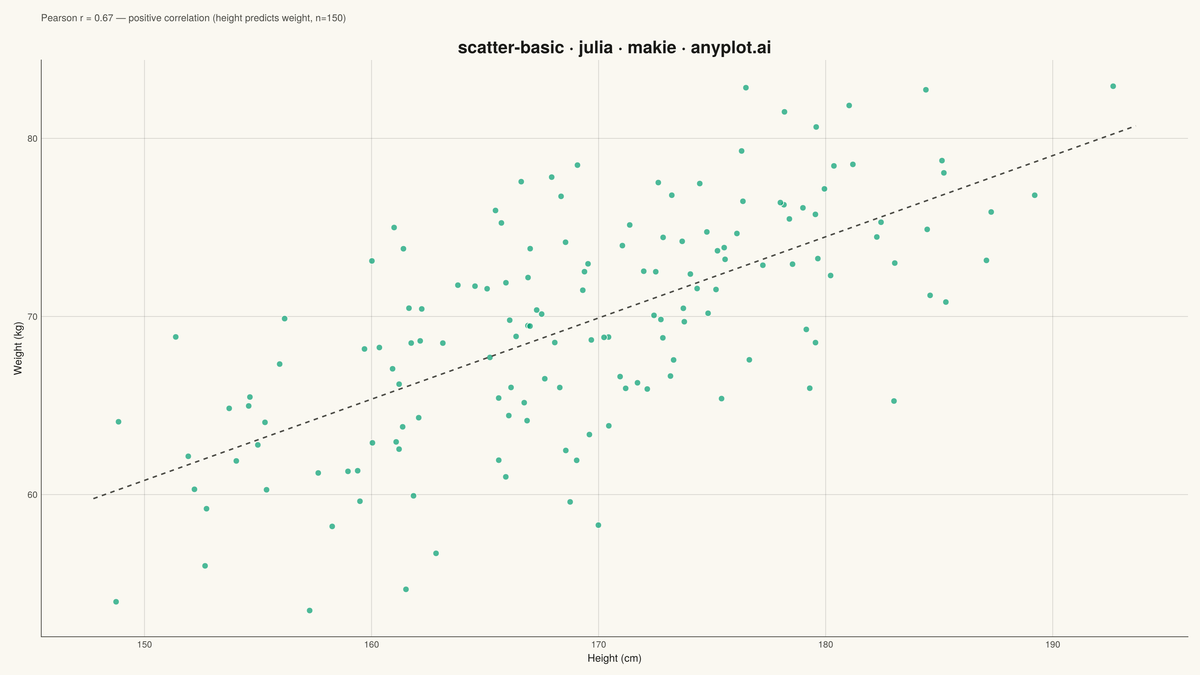

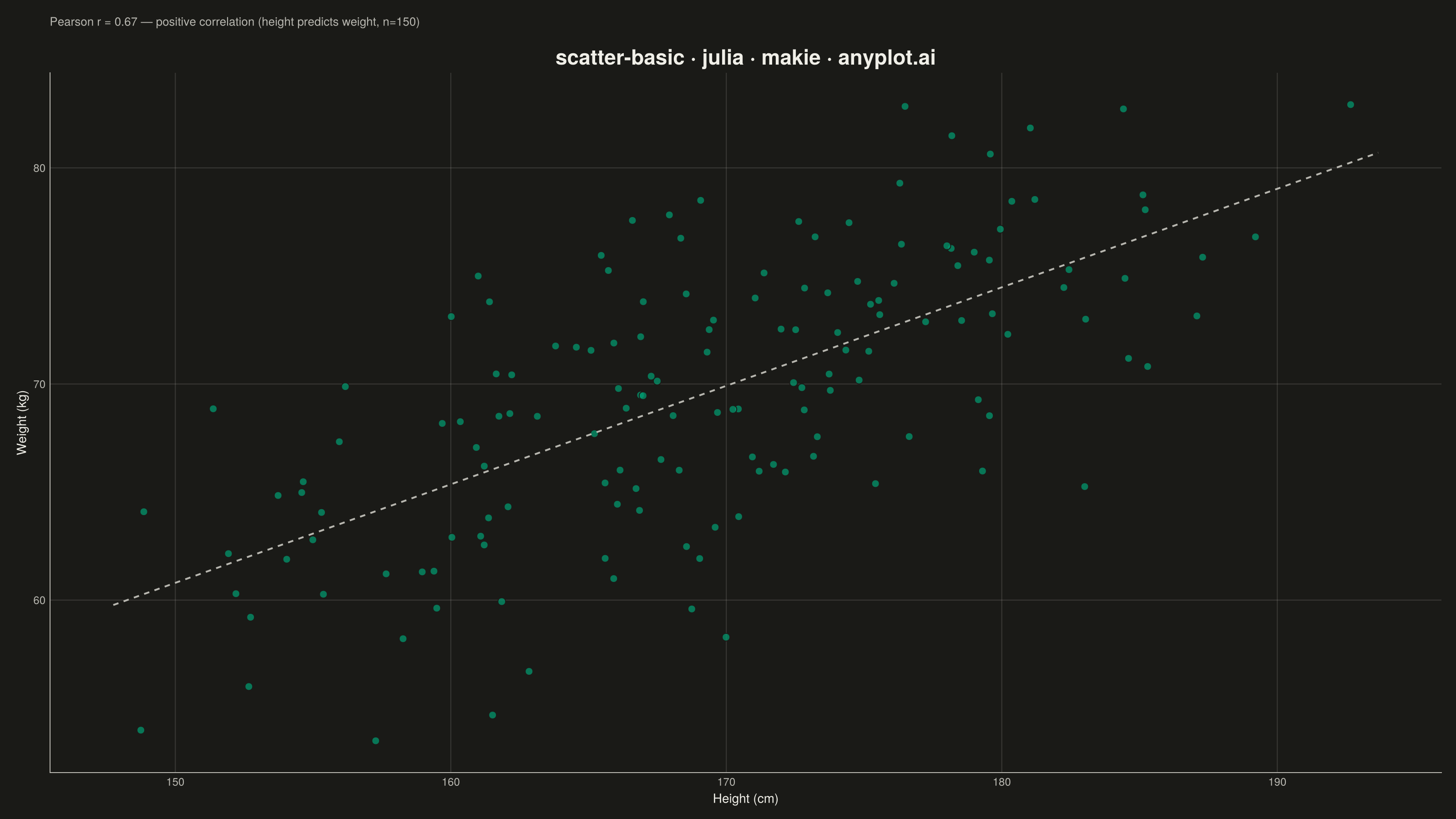

Basic Scatter Plot rendered with Makie.jl

Renders

Julia source (Makie.jl)

# anyplot.ai
# scatter-basic: Basic Scatter Plot
# Library: makie 0.21.9 | Julia 1.11.9
# Quality: 88/100 | Created: 2026-06-25

using CairoMakie
using Colors
using Random
using Statistics

Random.seed!(42)

# Theme tokens
const THEME    = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG  = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const INK      = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const BRAND    = colorant"#009E73"

# Data — adult height (cm) vs weight (kg), simulated health study, n=150
n = 150
height_cm = 170.0 .+ 10.0 .* randn(n)
weight_kg = 0.5 .* height_cm .+ 5.0 .* randn(n) .- 15.0

# Regression line
x_bar     = mean(height_cm)
y_bar     = mean(weight_kg)
slope     = sum((height_cm .- x_bar) .* (weight_kg .- y_bar)) / sum((height_cm .- x_bar) .^ 2)
intercept = y_bar - slope * x_bar
x_fit     = LinRange(minimum(height_cm) - 1, maximum(height_cm) + 1, 200)
y_fit     = slope .* x_fit .+ intercept
r_val     = cor(height_cm, weight_kg)

# Figure
fig = Figure(
    size            = (1600, 900),
    fontsize        = 14,
    backgroundcolor = PAGE_BG,
)

# Subtitle using Makie compositional layout slot above the main axis
Label(
    fig[0, 1],
    "Pearson r = $(round(r_val; digits=2)) — positive correlation (height predicts weight, n=$n)",
    fontsize  = 13,
    color     = INK_SOFT,
    halign    = :left,
    tellwidth = false,
)

ax = Axis(
    fig[1, 1];
    title              = "scatter-basic · julia · makie · anyplot.ai",
    titlesize          = 23,
    titlecolor         = INK,
    xlabel             = "Height (cm)",
    ylabel             = "Weight (kg)",
    xlabelsize         = 14,
    ylabelsize         = 14,
    xlabelcolor        = INK,
    ylabelcolor        = INK,
    xticklabelsize     = 12,
    yticklabelsize     = 12,
    xticklabelcolor    = INK_SOFT,
    yticklabelcolor    = INK_SOFT,
    xticksvisible      = false,
    yticksvisible      = false,
    backgroundcolor    = PAGE_BG,
    topspinevisible    = false,
    rightspinevisible  = false,
    leftspinecolor     = INK_SOFT,
    bottomspinecolor   = INK_SOFT,
    xgridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15),
    ygridcolor         = RGBAf(INK.r, INK.g, INK.b, 0.15),
)

scatter!(
    ax, height_cm, weight_kg;
    color       = (BRAND, 0.7),
    markersize  = 12,
    strokewidth = 1,
    strokecolor = PAGE_BG,
)

lines!(ax, collect(x_fit), collect(y_fit); color = INK_SOFT, linewidth = 2.0, linestyle = :dash)

# Save
save("plot-$(THEME).png", fig; px_per_unit = 2)

Part of Basic Scatter Plot on anyplot.ai.
