Basic Scatter Plot — plotnine

A fundamental 2D scatter plot that displays the relationship between two numeric variables by plotting points on a Cartesian coordinate system. This visualization is essential for exploring correlations, identifying patterns, detecting outliers, and understanding the distribution of paired data points.

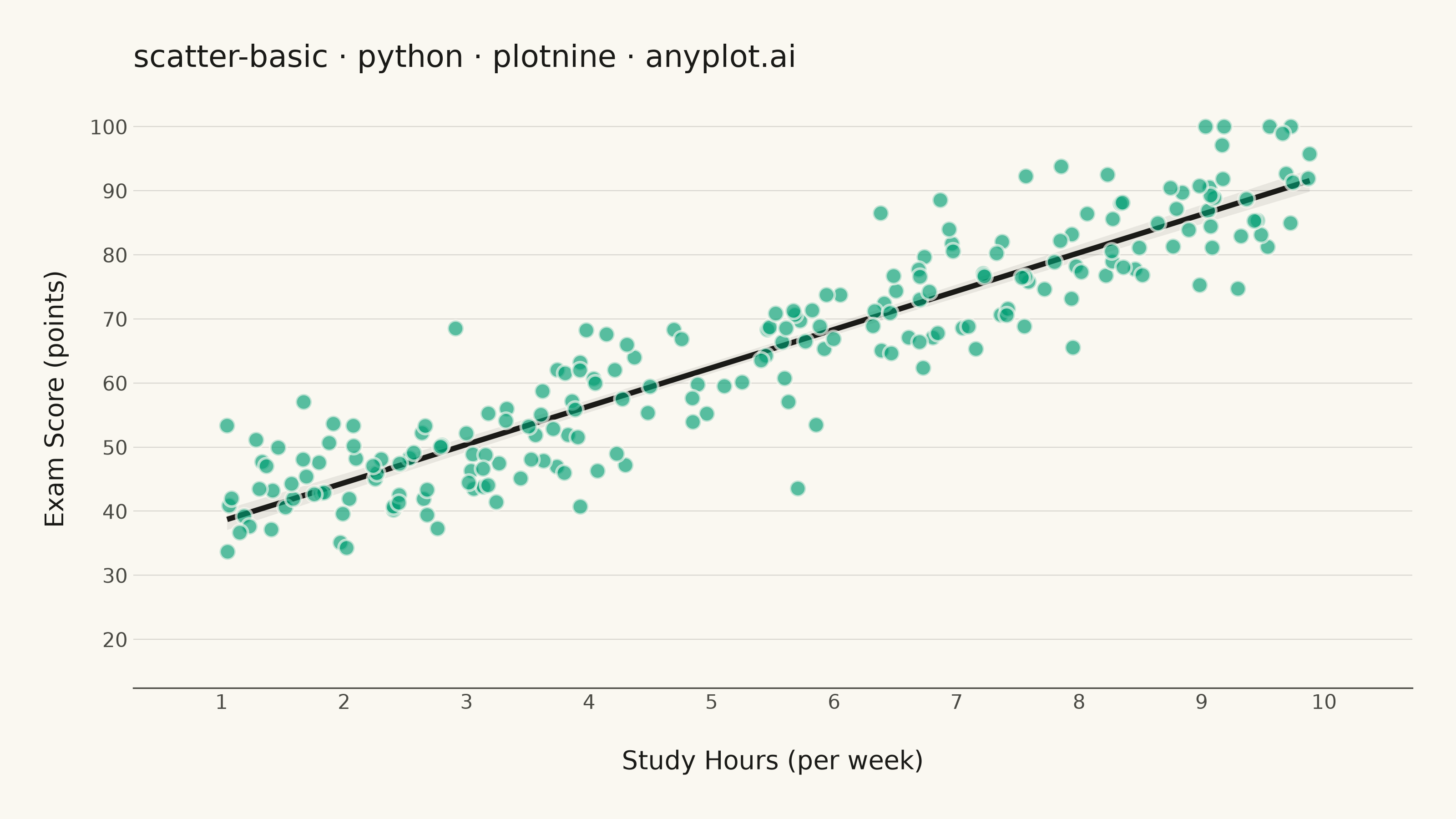

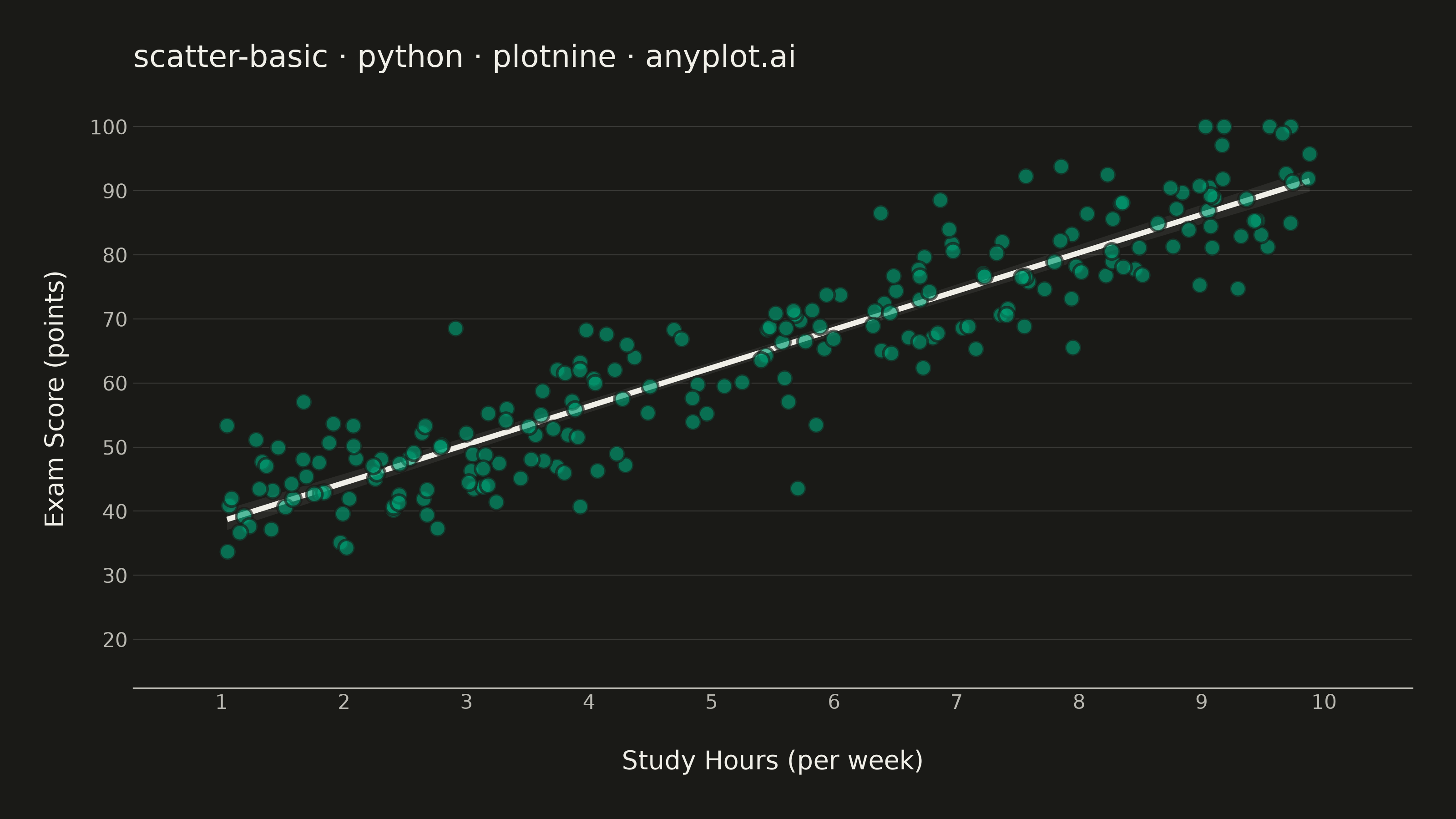

Basic Scatter Plot rendered with plotnine

Python source (plotnine)

""" anyplot.ai
scatter-basic: Basic Scatter Plot
Library: plotnine 0.15.7 | Python 3.13.14
Quality: 90/100 | Updated: 2026-06-25
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    coord_cartesian,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_point,
    geom_smooth,
    ggplot,
    labs,
    scale_x_continuous,
    scale_y_continuous,
    theme,
    theme_minimal,
)


# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = INK
BRAND = "#009E73"  # Imprint palette position 1 — always first series

# Data
np.random.seed(42)
n_points = 220
study_hours = np.random.uniform(1, 10, n_points)
exam_scores = np.clip(32 + study_hours * 6 + np.random.randn(n_points) * 7, 15, 100)
df = pd.DataFrame({"study_hours": study_hours, "exam_scores": exam_scores})

# Plot
title = "scatter-basic · python · plotnine · anyplot.ai"
plot = (
    ggplot(df, aes(x="study_hours", y="exam_scores"))
    + geom_smooth(method="lm", color=INK, fill=INK, alpha=0.08, size=1.2, se=True)
    + geom_point(shape="o", fill=BRAND, color=PAGE_BG, alpha=0.65, size=3.0, stroke=0.6)
    + scale_x_continuous(breaks=[1, 2, 3, 4, 5, 6, 7, 8, 9, 10], expand=(0.02, 0.02))
    + scale_y_continuous(breaks=[20, 30, 40, 50, 60, 70, 80, 90, 100], expand=(0.03, 0.03))
    + coord_cartesian(xlim=(0.5, 10.5), ylim=(15, 100))
    + labs(x="Study Hours (per week)", y="Exam Score (points)", title=title)
    + theme_minimal()
    + theme(
        figure_size=(8, 4.5),
        text=element_text(size=7, color=INK_SOFT),
        plot_title=element_text(size=12, color=INK, ha="left", margin={"b": 8}),
        axis_title_x=element_text(size=10, color=INK, margin={"t": 8}),
        axis_title_y=element_text(size=10, color=INK, margin={"r": 8}),
        axis_text=element_text(size=8, color=INK_SOFT),
        axis_ticks=element_blank(),
        axis_line_x=element_line(color=INK_SOFT, size=0.6),
        axis_line_y=element_blank(),
        panel_grid_major_x=element_blank(),
        panel_grid_major_y=element_line(color=GRID, size=0.4, alpha=0.15),
        panel_grid_minor=element_blank(),
        panel_border=element_blank(),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        plot_margin=0.03,
    )
)

# Save
plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in", verbose=False)

Part of Basic Scatter Plot on anyplot.ai.
