Basic Scatter Plot — Altair

A fundamental 2D scatter plot that displays the relationship between two numeric variables by plotting points on a Cartesian coordinate system. This visualization is essential for exploring correlations, identifying patterns, detecting outliers, and understanding the distribution of paired data points.

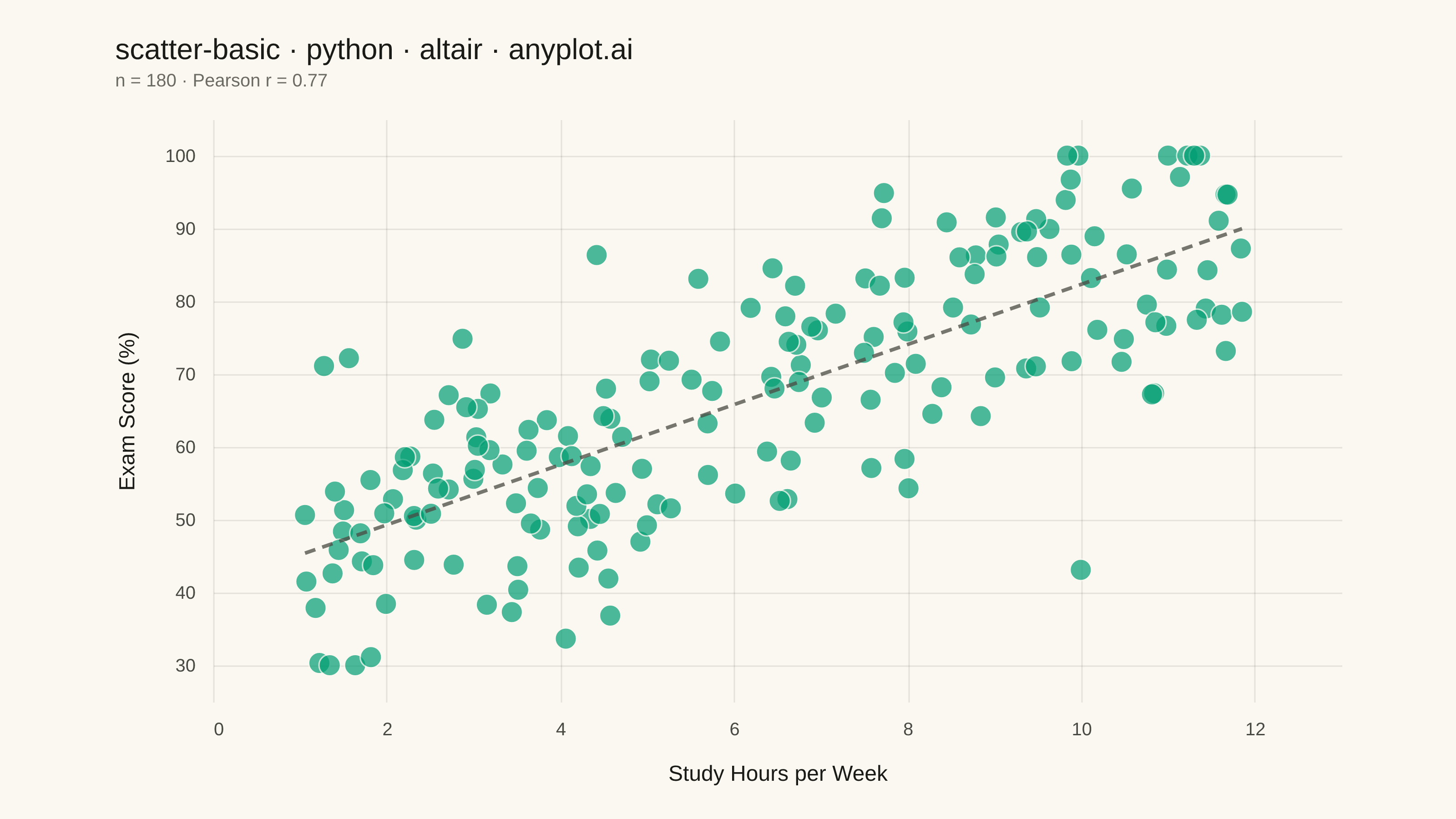

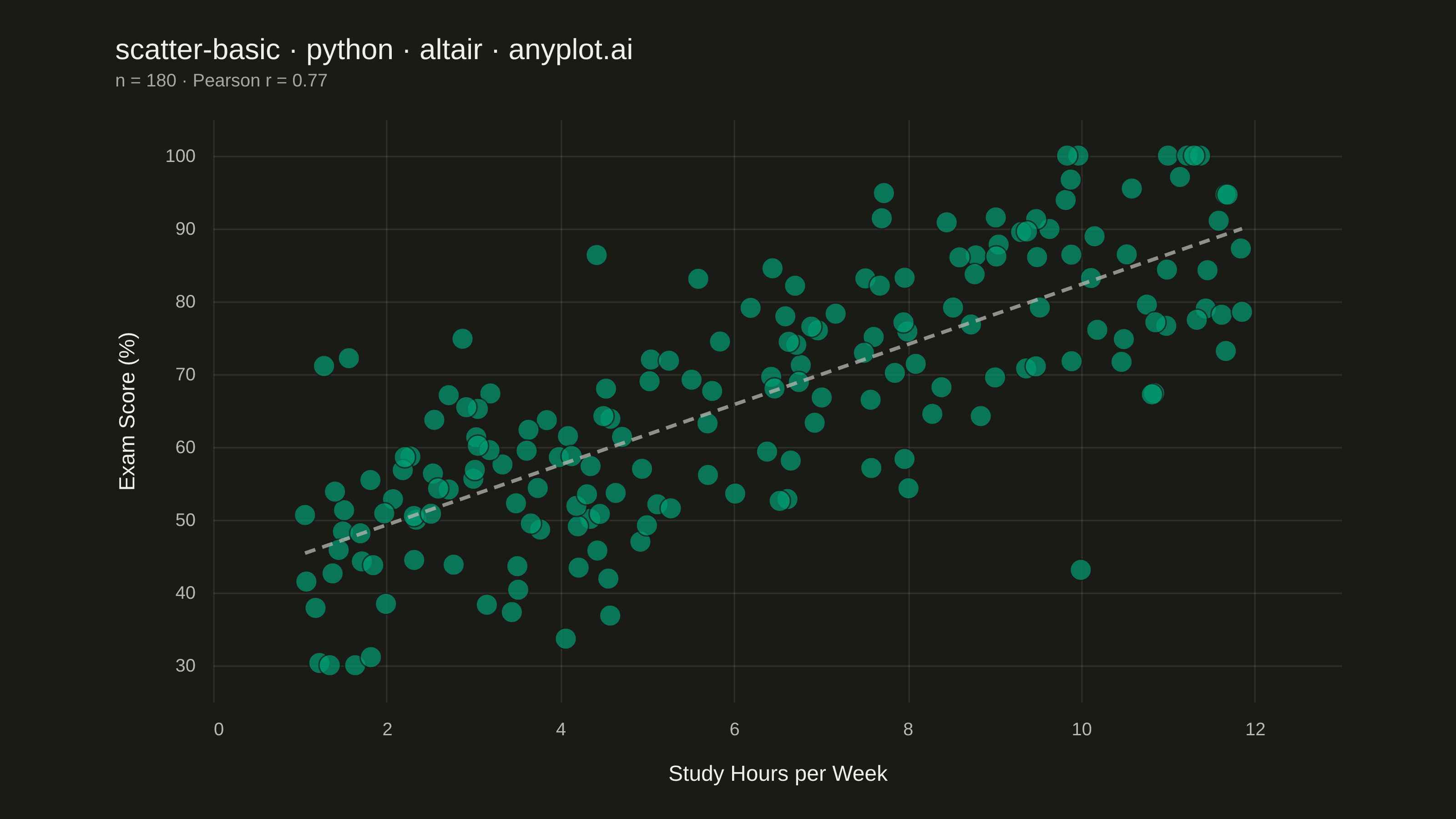

Basic Scatter Plot rendered with Altair

Python source (Altair)

""" anyplot.ai
scatter-basic: Basic Scatter Plot
Library: altair 6.2.2 | Python 3.13.14
Quality: 91/100 | Updated: 2026-06-25
"""

import os
import sys


# Remove script directory from sys.path so the altair package resolves, not this file
sys.path = [p for p in sys.path if os.path.abspath(p or ".") != os.path.dirname(os.path.abspath(__file__))]

import altair as alt
import numpy as np
import pandas as pd
from PIL import Image


# Theme tokens — Imprint palette
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"
BRAND = "#009E73"  # Imprint palette position 1

# Data — study hours vs. exam scores (r ~ 0.70, moderate positive correlation)
np.random.seed(42)
n = 180
study_hours = np.random.uniform(1, 12, n)
exam_scores = np.clip(40 + study_hours * 4.2 + np.random.normal(0, 12.0, n), 30, 100)
df = pd.DataFrame({"hours": study_hours, "score": exam_scores})

pearson_r = float(np.corrcoef(df["hours"], df["score"])[0, 1])

# Scatter layer
points = (
    alt.Chart(df)
    .mark_circle(size=140, opacity=0.7, color=BRAND, stroke=PAGE_BG, strokeWidth=0.8)
    .encode(
        x=alt.X(
            "hours:Q",
            title="Study Hours per Week",
            scale=alt.Scale(domain=[0, 13], nice=False),
            axis=alt.Axis(tickCount=6, ticks=False, labelPadding=10, titlePadding=14, domain=False),
        ),
        y=alt.Y(
            "score:Q",
            title="Exam Score (%)",
            scale=alt.Scale(domain=[25, 105], nice=False),
            axis=alt.Axis(tickCount=8, ticks=False, labelPadding=10, titlePadding=14, domain=False),
        ),
        tooltip=[
            alt.Tooltip("hours:Q", title="Study hrs / wk", format=".1f"),
            alt.Tooltip("score:Q", title="Exam %", format=".1f"),
        ],
    )
)

# Regression line — Altair's transform_regression showcases its declarative layering grammar
regression = (
    alt.Chart(df)
    .mark_line(color=INK_SOFT, strokeWidth=2.0, strokeDash=[6, 4], opacity=0.75)
    .transform_regression("hours", "score")
    .encode(x=alt.X("hours:Q"), y=alt.Y("score:Q"))
)

chart = (
    alt.layer(points, regression)
    .properties(
        width=620,
        height=320,
        background=PAGE_BG,
        title=alt.Title(
            "scatter-basic · python · altair · anyplot.ai",
            subtitle=f"n = {n}  ·  Pearson r = {pearson_r:.2f}",
            fontSize=16,
            fontWeight="normal",
            color=INK,
            subtitleFontSize=10,
            subtitleColor=INK_MUTED,
            subtitlePadding=4,
            anchor="start",
            offset=16,
        ),
    )
    .configure_view(fill=PAGE_BG, stroke=None)
    .configure_axis(
        labelFontSize=10,
        titleFontSize=12,
        titleFontWeight="normal",
        gridColor=INK,
        gridOpacity=0.10,
        gridWidth=0.8,
        labelColor=INK_SOFT,
        titleColor=INK,
    )
)

# Save PNG
chart.save(f"plot-{THEME}.png", scale_factor=4.0)

# Pad to exact target 3200 × 1800 (vl-convert pads outside width/height)
TW, TH = 3200, 1800
_img = Image.open(f"plot-{THEME}.png").convert("RGB")
_w, _h = _img.size
if _w > TW or _h > TH:
    raise SystemExit(
        f"altair vl-convert produced {_w}×{_h}, exceeds target {TW}×{TH}. "
        f"Shrink chart .properties(width=, height=) values and re-render."
    )
if _w < TW or _h < TH:
    _canvas = Image.new("RGB", (TW, TH), PAGE_BG)
    _canvas.paste(_img, ((TW - _w) // 2, (TH - _h) // 2))
    _canvas.save(f"plot-{THEME}.png")

chart.save(f"plot-{THEME}.html")

Part of Basic Scatter Plot on anyplot.ai.
