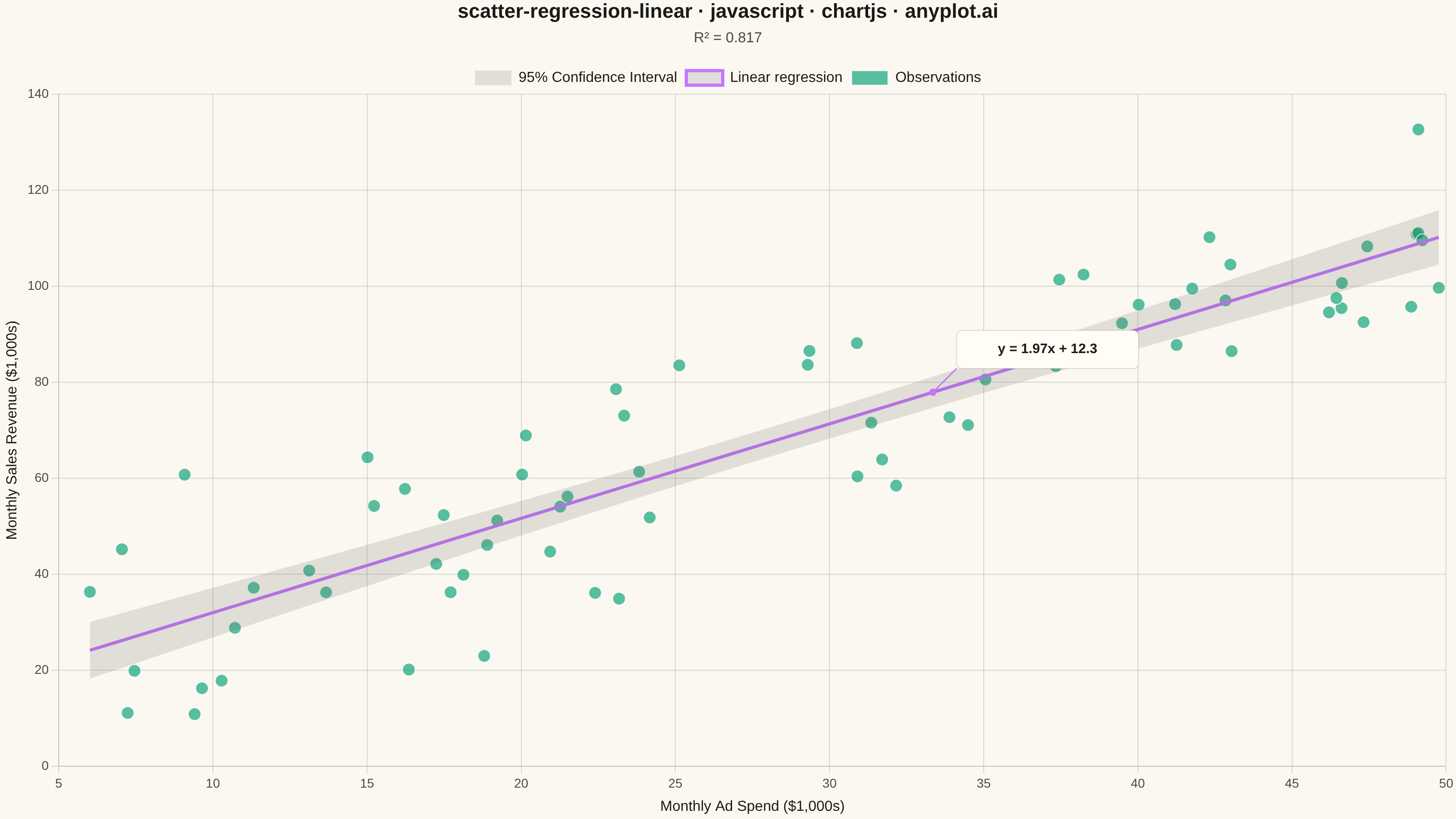

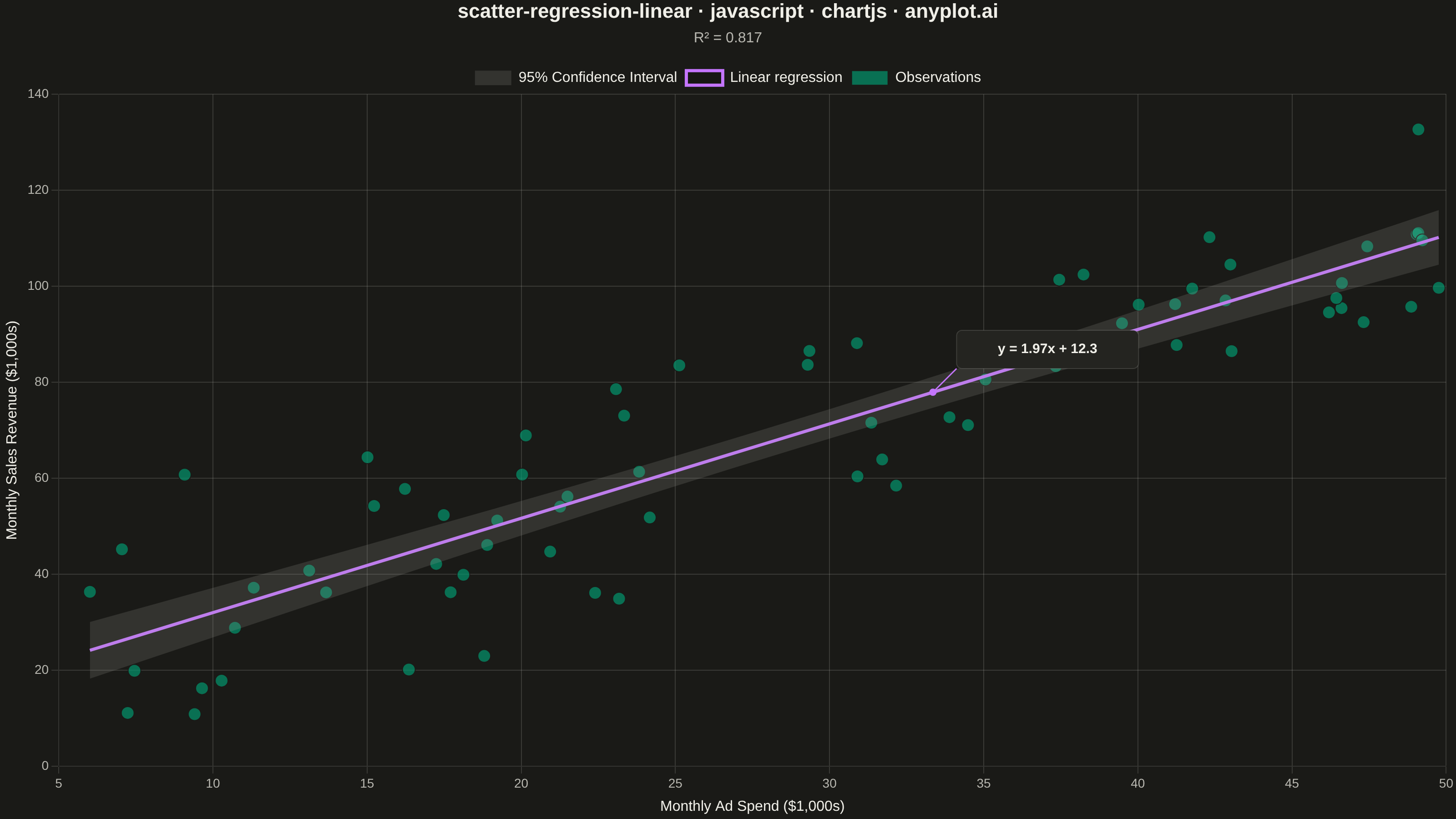

A scatter plot that displays the relationship between two numeric variables with a fitted linear regression line and confidence interval band. This visualization extends the basic scatter plot by adding statistical modeling elements, making it ideal for understanding linear relationships, assessing model fit, and communicating the strength of correlations with visual uncertainty quantification.
// anyplot.ai
// scatter-regression-linear: Scatter Plot with Linear Regression
// Library: chartjs 4.4.7 | JavaScript 22.23.1
// Quality: 89/100 | Created: 2026-08-05
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic fixed-seed LCG) -------------------------
function lcg(seed) {
let state = seed;
return () => {
state = (state * 1664525 + 1013904223) % 4294967296;
return state / 4294967296;
};
}
function randNormal(rand) {
const u1 = Math.max(rand(), 1e-9);
const u2 = rand();
return Math.sqrt(-2 * Math.log(u1)) * Math.cos(2 * Math.PI * u2);
}
const rand = lcg(42);
const n = 70;
const trueSlope = 1.8;
const trueIntercept = 18;
const noiseSd = 14;
const adSpend = [];
const salesRevenue = [];
for (let i = 0; i < n; i++) {
const x = 5 + rand() * 45; // $5k-$50k monthly ad spend
const y = trueSlope * x + trueIntercept + randNormal(rand) * noiseSd;
adSpend.push(x);
salesRevenue.push(y);
}
// --- Least-squares fit + 95% confidence band --------------------------------
const xMean = adSpend.reduce((a, b) => a + b, 0) / n;
const yMean = salesRevenue.reduce((a, b) => a + b, 0) / n;
let sXY = 0;
let sXX = 0;
for (let i = 0; i < n; i++) {
sXY += (adSpend[i] - xMean) * (salesRevenue[i] - yMean);
sXX += (adSpend[i] - xMean) ** 2;
}
const slope = sXY / sXX;
const intercept = yMean - slope * xMean;
let ssRes = 0;
let ssTot = 0;
for (let i = 0; i < n; i++) {
const yHat = slope * adSpend[i] + intercept;
ssRes += (salesRevenue[i] - yHat) ** 2;
ssTot += (salesRevenue[i] - yMean) ** 2;
}
const rSquared = 1 - ssRes / ssTot;
const seEstimate = Math.sqrt(ssRes / (n - 2));
const tCritical = 1.995; // t(0.975, df=68) — 95% CI
const xMin = Math.min(...adSpend);
const xMax = Math.max(...adSpend);
const steps = 40;
const regressionPoints = [];
const ciUpperPoints = [];
const ciLowerPoints = [];
for (let i = 0; i <= steps; i++) {
const x0 = xMin + ((xMax - xMin) * i) / steps;
const yHat = slope * x0 + intercept;
const sePred = seEstimate * Math.sqrt(1 / n + (x0 - xMean) ** 2 / sXX);
const margin = tCritical * sePred;
regressionPoints.push({ x: x0, y: yHat });
ciUpperPoints.push({ x: x0, y: yHat + margin });
ciLowerPoints.push({ x: x0, y: yHat - margin });
}
const scatterPoints = adSpend.map((x, i) => ({ x, y: salesRevenue[i] }));
// --- Colors (Imprint palette) -----------------------------------------------
function withAlpha(hex, alpha) {
const r = parseInt(hex.slice(1, 3), 16);
const g = parseInt(hex.slice(3, 5), 16);
const b = parseInt(hex.slice(5, 7), 16);
return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}
const pointColor = withAlpha(t.palette[0], 0.65);
const lineColor = t.palette[1];
const mutedInk = t.theme === "light" ? "#6B6A63" : "#A8A79F"; // muted anchor (confidence-band fill)
const bandColor = withAlpha(mutedInk, 0.18);
// --- Regression-equation callout (annotation per spec notes) ----------------
const equationText = `y = ${slope.toFixed(2)}x + ${intercept.toFixed(1)}`;
const calloutAnchorIdx = Math.round(steps * 0.62);
const calloutPlugin = {
id: "regressionCallout",
afterDraw(chart) {
const { ctx, chartArea } = chart;
const xScale = chart.scales.x;
const yScale = chart.scales.y;
const anchor = regressionPoints[calloutAnchorIdx];
const px = xScale.getPixelForValue(anchor.x);
const py = yScale.getPixelForValue(anchor.y);
const boxW = 200;
const boxH = 42;
let boxX = px + 26;
let boxY = py - boxH - 26;
if (boxX + boxW > chartArea.right) boxX = px - boxW - 26;
if (boxY < chartArea.top) boxY = py + 26;
const anchorX = boxX < px ? boxX + boxW : boxX;
const anchorY = boxY + boxH / 2 < py ? boxY + boxH : boxY;
ctx.save();
ctx.strokeStyle = lineColor;
ctx.lineWidth = 1.5;
ctx.beginPath();
ctx.moveTo(px, py);
ctx.lineTo(anchorX, anchorY);
ctx.stroke();
ctx.fillStyle = lineColor;
ctx.beginPath();
ctx.arc(px, py, 4, 0, Math.PI * 2);
ctx.fill();
ctx.fillStyle = t.elevatedBg;
ctx.strokeStyle = t.grid;
ctx.lineWidth = 1;
ctx.beginPath();
ctx.roundRect(boxX, boxY, boxW, boxH, 6);
ctx.fill();
ctx.stroke();
ctx.fillStyle = t.ink;
ctx.font = "600 15px sans-serif";
ctx.textAlign = "center";
ctx.textBaseline = "middle";
ctx.fillText(equationText, boxX + boxW / 2, boxY + boxH / 2);
ctx.restore();
},
};
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
type: "scatter",
plugins: [calloutPlugin],
data: {
datasets: [
{
label: "",
type: "line",
data: ciUpperPoints,
borderWidth: 0,
pointRadius: 0,
fill: false,
tension: 0,
},
{
label: "95% Confidence Interval",
type: "line",
data: ciLowerPoints,
borderWidth: 0,
pointRadius: 0,
fill: "-1",
backgroundColor: bandColor,
tension: 0,
},
{
label: "Linear regression",
type: "line",
data: regressionPoints,
borderColor: lineColor,
borderWidth: 3.5,
pointRadius: 0,
fill: false,
tension: 0,
},
{
label: "Observations",
data: scatterPoints,
backgroundColor: pointColor,
borderColor: t.pageBg,
borderWidth: 1,
pointRadius: 7,
pointHoverRadius: 7,
},
],
},
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "scatter-regression-linear · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
padding: { bottom: 6 },
},
subtitle: {
display: true,
text: [`R² = ${rSquared.toFixed(3)}`],
color: t.inkSoft,
font: { size: 16 },
padding: { bottom: 16 },
},
legend: {
labels: {
color: t.ink,
font: { size: 16 },
filter: (item) => item.text !== "",
},
},
},
scales: {
x: {
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
title: { display: true, text: "Monthly Ad Spend ($1,000s)", color: t.ink, font: { size: 16 } },
},
y: {
ticks: { color: t.inkSoft, font: { size: 14 } },
grid: { color: t.grid },
title: { display: true, text: "Monthly Sales Revenue ($1,000s)", color: t.ink, font: { size: 16 } },
},
},
},
});
Part of Scatter Plot with Linear Regression on anyplot.ai.
