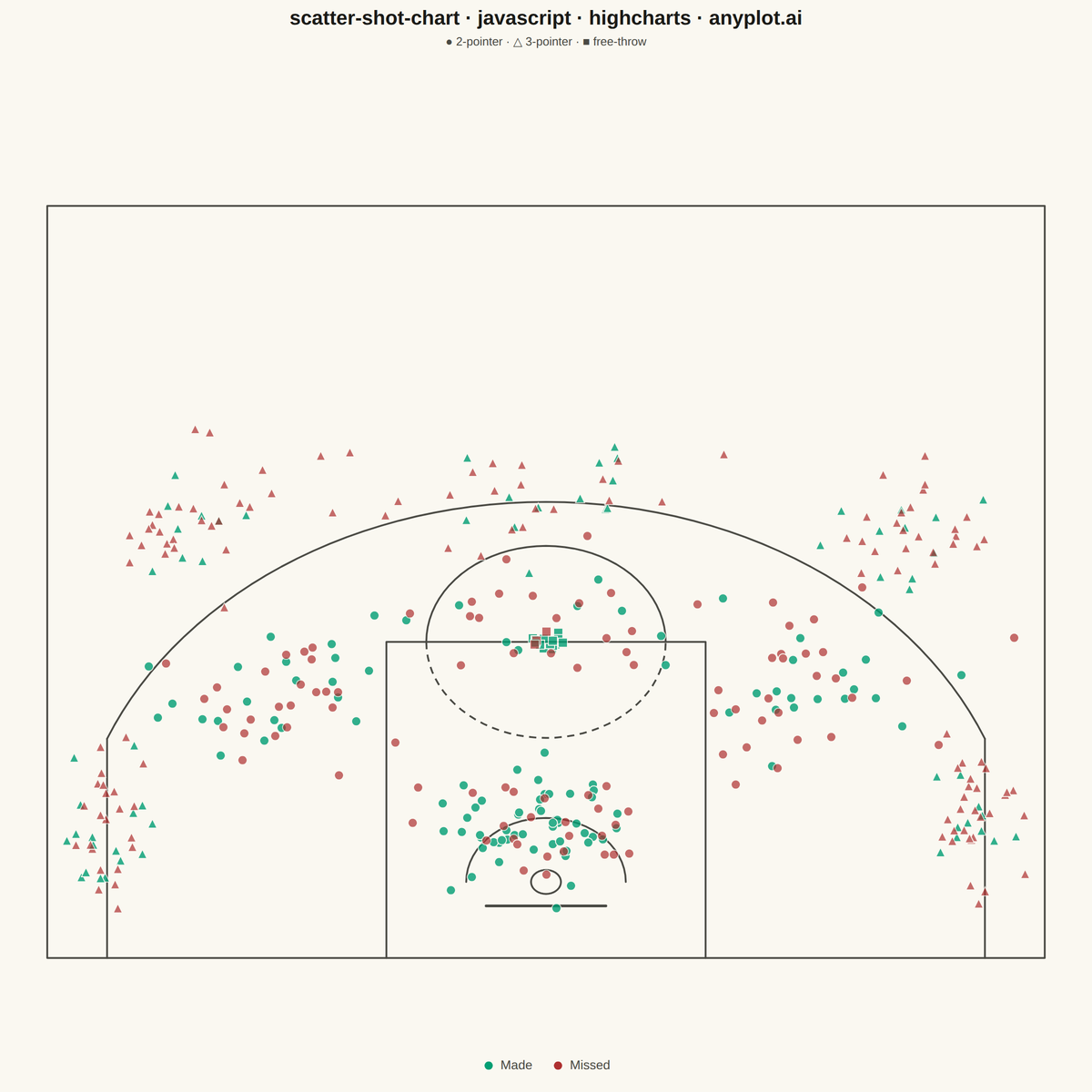

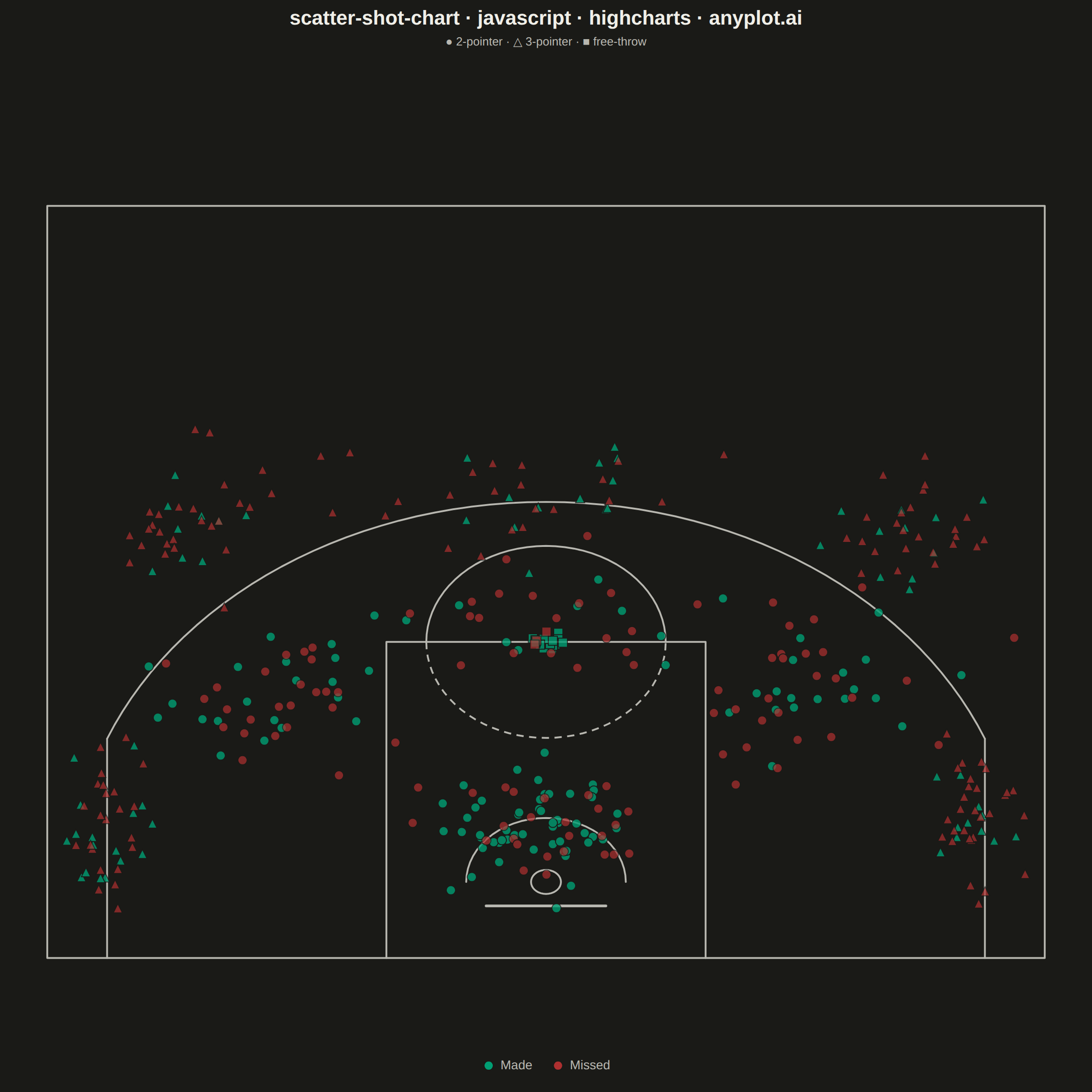

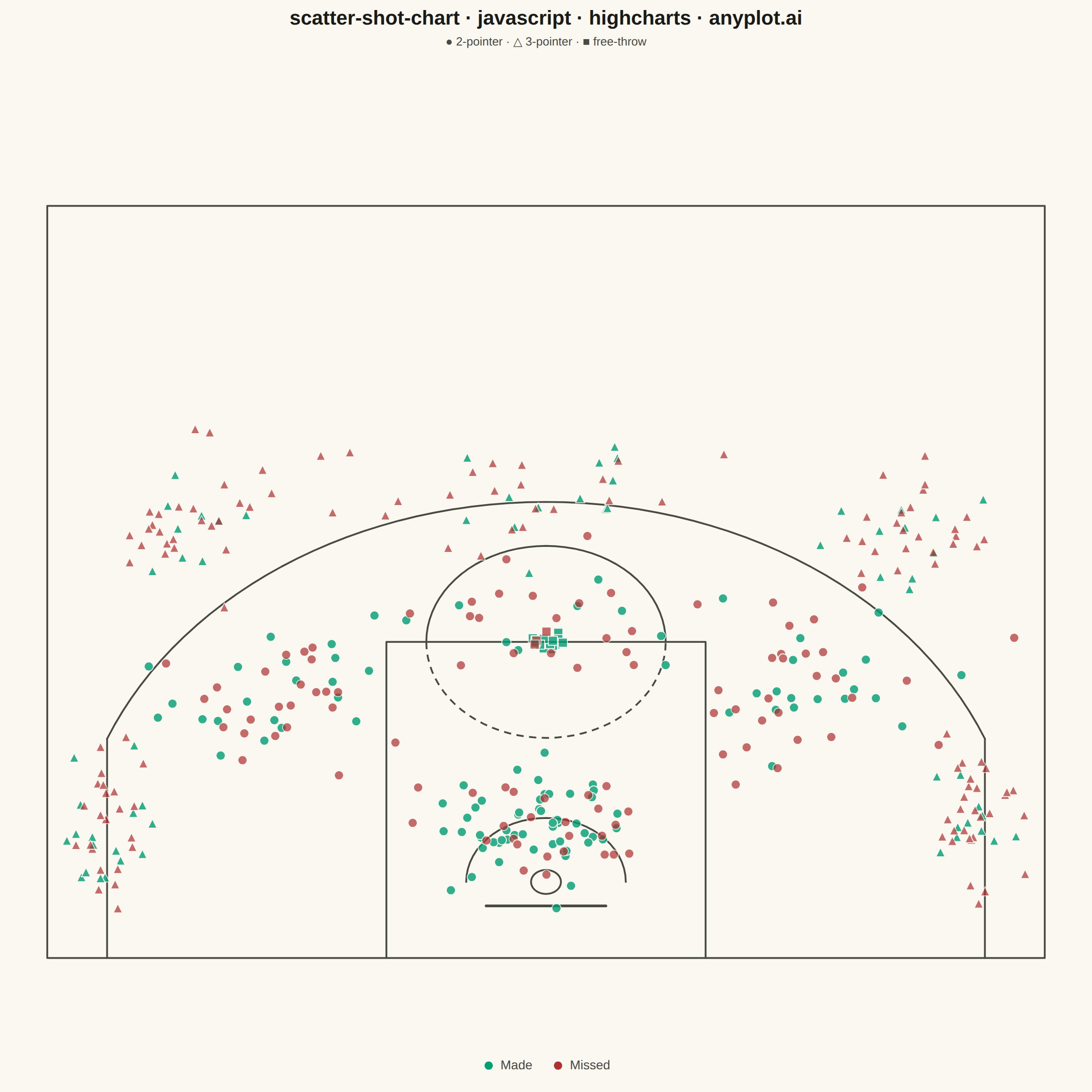

A basketball shot chart overlays shooting data on a half-court diagram, plotting each shot attempt as a point colored by outcome (made or missed). The court drawing includes the three-point arc, free-throw line, paint/key area, and basket, providing spatial context for analyzing shooting patterns and efficiency. Essential for basketball analytics and player evaluation.
// anyplot.ai
// scatter-shot-chart: Basketball Shot Chart
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 88/100 | Created: 2026-06-21
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
// Fixed-seed LCG for deterministic data generation (no Math.random())
let _s = 42;
function rnd() {
_s = (Math.imul(1664525, _s) + 1013904223) >>> 0;
return _s / 4294967296;
}
function rn() { // standard normal via Box-Muller
const u = rnd() || 1e-10;
return Math.sqrt(-2 * Math.log(u)) * Math.cos(2 * Math.PI * rnd());
}
// --- Court geometry helper ---
function arc(cx, cy, r, a0, a1, steps) {
const pts = [];
for (let i = 0; i <= steps; i++) {
const a = (a0 + (a1 - a0) * i / steps) * Math.PI / 180;
pts.push([+(cx + r * Math.cos(a)).toFixed(3), +(cy + r * Math.sin(a)).toFixed(3)]);
}
return pts;
}
// --- NBA half-court dimensions (feet, basket at origin) ---
const BL = -4.75; // baseline Y
const HC = 42.25; // half-court line Y
const CY = Math.sqrt(23.75 * 23.75 - 22 * 22); // three-point corner Y ≈ 8.95
const A0 = Math.atan2(CY, 22) * 180 / Math.PI; // arc start angle ≈ 22.1°
const A1 = Math.atan2(CY, -22) * 180 / Math.PI; // arc end angle ≈ 157.9°
// Court line series template (neutral ink-soft colour so shots stand out)
const CL = {
type: 'line',
color: t.inkSoft,
lineWidth: 2,
marker: { enabled: false },
enableMouseTracking: false,
showInLegend: false,
states: { hover: { enabled: false } },
};
const courtSeries = [
// Outer half-court boundary
{ ...CL, data: [[-25, BL], [25, BL], [25, HC], [-25, HC], [-25, BL]] },
// Three-point corners (straight segments)
{ ...CL, data: [[-22, BL], [-22, CY]] },
{ ...CL, data: [[22, BL], [22, CY]] },
// Three-point arc
{ ...CL, data: arc(0, 0, 23.75, A0, A1, 60) },
// Paint / key rectangle (sides + free-throw end)
{ ...CL, data: [[-8, BL], [-8, 15], [8, 15], [8, BL]] },
// Free-throw circle — upper half (solid, away from basket)
{ ...CL, data: arc(0, 15, 6, 0, 180, 40) },
// Free-throw circle — lower half (dashed, toward basket)
{ ...CL, dashStyle: 'Dash', data: arc(0, 15, 6, 180, 360, 40) },
// Restricted area (4 ft arc from basket)
{ ...CL, data: arc(0, 0, 4, 0, 180, 30) },
// Backboard
{ ...CL, lineWidth: 3, data: [[-3, -1.5], [3, -1.5]] },
// Basket rim (small circle)
{ ...CL, lineWidth: 2, data: arc(0, 0, 0.75, 0, 360, 36) },
];
// --- Shot data generation: type drives marker shape (● 2PT · △ 3PT · ■ FT) ---
const shots = { made2: [], missed2: [], made3: [], missed3: [], madeFT: [], missedFT: [] };
function addShots(n, cx, cy, sx, sy, pct, type) {
for (let i = 0; i < n; i++) {
const x = Math.max(-24, Math.min(24, cx + rn() * sx));
const y = Math.max(BL + 0.5, Math.min(41, cy + rn() * sy));
const key = (rnd() < pct ? 'made' : 'missed') + type;
shots[key].push([+x.toFixed(2), +y.toFixed(2)]);
}
}
addShots(80, 0, 3, 2.5, 2, 0.65, '2'); // under basket
addShots(45, -13, 12, 3, 3, 0.42, '2'); // left mid-range
addShots(45, 13, 12, 3, 3, 0.42, '2'); // right mid-range
addShots(30, 0, 17, 3.5, 2, 0.44, '2'); // top of key
addShots(40, -22, 4, 1.5, 2.5, 0.38, '3'); // left corner three
addShots(40, 22, 4, 1.5, 2.5, 0.38, '3'); // right corner three
addShots(35, -18, 22, 2, 2, 0.36, '3'); // left above-break three
addShots(35, 18, 22, 2, 2, 0.36, '3'); // right above-break three
addShots(35, 0, 24, 4, 2, 0.35, '3'); // top-of-arc three
addShots(22, 0, 15, 0.4, 0.3, 0.78, 'FT'); // free throws (~78% NBA avg)
// --- Chart ---
Highcharts.chart("container", {
chart: {
type: 'scatter',
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
margin: [90, 30, 55, 30],
},
credits: { enabled: false },
colors: t.palette,
title: {
text: 'scatter-shot-chart · javascript · highcharts · anyplot.ai',
style: { color: t.ink, fontSize: '22px', fontWeight: '600' },
},
subtitle: {
text: '● 2-pointer · △ 3-pointer · ■ free-throw',
style: { color: t.inkSoft, fontSize: '13px' },
},
xAxis: {
min: -26, max: 26,
lineColor: 'transparent',
tickColor: 'transparent',
gridLineColor: 'transparent',
labels: { enabled: false },
title: { enabled: false },
},
yAxis: {
min: -6, max: 46,
lineColor: 'transparent',
tickColor: 'transparent',
gridLineColor: 'transparent',
labels: { enabled: false },
title: { text: null },
},
legend: {
enabled: true,
itemStyle: { color: t.inkSoft, fontSize: '14px', fontWeight: 'normal' },
itemHoverStyle: { color: t.ink },
symbolRadius: 4,
verticalAlign: 'bottom',
align: 'center',
},
tooltip: { enabled: false },
plotOptions: {
series: { animation: false },
scatter: {
marker: { radius: 5, lineWidth: 1, lineColor: t.pageBg },
},
},
series: [
...courtSeries,
// Made shots — brand green (#009E73); shape encodes shot type; only first shown in legend
{
type: 'scatter', name: 'Made', data: shots.made2,
color: t.palette[0], opacity: 0.80,
marker: { radius: 5, symbol: 'circle', lineWidth: 1, lineColor: t.pageBg },
},
{
type: 'scatter', name: 'Made 3PT', data: shots.made3,
color: t.palette[0], opacity: 0.80, showInLegend: false,
marker: { radius: 5, symbol: 'triangle', lineWidth: 1, lineColor: t.pageBg },
},
{
type: 'scatter', name: 'Made FT', data: shots.madeFT,
color: t.palette[0], opacity: 0.80, showInLegend: false,
marker: { radius: 5, symbol: 'square', lineWidth: 1, lineColor: t.pageBg },
},
// Missed shots — matte red (#AE3030); shape encodes shot type; only first shown in legend
{
type: 'scatter', name: 'Missed', data: shots.missed2,
color: t.palette[4], opacity: 0.70,
marker: { radius: 5, symbol: 'circle', lineWidth: 1, lineColor: t.pageBg },
},
{
type: 'scatter', name: 'Missed 3PT', data: shots.missed3,
color: t.palette[4], opacity: 0.70, showInLegend: false,
marker: { radius: 5, symbol: 'triangle', lineWidth: 1, lineColor: t.pageBg },
},
{
type: 'scatter', name: 'Missed FT', data: shots.missedFT,
color: t.palette[4], opacity: 0.70, showInLegend: false,
marker: { radius: 5, symbol: 'square', lineWidth: 1, lineColor: t.pageBg },
},
],
});
Part of Basketball Shot Chart on anyplot.ai.
