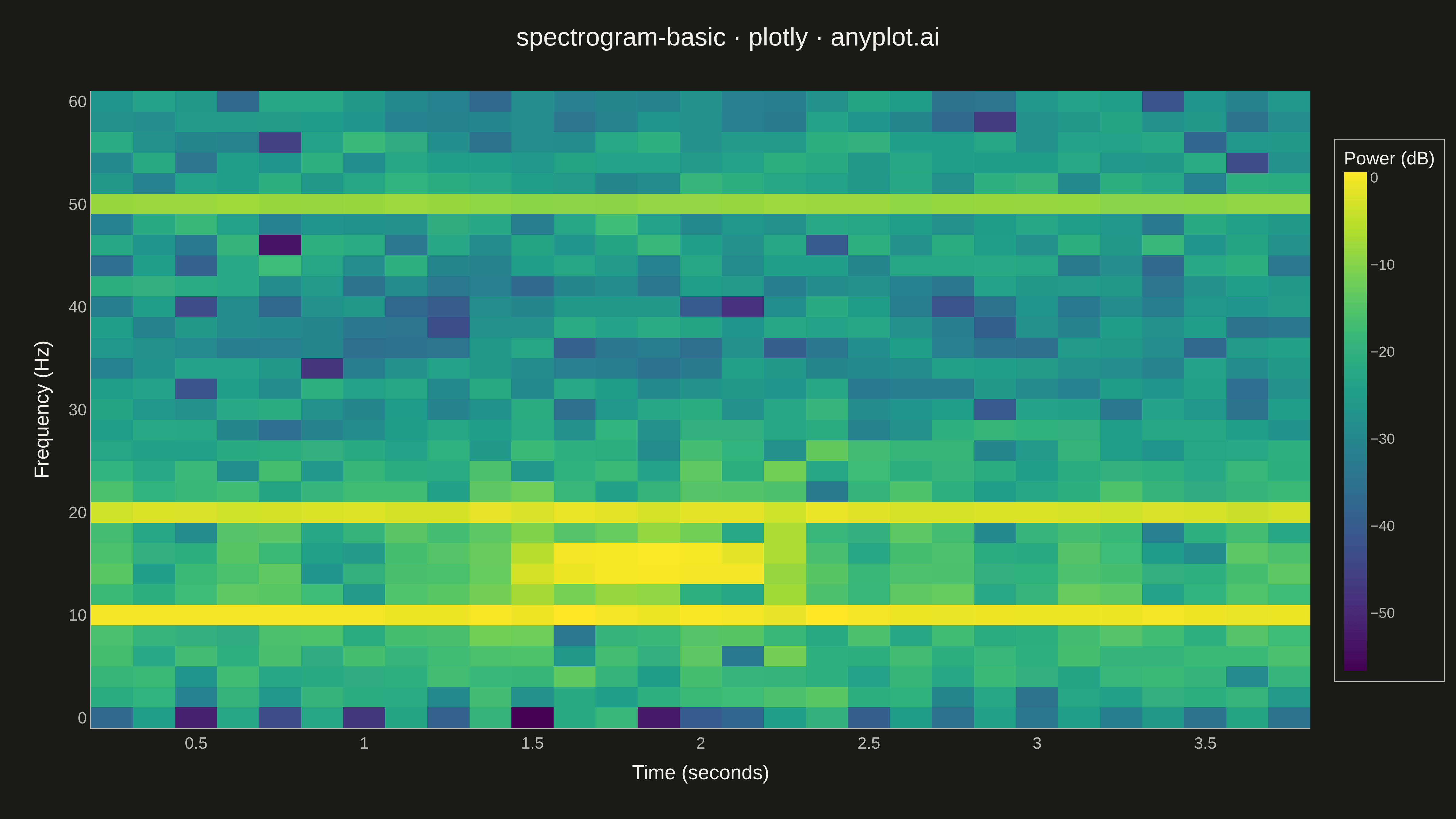

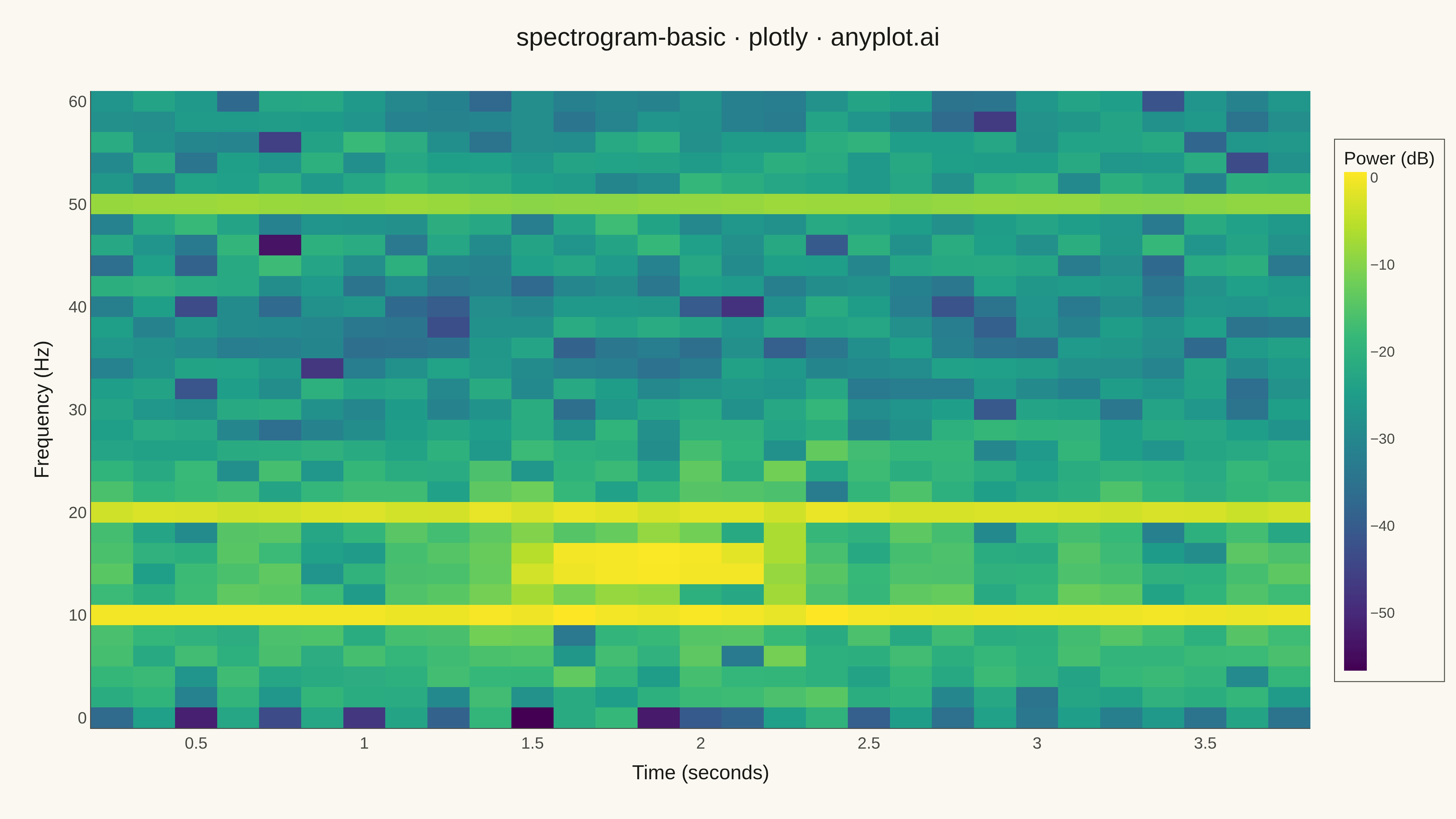

A spectrogram displaying time-frequency representation of a signal as a heatmap. It shows how the frequency content of a signal changes over time, with color intensity representing the amplitude or power at each time-frequency point. Essential for analyzing non-stationary signals where frequency characteristics vary, revealing patterns invisible in time-domain or frequency-domain views alone.
""" anyplot.ai
spectrogram-basic: Spectrogram Time-Frequency Heatmap
Library: plotly 6.7.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-15
"""
import os
import numpy as np
import plotly.graph_objects as go
from scipy import signal
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.10)" if THEME == "light" else "rgba(240,239,232,0.10)"
# Data - EEG biomedical signal with alpha-beta oscillations
np.random.seed(42)
sample_rate = 256 # Hz (standard EEG sampling rate)
duration = 4.0 # seconds
t = np.linspace(0, duration, int(sample_rate * duration))
# Simulate EEG with multiple frequency components
# Alpha waves (8-12 Hz), beta waves (12-30 Hz), and muscle artifact (50 Hz)
alpha = 2.0 * np.sin(2 * np.pi * 10 * t) # 10 Hz alpha waves
beta = 1.5 * np.sin(2 * np.pi * 20 * t + np.pi / 4) # 20 Hz beta waves
muscle_artifact = 0.8 * np.sin(2 * np.pi * 50 * t) # 50 Hz artifact
# Add realistic noise and transient bursts
noise = np.random.randn(len(t)) * 0.5
transient = np.zeros_like(t)
transient[int(1.5 * sample_rate) : int(2.2 * sample_rate)] += 3.0 * np.sin(
2 * np.pi * 15 * t[int(1.5 * sample_rate) : int(2.2 * sample_rate)]
)
eeg_signal = alpha + beta + muscle_artifact + noise + transient
# Compute spectrogram
nperseg = 128 # Window size for better frequency resolution
noverlap = 96 # Overlap (75% overlap for smooth visualization)
frequencies, times, Sxx = signal.spectrogram(eeg_signal, fs=sample_rate, nperseg=nperseg, noverlap=noverlap)
# Limit frequency range to 0-60 Hz (typical EEG band of interest)
freq_mask = frequencies <= 60
frequencies = frequencies[freq_mask]
Sxx = Sxx[freq_mask, :]
# Convert to dB scale for better visualization
Sxx_db = 10 * np.log10(Sxx + 1e-10)
# Create spectrogram heatmap
fig = go.Figure()
fig.add_trace(
go.Heatmap(
x=times,
y=frequencies,
z=Sxx_db,
colorscale="Viridis",
colorbar={
"title": {"text": "Power (dB)", "font": {"size": 20, "color": INK}},
"tickfont": {"size": 16, "color": INK_SOFT},
"len": 0.85,
"thickness": 25,
"outlinecolor": INK_SOFT,
"bordercolor": INK_SOFT,
"borderwidth": 1,
},
hovertemplate="Time: %{x:.2f}s<br>Frequency: %{y:.1f}Hz<br>Power: %{z:.1f}dB<extra></extra>",
)
)
# Layout
fig.update_layout(
title={
"text": "spectrogram-basic · plotly · anyplot.ai",
"font": {"size": 28, "color": INK},
"x": 0.5,
"xanchor": "center",
},
xaxis={
"title": {"text": "Time (seconds)", "font": {"size": 22, "color": INK}},
"tickfont": {"size": 18, "color": INK_SOFT},
"gridcolor": GRID,
"linecolor": INK_SOFT,
"showgrid": False,
},
yaxis={
"title": {"text": "Frequency (Hz)", "font": {"size": 22, "color": INK}},
"tickfont": {"size": 18, "color": INK_SOFT},
"gridcolor": GRID,
"linecolor": INK_SOFT,
"showgrid": False,
},
paper_bgcolor=PAGE_BG,
plot_bgcolor=PAGE_BG,
font={"color": INK},
margin={"l": 100, "r": 120, "t": 100, "b": 100},
height=None,
width=None,
)
# Save outputs
fig.write_image(f"plot-{THEME}.png", width=1600, height=900, scale=3)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")
Part of Spectrogram Time-Frequency Heatmap on anyplot.ai.
