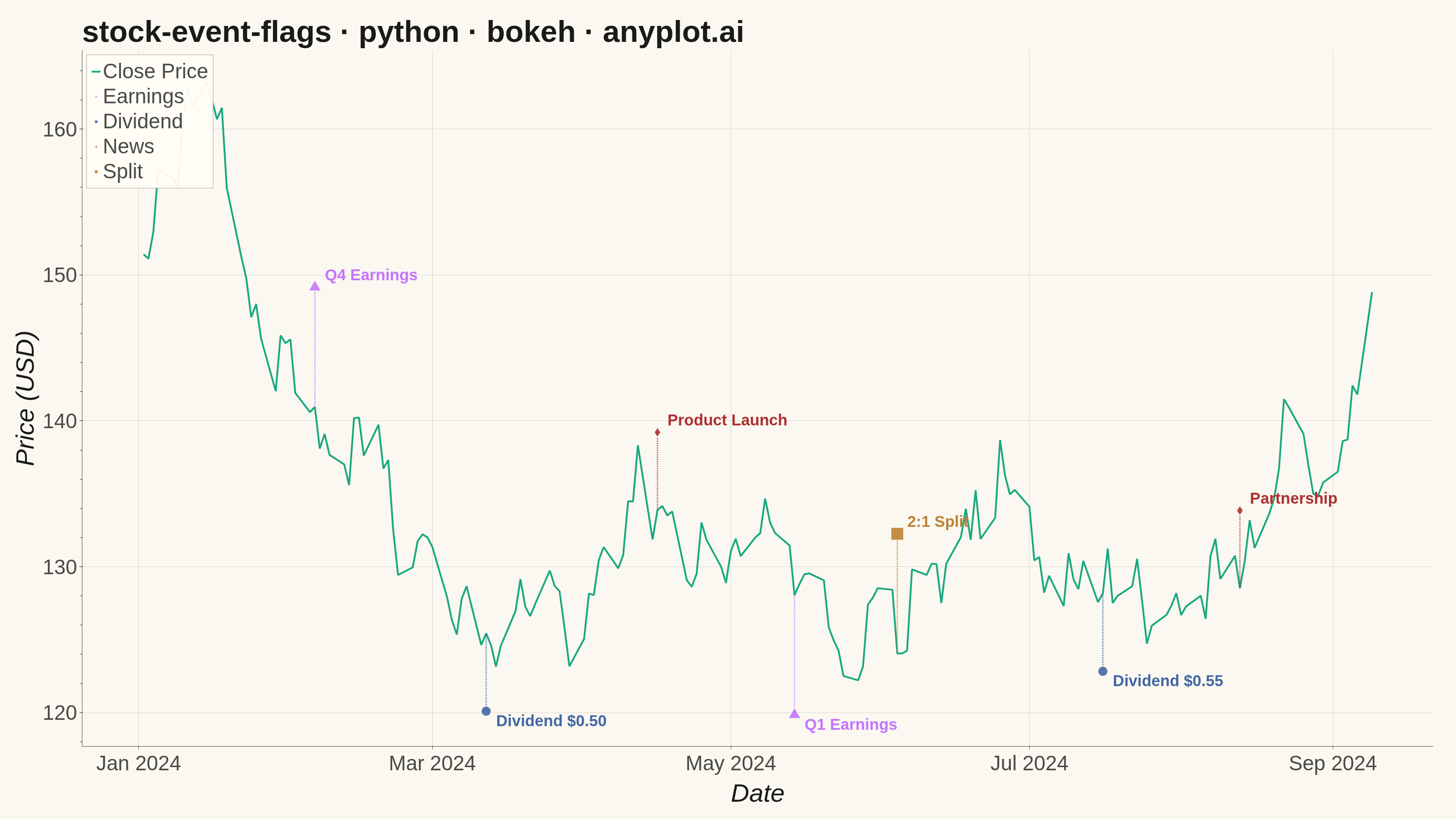

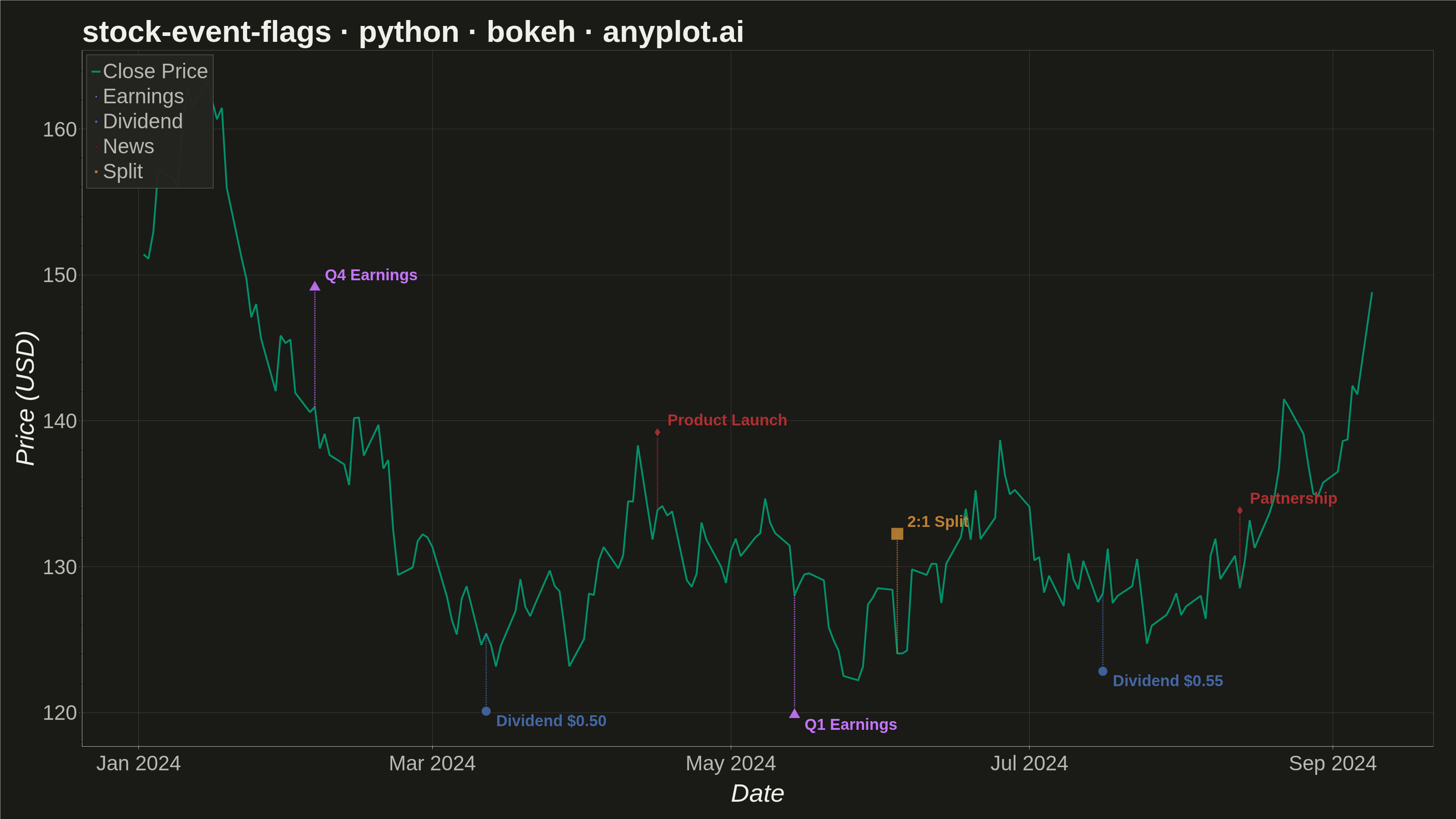

A stock price chart with flag-style markers annotating significant events such as earnings releases, dividends, stock splits, or news events. Unlike simple line annotations, flags are positioned above or below the price data with connector lines and styled icons that distinguish event types. This visualization is standard in financial trading platforms, enabling investors to correlate price movements with corporate actions and market events at a glance.
""" anyplot.ai
stock-event-flags: Stock Chart with Event Flags
Library: bokeh 3.9.0 | Python 3.13.13
Quality: 91/100 | Updated: 2026-05-27
"""
import base64
import os
import time
from pathlib import Path
import numpy as np
import pandas as pd
from bokeh.io import output_file, save
from bokeh.models import ColumnDataSource, HoverTool, Label, Legend, LegendItem
from bokeh.plotting import figure
from selenium import webdriver
from selenium.webdriver.chrome.options import Options
# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030", "#2ABCCD", "#954477", "#99B314"]
BRAND = IMPRINT_PALETTE[0] # price line uses position 1
# Data — 180 trading days of synthetic stock prices via geometric Brownian motion
np.random.seed(42)
n_days = 180
dates = pd.bdate_range(start=pd.Timestamp("2024-01-02"), periods=n_days)
initial_price = 150.0
daily_returns = np.random.normal(0.0005, 0.018, n_days)
close_prices = initial_price * np.cumprod(1 + daily_returns)
df = pd.DataFrame({"date": dates, "close": close_prices})
events = [
{"date": dates[25], "type": "earnings", "label": "Q4 Earnings"},
{"date": dates[50], "type": "dividend", "label": "Dividend $0.50"},
{"date": dates[75], "type": "news", "label": "Product Launch"},
{"date": dates[95], "type": "earnings", "label": "Q1 Earnings"},
{"date": dates[110], "type": "split", "label": "2:1 Split"},
{"date": dates[140], "type": "dividend", "label": "Dividend $0.55"},
{"date": dates[160], "type": "news", "label": "Partnership"},
]
events_df = pd.DataFrame(events)
# Event styling — positions 2–5 (position 1 is the price line)
event_colors = {
"earnings": IMPRINT_PALETTE[1], # lavender
"dividend": IMPRINT_PALETTE[2], # blue
"split": IMPRINT_PALETTE[3], # ochre
"news": IMPRINT_PALETTE[4], # matte red
}
event_markers = {"earnings": "triangle", "dividend": "circle", "split": "square", "news": "diamond"}
# Plot
title_str = "stock-event-flags · python · bokeh · anyplot.ai"
p = figure(
width=3200,
height=1800,
x_axis_type="datetime",
title=title_str,
x_axis_label="Date",
y_axis_label="Price (USD)",
toolbar_location=None,
min_border_bottom=160,
min_border_left=180,
min_border_top=110,
min_border_right=50,
)
# Theme-adaptive chrome
p.background_fill_color = PAGE_BG
p.border_fill_color = PAGE_BG
p.outline_line_color = None # L-shaped frame: only left/bottom axis lines visible
p.title.text_color = INK
p.title.text_font_size = "50pt"
p.xaxis.axis_label_text_color = INK
p.yaxis.axis_label_text_color = INK
p.xaxis.axis_label_text_font_size = "42pt"
p.yaxis.axis_label_text_font_size = "42pt"
p.xaxis.major_label_text_color = INK_SOFT
p.yaxis.major_label_text_color = INK_SOFT
p.xaxis.major_label_text_font_size = "34pt"
p.yaxis.major_label_text_font_size = "34pt"
p.xaxis.axis_line_color = INK_SOFT
p.yaxis.axis_line_color = INK_SOFT
p.xaxis.major_tick_line_color = INK_SOFT
p.yaxis.major_tick_line_color = INK_SOFT
p.xgrid.grid_line_color = INK
p.ygrid.grid_line_color = INK
p.xgrid.grid_line_alpha = 0.15
p.ygrid.grid_line_alpha = 0.15
# Price line
source = ColumnDataSource(df)
price_line = p.line(x="date", y="close", source=source, line_width=4, line_color=BRAND, alpha=0.9)
# Event flags — vertical connector lines + markers + labels
legend_renderers = {}
all_event_renderers = []
price_range = close_prices.max() - close_prices.min()
# Major events (earnings, split) get slightly larger offsets for visual hierarchy
major_events = {"earnings", "split"}
for i, event in events_df.iterrows():
event_date = event["date"]
event_type = event["type"]
event_label = event["label"]
color = event_colors[event_type]
marker = event_markers[event_type]
idx = df[df["date"] == event_date].index[0]
event_price = df.loc[idx, "close"]
offset_dir = 1 if i % 2 == 0 else -1
# Major events flagged higher to create visual hierarchy
offset_factor = 0.20 if event_type in major_events else 0.13
flag_y = event_price + offset_dir * price_range * offset_factor
p.segment(
x0=[event_date],
y0=[event_price],
x1=[event_date],
y1=[flag_y],
line_color=color,
line_dash="dashed",
line_width=3,
alpha=0.7,
)
flag_source = ColumnDataSource(
data={
"x": [event_date],
"y": [flag_y],
"event_type": [event_type.capitalize()],
"event_label": [event_label],
"price": [f"${event_price:.2f}"],
}
)
marker_size = 28 if event_type in major_events else 22
renderer = p.scatter(
x="x",
y="y",
source=flag_source,
size=marker_size,
color=color,
alpha=0.9,
line_color=PAGE_BG,
line_width=2,
marker=marker,
)
all_event_renderers.append(renderer)
if event_type not in legend_renderers:
legend_renderers[event_type] = renderer
label = Label(
x=event_date,
y=flag_y,
text=event_label,
text_font_size="26pt",
text_color=color,
x_offset=22,
y_offset=8 if offset_dir > 0 else -40,
text_font_style="bold",
)
p.add_layout(label)
# HoverTool on event markers — reveals full event details in the HTML artifact
hover = HoverTool(
renderers=all_event_renderers, tooltips=[("Type", "@event_type"), ("Event", "@event_label"), ("Price", "@price")]
)
p.add_tools(hover)
# Legend
legend_items = [LegendItem(label="Close Price", renderers=[price_line])]
for event_type, renderer in legend_renderers.items():
legend_items.append(LegendItem(label=event_type.capitalize(), renderers=[renderer]))
legend = Legend(
items=legend_items,
location="top_left",
label_text_font_size="34pt",
label_text_color=INK_SOFT,
background_fill_color=ELEVATED_BG,
border_line_color=INK_SOFT,
)
p.add_layout(legend)
# Save HTML artifact
output_file(f"plot-{THEME}.html")
save(p)
# Screenshot with headless Chrome (Selenium 4 / Selenium Manager)
W, H = 3200, 1800
opts = Options()
for arg in (
"--headless=new",
"--no-sandbox",
"--disable-dev-shm-usage",
"--disable-gpu",
f"--window-size={W},{H}",
"--hide-scrollbars",
):
opts.add_argument(arg)
driver = webdriver.Chrome(options=opts)
driver.set_window_size(W, H)
# Force exact viewport via CDP to override any OS/browser chrome overhead
driver.execute_cdp_cmd(
"Emulation.setDeviceMetricsOverride", {"width": W, "height": H, "deviceScaleFactor": 1, "mobile": False}
)
driver.get(f"file://{Path(f'plot-{THEME}.html').resolve()}")
time.sleep(3)
screenshot_b64 = driver.execute_cdp_cmd(
"Page.captureScreenshot", {"format": "png", "fromSurface": True, "captureBeyondViewport": False}
)["data"]
with open(f"plot-{THEME}.png", "wb") as f:
f.write(base64.b64decode(screenshot_b64))
driver.quit()
Part of Stock Chart with Event Flags on anyplot.ai.
