Basic Stream Graph — Apache ECharts

A streamgraph (also known as a stacked area chart with a centered baseline) displaying the composition of multiple categories over time with smooth, flowing curves. Unlike traditional stacked area charts, streamgraphs use a symmetric baseline centered around the x-axis, creating an organic, river-like appearance that emphasizes the overall shape and relative proportions of each category while minimizing the visual distortion of individual layers.

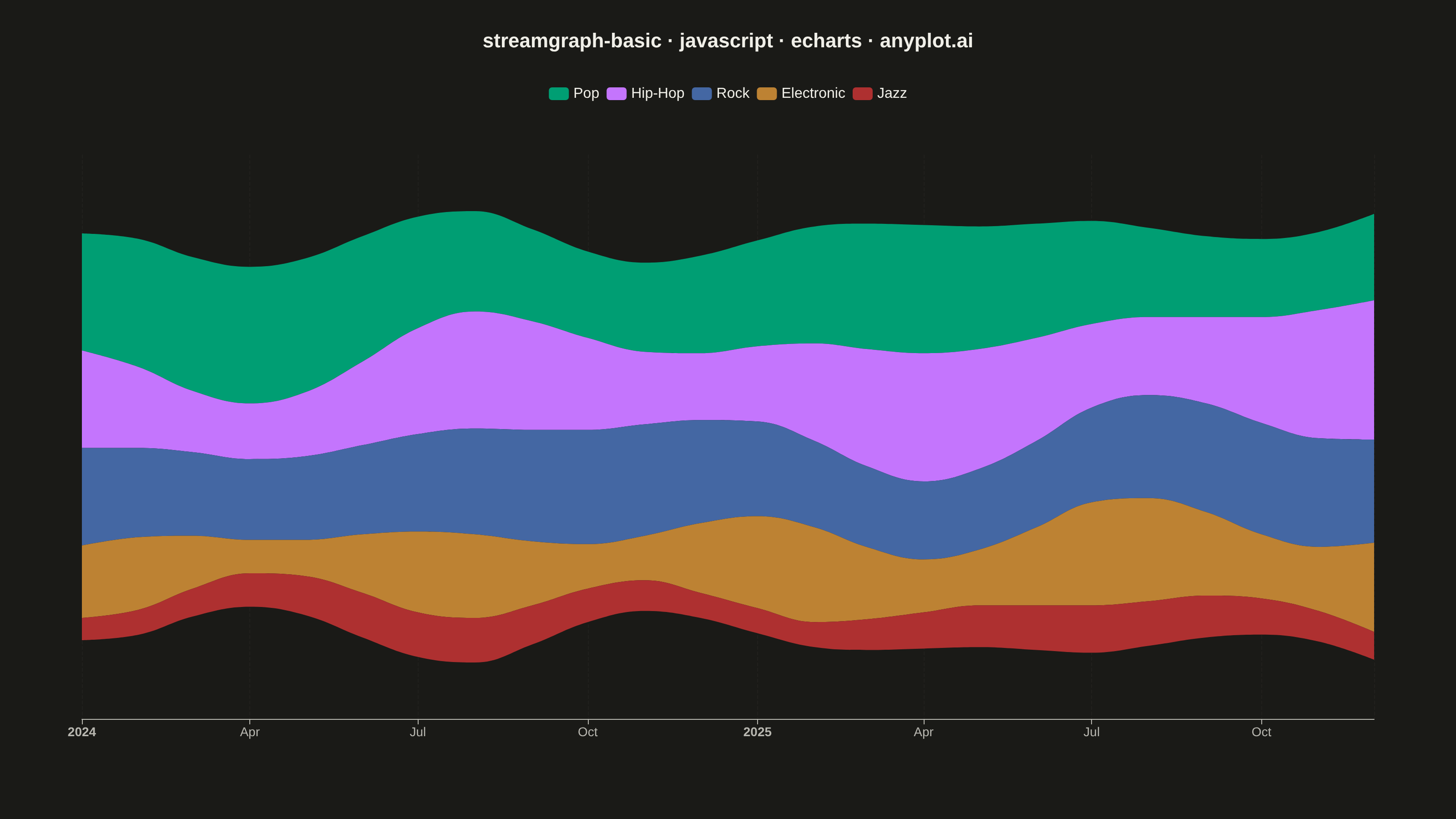

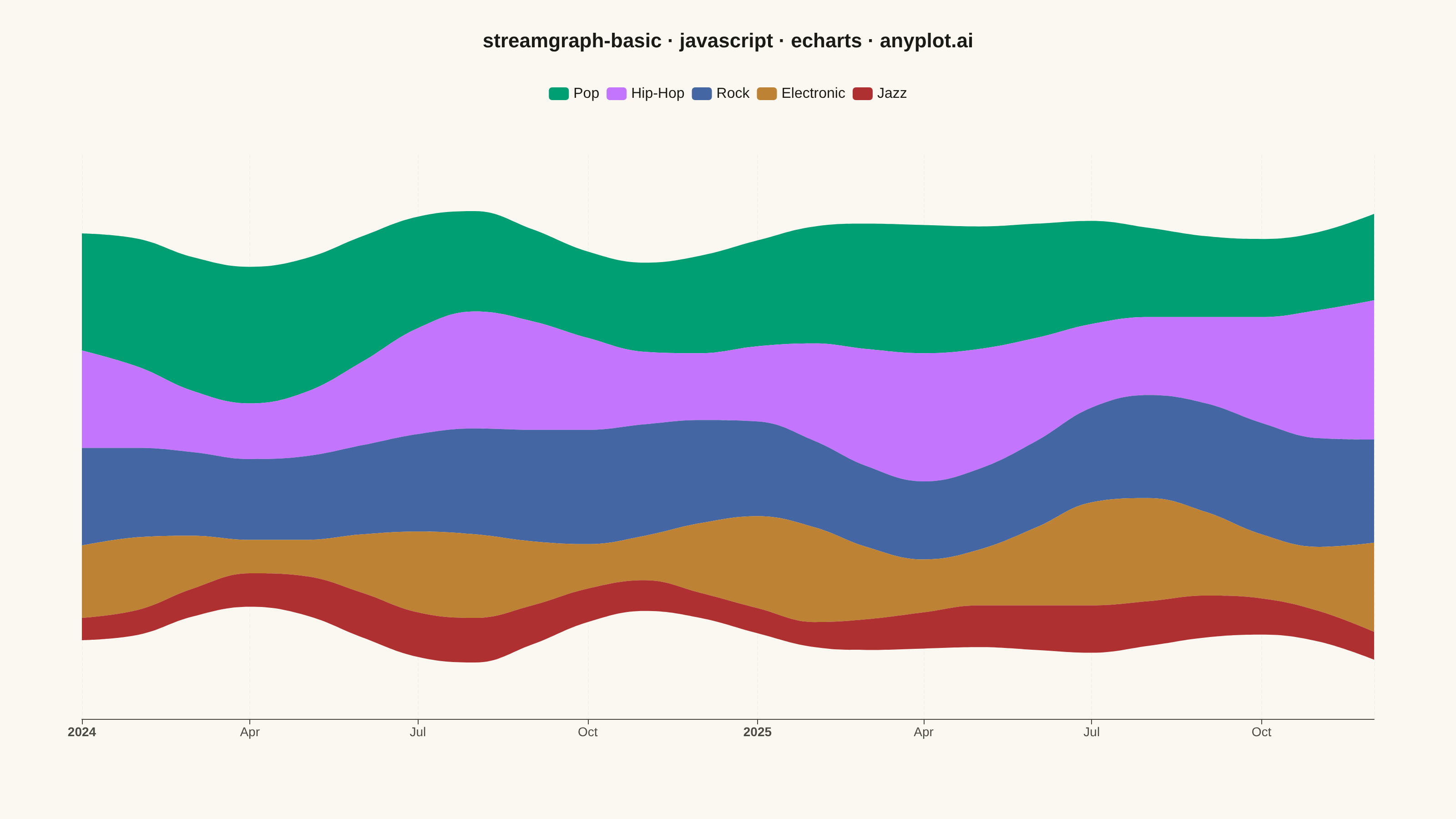

Basic Stream Graph rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// streamgraph-basic: Basic Stream Graph
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-08-05

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Monthly streaming hours (thousands) by music genre, Jan 2024 - Dec 2025.
const genres = ["Pop", "Hip-Hop", "Rock", "Electronic", "Jazz"];
const monthCount = 24;

// Per-genre wave parameters: base level, seasonal amplitude/period/phase, linear trend.
const params = [
  { base: 42, amp: 8, period: 12, phase: 0, trend: -0.3 },
  { base: 28, amp: 10, period: 8, phase: 3, trend: 0.5 },
  { base: 35, amp: 6, period: 12, phase: 6, trend: -0.05 },
  { base: 18, amp: 9, period: 6, phase: 1, trend: 0.6 },
  { base: 12, amp: 4, period: 12, phase: 9, trend: 0.05 },
];

const monthLabel = (i) => {
  const year = 2024 + Math.floor(i / 12);
  const month = String((i % 12) + 1).padStart(2, "0");
  return `${year}-${month}-01`;
};

const streamData = [];
for (let i = 0; i < monthCount; i += 1) {
  const date = monthLabel(i);
  genres.forEach((genre, gi) => {
    const p = params[gi];
    const seasonal = p.amp * Math.sin((2 * Math.PI * (i + p.phase)) / p.period);
    const value = Math.max(2, Math.round(p.base + seasonal + p.trend * i));
    streamData.push([date, value, genre]);
  });
}

// --- Init --------------------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));

// --- Option --------------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",
  title: {
    text: "streamgraph-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 30,
    textStyle: { color: t.ink, fontSize: 22 },
  },
  legend: {
    data: genres,
    top: 90,
    textStyle: { color: t.ink, fontSize: 16 },
    itemWidth: 22,
    itemHeight: 14,
  },
  singleAxis: {
    type: "time",
    top: 170,
    bottom: 110,
    left: 90,
    right: 90,
    axisLabel: { color: t.inkSoft, fontSize: 14 },
    axisLine: { lineStyle: { color: t.inkSoft } },
    axisTick: { lineStyle: { color: t.inkSoft } },
    splitLine: { show: true, lineStyle: { color: t.grid } },
  },
  series: [
    {
      type: "themeRiver",
      emphasis: { disabled: true },
      label: { show: false },
      data: streamData,
    },
  ],
});
