Basic Stream Graph — plotnine

A streamgraph (also known as a stacked area chart with a centered baseline) displaying the composition of multiple categories over time with smooth, flowing curves. Unlike traditional stacked area charts, streamgraphs use a symmetric baseline centered around the x-axis, creating an organic, river-like appearance that emphasizes the overall shape and relative proportions of each category while minimizing the visual distortion of individual layers.

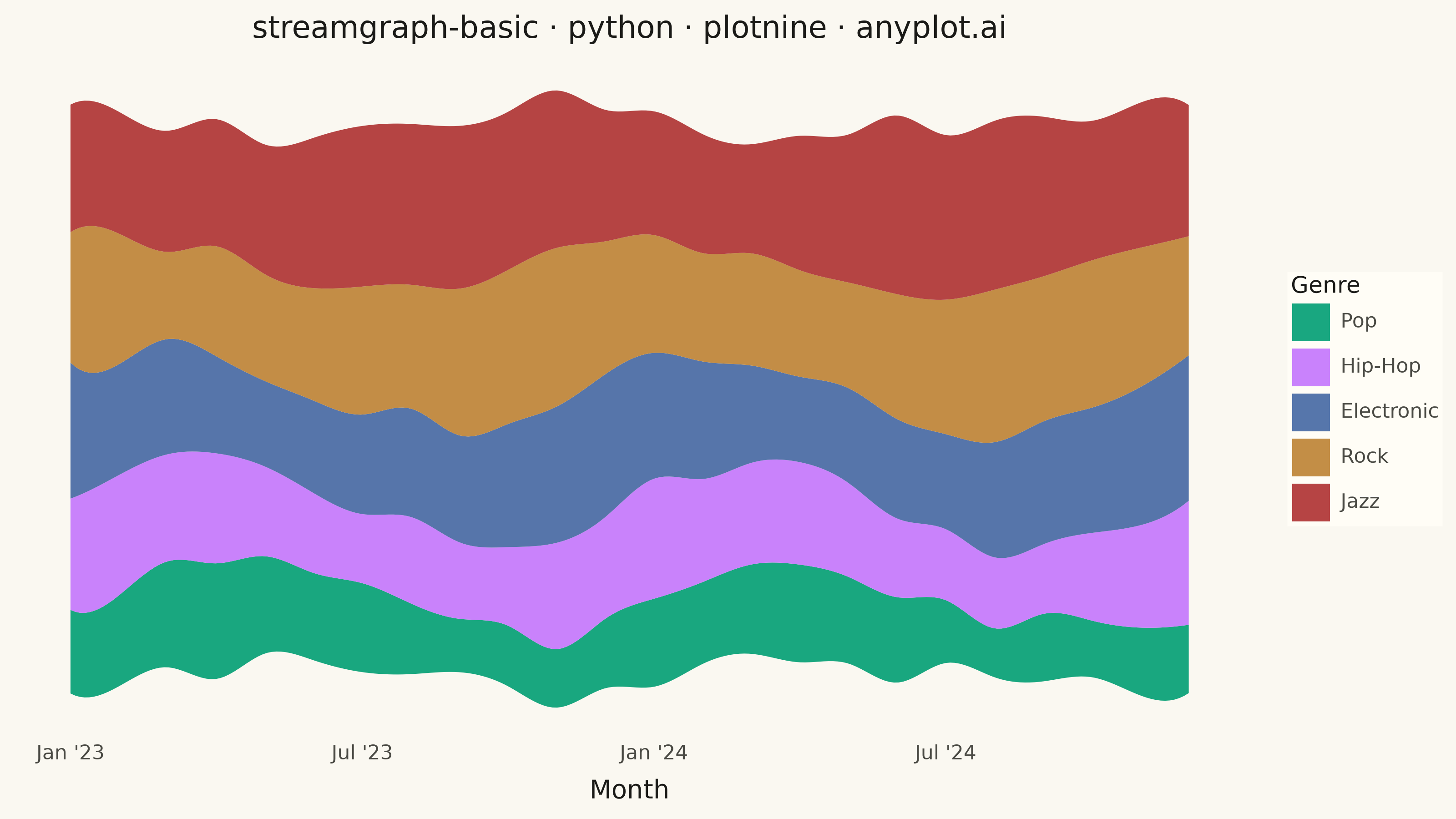

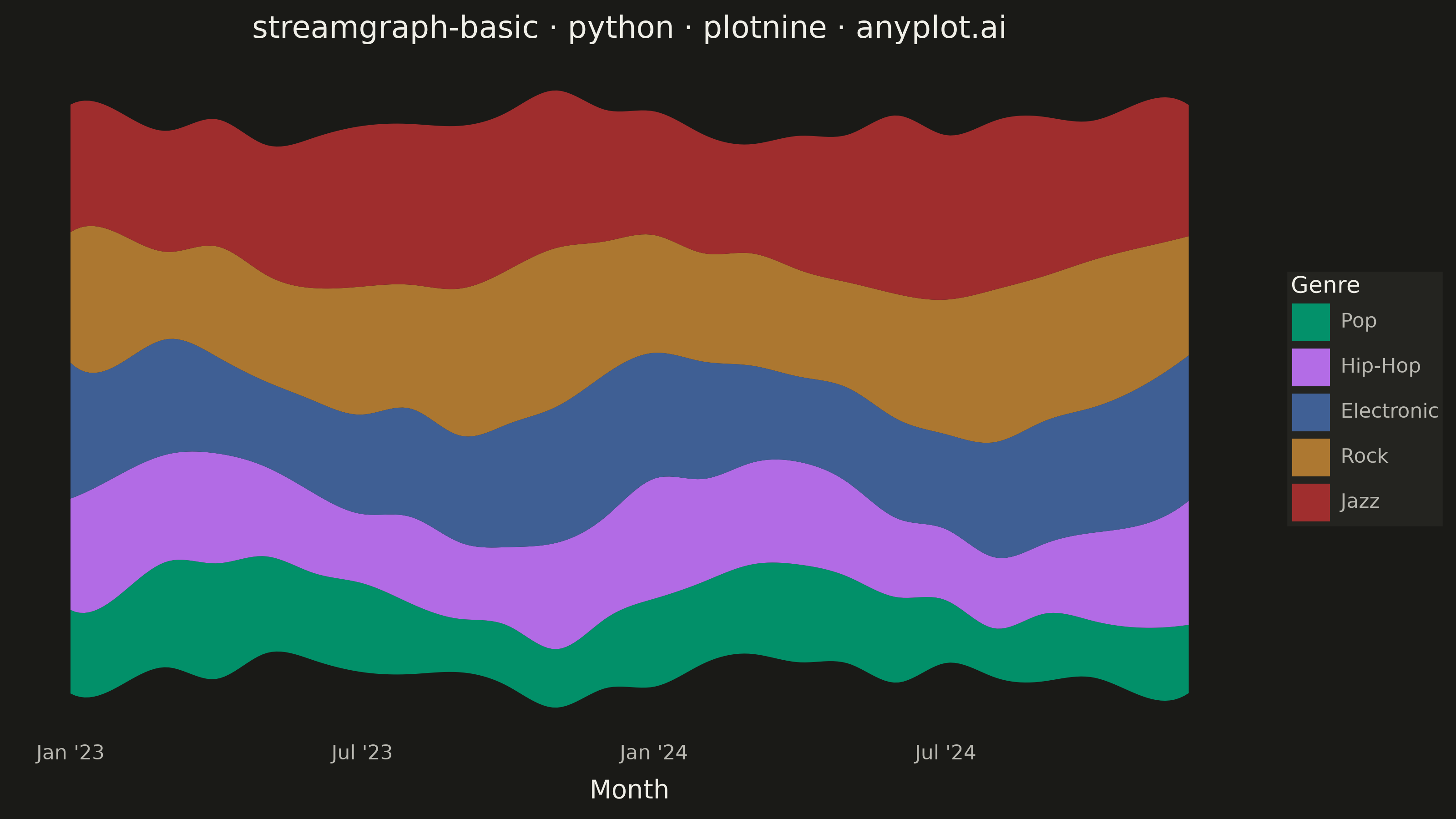

Basic Stream Graph rendered with plotnine

Renders

Python source (plotnine)

""" anyplot.ai
streamgraph-basic: Basic Stream Graph
Library: plotnine 0.15.7 | Python 3.13.14
Quality: 91/100 | Created: 2026-08-05
"""

import os

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_blank,
    element_rect,
    element_text,
    geom_ribbon,
    ggplot,
    labs,
    scale_fill_manual,
    scale_x_continuous,
    theme,
    theme_minimal,
)
from scipy.interpolate import make_interp_spline


# Theme-adaptive chrome tokens (Imprint palette)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

IMPRINT_PALETTE = ["#009E73", "#C475FD", "#4467A3", "#BD8233", "#AE3030"]

# Data: monthly streaming hours by music genre over two years
np.random.seed(42)

months = np.arange(24)
genres = ["Pop", "Hip-Hop", "Electronic", "Rock", "Jazz"]
n_months = len(months)
n_genres = len(genres)

data_values = {}
for i, genre in enumerate(genres):
    base = 100 + i * 20
    trend = np.sin(np.linspace(0, 4 * np.pi, n_months) + i) * 30
    noise = np.random.randn(n_months) * 10
    data_values[genre] = np.maximum(base + trend + noise, 20)

values_matrix = np.column_stack([data_values[g] for g in genres])
totals = values_matrix.sum(axis=1)
baseline = -totals / 2

y_bottom = np.zeros((n_months, n_genres))
y_top = np.zeros((n_months, n_genres))
for i in range(n_genres):
    y_bottom[:, i] = baseline if i == 0 else y_top[:, i - 1]
    y_top[:, i] = y_bottom[:, i] + values_matrix[:, i]

# Upsample onto a fine grid with a cubic B-spline for the organic, flowing
# streamgraph curve the spec requires (geom_ribbon otherwise draws straight
# segments between the 24 monthly points).
months_fine = np.linspace(months.min(), months.max(), 240)
plot_data = []
for i, genre in enumerate(genres):
    bottom_smooth = make_interp_spline(months, y_bottom[:, i], k=3)(months_fine)
    top_smooth = make_interp_spline(months, y_top[:, i], k=3)(months_fine)
    for month_val, ymin, ymax in zip(months_fine, bottom_smooth, top_smooth, strict=True):
        plot_data.append({"month": month_val, "genre": genre, "ymin": ymin, "ymax": ymax})

df_plot = pd.DataFrame(plot_data)
df_plot["genre"] = pd.Categorical(df_plot["genre"], categories=genres, ordered=True)

title = "streamgraph-basic · python · plotnine · anyplot.ai"

anyplot_theme = theme(
    figure_size=(8, 4.5),
    text=element_text(size=7),
    axis_title=element_text(size=10, color=INK),
    axis_text=element_text(size=8, color=INK_SOFT),
    axis_title_y=element_blank(),
    axis_text_y=element_blank(),
    plot_title=element_text(size=12, color=INK),
    legend_text=element_text(size=8, color=INK_SOFT),
    legend_title=element_text(size=9, color=INK),
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG),
    panel_border=element_blank(),
    panel_grid=element_blank(),
    axis_ticks=element_blank(),
    axis_line=element_blank(),
    legend_background=element_rect(fill=ELEVATED_BG, color=ELEVATED_BG),
    legend_key=element_rect(fill=ELEVATED_BG, color=ELEVATED_BG),
)

plot = (
    ggplot(df_plot, aes(x="month", ymin="ymin", ymax="ymax", fill="genre"))
    + geom_ribbon(alpha=0.9)
    + scale_fill_manual(values=IMPRINT_PALETTE)
    + scale_x_continuous(breaks=list(range(0, 24, 6)), labels=["Jan '23", "Jul '23", "Jan '24", "Jul '24"])
    + labs(x="Month", y="", title=title, fill="Genre")
    + theme_minimal()
    + anyplot_theme
)

plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in")

Retrieve this implementation
