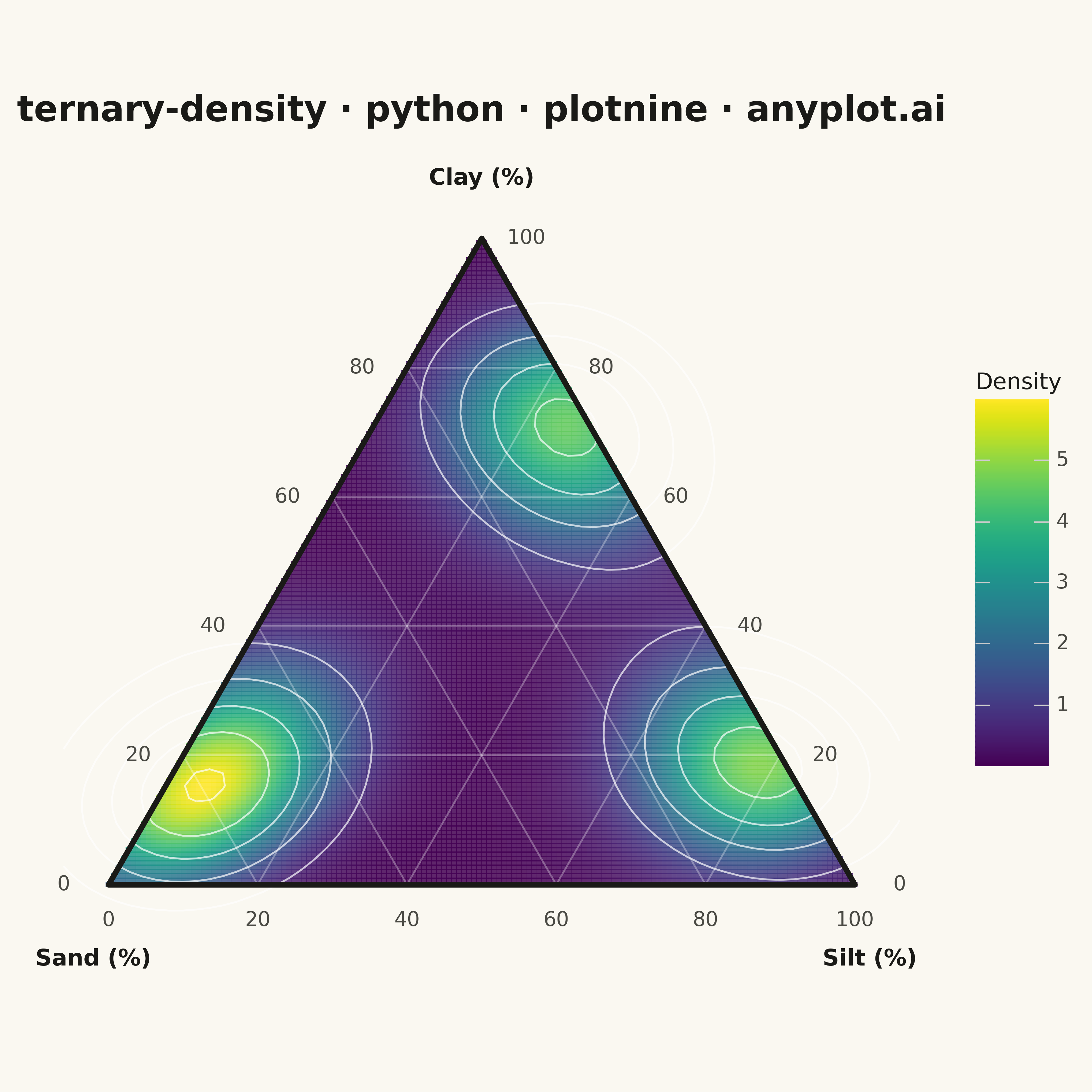

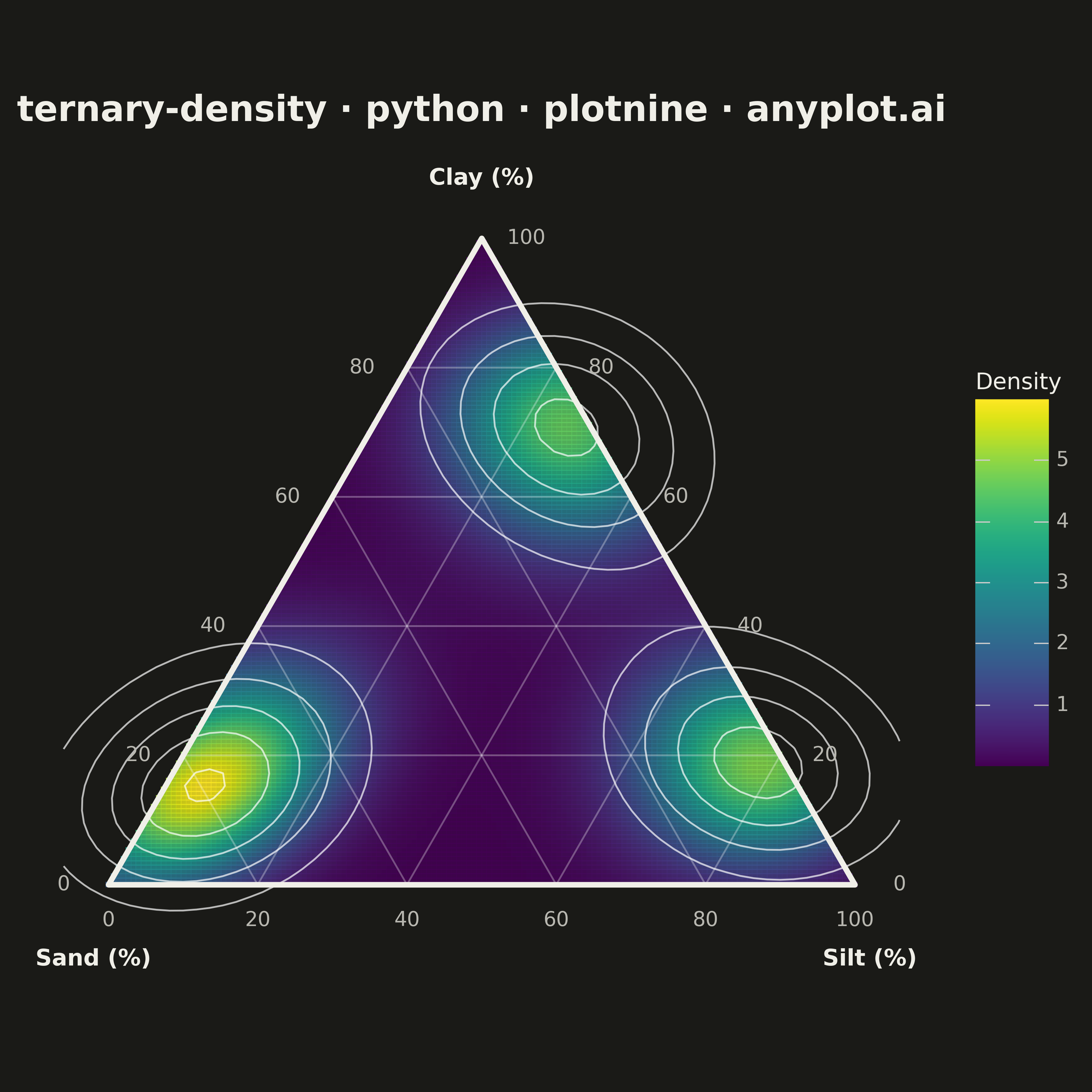

A ternary density plot combines a three-component ternary diagram with kernel density estimation to visualize where compositional data concentrates. Instead of showing individual points, this visualization uses a heatmap overlay to reveal the underlying probability distribution of compositions, making it ideal for identifying clusters, modes, and patterns in large compositional datasets.
""" anyplot.ai
ternary-density: Ternary Density Plot
Library: plotnine 0.15.4 | Python 3.13.13
Quality: 80/100 | Updated: 2026-05-19
"""
import numpy as np
import pandas as pd
from plotnine import (
aes,
coord_fixed,
element_blank,
element_text,
geom_density_2d,
geom_polygon,
geom_segment,
geom_text,
geom_tile,
ggplot,
labs,
scale_fill_cmap,
theme,
theme_void,
)
from scipy.stats import gaussian_kde
# Generate synthetic compositional data (sediment: sand/silt/clay)
np.random.seed(42)
# Create three clusters of compositions
# Cluster 1: Sandy sediments (high sand)
n1 = 300
sand1 = np.random.beta(5, 2, n1) * 60 + 35
silt1 = np.random.beta(2, 3, n1) * (100 - sand1) * 0.6
clay1 = 100 - sand1 - silt1
# Cluster 2: Silty sediments (high silt)
n2 = 250
silt2 = np.random.beta(5, 2, n2) * 50 + 40
sand2 = np.random.beta(2, 4, n2) * (100 - silt2) * 0.5
clay2 = 100 - sand2 - silt2
# Cluster 3: Clay-rich sediments (high clay)
n3 = 250
clay3 = np.random.beta(4, 2, n3) * 45 + 40
sand3 = np.random.beta(2, 5, n3) * (100 - clay3) * 0.4
silt3 = 100 - sand3 - clay3
# Combine all clusters
sand = np.concatenate([sand1, sand2, sand3])
silt = np.concatenate([silt1, silt2, silt3])
clay = np.concatenate([clay1, clay2, clay3])
# Ensure non-negative values and normalize to sum to 100
sand = np.clip(sand, 0, 100)
silt = np.clip(silt, 0, 100)
clay = np.clip(clay, 0, 100)
total = sand + silt + clay
sand = sand / total * 100
silt = silt / total * 100
clay = clay / total * 100
# Convert ternary to Cartesian coordinates
# Formula: x = 0.5 * (2*b + c) / total, y = (sqrt(3)/2) * c / total
# Where a=sand (bottom-left), b=silt (bottom-right), c=clay (top)
x_data = 0.5 * (2 * silt + clay) / 100
y_data = (np.sqrt(3) / 2) * clay / 100
# Compute KDE on the data points
points = np.vstack([x_data, y_data])
kde = gaussian_kde(points, bw_method="silverman")
# Create grid for density estimation
grid_resolution = 150
x_grid = np.linspace(0, 1, grid_resolution)
y_grid = np.linspace(0, np.sqrt(3) / 2, grid_resolution)
xx, yy = np.meshgrid(x_grid, y_grid)
# Evaluate KDE on grid
positions = np.vstack([xx.ravel(), yy.ravel()])
density = kde(positions).reshape(xx.shape)
# Create mask for valid ternary region (inside triangle)
# Convert grid points back to ternary to check bounds
# c = y * 2/sqrt(3), b = x - c/2, a = 1 - b - c
cc = yy * 2 / np.sqrt(3)
bb = xx - cc / 2
aa = 1 - bb - cc
mask = (aa >= -0.001) & (bb >= -0.001) & (cc >= -0.001) & (aa <= 1.001) & (bb <= 1.001) & (cc <= 1.001)
# Apply mask (set values outside triangle to NaN)
density_masked = np.where(mask, density, np.nan)
# Create DataFrame for density grid
density_df = pd.DataFrame({"x": xx.ravel(), "y": yy.ravel(), "density": density_masked.ravel()}).dropna()
# Triangle vertices for frame
vertices = pd.DataFrame({"x": [0, 1, 0.5, 0], "y": [0, 0, np.sqrt(3) / 2, 0]})
# Grid lines at 20% intervals
grid_lines = []
for pct in [0.2, 0.4, 0.6, 0.8]:
# Lines parallel to bottom (constant clay)
x1 = 0.5 * (2 * 0 + pct)
y1 = (np.sqrt(3) / 2) * pct
x2 = 0.5 * (2 * (1 - pct) + pct)
y2 = (np.sqrt(3) / 2) * pct
grid_lines.append({"x": x1, "y": y1, "xend": x2, "yend": y2})
# Lines parallel to left side (constant silt)
x1 = 0.5 * (2 * pct + (1 - pct))
y1 = (np.sqrt(3) / 2) * (1 - pct)
x2 = 0.5 * (2 * pct + 0)
y2 = 0
grid_lines.append({"x": x1, "y": y1, "xend": x2, "yend": y2})
# Lines parallel to right side (constant sand)
x1 = 0.5 * (2 * 0 + (1 - pct))
y1 = (np.sqrt(3) / 2) * (1 - pct)
x2 = 0.5 * (2 * (1 - pct) + 0)
y2 = 0
grid_lines.append({"x": x1, "y": y1, "xend": x2, "yend": y2})
grid_df = pd.DataFrame(grid_lines)
# Tick labels along edges
tick_labels = []
label_offset = 0.06
for pct in [0, 20, 40, 60, 80, 100]:
frac = pct / 100
# Sand axis (left edge going up)
x = 0.5 * (2 * 0 + frac)
y = (np.sqrt(3) / 2) * frac
tick_labels.append({"x": x - label_offset, "y": y, "label": str(pct)})
# Silt axis (bottom edge)
x = 0.5 * (2 * frac + 0)
y = 0
tick_labels.append({"x": x, "y": y - label_offset * 0.8, "label": str(pct)})
# Clay axis (right edge going up)
x = 0.5 * (2 * (1 - frac) + frac)
y = (np.sqrt(3) / 2) * frac
tick_labels.append({"x": x + label_offset, "y": y, "label": str(pct)})
tick_df = pd.DataFrame(tick_labels)
# Vertex labels
vertex_labels = pd.DataFrame(
{
"x": [0 - 0.02, 1 + 0.02, 0.5],
"y": [0 - 0.1, 0 - 0.1, np.sqrt(3) / 2 + 0.08],
"label": ["Sand (%)", "Silt (%)", "Clay (%)"],
}
)
# Build the plot
# Calculate tile size for proper coverage
tile_size = 1.0 / grid_resolution
plot = (
ggplot()
# Density heatmap using tiles
+ geom_tile(
data=density_df,
mapping=aes(x="x", y="y", fill="density"),
width=tile_size * 1.1,
height=tile_size * 1.1,
alpha=0.85,
)
+ scale_fill_cmap(cmap_name="viridis", name="Density")
# Contour lines for key density levels using geom_density_2d
+ geom_density_2d(
data=pd.DataFrame({"x": x_data, "y": y_data}),
mapping=aes(x="x", y="y"),
color="white",
size=0.8,
alpha=0.7,
levels=6,
)
# Grid lines beneath density (already visible due to alpha)
+ geom_segment(
data=grid_df, mapping=aes(x="x", y="y", xend="xend", yend="yend"), color="#ffffff", size=0.8, alpha=0.3
)
# Triangle frame on top
+ geom_polygon(data=vertices, mapping=aes(x="x", y="y"), fill=None, color="#306998", size=2.5)
# Tick labels
+ geom_text(data=tick_df, mapping=aes(x="x", y="y", label="label"), size=14, color="#666666")
# Vertex labels
+ geom_text(
data=vertex_labels, mapping=aes(x="x", y="y", label="label"), size=18, fontweight="bold", color="#306998"
)
# Title and theme
+ labs(title="ternary-density · plotnine · pyplots.ai")
+ coord_fixed(ratio=1)
+ theme_void()
+ theme(
figure_size=(12, 12),
plot_title=element_text(size=28, ha="center", weight="bold"),
plot_margin=0.02,
legend_position="right",
legend_title=element_text(size=18),
legend_text=element_text(size=14),
legend_key_size=40,
legend_background=element_blank(),
)
)
# Save
plot.save("plot.png", dpi=300, verbose=False)
