Chartgeist-Style Venn Diagram with Labeled Items — Apache ECharts

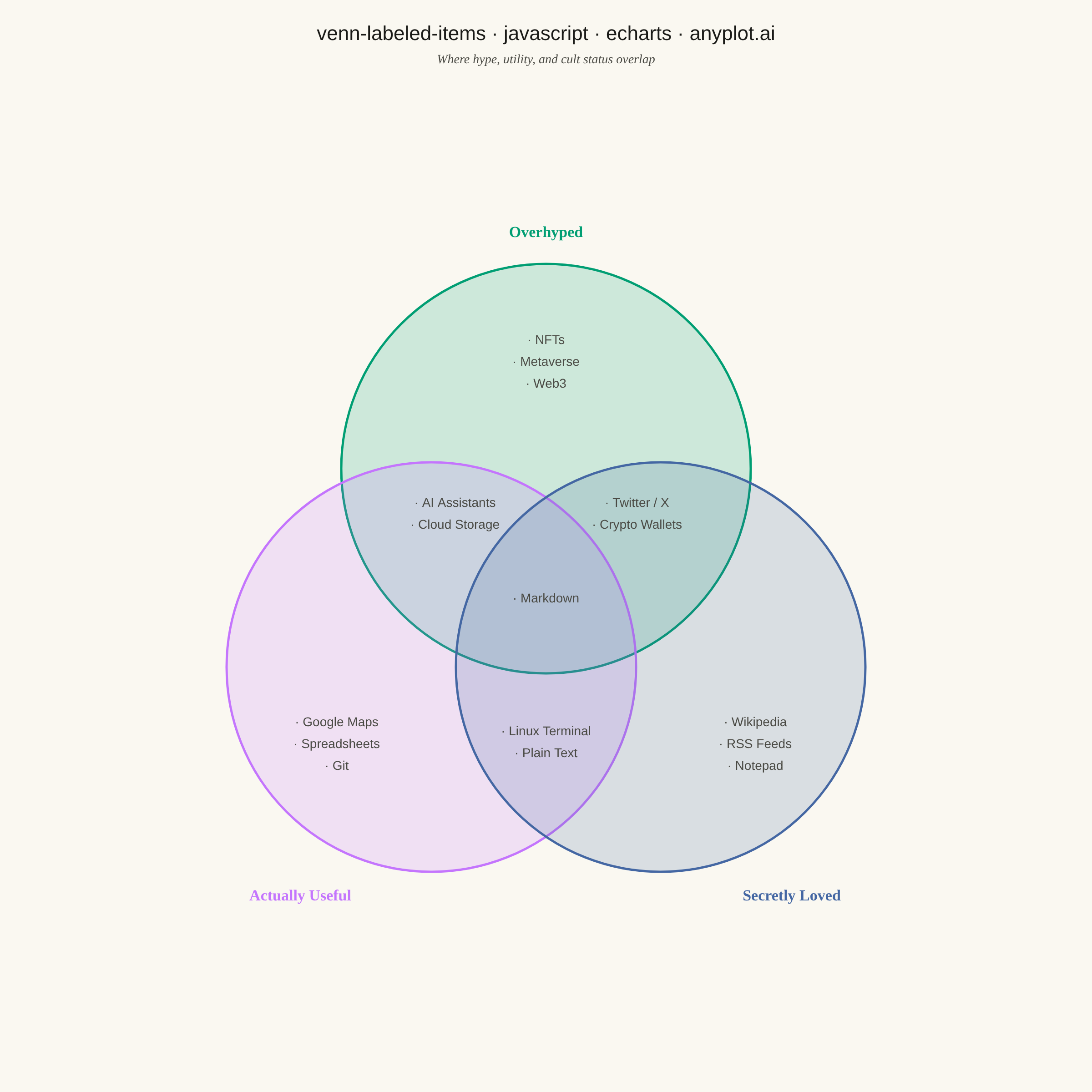

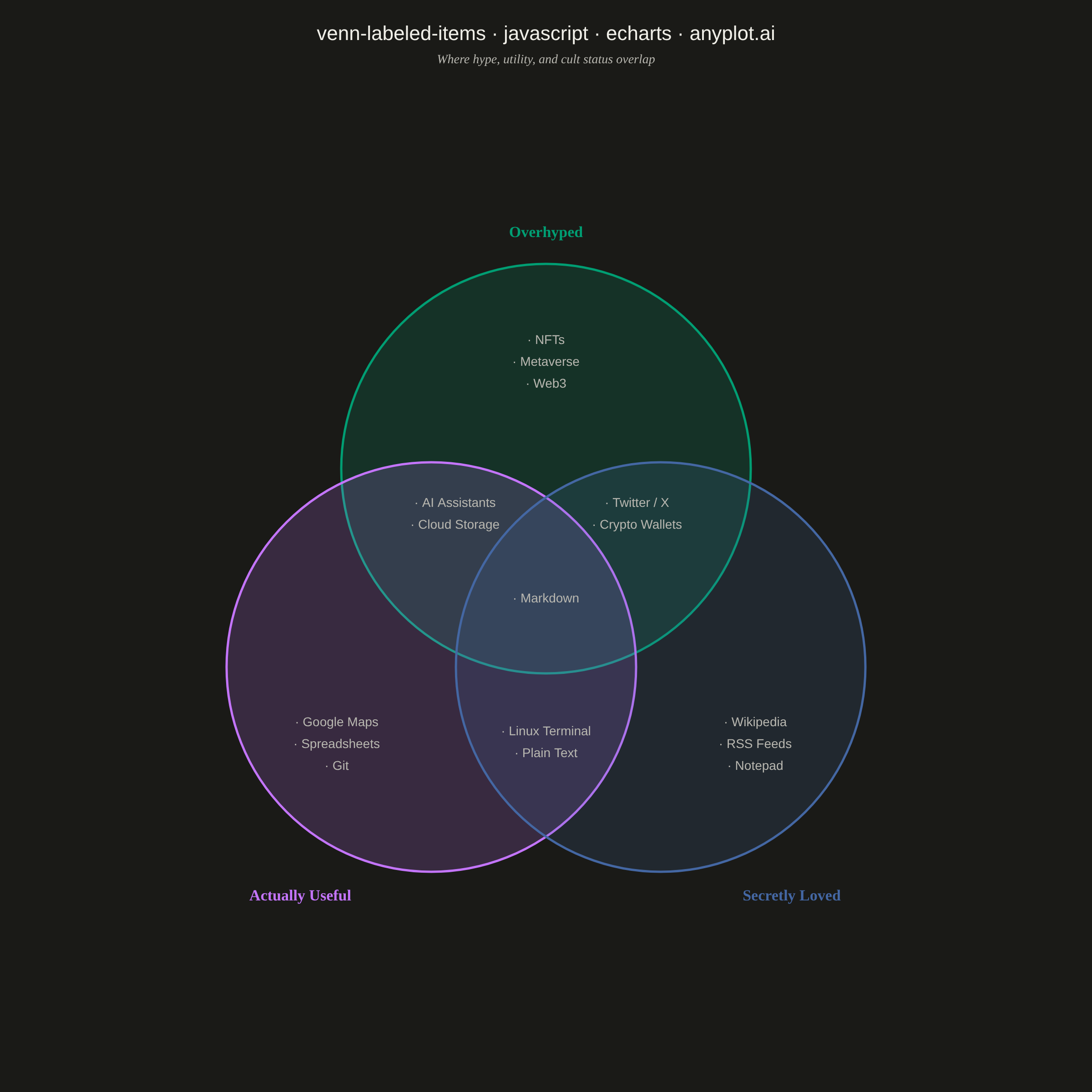

An editorial, WIRED "Chartgeist"-style three-circle Venn diagram where pop-culture items — products, people, trends, apps — are plotted as labeled points inside each zone rather than represented as numeric counts. Three overlapping circles define witty, opinionated categories (e.g., "Overhyped", "Actually Useful", "Secretly Loved"), and each item lives in exactly one of the seven interior regions (or outside all circles). Unlike a classic proportional Venn, the "data" here is categorical set-membership plus a human label, making the plot ideal for commentary, taxonomy, and discussion rather than quantitative analysis.

Chartgeist-Style Venn Diagram with Labeled Items rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// venn-labeled-items: Chartgeist-Style Venn Diagram with Labeled Items
// Library: echarts 5.5.1 | JavaScript 22.23.0
// Quality: 86/100 | Created: 2026-06-25
//# anyplot-orientation: square

const t = window.ANYPLOT_TOKENS;

// --- Geometry (CSS px in 1200×1200 mount → 2400×2400 PNG at dpr=2) ---------
// Three-circle Venn: equilateral triangle arrangement, R=225, D=145 from centroid
// Diagram shifted down ~90px vs initial to vertically center on the canvas
const R   = 225;
const cAx = 600, cAy = 515;   // Overhyped      (top)
const cBx = 474, cBy = 733;   // Actually Useful (bottom-left)
const cCx = 726, cCy = 733;   // Secretly Loved  (bottom-right)

// --- Data -------------------------------------------------------------------
// Zone item placement centers — each verified to sit inside the correct region(s)
//   A-only : dist<R from A, dist>R from B and C
//   AB-only : dist<R from A and B, dist>R from C
//   ABC    : dist<R from all three
const ITEM_FS = 14;   // item font size (CSS px)
const ITEM_LS = 24;   // vertical line spacing

const zoneData = [
  { x: 600, y: 398, items: ['NFTs', 'Metaverse', 'Web3'] },           // A only
  { x: 370, y: 818, items: ['Google Maps', 'Spreadsheets', 'Git'] },  // B only
  { x: 830, y: 818, items: ['Wikipedia', 'RSS Feeds', 'Notepad'] },   // C only
  { x: 500, y: 565, items: ['AI Assistants', 'Cloud Storage'] },      // AB only
  { x: 700, y: 565, items: ['Twitter / X', 'Crypto Wallets'] },       // AC only
  { x: 600, y: 816, items: ['Linux Terminal', 'Plain Text'] },        // BC only
  { x: 600, y: 658, items: ['Markdown'] },                            // ABC
];

// --- Init -------------------------------------------------------------------
const chart = echarts.init(document.getElementById('container'));

// --- Graphic elements -------------------------------------------------------

// Semi-transparent overlapping circles (Imprint palette, positions 1-3)
const circleGraphics = [
  { cx: cAx, cy: cAy, stroke: '#009E73', fill: 'rgba(0,158,115,0.18)' },
  { cx: cBx, cy: cBy, stroke: '#C475FD', fill: 'rgba(196,117,253,0.18)' },
  { cx: cCx, cy: cCy, stroke: '#4467A3', fill: 'rgba(68,103,163,0.18)' },
].map(c => ({
  type: 'circle',
  shape: { cx: c.cx, cy: c.cy, r: R },
  style: { fill: c.fill, stroke: c.stroke, lineWidth: 2.5 },
  z: 5,
}));

// Category labels outside each circle — serif for editorial feel
const catLabelGraphics = [
  { text: 'Overhyped',       x: 600, y: 256, color: '#009E73' },
  { text: 'Actually Useful', x: 330, y: 985, color: '#C475FD' },
  { text: 'Secretly Loved',  x: 870, y: 985, color: '#4467A3' },
].map(l => ({
  type: 'text',
  z: 20,
  style: {
    text: l.text,
    x: l.x,
    y: l.y,
    textAlign: 'center',
    textVerticalAlign: 'middle',
    fill: l.color,
    fontSize: 17,
    fontWeight: 'bold',
    fontFamily: 'Georgia, "Times New Roman", serif',
  },
}));

// Item labels — stacked vertically within each zone center
const itemGraphics = [];
zoneData.forEach(zone => {
  const n = zone.items.length;
  zone.items.forEach((item, i) => {
    itemGraphics.push({
      type: 'text',
      z: 20,
      style: {
        text: '· ' + item,
        x: zone.x,
        y: zone.y + (i - (n - 1) / 2) * ITEM_LS,
        textAlign: 'center',
        textVerticalAlign: 'middle',
        fill: t.inkSoft,
        fontSize: ITEM_FS,
        fontFamily: '"Helvetica Neue", Arial, sans-serif',
        fontWeight: 'normal',
      },
    });
  });
});

// --- Option -----------------------------------------------------------------
chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: t.pageBg,
  title: {
    text: 'venn-labeled-items · javascript · echarts · anyplot.ai',
    subtext: 'Where hype, utility, and cult status overlap',
    left: 'center',
    top: 22,
    textStyle: {
      color: t.ink,
      fontSize: 22,
      fontWeight: 'normal',
    },
    subtextStyle: {
      color: t.inkSoft,
      fontSize: 14,
      fontFamily: 'Georgia, "Times New Roman", serif',
      fontStyle: 'italic',
    },
  },
  graphic: [
    ...circleGraphics,
    ...catLabelGraphics,
    ...itemGraphics,
  ],
});
