Chartgeist-Style Venn Diagram with Labeled Items — Highcharts

An editorial, WIRED "Chartgeist"-style three-circle Venn diagram where pop-culture items — products, people, trends, apps — are plotted as labeled points inside each zone rather than represented as numeric counts. Three overlapping circles define witty, opinionated categories (e.g., "Overhyped", "Actually Useful", "Secretly Loved"), and each item lives in exactly one of the seven interior regions (or outside all circles). Unlike a classic proportional Venn, the "data" here is categorical set-membership plus a human label, making the plot ideal for commentary, taxonomy, and discussion rather than quantitative analysis.

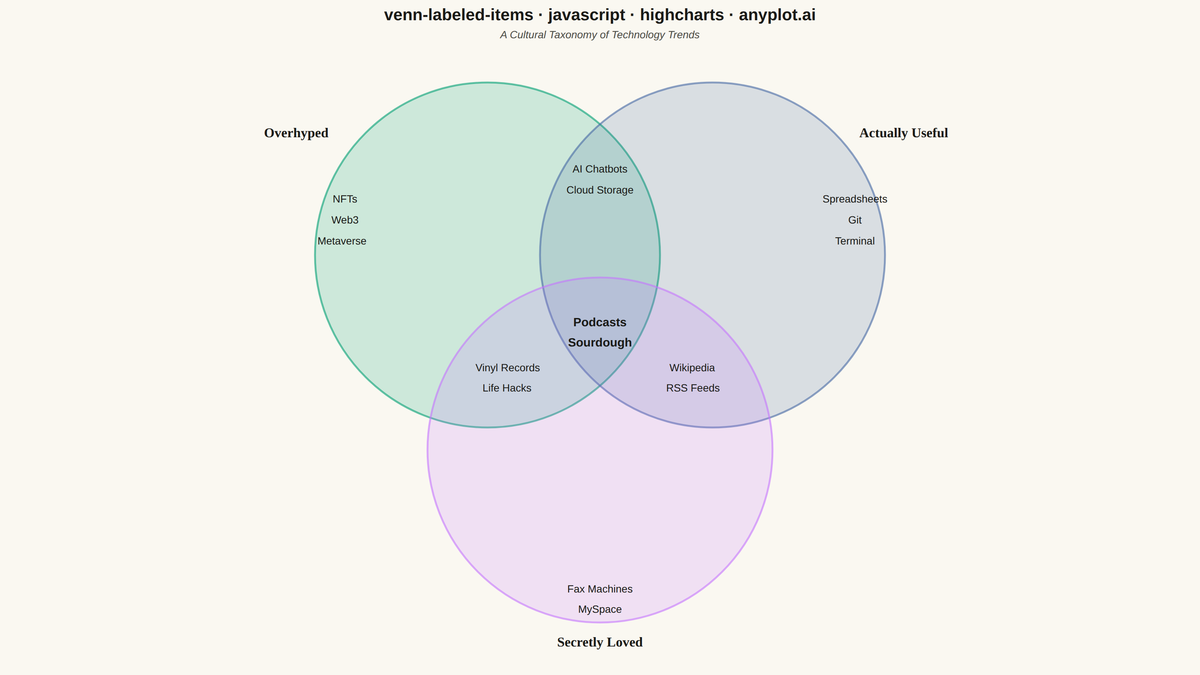

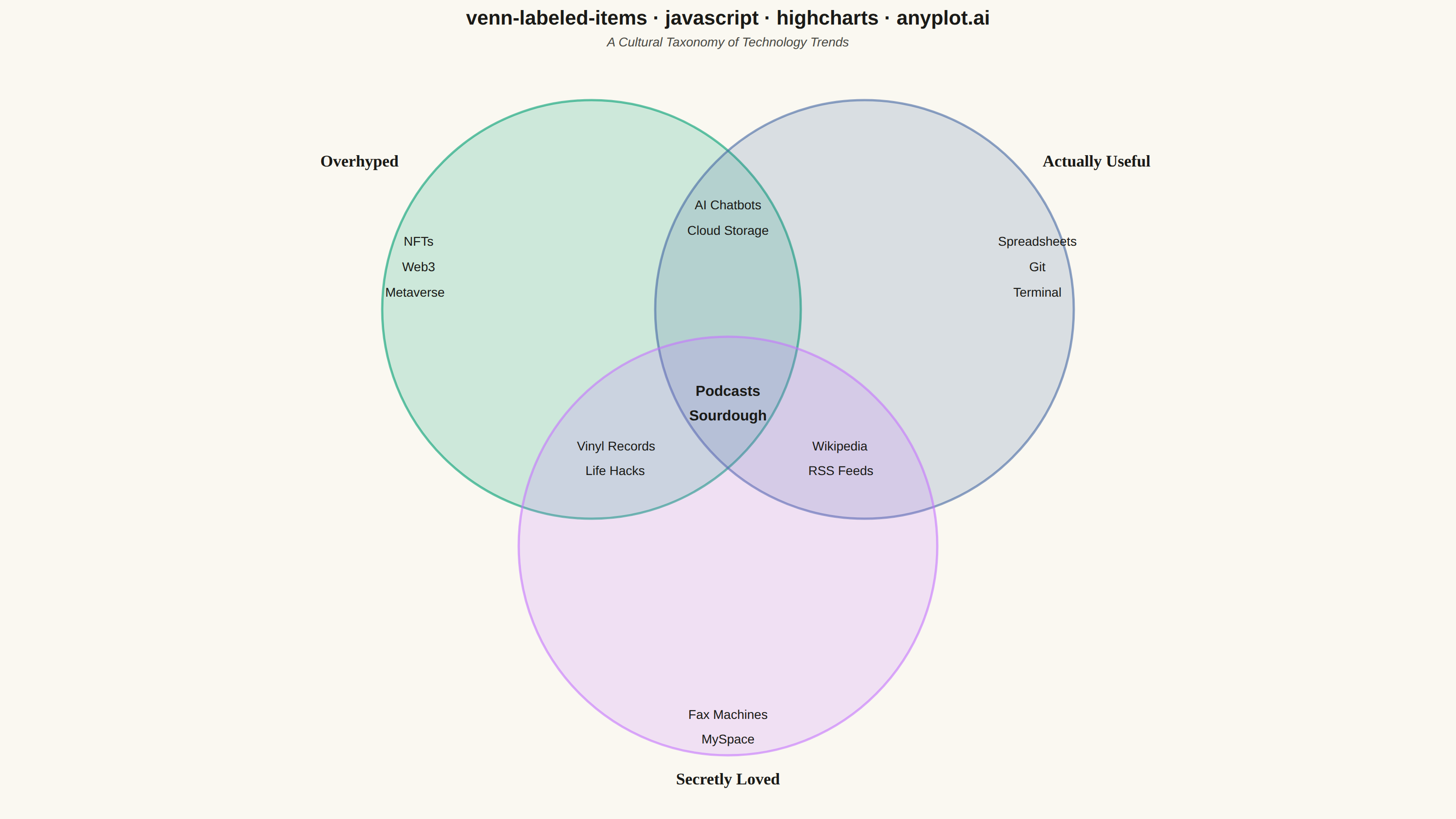

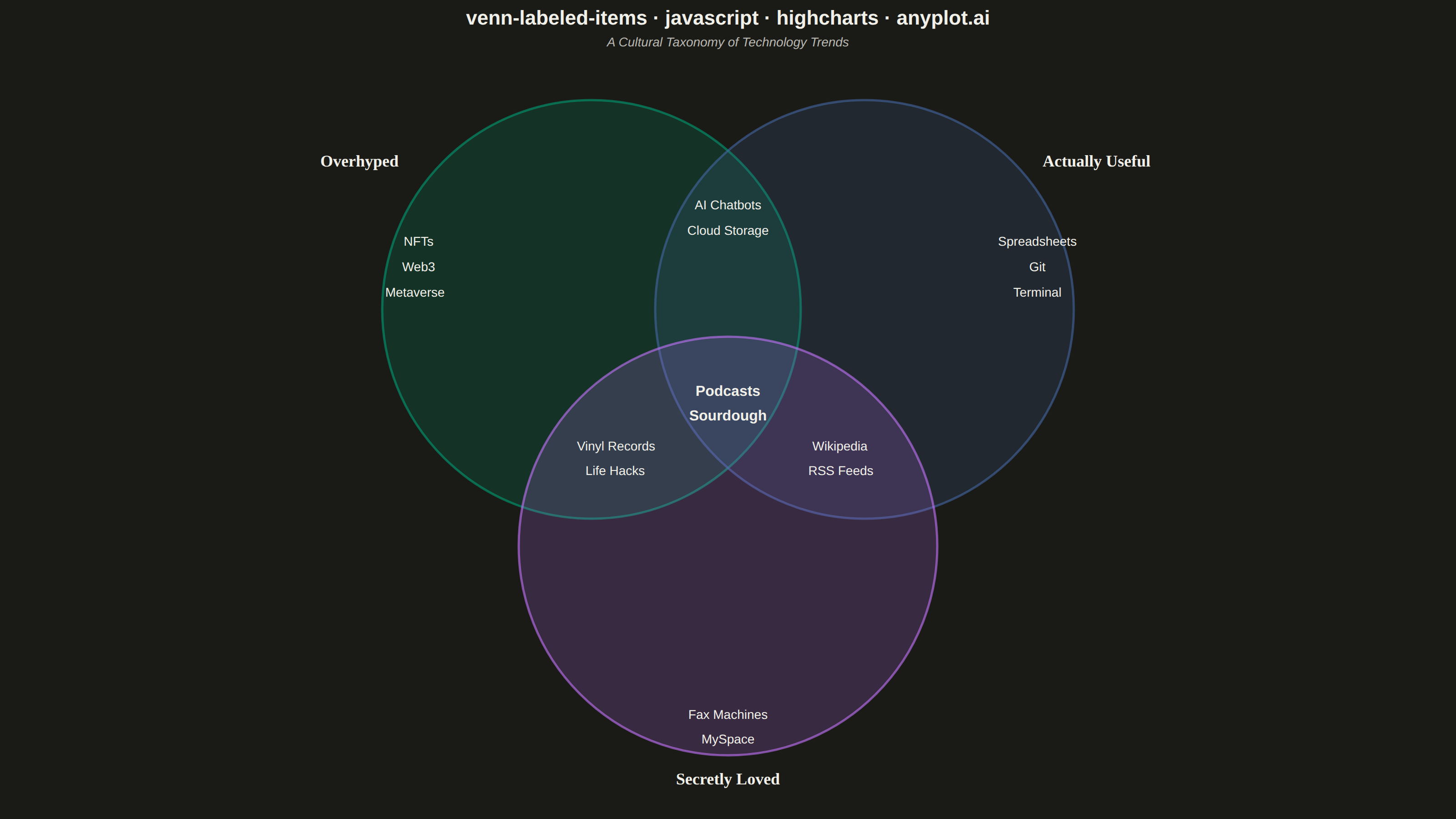

Chartgeist-Style Venn Diagram with Labeled Items rendered with Highcharts

Renders

JavaScript source (Highcharts)

// anyplot.ai
// venn-labeled-items: Chartgeist-Style Venn Diagram with Labeled Items
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-25

//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;

// Symmetric 3-circle Venn: equilateral triangle, side 300 px, radius 230 px
// All coordinates in CSS px within the 1600×900 landscape mount
const circles = [
  { cx: 650, cy: 340, r: 230, color: t.palette[0] }, // A: Overhyped      — brand green
  { cx: 950, cy: 340, r: 230, color: t.palette[2] }, // B: Actually Useful — blue
  { cx: 800, cy: 600, r: 230, color: t.palette[1] }, // C: Secretly Loved  — lavender
];

// Category labels outside each circle's outer edge
const catLabels = [
  { text: 'Overhyped',       x: 395,  y: 183, align: 'center' },
  { text: 'Actually Useful', x: 1205, y: 183, align: 'center' },
  { text: 'Secretly Loved',  x: 800,  y: 862, align: 'center' },
];

// Items placed in zones — positions verified inside correct set regions
const items = [
  // A only (Overhyped, not useful, not loved)
  { label: 'NFTs',         x: 460,  y: 270 },
  { label: 'Web3',         x: 460,  y: 298 },
  { label: 'Metaverse',    x: 456,  y: 326 },
  // B only (Useful, not hyped, not loved)
  { label: 'Spreadsheets', x: 1140, y: 270 },
  { label: 'Git',          x: 1140, y: 298 },
  { label: 'Terminal',     x: 1140, y: 326 },
  // C only (Secretly loved, neither hyped nor practical)
  { label: 'Fax Machines', x: 800,  y: 790 },
  { label: 'MySpace',      x: 800,  y: 817 },
  // AB (Overhyped AND Useful)
  { label: 'AI Chatbots',   x: 800, y: 230 },
  { label: 'Cloud Storage', x: 800, y: 258 },
  // AC (Overhyped AND Secretly Loved)
  { label: 'Vinyl Records', x: 677, y: 495 },
  { label: 'Life Hacks',    x: 676, y: 522 },
  // BC (Useful AND Secretly Loved)
  { label: 'Wikipedia',    x: 923, y: 495 },
  { label: 'RSS Feeds',    x: 924, y: 522 },
  // ABC (all three) — bold/larger to signal multi-zone status
  { label: 'Podcasts',     x: 800, y: 435, abc: true },
  { label: 'Sourdough',    x: 800, y: 462, abc: true },
];

Highcharts.chart('container', {
  chart: {
    backgroundColor: 'transparent',
    plotBackgroundColor: 'transparent',
    plotBorderWidth: 0,
    plotShadow: false,
    animation: false,
    margin: [72, 20, 20, 20],
    style: { fontFamily: 'inherit' },
    events: {
      render: function () {
        if (this._venn) {
          this._venn.forEach(function (el) { el.destroy(); });
        }
        this._venn = [];
        var r = this.renderer;

        // Semi-transparent filled circles (A then B then C — C appears topmost in overlaps)
        circles.forEach(function (c) {
          this._venn.push(
            r.circle(c.cx, c.cy, c.r)
              .attr({
                fill: c.color,
                'fill-opacity': 0.18,
                stroke: c.color,
                'stroke-width': 2.5,
                'stroke-opacity': 0.6,
                zIndex: 2,
              })
              .add()
          );
        }, this);

        // Bold category labels outside each circle
        catLabels.forEach(function (lb) {
          this._venn.push(
            r.text(lb.text, lb.x, lb.y)
              .attr({ align: lb.align, zIndex: 6 })
              .css({ color: t.ink, fontSize: '18px', fontWeight: '700', fontFamily: 'Georgia, serif' })
              .add()
          );
        }, this);

        // Item labels — text-only placement (no dot markers)
        items.forEach(function (item) {
          var isABC = item.abc;
          this._venn.push(
            r.text(item.label, item.x, item.y)
              .attr({ align: 'center', zIndex: 5 })
              .css({
                color: t.ink,
                fontSize: isABC ? '16px' : '14px',
                fontWeight: isABC ? '700' : '400',
              })
              .add()
          );
        }, this);
      },
    },
  },
  credits: { enabled: false },
  colors: t.palette,
  title: {
    text: 'venn-labeled-items · javascript · highcharts · anyplot.ai',
    style: { color: t.ink, fontSize: '22px', fontWeight: '600' },
    margin: 8,
  },
  subtitle: {
    text: 'A Cultural Taxonomy of Technology Trends',
    style: { color: t.inkSoft, fontSize: '14px', fontStyle: 'italic' },
  },
  xAxis: { visible: false },
  yAxis: { visible: false },
  legend: { enabled: false },
  plotOptions: { series: { animation: false } },
  series: [],
  tooltip: { enabled: false },
});

Part of Chartgeist-Style Venn Diagram with Labeled Items on anyplot.ai.
