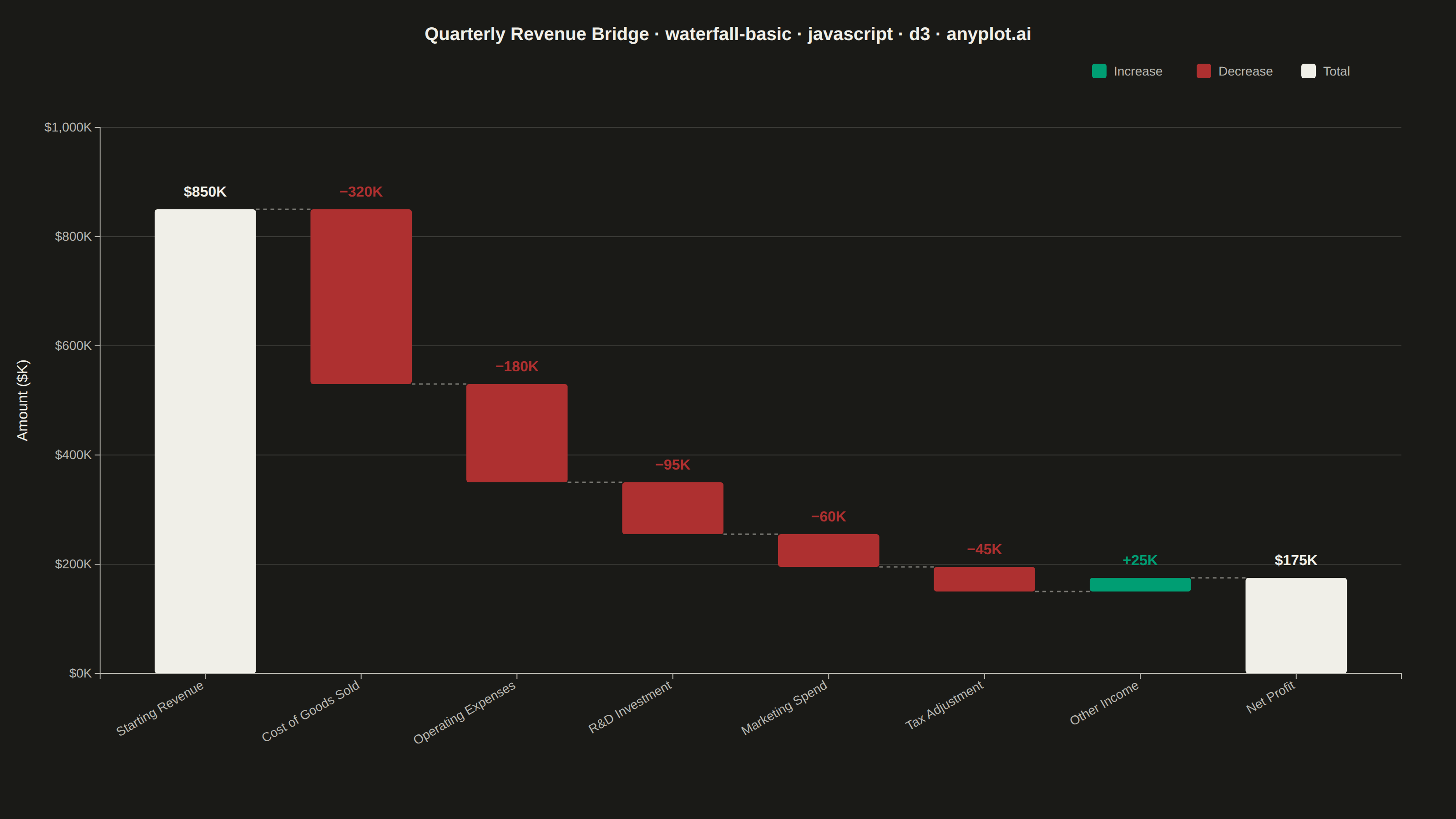

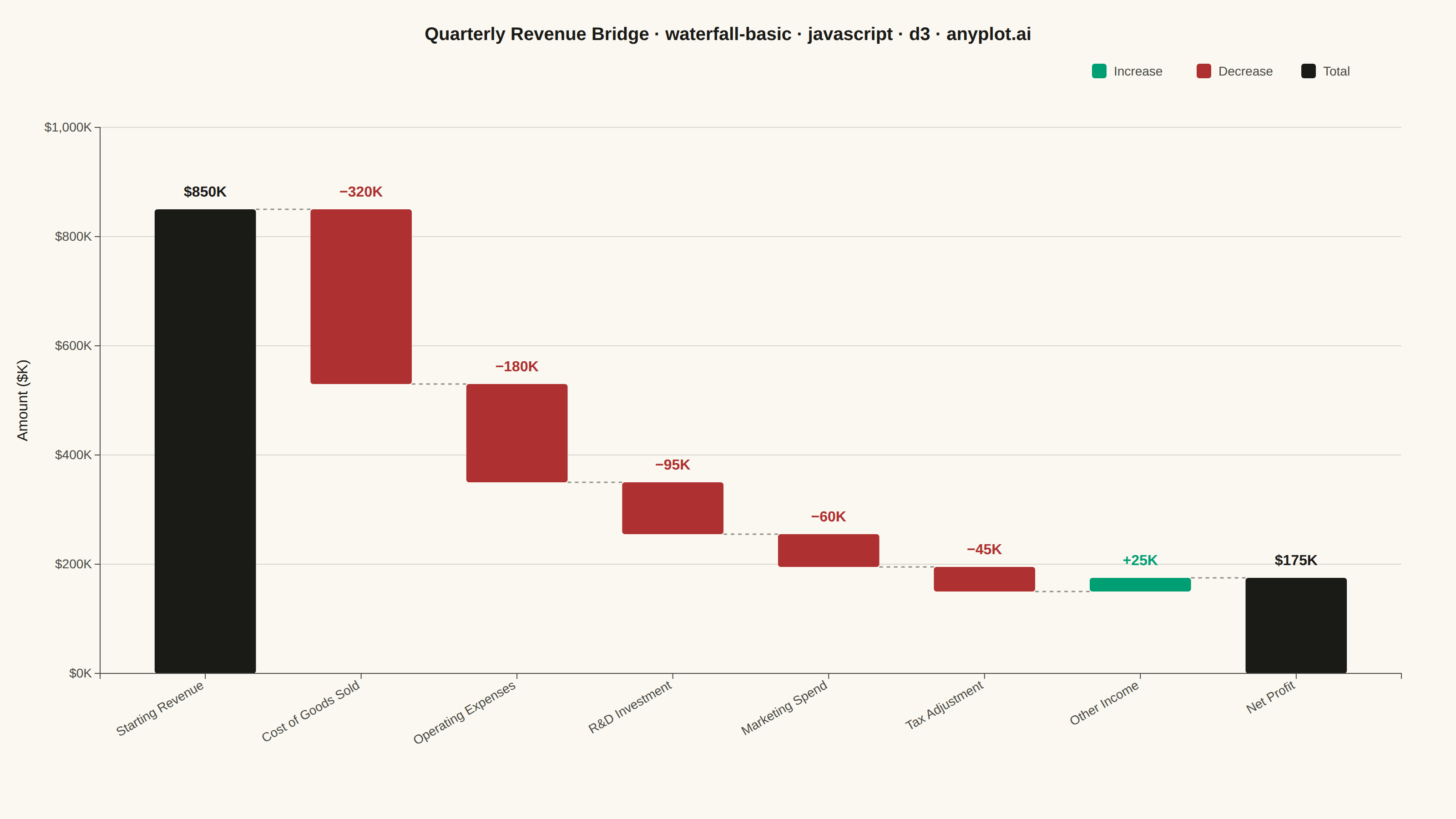

A waterfall chart visualizes how an initial value is affected by a series of intermediate positive or negative values, leading to a final value. Each bar represents a change from the previous cumulative total, with positive values extending upward and negative values extending downward. This chart type is essential for understanding cumulative effects and breaking down the components that contribute to a final result.
// anyplot.ai
// waterfall-basic: Basic Waterfall Chart
// Library: d3 7.9.0 | JavaScript 22.23.1
// Quality: 91/100 | Created: 2026-08-04
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 140, right: 60, bottom: 160, left: 110 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data (in-memory, deterministic): quarterly revenue bridge, $K --------
const changes = [
{ label: "Starting Revenue", value: 850, type: "total" },
{ label: "Cost of Goods Sold", value: -320, type: "change" },
{ label: "Operating Expenses", value: -180, type: "change" },
{ label: "R&D Investment", value: -95, type: "change" },
{ label: "Marketing Spend", value: -60, type: "change" },
{ label: "Tax Adjustment", value: -45, type: "change" },
{ label: "Other Income", value: 25, type: "change" },
{ label: "Net Profit", value: null, type: "total" },
];
let cumulative = 0;
const steps = changes.map((d) => {
if (d.type === "total" && d.value !== null) {
cumulative = d.value;
return { ...d, start: 0, end: d.value };
}
if (d.type === "change") {
const start = cumulative;
cumulative += d.value;
return { ...d, start, end: cumulative };
}
// final total: value derived from the running cumulative
return { ...d, value: cumulative, start: 0, end: cumulative };
});
const fmtTotal = (v) => `$${d3.format(",")(Math.round(v))}K`;
const fmtChange = (v) => `${v >= 0 ? "+" : ""}${d3.format(",")(Math.round(v))}K`;
// --- Scales ------------------------------------------------------------------
const x = d3
.scaleBand()
.domain(steps.map((d) => d.label))
.range([0, iw])
.padding(0.35);
const maxLevel = d3.max(steps, (d) => Math.max(d.start, d.end));
const y = d3
.scaleLinear()
.domain([0, maxLevel * 1.12])
.nice()
.range([ih, 0]);
// --- SVG mount ----------------------------------------------------------------
const svg = d3.select("#container").append("svg").attr("width", width).attr("height", height);
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// --- Y grid (horizontal only) --------------------------------------------------
g.append("g")
.call(d3.axisLeft(y).ticks(6).tickSize(-iw).tickFormat(""))
.call((sel) => sel.select(".domain").remove())
.selectAll("line")
.attr("stroke", t.grid);
// --- Connecting lines (running-total flow) -------------------------------------
for (let i = 0; i < steps.length - 1; i++) {
const level = steps[i].end;
g.append("line")
.attr("x1", x(steps[i].label) + x.bandwidth())
.attr("x2", x(steps[i + 1].label))
.attr("y1", y(level))
.attr("y2", y(level))
.attr("stroke", t.inkSoft)
.attr("stroke-width", 1.5)
.attr("stroke-dasharray", "4,4")
.attr("opacity", 0.6);
}
// --- Bars -----------------------------------------------------------------------
const barColor = (d) => {
if (d.type === "total") return t.ink;
return d.value >= 0 ? t.palette[0] : t.palette[4];
};
g.selectAll("rect.bar")
.data(steps)
.join("rect")
.attr("class", "bar")
.attr("x", (d) => x(d.label))
.attr("y", (d) => y(Math.max(d.start, d.end)))
.attr("width", x.bandwidth())
.attr("height", (d) => Math.max(1, y(Math.min(d.start, d.end)) - y(Math.max(d.start, d.end))))
.attr("fill", barColor)
.attr("rx", 3);
// --- Value labels -----------------------------------------------------------------
g.selectAll("text.value")
.data(steps)
.join("text")
.attr("class", "value")
.attr("x", (d) => x(d.label) + x.bandwidth() / 2)
.attr("y", (d) => y(Math.max(d.start, d.end)) - 14)
.attr("text-anchor", "middle")
.attr("fill", (d) => (d.type === "total" ? t.ink : barColor(d)))
.style("font-size", "16px")
.style("font-weight", "600")
.text((d) => (d.type === "total" ? fmtTotal(d.value) : fmtChange(d.value)));
// --- X axis -----------------------------------------------------------------------
const xAxis = g.append("g").attr("transform", `translate(0,${ih})`).call(d3.axisBottom(x));
xAxis.select(".domain").attr("stroke", t.inkSoft);
xAxis.selectAll("line").attr("stroke", t.inkSoft);
xAxis
.selectAll("text")
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.attr("transform", "rotate(-30)")
.attr("text-anchor", "end")
.attr("dx", "-0.6em")
.attr("dy", "0.3em");
// --- Y axis -----------------------------------------------------------------------
const yAxis = g.append("g").call(d3.axisLeft(y).ticks(6).tickFormat((v) => `$${d3.format(",")(v)}K`));
yAxis.select(".domain").attr("stroke", t.inkSoft);
yAxis.selectAll("line").attr("stroke", t.inkSoft);
yAxis.selectAll("text").attr("fill", t.inkSoft).style("font-size", "14px");
g.append("text")
.attr("transform", "rotate(-90)")
.attr("x", -ih / 2)
.attr("y", -80)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", "16px")
.text("Amount ($K)");
// --- Legend ------------------------------------------------------------------------
const legendItems = [
{ label: "Increase", color: t.palette[0] },
{ label: "Decrease", color: t.palette[4] },
{ label: "Total", color: t.ink },
];
const legend = svg.append("g").attr("transform", `translate(${width - margin.right - 340},70)`);
legendItems.forEach((item, i) => {
const lg = legend.append("g").attr("transform", `translate(${i * 115},0)`);
lg.append("rect").attr("width", 16).attr("height", 16).attr("rx", 3).attr("fill", item.color);
lg.append("text")
.attr("x", 24)
.attr("y", 13)
.attr("fill", t.inkSoft)
.style("font-size", "14px")
.text(item.label);
});
// --- Title ---------------------------------------------------------------------------
const title = "Quarterly Revenue Bridge · waterfall-basic · javascript · d3 · anyplot.ai";
const titleFontSize = Math.max(15, Math.round(22 * Math.min(1, 67 / title.length)));
svg
.append("text")
.attr("x", width / 2)
.attr("y", 44)
.attr("text-anchor", "middle")
.attr("fill", t.ink)
.style("font-size", `${titleFontSize}px`)
.style("font-weight", "600")
.text(title);
Part of Basic Waterfall Chart on anyplot.ai.
