A word cloud displays text data where word size represents frequency or importance. Words are arranged to fill available space, creating a visual summary of text content that highlights prominent terms and patterns. This visualization is ideal for quickly identifying the most common themes or keywords in a body of text.
// anyplot.ai
// wordcloud-basic: Basic Word Cloud
// Library: chartjs 4.4.7 | JavaScript 22.23.1
// Quality: 86/100 | Created: 2026-08-04
//# anyplot-orientation: landscape
// Chart.js ships no native word-cloud chart type, and the chartjs-chart-wordcloud
// plugin is not installed in this runtime. This snippet reaches core Chart.js
// only: a chart-scoped custom plugin (a first-class, no-import Chart.js API,
// distinct from a chartjs-chart-* package) draws the words directly onto the
// chart's own canvas context inside afterDraw, using a deterministic Archimedean
// spiral for placement — the same placement idea community word-cloud plugins
// use internally, authored here without any external dependency.
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ---------------------------------------
// Term frequencies mined from a customer-feedback corpus, grouped into themes.
const CATEGORIES = [
{ key: "performance", label: "Performance" },
{ key: "usability", label: "Usability" },
{ key: "support", label: "Support" },
{ key: "pricing", label: "Pricing & Billing" },
{ key: "features", label: "Features" },
];
const WORDS = [
{ word: "performance", frequency: 145, category: "performance" },
{ word: "support", frequency: 130, category: "support" },
{ word: "pricing", frequency: 121, category: "pricing" },
{ word: "speed", frequency: 118, category: "performance" },
{ word: "feature", frequency: 109, category: "features" },
{ word: "interface", frequency: 102, category: "usability" },
{ word: "usability", frequency: 96, category: "usability" },
{ word: "security", frequency: 95, category: "features" },
{ word: "response", frequency: 92, category: "support" },
{ word: "crash", frequency: 88, category: "performance" },
{ word: "integration", frequency: 87, category: "features" },
{ word: "ticket", frequency: 85, category: "support" },
{ word: "navigation", frequency: 84, category: "usability" },
{ word: "subscription", frequency: 79, category: "pricing" },
{ word: "latency", frequency: 76, category: "performance" },
{ word: "cost", frequency: 74, category: "pricing" },
{ word: "design", frequency: 73, category: "usability" },
{ word: "reliability", frequency: 71, category: "performance" },
{ word: "billing", frequency: 68, category: "pricing" },
{ word: "workflow", frequency: 67, category: "usability" },
{ word: "chat", frequency: 66, category: "support" },
{ word: "analytics", frequency: 65, category: "features" },
{ word: "mobile", frequency: 63, category: "features" },
{ word: "documentation", frequency: 61, category: "support" },
{ word: "onboarding", frequency: 58, category: "usability" },
{ word: "plan", frequency: 57, category: "pricing" },
{ word: "resolution", frequency: 54, category: "support" },
{ word: "uptime", frequency: 54, category: "performance" },
{ word: "dashboard", frequency: 52, category: "features" },
{ word: "search", frequency: 51, category: "features" },
{ word: "accessibility", frequency: 49, category: "usability" },
{ word: "helpdesk", frequency: 47, category: "support" },
{ word: "reporting", frequency: 48, category: "features" },
];
const FONT_FAMILY = "'Helvetica Neue', Helvetica, Arial, sans-serif";
const MIN_FONT_PX = 22;
const MAX_FONT_PX = 104;
const MIN_WEIGHT = 500;
const MAX_WEIGHT = 800;
const BOX_PAD = 6;
const AREA_MARGIN = 20;
const freqs = WORDS.map((w) => w.frequency);
const minFreq = Math.min(...freqs);
const maxFreq = Math.max(...freqs);
function scale(freq) {
// sqrt scale keeps the size spread readable instead of letting the top
// word dwarf everything else.
const u = Math.sqrt((freq - minFreq) / (maxFreq - minFreq));
return {
fontSize: MIN_FONT_PX + (MAX_FONT_PX - MIN_FONT_PX) * u,
weight: Math.round(MIN_WEIGHT + (MAX_WEIGHT - MIN_WEIGHT) * u),
};
}
const categoryColor = Object.fromEntries(
CATEGORIES.map((c, i) => [c.key, t.palette[i % t.palette.length]]),
);
// Largest-first placement packs the spiral center with the most important
// words and lets smaller ones fill the remaining gaps.
const layoutQueue = WORDS.slice().sort((a, b) => b.frequency - a.frequency);
function layoutWords(ctx, area) {
const centerX = (area.left + area.right) / 2;
const centerY = (area.top + area.bottom) / 2;
const maxRadius = Math.hypot(area.right - area.left, area.bottom - area.top) / 2;
const placed = [];
const positioned = [];
for (const entry of layoutQueue) {
const { fontSize, weight } = scale(entry.frequency);
ctx.font = `${weight} ${fontSize}px ${FONT_FAMILY}`;
const metrics = ctx.measureText(entry.word);
const boxW = metrics.width + BOX_PAD * 2;
const boxH = fontSize + BOX_PAD * 2;
let found = null;
const angleStep = 0.35;
const radiusStep = 2.0;
for (let step = 0, angle = 0, radius = 0; radius < maxRadius; step++, angle += angleStep, radius = radiusStep * angle) {
// Flatten the spiral vertically so it fills the wide landscape mount
// instead of drifting into a tall, narrow column.
const x = centerX + radius * Math.cos(angle);
const y = centerY + radius * Math.sin(angle) * 0.62;
const box = { left: x - boxW / 2, right: x + boxW / 2, top: y - boxH / 2, bottom: y + boxH / 2 };
if (box.left < area.left || box.right > area.right || box.top < area.top || box.bottom > area.bottom) continue;
const collides = (p) => p.left < box.right && p.right > box.left && p.top < box.bottom && p.bottom > box.top;
if (!placed.some(collides)) {
found = { x, y, box };
break;
}
}
if (!found) continue; // canvas full for this word's size; skip rather than overlap
placed.push(found.box);
positioned.push({ ...entry, x: found.x, y: found.y, fontSize, weight });
}
return positioned;
}
// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);
// --- Word-cloud draw plugin ---------------------------------------------------
const LEGEND_ROW_H = 44;
const wordCloudPlugin = {
id: "wordCloud",
afterDraw(chart) {
const { ctx, chartArea } = chart;
ctx.save();
// Category legend: colored swatch + label, one row under the title.
ctx.font = `600 15px ${FONT_FAMILY}`;
ctx.textBaseline = "middle";
let lx = chartArea.left;
const ly = chartArea.top + LEGEND_ROW_H / 2;
for (const cat of CATEGORIES) {
const swatch = 14;
ctx.fillStyle = categoryColor[cat.key];
ctx.fillRect(lx, ly - swatch / 2, swatch, swatch);
lx += swatch + 8;
ctx.fillStyle = t.ink;
ctx.textAlign = "left";
ctx.fillText(cat.label, lx, ly + 1);
lx += ctx.measureText(cat.label).width + 26;
}
// Word cloud fills the region below the legend row, inset by a margin so
// words breathe away from the canvas frame instead of crowding the edges.
const area = {
left: chartArea.left + AREA_MARGIN,
right: chartArea.right - AREA_MARGIN,
top: chartArea.top + LEGEND_ROW_H + AREA_MARGIN,
bottom: chartArea.bottom - AREA_MARGIN,
};
const words = layoutWords(ctx, area);
ctx.textAlign = "center";
ctx.textBaseline = "middle";
for (const w of words) {
ctx.font = `${w.weight} ${w.fontSize}px ${FONT_FAMILY}`;
ctx.fillStyle = categoryColor[w.category];
ctx.fillText(w.word, w.x, w.y);
}
ctx.restore();
},
};
// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
type: "scatter",
data: { datasets: [{ data: [] }] },
plugins: [wordCloudPlugin],
options: {
responsive: true,
maintainAspectRatio: false,
animation: false,
plugins: {
title: {
display: true,
text: "wordcloud-basic · javascript · chartjs · anyplot.ai",
color: t.ink,
font: { size: 22 },
},
legend: { display: false },
tooltip: { enabled: false },
},
scales: {
x: { display: false, min: 0, max: 1, grid: { display: false } },
y: { display: false, min: 0, max: 1, grid: { display: false } },
},
},
});

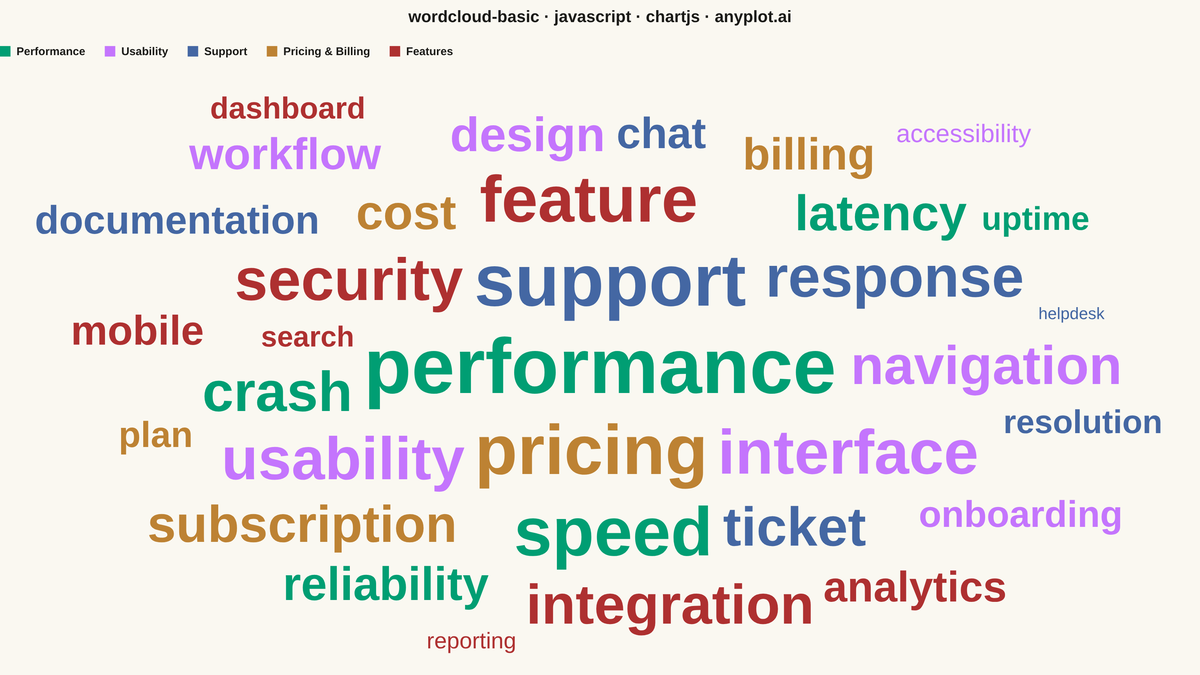

Part of Basic Word Cloud on anyplot.ai.
