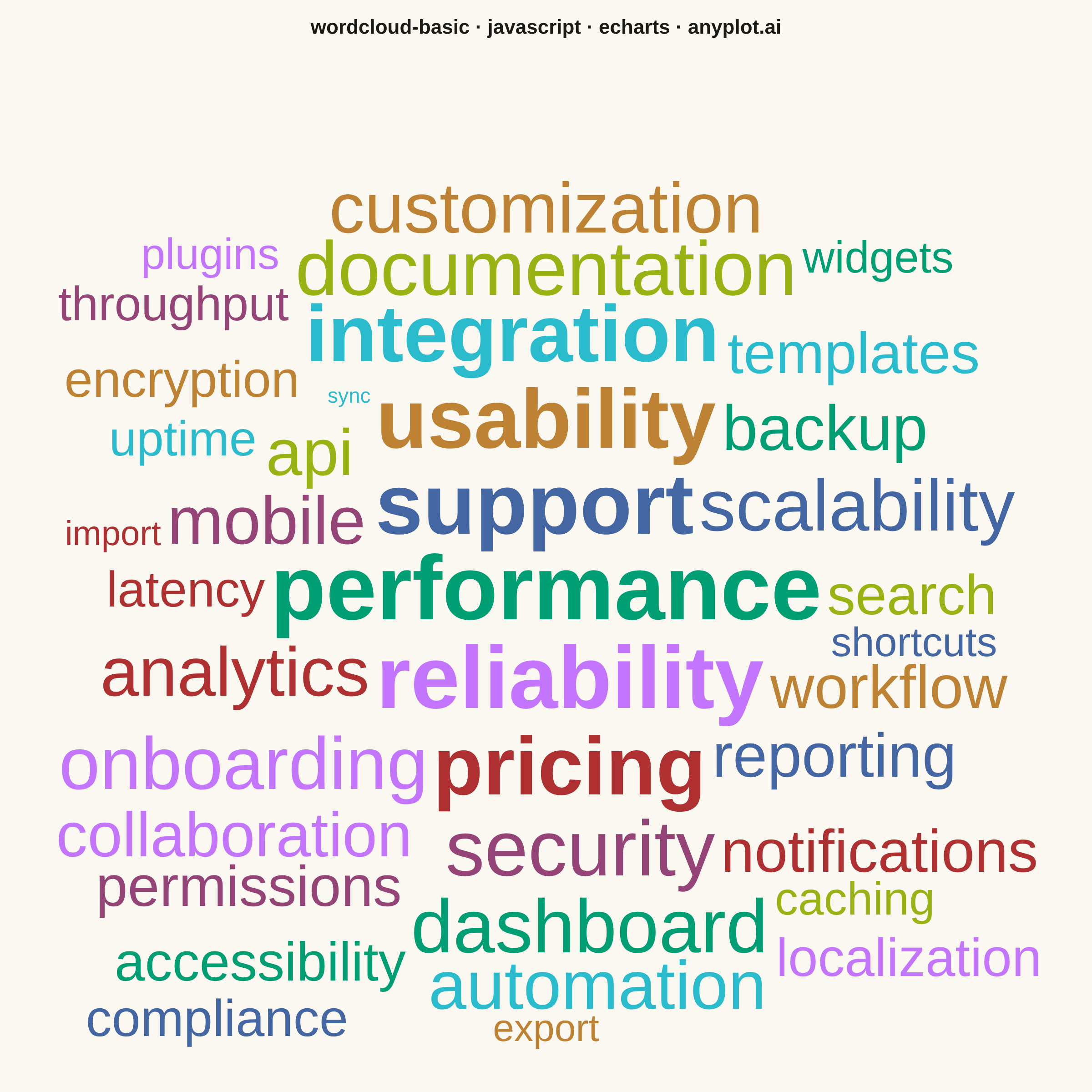

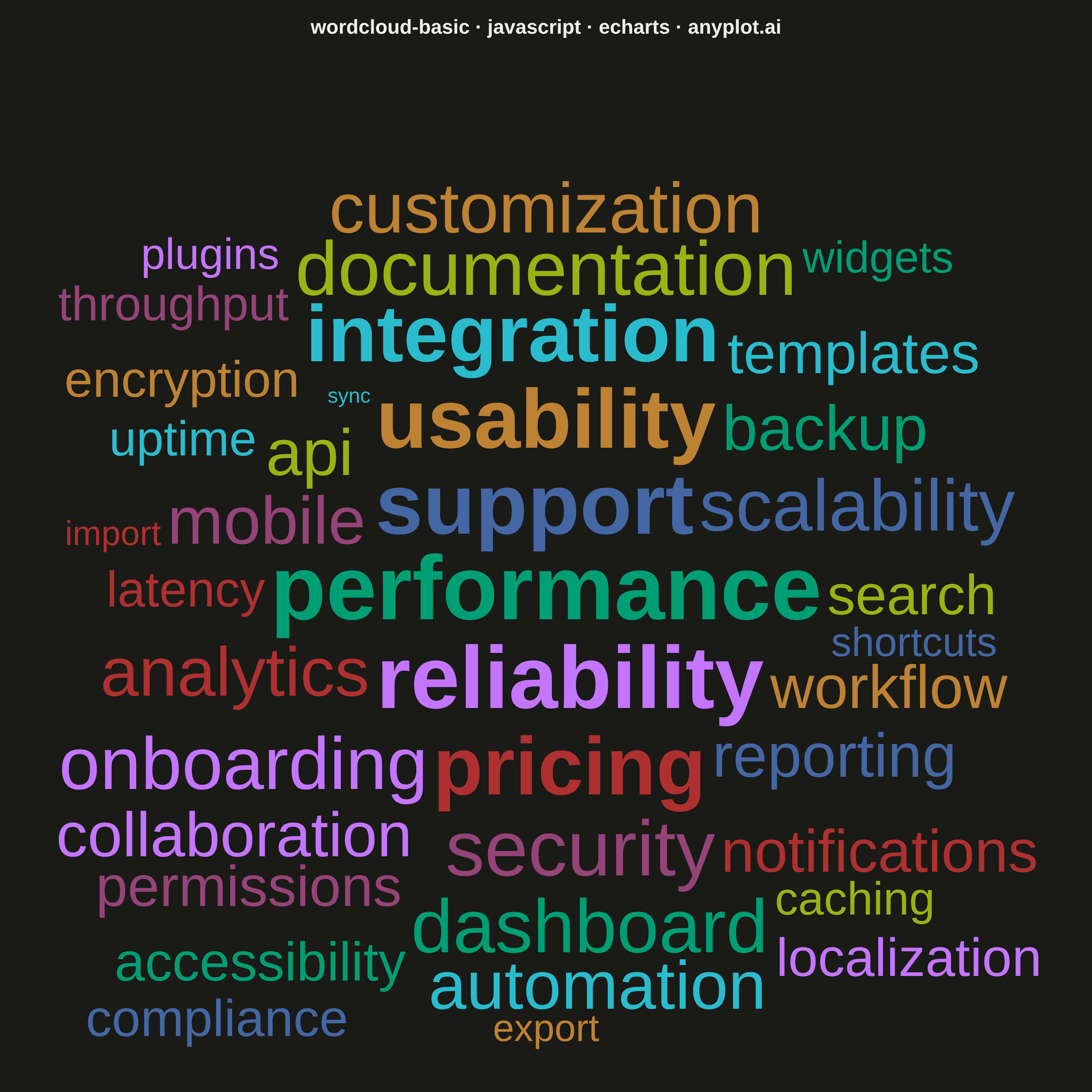

A word cloud displays text data where word size represents frequency or importance. Words are arranged to fill available space, creating a visual summary of text content that highlights prominent terms and patterns. This visualization is ideal for quickly identifying the most common themes or keywords in a body of text.
// anyplot.ai
// wordcloud-basic: Basic Word Cloud
// Library: echarts 6.1.0 | JavaScript 22.23.1
// Quality: 88/100 | Created: 2026-08-04
//# anyplot-orientation: square
const t = window.ANYPLOT_TOKENS;
const size = window.ANYPLOT_SIZE;
const FONT_FAMILY =
'-apple-system, BlinkMacSystemFont, "Segoe UI", Roboto, Helvetica, Arial, sans-serif';
// --- Data (in-memory, deterministic) ---------------------------------------
// Term frequencies extracted from a product-feedback survey, sorted by
// frequency descending so array rank doubles as the Imprint color cycle.
const terms = [
["performance", 132],
["reliability", 118],
["support", 104],
["usability", 96],
["pricing", 89],
["integration", 82],
["security", 76],
["documentation", 71],
["dashboard", 66],
["onboarding", 61],
["scalability", 57],
["customization", 53],
["analytics", 49],
["automation", 46],
["mobile", 43],
["api", 40],
["backup", 37],
["collaboration", 35],
["reporting", 33],
["workflow", 31],
["notifications", 29],
["templates", 27],
["permissions", 25],
["search", 24],
["accessibility", 22],
["localization", 21],
["compliance", 19],
["encryption", 18],
["latency", 17],
["uptime", 16],
["throughput", 15],
["caching", 14],
["widgets", 13],
["plugins", 12],
["shortcuts", 11],
["export", 10],
["import", 9],
["sync", 8],
];
// --- Layout: font size + spiral placement -----------------------------------
// ECharts has no native wordcloud series (and the echarts-wordcloud extension
// package is disallowed), so fontSizeFor/measureWord/boxesOverlap/placeWords
// hand-roll the frequency->size mapping and spiral collision layout that a
// dedicated wordcloud library would otherwise provide.
const FONT_MIN = 23;
const FONT_MAX = 100;
const PAD = 5; // breathing room between word boxes
const freqs = terms.map(([, f]) => f);
const freqMin = Math.min(...freqs);
const freqMax = Math.max(...freqs);
const measureCanvas = document.createElement("canvas");
const measureCtx = measureCanvas.getContext("2d");
function fontSizeFor(freq) {
// Cube-root curve (vs. sqrt) compresses the spread so low-frequency tail
// words land closer to FONT_MIN while the high-frequency words still peak
// near FONT_MAX, keeping every word legible at mobile preview scale.
const ratio = Math.cbrt((freq - freqMin) / (freqMax - freqMin));
return Math.round(FONT_MIN + (FONT_MAX - FONT_MIN) * ratio);
}
function measureWord(word, fontSize, weight) {
measureCtx.font = `${weight} ${fontSize}px ${FONT_FAMILY}`;
const m = measureCtx.measureText(word);
const ascent = m.actualBoundingBoxAscent || fontSize * 0.8;
const descent = m.actualBoundingBoxDescent || fontSize * 0.25;
return { width: m.width, height: ascent + descent };
}
function boxesOverlap(a, b, pad) {
return !(
a.x1 + pad < b.x0 ||
b.x1 + pad < a.x0 ||
a.y1 + pad < b.y0 ||
b.y1 + pad < a.y0
);
}
// Archimedean spiral placement (classic word-cloud layout): try the center
// first, then spiral outward until the word's bounding box clears every
// already-placed word and stays inside the cloud area.
function placeWords(words, area) {
const placed = [];
const cx = area.x0 + area.w / 2;
const cy = area.y0 + area.h / 2;
// Radius grows by RING_STEP px every full revolution (STEPS_PER_RING
// samples per ring) — a fixed, predictable outward crawl so later words
// reliably reach the open space at the edges instead of stalling near
// the center once early attempts are exhausted.
const STEPS_PER_RING = 48;
const ANGLE_STEP = (2 * Math.PI) / STEPS_PER_RING;
const RING_STEP = 6;
const MAX_ATTEMPTS = 20000;
for (const w of words) {
let box = null;
for (let attempt = 0; attempt < MAX_ATTEMPTS; attempt++) {
const angle = attempt * ANGLE_STEP;
const radius = RING_STEP * Math.floor(attempt / STEPS_PER_RING);
const px = cx + radius * Math.cos(angle) - w.width / 2;
const py = cy + radius * Math.sin(angle) - w.height / 2;
const candidate = { x0: px, y0: py, x1: px + w.width, y1: py + w.height };
const inBounds =
candidate.x0 >= area.x0 &&
candidate.y0 >= area.y0 &&
candidate.x1 <= area.x0 + area.w &&
candidate.y1 <= area.y0 + area.h;
const collides = inBounds && placed.some((p) => boxesOverlap(candidate, p, PAD));
box = candidate; // best-effort fallback if attempts run out
if (inBounds && !collides) break;
}
placed.push({ ...box, word: w });
}
return placed;
}
const cloudArea = { x0: 50, y0: 150, w: size.width - 100, h: size.height - 200 };
const sized = terms.map(([word, freq], rank) => ({
word,
freq,
rank,
width: 0,
height: 0,
fontSize: fontSizeFor(freq),
weight: rank < 6 ? 700 : 500,
}));
for (const w of sized) {
const m = measureWord(w.word, w.fontSize, w.weight);
w.width = m.width;
w.height = m.height;
}
const placed = placeWords(sized, cloudArea);
// --- Graphic elements ---------------------------------------------------------
const wordElements = placed.map((p) => ({
type: "text",
left: p.x0,
top: p.y0,
z: 10,
style: {
text: p.word.word,
fontSize: p.word.fontSize,
fontWeight: p.word.weight,
fontFamily: FONT_FAMILY,
fill: t.palette[p.word.rank % t.palette.length],
},
}));
// --- Init + option --------------------------------------------------------
const chart = echarts.init(document.getElementById("container"));
chart.setOption({
animation: false,
backgroundColor: "transparent",
title: {
text: "wordcloud-basic · javascript · echarts · anyplot.ai",
left: "center",
textStyle: { color: t.ink, fontSize: 22 },
},
graphic: { elements: wordElements },
});
chart.on("finished", () => {
window.__anyplotReady = true;
});
