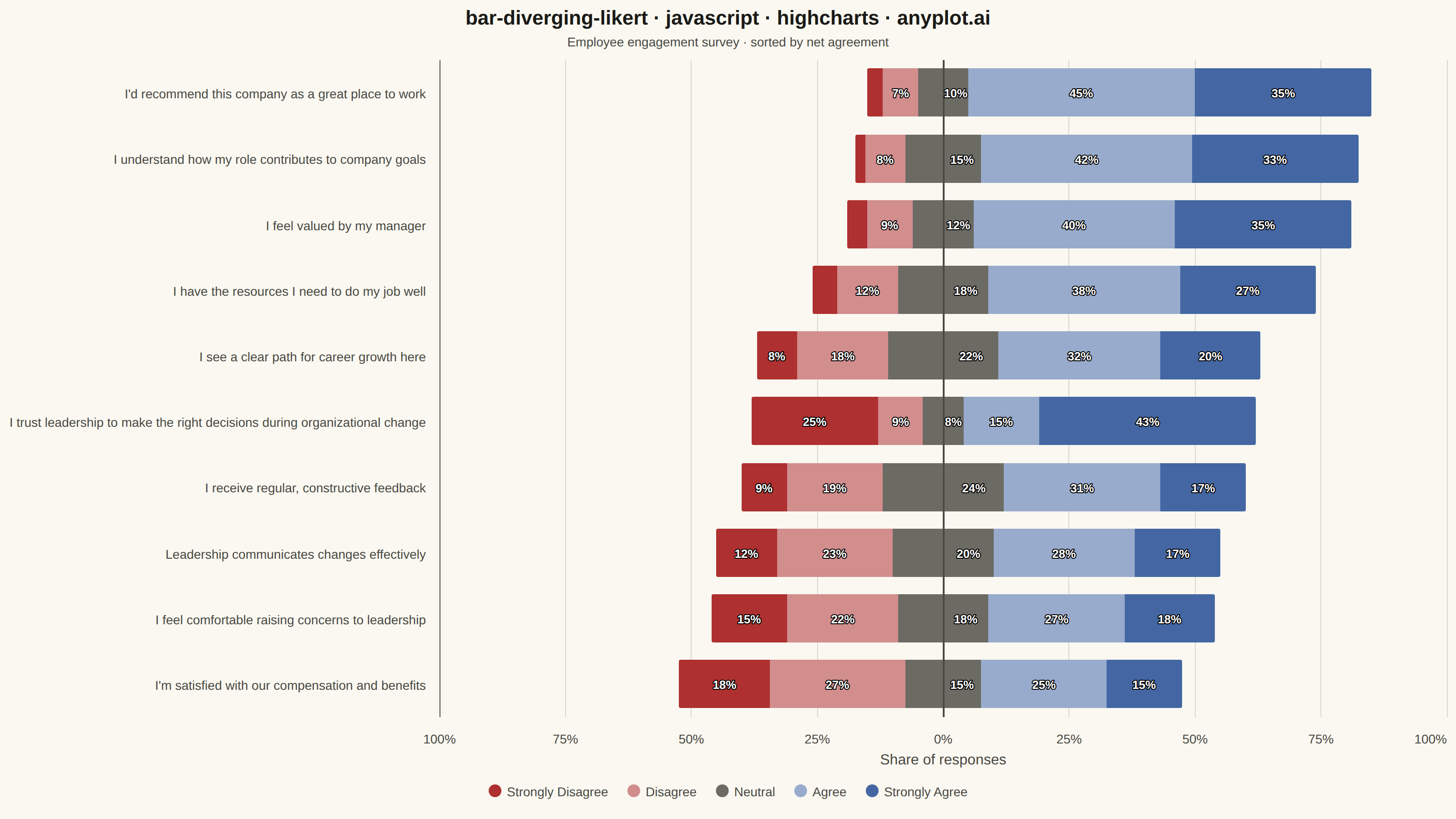

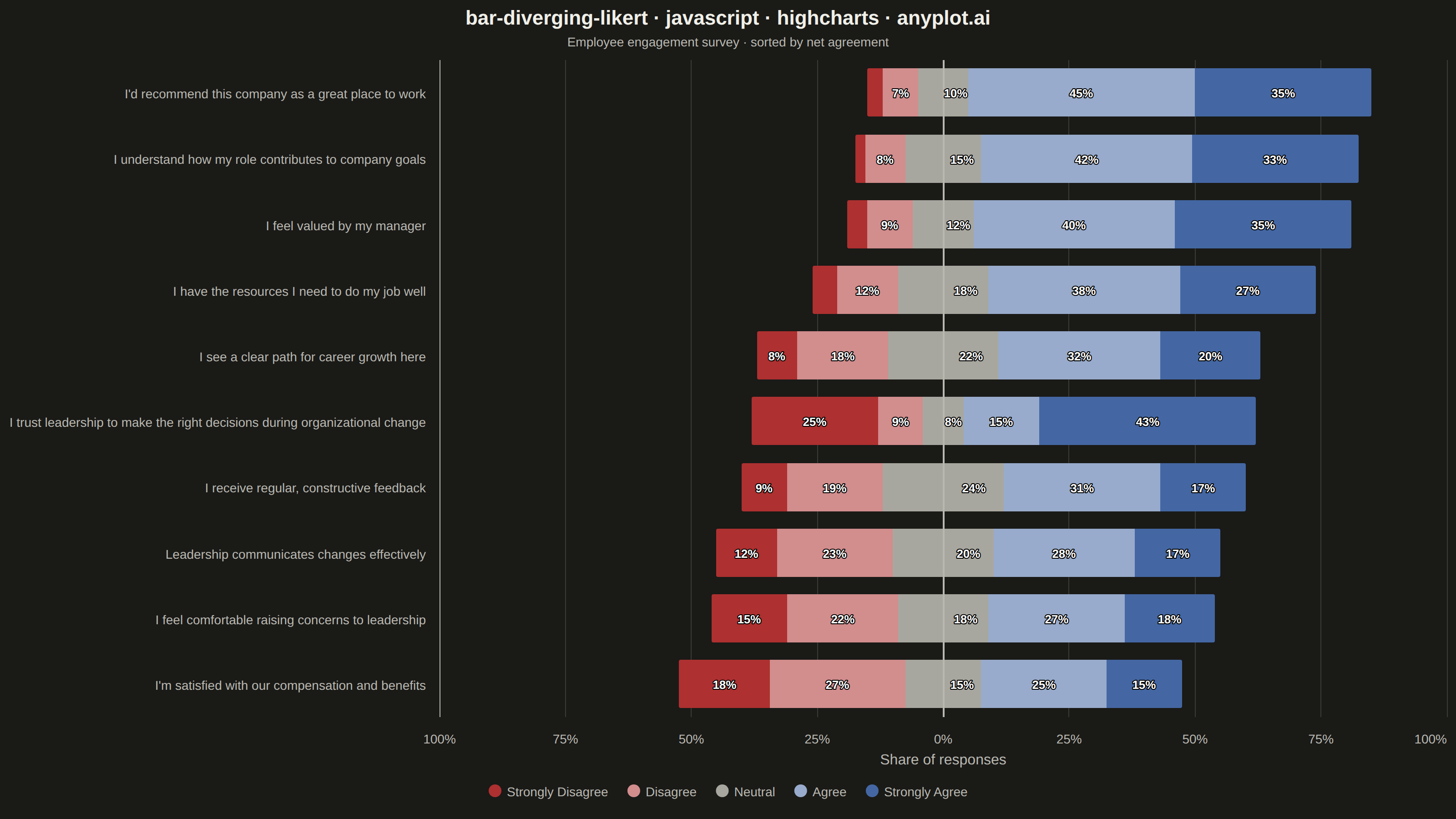

A diverging stacked bar chart designed for Likert scale survey responses (e.g., Strongly Disagree to Strongly Agree). Bars diverge from a central neutral point, with negative responses (Disagree, Strongly Disagree) extending left and positive responses (Agree, Strongly Agree) extending right. This layout makes it easy to compare overall agreement levels across multiple survey questions at a glance.
// anyplot.ai
// bar-diverging-likert: Likert Scale Diverging Bar Chart
// Library: highcharts 12.6.0 | JavaScript 22.23.2
// Quality: 93/100 | Created: 2026-08-24
//# anyplot-orientation: landscape
const THEME = window.ANYPLOT_THEME;
const t = window.ANYPLOT_TOKENS;
// --- Data (in-memory, deterministic) ----------------------------------------
// Employee engagement survey, 5-point Likert scale, percentages sum to 100 per
// question. Pre-sorted by net agreement (Agree + Strongly Agree - Disagree -
// Strongly Disagree), highest net agreement first.
const rows = [
{ question: "I'd recommend this company as a great place to work", sd: 3, d: 7, n: 10, a: 45, sa: 35 },
{ question: "I understand how my role contributes to company goals", sd: 2, d: 8, n: 15, a: 42, sa: 33 },
{ question: "I feel valued by my manager", sd: 4, d: 9, n: 12, a: 40, sa: 35 },
{ question: "I have the resources I need to do my job well", sd: 5, d: 12, n: 18, a: 38, sa: 27 },
{ question: "I see a clear path for career growth here", sd: 8, d: 18, n: 22, a: 32, sa: 20 },
{ question: "I trust leadership to make the right decisions during organizational change", sd: 25, d: 9, n: 8, a: 15, sa: 43 },
{ question: "I receive regular, constructive feedback", sd: 9, d: 19, n: 24, a: 31, sa: 17 },
{ question: "Leadership communicates changes effectively", sd: 12, d: 23, n: 20, a: 28, sa: 17 },
{ question: "I feel comfortable raising concerns to leadership", sd: 15, d: 22, n: 18, a: 27, sa: 18 },
{ question: "I'm satisfied with our compensation and benefits", sd: 18, d: 27, n: 15, a: 25, sa: 15 },
];
const categories = rows.map((r) => r.question);
// --- Diverging red-to-blue palette, muted neutral -----------------------------
const RED = "#AE3030"; // Imprint matte red — semantic anchor for disagreement
// Precomputed opaque tint (RED blended 55% over white) — a plain hex, not an
// alpha-blend over the mount background, so it stays pixel-identical across
// the light (#FAF8F1) and dark (#1A1A17) themes.
const RED_SOFT = "#D28D8D";
const BLUE = "#4467A3"; // Imprint blue — agreement
const BLUE_SOFT = "#98ABCC"; // Precomputed opaque tint (BLUE blended 55% over white)
// ANYPLOT_TOKENS has no "muted" key (only pageBg/elevatedBg/ink/inkSoft/grid/
// palette/amber/seq/div) — hardcode the theme-adaptive muted anchor from
// prompts/default-style-guide.md "Semantic anchors".
const NEUTRAL = THEME === "dark" ? "#A8A79F" : "#6B6A63";
const LABEL_STYLE = {
fontSize: "13px",
fontWeight: "600",
color: "#FFFFFF",
textOutline: "1px contrast",
};
// Highcharts stacks each subsequent same-signed series CLOSER to zero than the
// one before it, so the array order (per sign) is farthest-from-zero first:
// Strongly D/A, then Disagree/Agree, then the Neutral half last (closest to
// the center, where the two Neutral halves meet). legendIndex keeps the
// legend in the natural SD -> D -> Neutral -> A -> SA reading order.
const series = [
{
name: "Strongly Disagree",
legendIndex: 0,
data: rows.map((r) => ({ y: -r.sd, pct: r.sd })),
color: RED,
dataLabels: {
formatter: function () {
return Math.abs(this.y) >= 6 ? this.point.pct + "%" : null;
},
},
},
{
name: "Strongly Agree",
legendIndex: 4,
data: rows.map((r) => ({ y: r.sa, pct: r.sa })),
color: BLUE,
dataLabels: {
formatter: function () {
return Math.abs(this.y) >= 6 ? this.point.pct + "%" : null;
},
},
},
{
name: "Disagree",
legendIndex: 1,
data: rows.map((r) => ({ y: -r.d, pct: r.d })),
color: RED_SOFT,
dataLabels: {
formatter: function () {
return Math.abs(this.y) >= 6 ? this.point.pct + "%" : null;
},
},
},
{
name: "Agree",
legendIndex: 3,
data: rows.map((r) => ({ y: r.a, pct: r.a })),
color: BLUE_SOFT,
dataLabels: {
formatter: function () {
return Math.abs(this.y) >= 6 ? this.point.pct + "%" : null;
},
},
},
{
id: "neutral-left",
name: "Neutral",
data: rows.map((r) => ({ y: -r.n / 2, pct: r.n })),
color: NEUTRAL,
showInLegend: false,
dataLabels: { enabled: false },
},
{
id: "neutral-right",
name: "Neutral",
legendIndex: 2,
data: rows.map((r) => ({ y: r.n / 2, pct: r.n })),
color: NEUTRAL,
dataLabels: {
formatter: function () {
return this.point.pct >= 8 ? this.point.pct + "%" : null;
},
},
},
];
// --- Chart -------------------------------------------------------------------
Highcharts.chart("container", {
chart: {
type: "bar",
backgroundColor: "transparent",
animation: false,
style: { fontFamily: "inherit" },
},
credits: { enabled: false },
title: {
text: "bar-diverging-likert · javascript · highcharts · anyplot.ai",
style: { color: t.ink, fontSize: "22px", fontWeight: "600" },
},
subtitle: {
text: "Employee engagement survey · sorted by net agreement",
style: { color: t.inkSoft, fontSize: "14px" },
},
xAxis: {
categories,
reversed: true,
lineColor: t.inkSoft,
tickColor: t.inkSoft,
labels: { style: { color: t.inkSoft, fontSize: "14px" } },
},
yAxis: {
min: -100,
max: 100,
tickInterval: 25,
gridLineColor: t.grid,
title: {
text: "Share of responses",
style: { color: t.inkSoft, fontSize: "16px" },
},
labels: {
style: { color: t.inkSoft, fontSize: "14px" },
formatter: function () {
return Math.abs(this.value) + "%";
},
},
plotLines: [{ value: 0, width: 2, color: t.inkSoft, zIndex: 5 }],
},
legend: {
itemStyle: { color: t.inkSoft, fontSize: "14px" },
itemHoverStyle: { color: t.ink },
},
tooltip: {
shared: true,
formatter: function () {
const rowIndex = this.points[0].point.index;
const r = rows[rowIndex];
return (
`<b>${r.question}</b><br/>` +
`Strongly Disagree: ${r.sd}%<br/>` +
`Disagree: ${r.d}%<br/>` +
`Neutral: ${r.n}%<br/>` +
`Agree: ${r.a}%<br/>` +
`Strongly Agree: ${r.sa}%`
);
},
},
plotOptions: {
series: {
animation: false,
stacking: "normal",
dataLabels: { enabled: true, inside: true, style: LABEL_STYLE },
},
bar: { groupPadding: 0.12, pointPadding: 0.02, borderWidth: 0, borderRadius: 2 },
},
series,
});
Part of Likert Scale Diverging Bar Chart on anyplot.ai.
