Bifurcation Diagram for Dynamical Systems — Chart.js

A bifurcation diagram shows how the steady-state behavior of a dynamical system changes as a control parameter varies. By plotting the long-term values of a state variable against a continuously varied parameter, it reveals transitions from stable fixed points through period-doubling cascades to chaotic regimes. The classic example is the logistic map, where the route to chaos is clearly visible as the growth rate parameter increases.

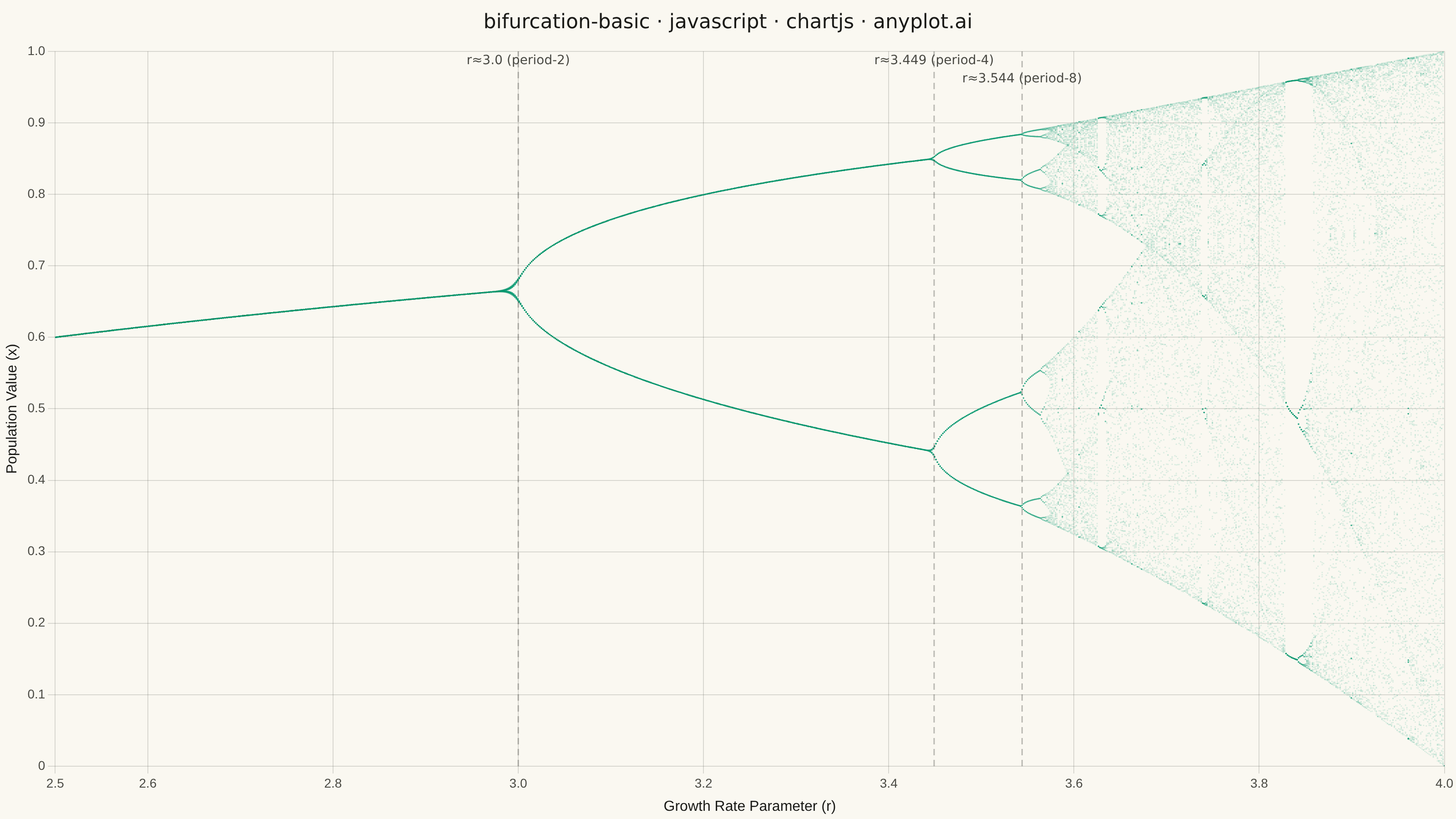

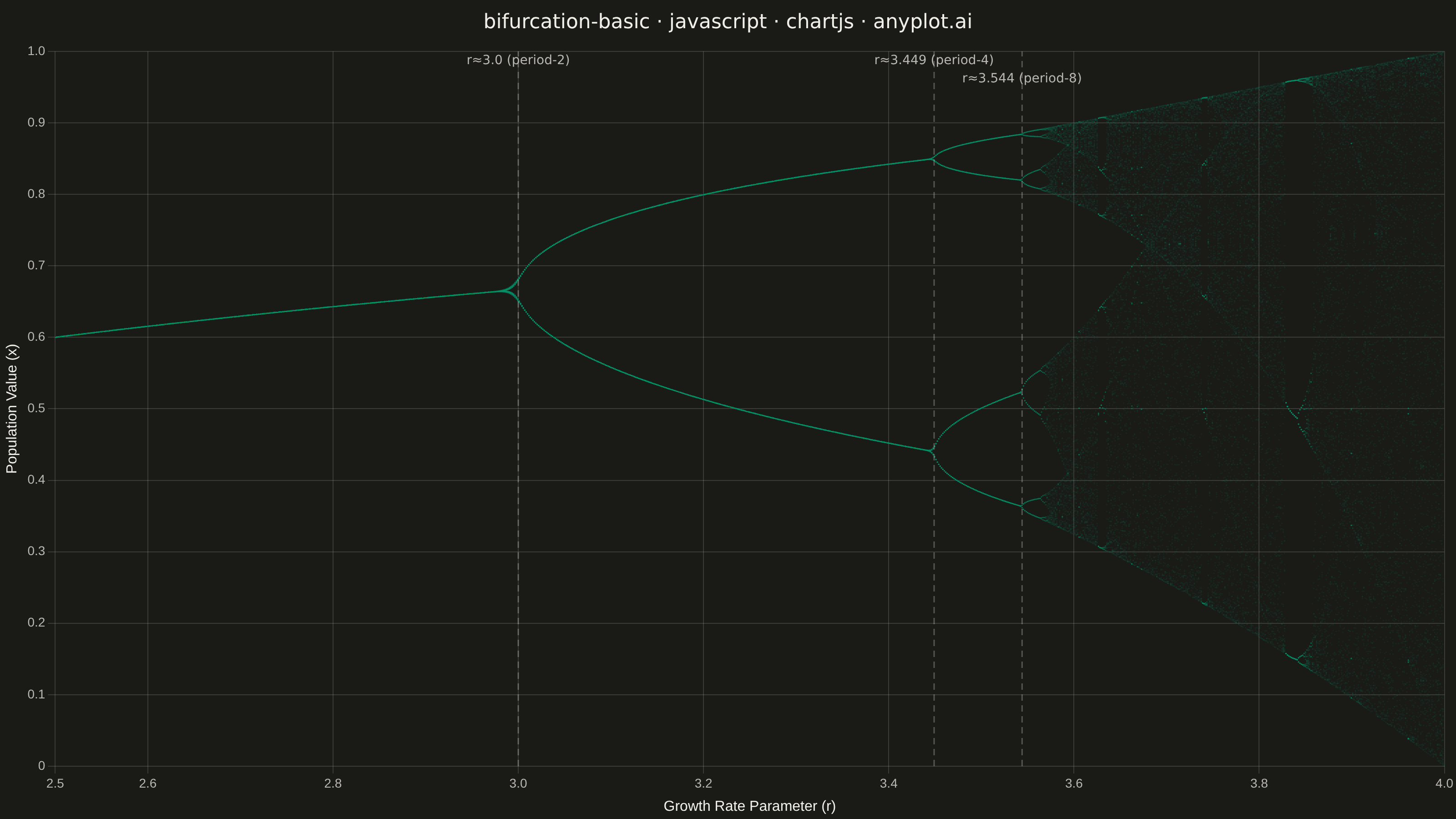

Bifurcation Diagram for Dynamical Systems rendered with Chart.js

JavaScript source (Chart.js)

// anyplot.ai
// bifurcation-basic: Bifurcation Diagram for Dynamical Systems
// Library: chartjs 4.4.7 | JavaScript 22.22.3
// Quality: 89/100 | Created: 2026-06-17

const t = window.ANYPLOT_TOKENS;
const rgba = (hex, a) => { const [r,g,b] = [1,3,5].map(o=>parseInt(hex.slice(o,o+2),16)); return `rgba(${r},${g},${b},${a})`; };

// --- Data: Logistic map x(n+1) = r * x(n) * (1 - x(n)) ---
const R_MIN = 2.5, R_MAX = 4.0;
const N_R = 1000;
const N_SKIP = 200;
const N_PLOT = 100;

const points = [];
for (let i = 0; i <= N_R; i++) {
  const r = R_MIN + (R_MAX - R_MIN) * i / N_R;
  let x = 0.5;
  for (let j = 0; j < N_SKIP; j++) x = r * x * (1 - x);
  for (let j = 0; j < N_PLOT; j++) {
    x = r * x * (1 - x);
    points.push({ x: r, y: x });
  }
}

// --- Bifurcation points: dashed vertical lines via Chart.js line datasets ---
// r=3.449 and r=3.544 are very close (~89 px apart); labels staggered in dy.
const BIFURC = [
  { r: 3.0,   text: "r≈3.0 (period-2)",  dy: 14 },
  { r: 3.449, text: "r≈3.449 (period-4)", dy: 14 },
  { r: 3.544, text: "r≈3.544 (period-8)", dy: 34 },
];

const refColor = rgba(t.ink, 0.28);
const refDatasets = BIFURC.map(({ r }) => ({
  type: "line",
  data: [{ x: r, y: 0 }, { x: r, y: 1 }],
  borderColor: refColor,
  borderWidth: 1.5,
  borderDash: [7, 5],
  pointRadius: 0,
  fill: false,
  tension: 0,
}));

// Plugin for annotation text labels only (lines handled by datasets above)
const labelPlugin = {
  id: "bifurcLabels",
  afterDraw({ ctx, chartArea: { top }, scales }) {
    ctx.save();
    ctx.fillStyle = t.inkSoft;
    ctx.font = "14px system-ui, sans-serif";
    ctx.textAlign = "center";
    BIFURC.forEach(({ r, text, dy }) => ctx.fillText(text, scales.x.getPixelForValue(r), top + dy));
    ctx.restore();
  },
};

// --- Mount ---
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// Per-theme alpha: slightly higher in light for better chaos-region visibility
const dotAlpha = window.ANYPLOT_THEME === "light" ? 0.13 : 0.10;

// --- Chart ---
new Chart(canvas, {
  type: "scatter",
  data: {
    datasets: [
      ...refDatasets,
      {
        label: "Logistic map",
        data: points,
        backgroundColor: rgba(t.palette[0], dotAlpha),
        borderColor: "transparent",
        borderWidth: 0,
        pointRadius: 0.8,
        pointHoverRadius: 0,
      },
    ],
  },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    plugins: {
      title: {
        display: true,
        text: "bifurcation-basic · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22, weight: "500", family: "system-ui, sans-serif" },
        padding: { top: 12, bottom: 18 },
      },
      legend: { display: false },
      tooltip: { enabled: false },
    },
    scales: {
      x: {
        type: "linear",
        min: R_MIN,
        max: R_MAX,
        border: { display: false },
        title: {
          display: true,
          text: "Growth Rate Parameter (r)",
          color: t.ink,
          font: { size: 16 },
        },
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
      },
      y: {
        type: "linear",
        min: 0,
        max: 1,
        border: { display: false },
        title: {
          display: true,
          text: "Population Value (x)",
          color: t.ink,
          font: { size: 16 },
        },
        ticks: { color: t.inkSoft, font: { size: 14 } },
        grid: { color: t.grid },
      },
    },
  },
  plugins: [labelPlugin],
});

Part of Bifurcation Diagram for Dynamical Systems on anyplot.ai.
