Bifurcation Diagram for Dynamical Systems — plotnine

A bifurcation diagram shows how the steady-state behavior of a dynamical system changes as a control parameter varies. By plotting the long-term values of a state variable against a continuously varied parameter, it reveals transitions from stable fixed points through period-doubling cascades to chaotic regimes. The classic example is the logistic map, where the route to chaos is clearly visible as the growth rate parameter increases.

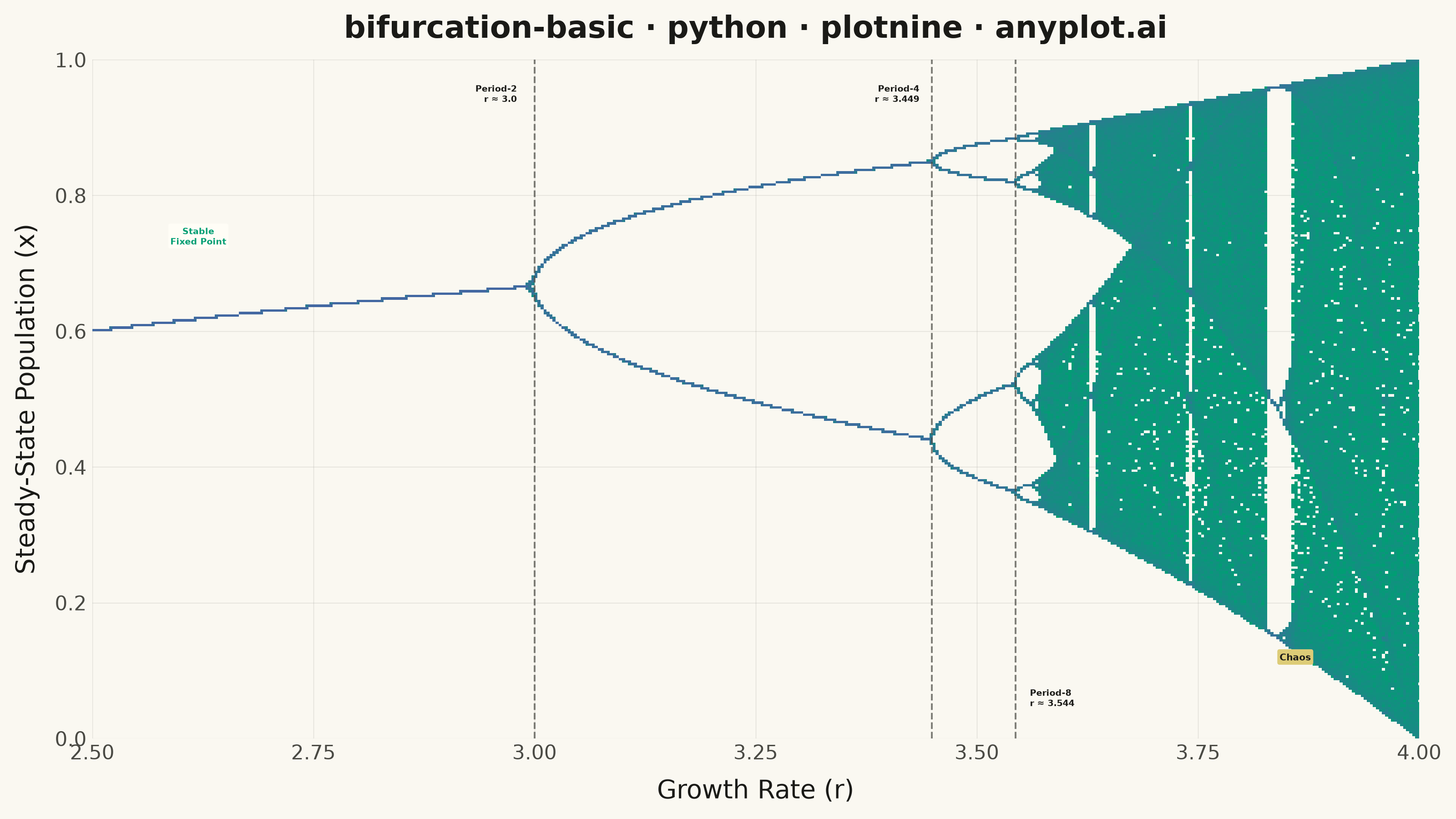

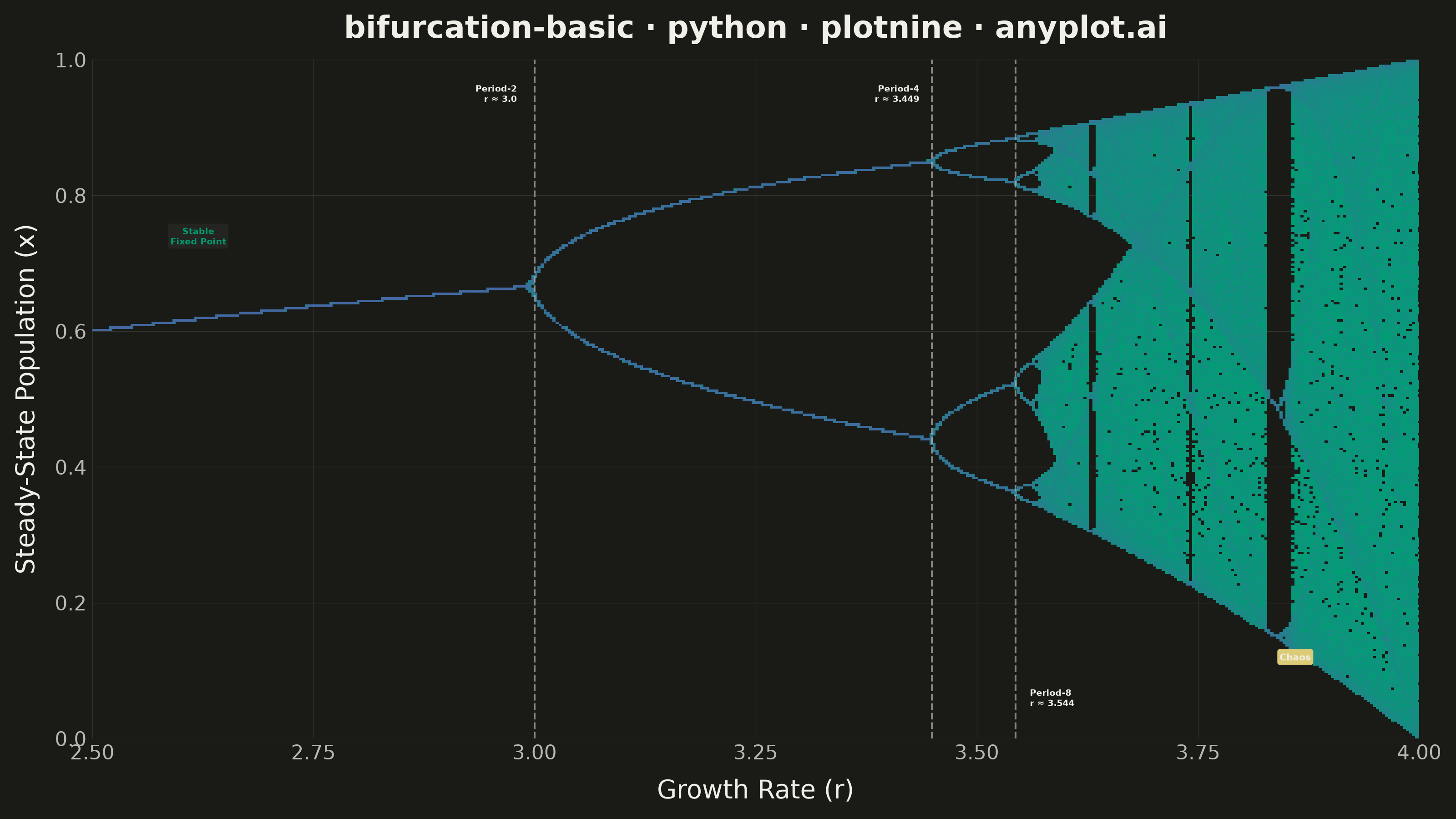

Bifurcation Diagram for Dynamical Systems rendered with plotnine

Python source (plotnine)

""" anyplot.ai
bifurcation-basic: Bifurcation Diagram for Dynamical Systems
Library: plotnine 0.15.7 | Python 3.13.13
Quality: 90/100 | Updated: 2026-06-17
"""

import os
import sys


# Prevent this file (plotnine.py) from shadowing the installed plotnine package
sys.path = [p for p in sys.path if p and not p.endswith("implementations") and not p.endswith("/python")]

import numpy as np
import pandas as pd
from plotnine import (
    aes,
    annotate,
    coord_cartesian,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_bin2d,
    geom_vline,
    ggplot,
    guides,
    labs,
    scale_fill_gradient,
    scale_x_continuous,
    scale_y_continuous,
    theme,
    theme_minimal,
)


# Theme-adaptive chrome (Imprint tokens)
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
INK_MUTED = "#6B6A63" if THEME == "light" else "#A8A79F"

# Imprint palette anchors used here
BRAND = "#009E73"  # brand green — low end of the sequential density ramp
BLUE = "#4467A3"  # imprint_seq high end
ANYPLOT_AMBER = "#DDCC77"  # warning / caution — flags the chaotic regime

# Data — logistic map: x(n+1) = r * x(n) * (1 - x(n))
r_values = np.linspace(2.5, 4.0, 4000)
n_discard = 300
n_keep = 150

parameter = np.empty(r_values.size * n_keep)
state = np.empty(r_values.size * n_keep)

x0 = 0.5
idx = 0
for r in r_values:
    x = x0
    for _ in range(n_discard):
        x = r * x * (1.0 - x)
    for _ in range(n_keep):
        x = r * x * (1.0 - x)
        parameter[idx] = r
        state[idx] = x
        idx += 1

df = pd.DataFrame({"parameter": parameter, "state": state})

# Key period-doubling bifurcation points of the logistic map
bifurcation_r = [3.0, 3.449, 3.544]

# Plot — geom_bin2d (2D density histogram) is the distinctive plotnine read on
# this spec. A log-scaled imprint_seq fill keeps the sparse chaotic bins visible
# instead of washing them out against the dense fixed-point/period branches.
plot = (
    ggplot(df, aes(x="parameter", y="state"))
    + geom_bin2d(bins=(440, 280), na_rm=True)
    + scale_fill_gradient(low=BRAND, high=BLUE, trans="log10")
    + geom_vline(xintercept=bifurcation_r, linetype="dashed", color=INK_SOFT, alpha=0.7, size=0.4)
    + annotate("text", x=2.98, y=0.95, label="Period-2\nr ≈ 3.0", size=3.4, color=INK, ha="right", fontweight="bold")
    + annotate("text", x=3.435, y=0.95, label="Period-4\nr ≈ 3.449", size=3.4, color=INK, ha="right", fontweight="bold")
    + annotate("text", x=3.56, y=0.06, label="Period-8\nr ≈ 3.544", size=3.4, color=INK, ha="left", fontweight="bold")
    + annotate(
        "label",
        x=2.62,
        y=0.74,
        label="Stable\nFixed Point",
        size=3.4,
        color=BRAND,
        fontweight="bold",
        fill=ELEVATED_BG,
        label_size=0,
    )
    + annotate(
        "label", x=3.86, y=0.12, label="Chaos", size=3.6, color=INK, fontweight="bold", fill=ANYPLOT_AMBER, label_size=0
    )
    + labs(
        x="Growth Rate (r)", y="Steady-State Population (x)", title="bifurcation-basic · python · plotnine · anyplot.ai"
    )
    + scale_x_continuous(breaks=np.arange(2.5, 4.1, 0.25), expand=(0, 0))
    + scale_y_continuous(breaks=np.arange(0, 1.1, 0.2), expand=(0, 0))
    + coord_cartesian(xlim=(2.5, 4.0), ylim=(0, 1.0))
    + guides(fill=False)
    + theme_minimal()
    + theme(
        figure_size=(8, 4.5),
        plot_title=element_text(size=12, weight="bold", color=INK),
        axis_title=element_text(size=10, color=INK),
        axis_text=element_text(size=8, color=INK_SOFT),
        panel_grid_major=element_line(color=INK_MUTED, size=0.25, alpha=0.18),
        panel_grid_minor=element_blank(),
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color="none"),
        legend_position="none",
    )
)

# Save (3200 x 1800 px)
plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in", verbose=False)

Part of Bifurcation Diagram for Dynamical Systems on anyplot.ai.
