A cartogram distorts geographic regions so that their area becomes proportional to a data variable (e.g., population, GDP, election votes) rather than physical land area. This solves the classic problem of large but sparsely populated areas dominating standard maps, making it easier to compare values across regions at a glance. Contiguous cartograms preserve adjacency and rough shape of regions while rescaling them, famously used in election coverage worldwide.
# anyplot.ai
# cartogram-area-distortion: Cartogram with Area Distortion by Data Value
# Library: makie 0.22.10 | Julia 1.11.9
# Quality: 86/100 | Created: 2026-06-08
using CairoMakie
using Colors
# Theme tokens
const THEME = get(ENV, "ANYPLOT_THEME", "light")
const PAGE_BG = THEME == "light" ? colorant"#FAF8F1" : colorant"#1A1A17"
const ELEVATED_BG = THEME == "light" ? colorant"#FFFDF6" : colorant"#242420"
const INK = THEME == "light" ? colorant"#1A1A17" : colorant"#F0EFE8"
const INK_SOFT = THEME == "light" ? colorant"#4A4A44" : colorant"#B8B7B0"
const INK_MUTED = THEME == "light" ? colorant"#6B6A63" : colorant"#A8A79F"
# Imprint palette — positions 1–4 for four US census regions
const REGION_COLORS = [
colorant"#009E73", # Northeast — brand green
colorant"#C475FD", # South — lavender
colorant"#4467A3", # Midwest — blue
colorant"#BD8233", # West — ochre
]
# US states: (abbreviation, longitude, latitude, population_millions, region_index)
# Alaska and Hawaii repositioned to lower-left corner for display
const STATE_DATA = [
("AL", -86.7, 32.7, 5.03, 2),
("AK", -127.0, 26.5, 0.73, 4),
("AZ", -111.7, 34.3, 7.15, 4),
("AR", -92.4, 34.9, 3.01, 2),
("CA", -119.7, 37.2, 39.54, 4),
("CO", -105.5, 39.0, 5.77, 4),
("CT", -72.7, 41.6, 3.60, 1),
("DE", -75.5, 39.0, 0.99, 2),
("FL", -81.5, 28.1, 21.54, 2),
("GA", -83.4, 32.7, 10.71, 2),
("HI", -120.5, 24.0, 1.44, 4),
("ID", -114.5, 44.4, 1.83, 4),
("IL", -89.2, 40.1, 12.81, 3),
("IN", -86.3, 40.3, 6.79, 3),
("IA", -93.1, 42.1, 3.19, 3),
("KS", -98.4, 38.5, 2.94, 3),
("KY", -84.3, 37.5, 4.51, 2),
("LA", -91.8, 31.2, 4.65, 2),
("ME", -69.2, 45.4, 1.36, 1),
("MD", -76.6, 39.0, 6.18, 2),
("MA", -71.5, 42.2, 7.03, 1),
("MI", -85.6, 44.3, 10.08, 3),
("MN", -94.3, 46.4, 5.71, 3),
("MS", -89.7, 32.7, 2.96, 2),
("MO", -92.3, 38.5, 6.15, 3),
("MT", -110.5, 46.9, 1.08, 4),
("NE", -99.9, 41.5, 1.96, 3),
("NV", -116.9, 39.5, 3.10, 4),
("NH", -71.6, 43.7, 1.38, 1),
("NJ", -74.4, 40.0, 9.29, 1),
("NM", -106.1, 34.4, 2.12, 4),
("NY", -75.4, 42.9, 20.20, 1),
("NC", -79.4, 35.6, 10.44, 2),
("ND", -100.5, 47.5, 0.78, 3),
("OH", -82.8, 40.4, 11.80, 3),
("OK", -97.5, 35.5, 3.96, 2),
("OR", -120.5, 43.9, 4.24, 4),
("PA", -77.2, 40.9, 13.00, 1),
("RI", -71.4, 41.7, 1.10, 1),
("SC", -80.9, 33.8, 5.12, 2),
("SD", -100.2, 44.4, 0.89, 3),
("TN", -86.7, 35.9, 6.91, 2),
("TX", -99.3, 31.5, 29.15, 2),
("UT", -111.1, 39.5, 3.27, 4),
("VT", -72.7, 44.0, 0.64, 1),
("VA", -78.5, 37.5, 8.63, 2),
("WA", -120.7, 47.4, 7.71, 4),
("WV", -80.7, 38.9, 1.79, 2),
("WI", -89.8, 44.5, 5.89, 3),
("WY", -107.6, 43.0, 0.58, 4),
]
abbrevs = [s[1] for s in STATE_DATA]
lons = Float64[s[2] for s in STATE_DATA]
lats = Float64[s[3] for s in STATE_DATA]
pops = Float64[s[4] for s in STATE_DATA]
region_idxs = Int[s[5] for s in STATE_DATA]
colors = [REGION_COLORS[r] for r in region_idxs]
# Leader-line offsets for the dense Northeast cluster — (dx, dy) from circle center to label.
# Circles stay at geographic positions; only the text is displaced, with a thin connector line.
const NE_LEADERS = Dict(
"VT" => (-2.8, 2.2), # circle -72.7,44.0 → label -75.5,46.2 (upper-left)
"NH" => ( 3.0, 0.0), # circle -71.6,43.7 → label -68.6,43.7 (right)
"RI" => ( 2.0, -2.0), # circle -71.4,41.7 → label -69.4,39.7 (lower-right)
"CT" => (-3.5, -2.0), # circle -72.7,41.6 → label -76.2,39.6 (lower-left)
"MA" => ( 3.5, 0.5), # circle -71.5,42.2 → label -68.0,42.7 (right)
"NJ" => ( 3.0, -2.0), # circle -74.4,40.0 → label -71.4,38.0 (lower-right)
"DE" => (-1.0, -2.5), # circle -75.5,39.0 → label -76.5,36.5 (lower-left)
)
const LEADER_COLOR = RGBAf(INK_MUTED.r, INK_MUTED.g, INK_MUTED.b, 0.7f0)
# Marker sizes: area ∝ population; minimum enforced so tiny states remain visible
size_scale = 44.0 / sqrt(maximum(pops))
marker_sizes = [max(sqrt(p) * size_scale, 8.0) for p in pops]
# Figure
fig = Figure(
size = (1600, 900),
fontsize = 14,
backgroundcolor = PAGE_BG,
)
# Main Dorling cartogram axis
ax = Axis(
fig[1, 1];
title = "cartogram-area-distortion · julia · makie · anyplot.ai",
titlesize = 20,
titlecolor = INK,
xlabel = "Longitude",
ylabel = "Latitude",
xlabelsize = 14,
ylabelsize = 14,
xlabelcolor = INK,
ylabelcolor = INK,
xticklabelcolor = INK_SOFT,
yticklabelcolor = INK_SOFT,
xticklabelsize = 12,
yticklabelsize = 12,
backgroundcolor = PAGE_BG,
topspinevisible = false,
rightspinevisible = false,
leftspinecolor = INK_SOFT,
bottomspinecolor = INK_SOFT,
xgridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
ygridcolor = RGBAf(INK.r, INK.g, INK.b, 0.15),
)
# Draw leader lines first so circles render on top, covering the inner segment
for i in eachindex(abbrevs)
abbr = abbrevs[i]
if haskey(NE_LEADERS, abbr)
dx, dy = NE_LEADERS[abbr]
lines!(ax, [lons[i], lons[i] + dx], [lats[i], lats[i] + dy];
color = LEADER_COLOR, linewidth = 0.8)
end
end
scatter!(ax, lons, lats;
color = colors,
markersize = marker_sizes,
strokecolor = PAGE_BG,
strokewidth = 1.5,
)
# Labels: offset for NE cluster states (placed at leader endpoint), centered for all others
for i in eachindex(abbrevs)
abbr = abbrevs[i]
if haskey(NE_LEADERS, abbr)
dx, dy = NE_LEADERS[abbr]
text!(ax, lons[i] + dx, lats[i] + dy;
text = abbr,
align = (:center, :center),
fontsize = 10,
color = INK,
)
else
text!(ax, lons[i], lats[i];
text = abbr,
align = (:center, :center),
fontsize = 10,
color = INK,
)
end
end
xlims!(ax, -131.0, -64.0)
ylims!(ax, 22.5, 50.5)
# Right panel — reference map and census region legend
right_grid = fig[1, 2] = GridLayout()
# Reference map: equal-size dots at geographic centers for comparison with cartogram
ref_ax = Axis(
right_grid[1, 1];
title = "Reference Map",
titlesize = 11,
titlecolor = INK,
backgroundcolor = PAGE_BG,
topspinevisible = true,
rightspinevisible = true,
leftspinevisible = true,
bottomspinevisible = true,
topspinecolor = INK_MUTED,
rightspinecolor = INK_MUTED,
leftspinecolor = INK_MUTED,
bottomspinecolor = INK_MUTED,
xticksvisible = false,
yticksvisible = false,
xticklabelsvisible = false,
yticklabelsvisible = false,
xgridvisible = false,
ygridvisible = false,
)
scatter!(ref_ax, lons, lats;
color = colors,
markersize = 6.0,
strokecolor = PAGE_BG,
strokewidth = 0.8,
)
xlims!(ref_ax, -131.0, -64.0)
ylims!(ref_ax, 22.5, 50.5)
# Census region legend
Legend(
right_grid[2, 1],
[MarkerElement(color = REGION_COLORS[i], marker = :circle, markersize = 18) for i in 1:4],
["Northeast", "South", "Midwest", "West"];
title = "Census Region",
titlesize = 13,
titlecolor = INK,
labelsize = 12,
labelcolor = INK_SOFT,
framevisible = true,
framecolor = INK_SOFT,
backgroundcolor = ELEVATED_BG,
padding = (12, 12, 12, 12),
rowgap = 8,
)
# Caption
Label(
fig[2, 1:2];

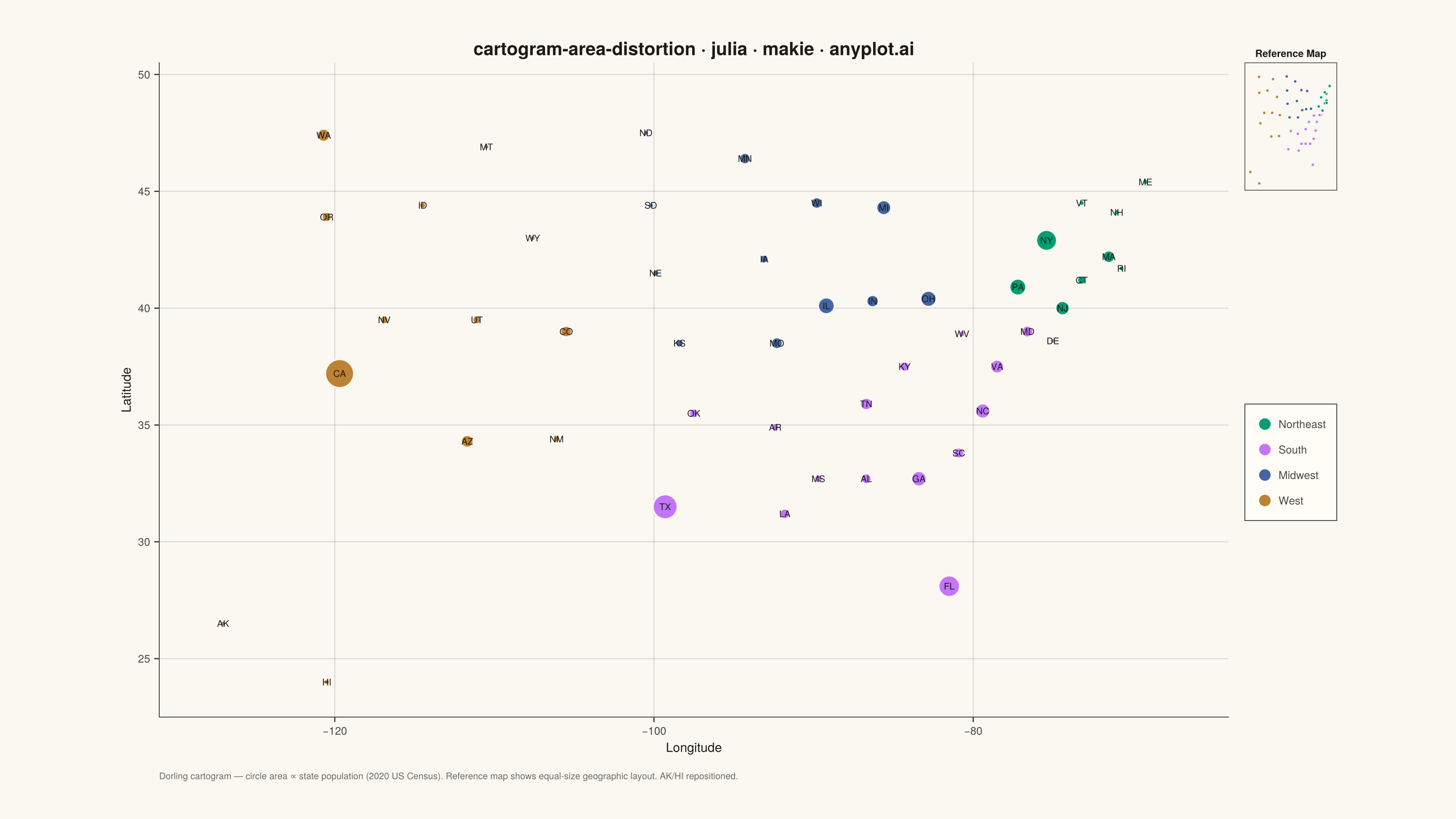

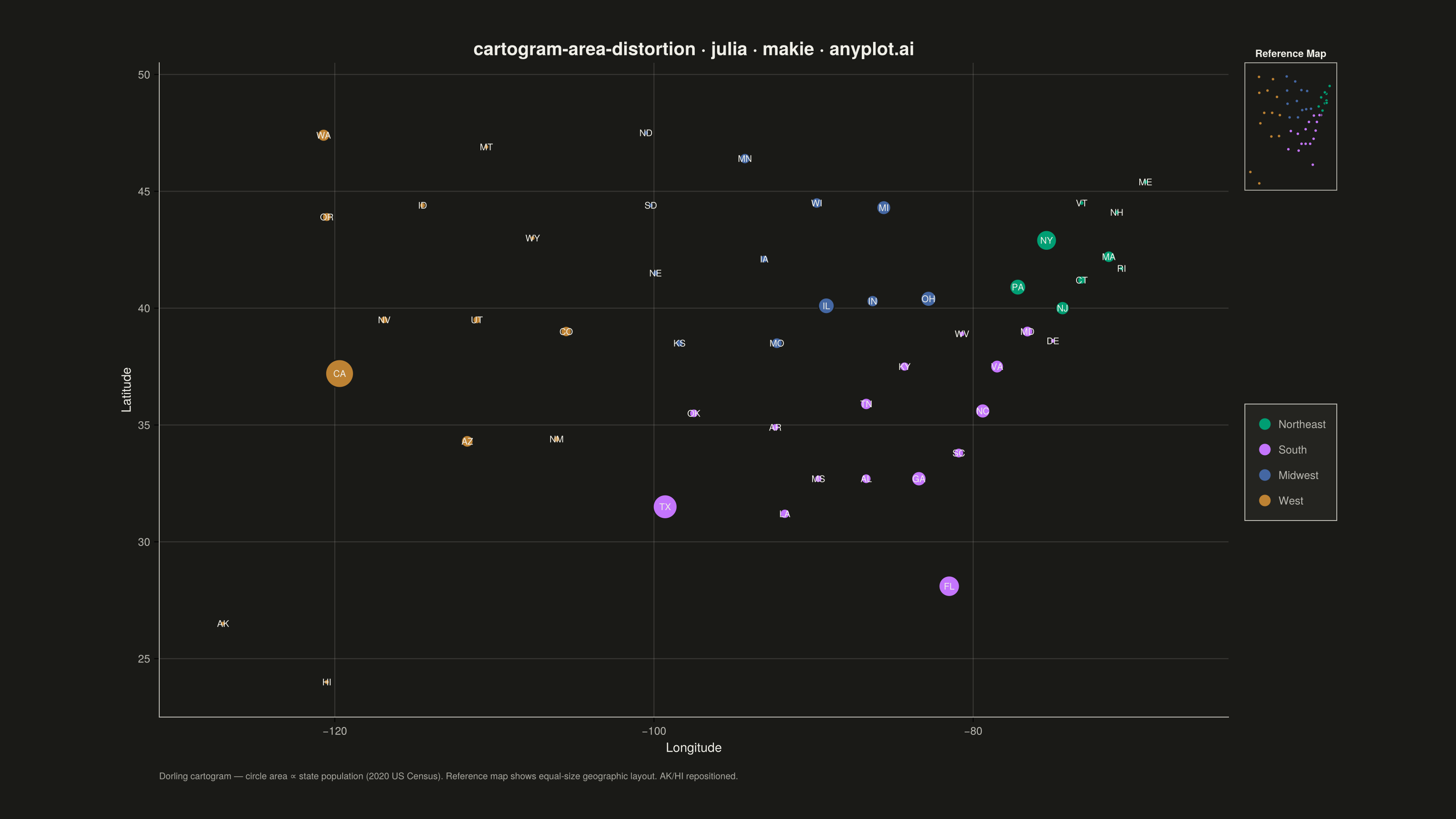

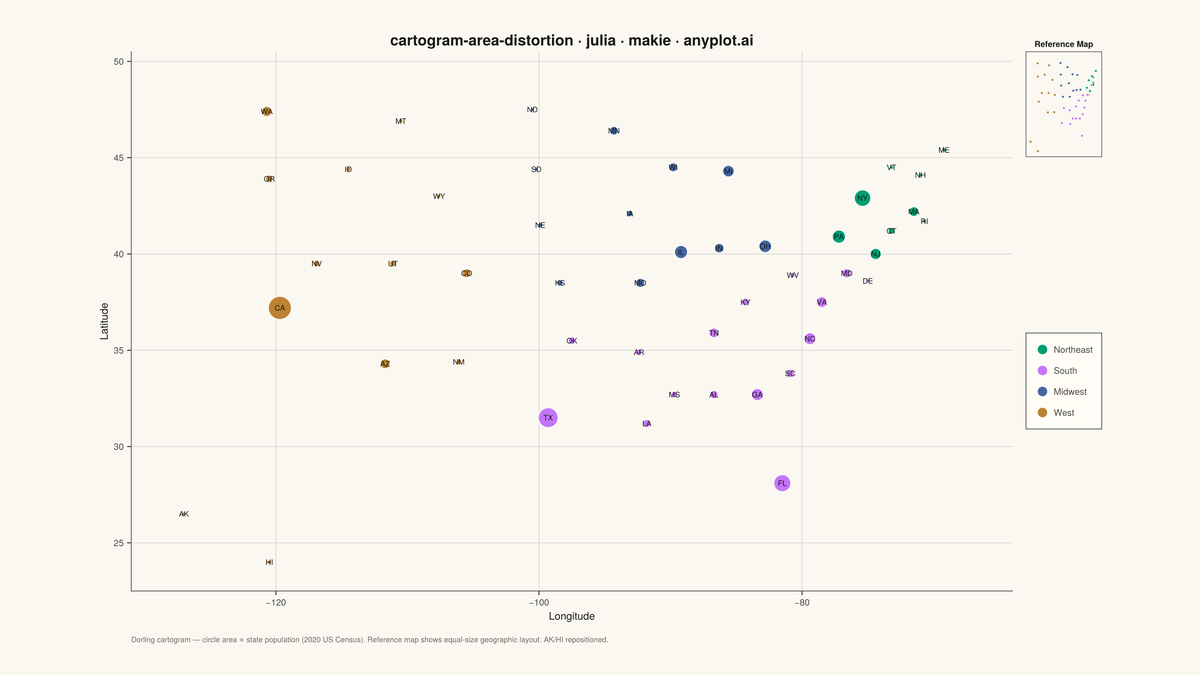

text = "Dorling cartogram — circle area ∝ state population (2020 US Census). Reference map shows equal-size geographic layout. AK/HI repositioned.",
fontsize = 10,
color = INK_MUTED,
halign = :left,
)
# Layout proportions
colsize!(fig.layout, 1, Relative(0.78))
rowsize!(fig.layout, 1, Relative(0.92))
rowsize!(right_grid, 1, Fixed(140))
save("plot-$(THEME).png", fig; px_per_unit = 2)
