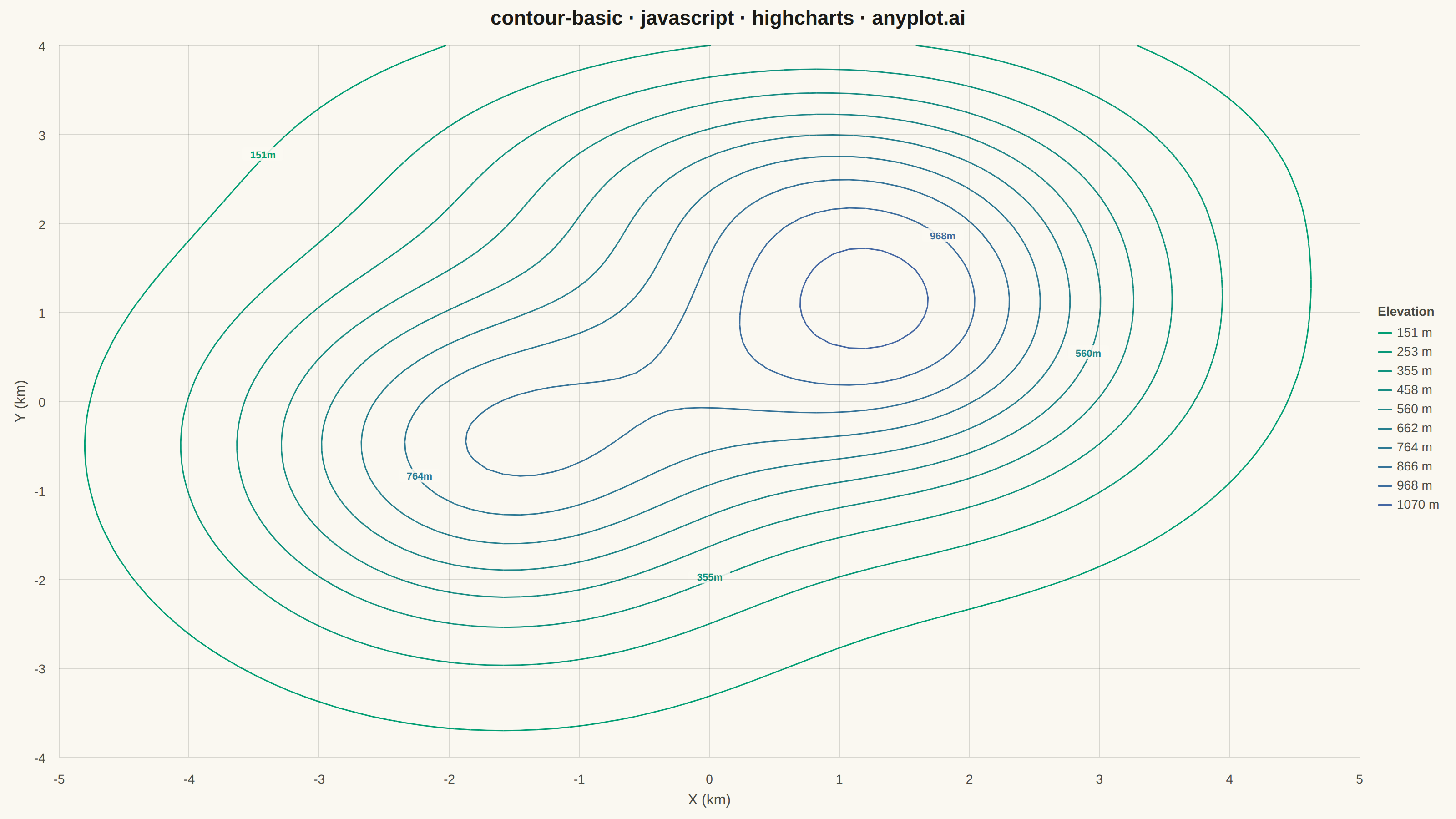

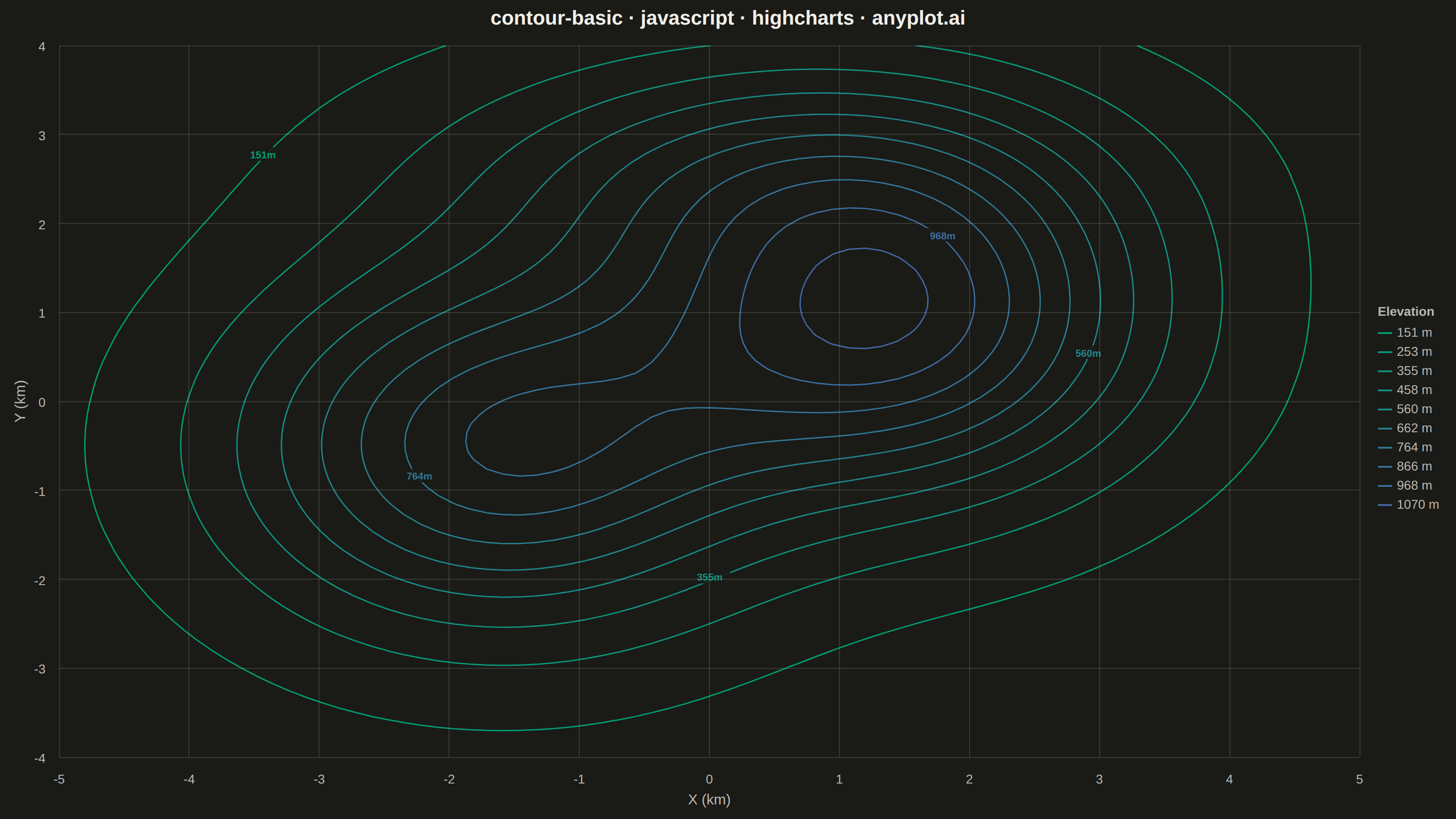

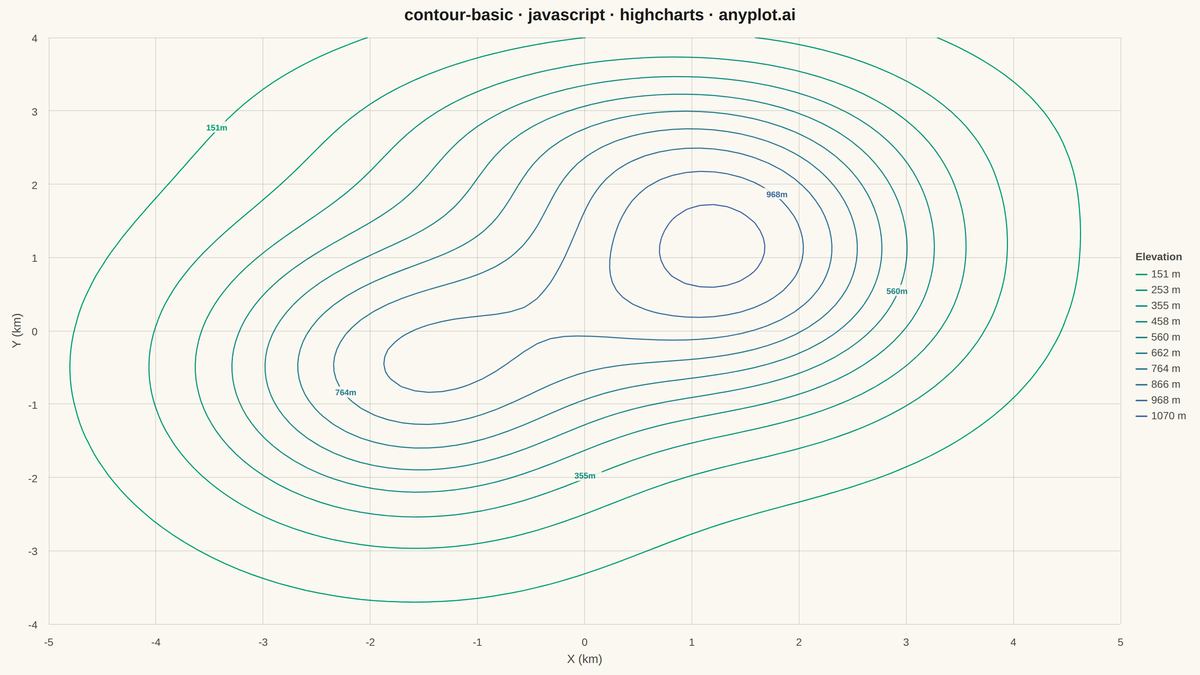

A contour plot displays isolines (level curves) of a 2D scalar field, connecting points of equal value across a surface. It transforms 3D data into an intuitive 2D representation, making it easy to identify regions of high and low values, gradients, and patterns. Contour plots are essential for visualizing continuous surfaces where the relationship between X, Y coordinates and a Z value needs to be understood.
// anyplot.ai
// contour-basic: Basic Contour Plot
// Library: highcharts 12.6.0 | JavaScript 22.22.3
// Quality: 87/100 | Created: 2026-06-25
const t = window.ANYPLOT_TOKENS;
// --- Data (deterministic elevation: two peaks with saddle pass) --------------
const N = 80;
const xMin = -5, xMax = 5, yMin = -4, yMax = 4;
const xs = Array.from({ length: N }, (_, i) => xMin + (xMax - xMin) * i / (N - 1));
const ys = Array.from({ length: N }, (_, i) => yMin + (yMax - yMin) * i / (N - 1));
function rawElev(x, y) {
const p1 = Math.exp(-((x - 1.4) ** 2 + (y - 0.9) ** 2) / 3.5);
const p2 = 0.84 * Math.exp(-((x + 1.6) ** 2 + (y + 0.5) ** 2) / 3.8);
const p3 = 0.40 * Math.exp(-(((x - 0.4) ** 2) / 6 + ((y - 2.6) ** 2) / 1.8));
return p1 + p2 + p3;
}
const grid = [];
let zMin = Infinity, zMax = -Infinity;
for (let i = 0; i < N; i++) {
grid[i] = [];
for (let j = 0; j < N; j++) {
const z = 100 + 900 * rawElev(xs[i], ys[j]);
grid[i][j] = z;
if (z < zMin) zMin = z;
if (z > zMax) zMax = z;
}
}
const NUM_LEVELS = 10;
const levels = Array.from({ length: NUM_LEVELS }, (_, k) =>
zMin + (k + 0.5) * (zMax - zMin) / NUM_LEVELS
);
// Color interpolation: Imprint seq (#009E73 → #4467A3)
function lerpColor(c1, c2, tt) {
const parse = h => [1, 3, 5].map(i => parseInt(h.slice(i, i + 2), 16));
const [r1, g1, b1] = parse(c1);
const [r2, g2, b2] = parse(c2);
return '#' + [r1 + tt * (r2 - r1), g1 + tt * (g2 - g1), b1 + tt * (b2 - b1)]
.map(v => Math.round(v).toString(16).padStart(2, '0')).join('');
}
// Marching squares: return list of [[x1,y1],[x2,y2]] segment pairs
function contourSegments(level) {
const segs = [];
for (let i = 0; i < N - 1; i++) {
for (let j = 0; j < N - 1; j++) {
const a = grid[i][j], b = grid[i + 1][j];
const c = grid[i + 1][j + 1], d = grid[i][j + 1];
const code = (a >= level ? 1 : 0) | (b >= level ? 2 : 0) |
(c >= level ? 4 : 0) | (d >= level ? 8 : 0);
if (code === 0 || code === 15) continue;
function ep(x1, y1, v1, x2, y2, v2) {
const s = (level - v1) / (v2 - v1);
return [x1 + s * (x2 - x1), y1 + s * (y2 - y1)];
}
const eAB = ep(xs[i], ys[j], a, xs[i + 1], ys[j], b);
const eBC = ep(xs[i + 1], ys[j], b, xs[i + 1], ys[j + 1], c);
const eCD = ep(xs[i + 1], ys[j + 1], c, xs[i], ys[j + 1], d);
const eDA = ep(xs[i], ys[j + 1], d, xs[i], ys[j], a);
const lookup = {
1: [[eDA, eAB]], 14: [[eDA, eAB]],
2: [[eAB, eBC]], 13: [[eAB, eBC]],
3: [[eDA, eBC]], 12: [[eDA, eBC]],
4: [[eBC, eCD]], 11: [[eBC, eCD]],
6: [[eAB, eCD]], 9: [[eAB, eCD]],
7: [[eDA, eCD]], 8: [[eDA, eCD]],
5: [[eDA, eAB], [eBC, eCD]],
10: [[eDA, eCD], [eAB, eBC]],
}[code];
if (lookup) segs.push(...lookup);
}
}
return segs;
}
// Dummy series for legend
const legendSeries = levels.map((level, k) => ({
type: 'line',
name: Math.round(level) + ' m',
color: lerpColor(t.seq[0], t.seq[1], k / (NUM_LEVELS - 1)),
data: [],
lineWidth: 2,
marker: { enabled: false },
showInLegend: true,
enableMouseTracking: false,
}));
// --- Chart ------------------------------------------------------------------
const chart = Highcharts.chart('container', {
chart: {
backgroundColor: 'transparent',
animation: false,
style: { fontFamily: 'inherit' },
},
credits: { enabled: false },
title: {
text: 'contour-basic · javascript · highcharts · anyplot.ai',
style: { color: t.ink, fontSize: '22px', fontWeight: '600' },
},
xAxis: {
min: xMin,
max: xMax,
title: { text: 'X (km)', style: { color: t.inkSoft, fontSize: '16px' } },
lineWidth: 0,
tickWidth: 0,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: '14px' } },
},
yAxis: {
min: yMin,
max: yMax,
title: { text: 'Y (km)', style: { color: t.inkSoft, fontSize: '16px' } },
lineWidth: 0,
tickWidth: 0,
gridLineColor: t.grid,
gridLineWidth: 1,
labels: { style: { color: t.inkSoft, fontSize: '14px' } },
},
legend: {
title: { text: 'Elevation', style: { color: t.inkSoft, fontSize: '14px' } },
itemStyle: { color: t.inkSoft, fontSize: '14px' },
itemHoverStyle: { color: t.ink },
layout: 'vertical',
align: 'right',
verticalAlign: 'middle',
},
tooltip: { enabled: false },
plotOptions: {
series: { animation: false },
},
series: legendSeries,
});
// --- Draw contour lines via SVG renderer ------------------------------------
const clipRect = chart.renderer.clipRect(
chart.plotLeft, chart.plotTop, chart.plotWidth, chart.plotHeight
);
const contourGroup = chart.renderer.g('contour-lines').clip(clipRect).add();
// Pre-compute all segments
const allSegs = levels.map(level => contourSegments(level));
// Draw lines
allSegs.forEach((segs, k) => {
const color = lerpColor(t.seq[0], t.seq[1], k / (NUM_LEVELS - 1));
segs.forEach(([p1, p2]) => {
const px1 = chart.xAxis[0].toPixels(p1[0]);
const py1 = chart.yAxis[0].toPixels(p1[1]);
const px2 = chart.xAxis[0].toPixels(p2[0]);
const py2 = chart.yAxis[0].toPixels(p2[1]);
chart.renderer.path(['M', px1, py1, 'L', px2, py2])
.attr({ stroke: color, 'stroke-width': 1.5, zIndex: 5 })
.add(contourGroup);
});
});
// --- Add elevation labels on every other contour line ----------------------
// Spread label target zones across the plot to avoid collisions
const labelZones = [
{ tx: -3.0, ty: 2.5 },
{ tx: 0.0, ty: -2.0 },
{ tx: 3.0, ty: 0.5 },
{ tx: -2.5, ty: -1.0 },
{ tx: 2.0, ty: 2.0 },
];
const labelGroup = chart.renderer.g('contour-labels').clip(clipRect).add();
allSegs.forEach((segs, k) => {
if (k % 2 !== 0 || !segs.length) return;
const zone = labelZones[(k / 2) % labelZones.length];
let best = segs[0], bestDist = Infinity;
segs.forEach(([p1, p2]) => {
const mx = (p1[0] + p2[0]) / 2;
const my = (p1[1] + p2[1]) / 2;
const dist = (mx - zone.tx) ** 2 + (my - zone.ty) ** 2;
if (dist < bestDist) { bestDist = dist; best = [p1, p2]; }
});
const mx = (best[0][0] + best[1][0]) / 2;
const my = (best[0][1] + best[1][1]) / 2;
const px = chart.xAxis[0].toPixels(mx);
const py = chart.yAxis[0].toPixels(my);
const color = lerpColor(t.seq[0], t.seq[1], k / (NUM_LEVELS - 1));
const labelText = Math.round(levels[k]) + 'm';
// Pill background for readability
chart.renderer.rect(px - 23, py - 12, 46, 15, 3)
.attr({ fill: t.pageBg, opacity: 0.88, zIndex: 9 })
.add(labelGroup);
chart.renderer.text(labelText, px, py)
.attr({ align: 'center', zIndex: 10 })
.css({ color, fontSize: '11px', fontWeight: '700' })
.add(labelGroup);
});
Part of Basic Contour Plot on anyplot.ai.
