Basic Contour Plot — Plotly

A contour plot displays isolines (level curves) of a 2D scalar field, connecting points of equal value across a surface. It transforms 3D data into an intuitive 2D representation, making it easy to identify regions of high and low values, gradients, and patterns. Contour plots are essential for visualizing continuous surfaces where the relationship between X, Y coordinates and a Z value needs to be understood.

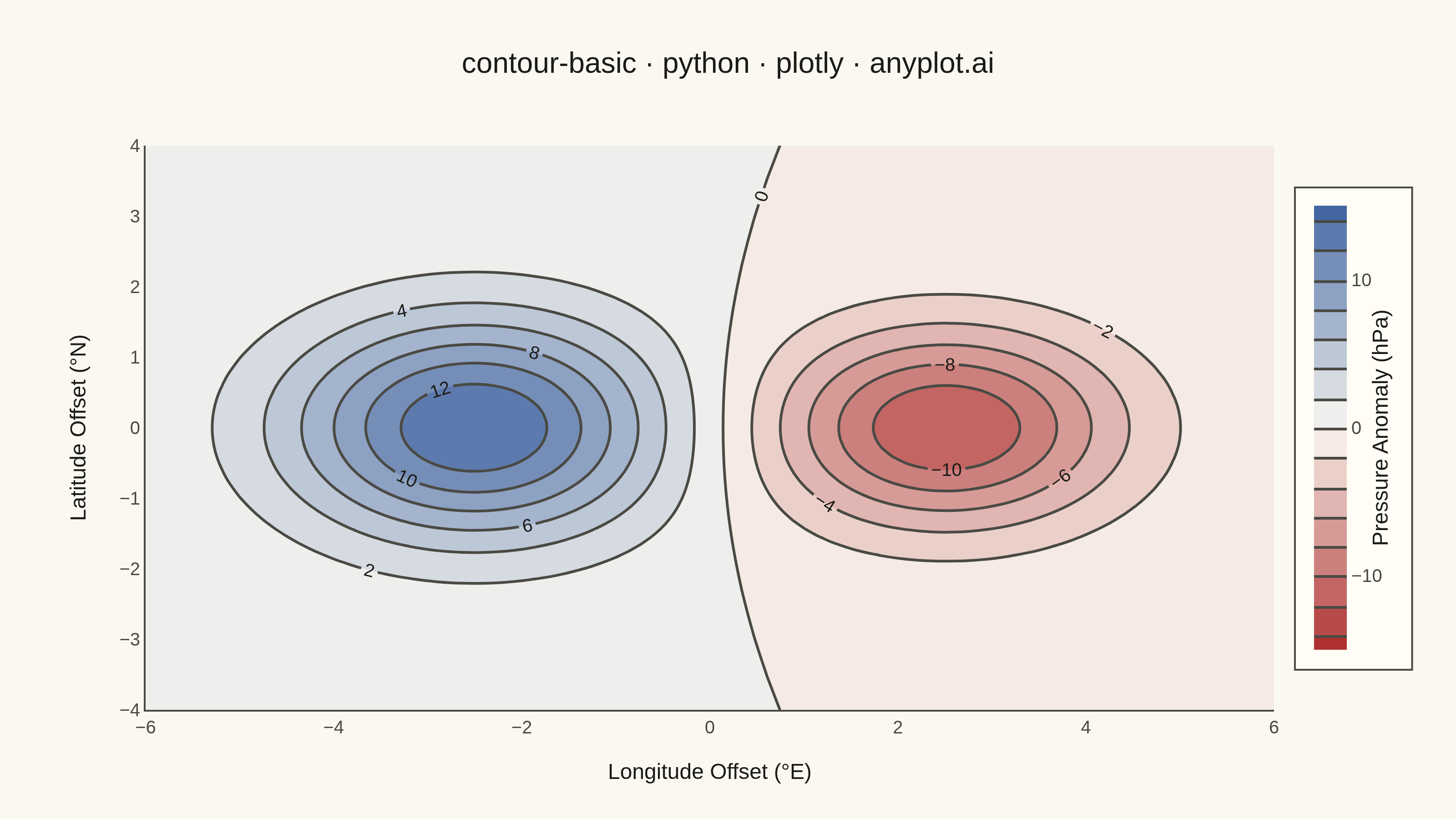

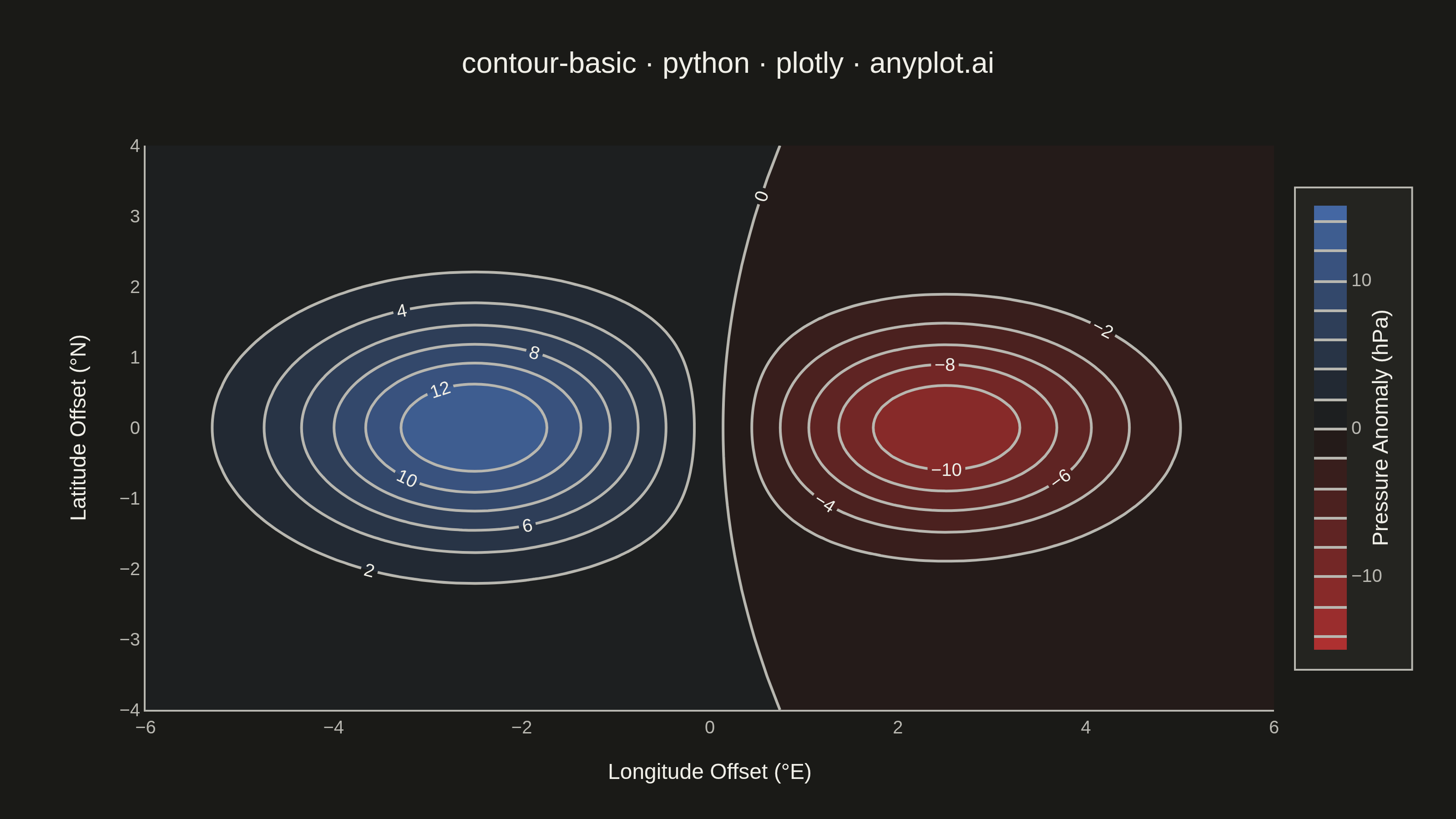

Basic Contour Plot rendered with Plotly

Python source (Plotly)

""" anyplot.ai
contour-basic: Basic Contour Plot
Library: plotly 6.8.0 | Python 3.13.14
Quality: 91/100 | Updated: 2026-06-25
"""

import os

import numpy as np
import plotly.graph_objects as go


# Theme tokens — Imprint palette chrome
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
GRID = "rgba(26,26,23,0.15)" if THEME == "light" else "rgba(240,239,232,0.15)"

# Imprint diverging colormap: matte-red (low) → PAGE_BG (zero) → blue (high)
midpoint = "#FAF8F1" if THEME == "light" else "#1A1A17"
imprint_div = [[0.0, "#AE3030"], [0.5, midpoint], [1.0, "#4467A3"]]

# Data — regional surface pressure anomaly (hPa deviation from 1013 hPa)
lon = np.linspace(-6, 6, 90)  # longitude offset (°E)
lat = np.linspace(-4, 4, 70)  # latitude offset (°N)
LON, LAT = np.meshgrid(lon, lat)

anticyclone = 14.0 * np.exp(-((LON + 2.5) ** 2 / 4.0 + LAT**2 / 2.5))
cyclone = -12.0 * np.exp(-((LON - 2.5) ** 2 / 3.5 + LAT**2 / 2.0))
pressure_anomaly = anticyclone + cyclone

# Title fontsize scaled by character count
title = "contour-basic · python · plotly · anyplot.ai"
title_fontsize = round(16 * (67 / len(title) if len(title) > 67 else 1.0))

# Plot
fig = go.Figure()

fig.add_trace(
    go.Contour(
        x=lon,
        y=lat,
        z=pressure_anomaly,
        colorscale=imprint_div,
        zmid=0,
        contours={
            "showlabels": True,
            "labelfont": {"size": 10, "color": INK},
            "coloring": "fill",
            "start": -14,
            "end": 14,
            "size": 2,
        },
        colorbar={
            "title": {"text": "Pressure Anomaly (hPa)", "font": {"size": 12, "color": INK}, "side": "right"},
            "tickfont": {"size": 10, "color": INK_SOFT},
            "thickness": 18,
            "len": 0.85,
            "bgcolor": ELEVATED_BG,
            "bordercolor": INK_SOFT,
            "borderwidth": 1,
        },
        line={"width": 1.5, "color": INK_SOFT},
    )
)

fig.update_layout(
    autosize=False,
    paper_bgcolor=PAGE_BG,
    plot_bgcolor=PAGE_BG,
    title={"text": title, "font": {"size": title_fontsize, "color": INK}, "x": 0.5, "xanchor": "center"},
    xaxis={
        "title": {"text": "Longitude Offset (°E)", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "gridcolor": GRID,
        "linecolor": INK_SOFT,
        "zerolinecolor": GRID,
    },
    yaxis={
        "title": {"text": "Latitude Offset (°N)", "font": {"size": 12, "color": INK}},
        "tickfont": {"size": 10, "color": INK_SOFT},
        "gridcolor": GRID,
        "linecolor": INK_SOFT,
        "zerolinecolor": GRID,
    },
    margin={"l": 80, "r": 100, "t": 80, "b": 60},
    font={"color": INK},
)

# Save
fig.write_image(f"plot-{THEME}.png", width=800, height=450, scale=4)
fig.write_html(f"plot-{THEME}.html", include_plotlyjs="cdn")

Part of Basic Contour Plot on anyplot.ai.
