Basic Contour Plot in MUI X Charts (JavaScript)

The same plot in 14 other libraries — JavaScript: Chart.js, D3.js, Apache ECharts, Highcharts; Python: Altair, Bokeh, lets-plot, Matplotlib, Plotly, plotnine, Pygal, Seaborn; R: ggplot2; Julia: Makie.jl. Compare all 15 side by side: Basic Contour Plot in Python, R, Julia and JavaScript.

A contour plot displays isolines (level curves) of a 2D scalar field, connecting points of equal value across a surface. It transforms 3D data into an intuitive 2D representation, making it easy to identify regions of high and low values, gradients, and patterns. Contour plots are essential for visualizing continuous surfaces where the relationship between X, Y coordinates and a Z value needs to be understood.

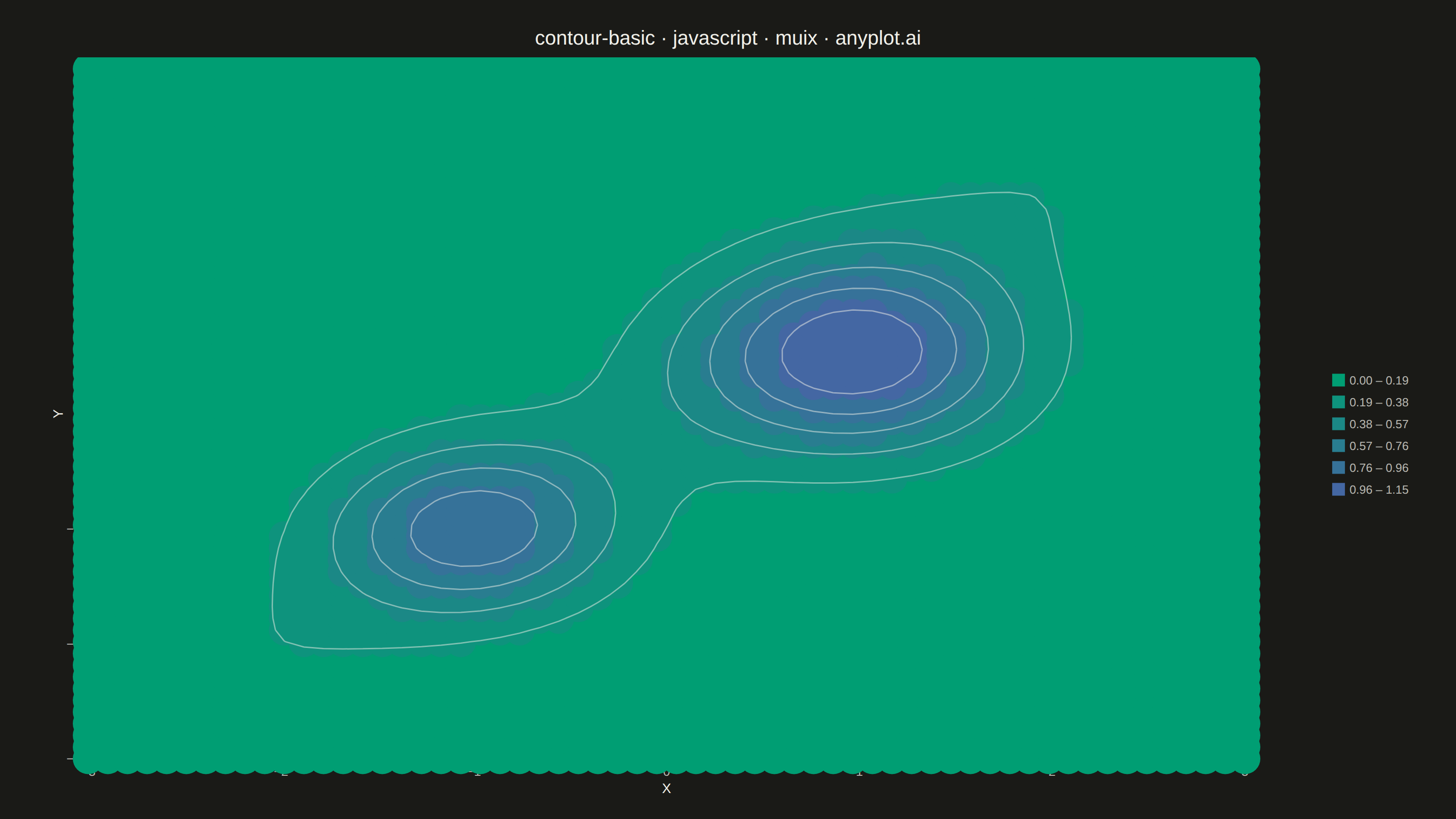

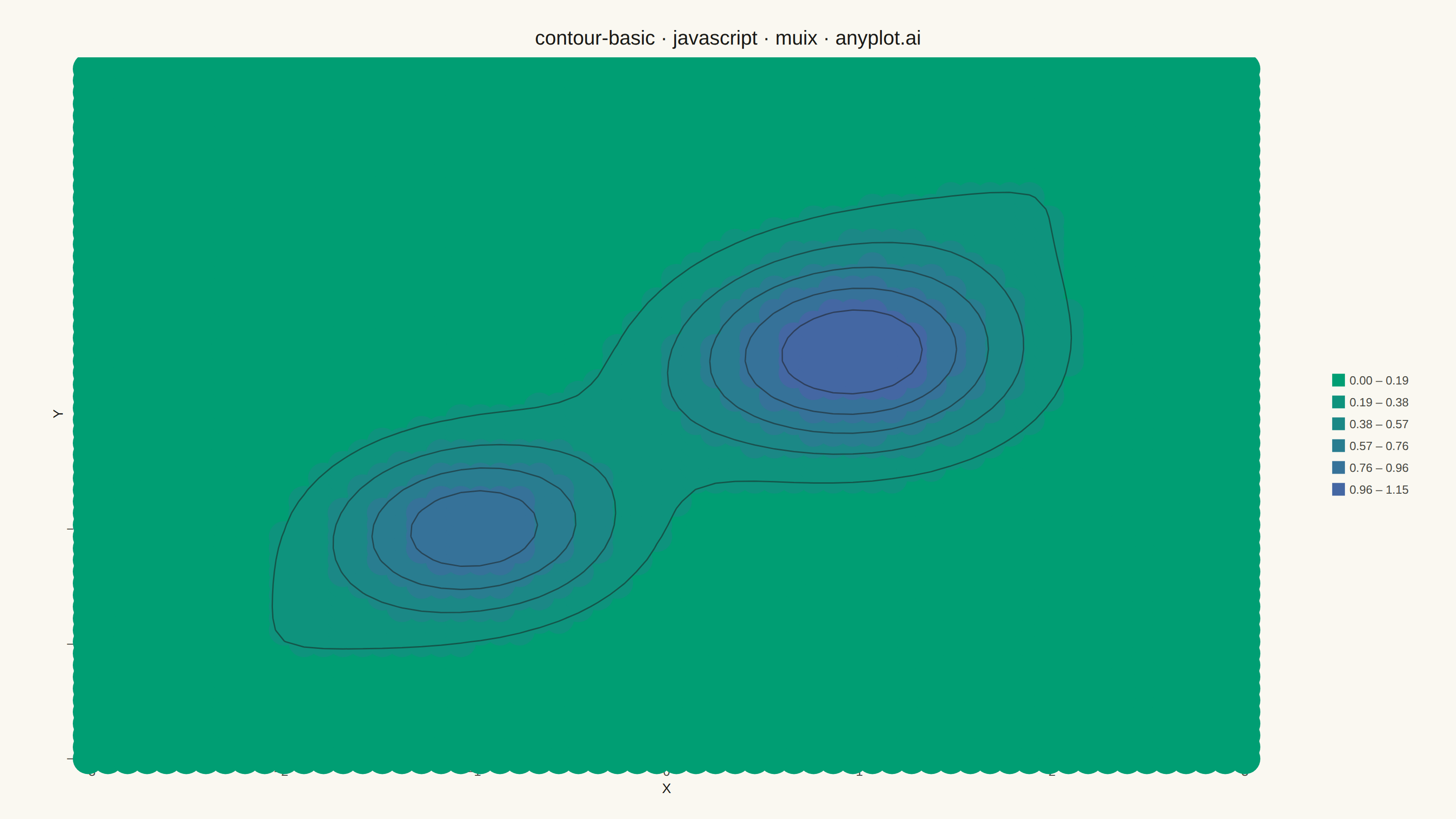

Basic Contour Plot rendered with MUI X Charts

Renders

JavaScript source (MUI X Charts)

// anyplot.ai
// contour-basic: Basic Contour Plot
// Library: muix 9.17.0 | JavaScript 22.23.4
// Quality: 87/100 | Updated: 2026-11-08
//# anyplot-orientation: square
import Box from "@mui/material/Box";
import Typography from "@mui/material/Typography";
import { ChartsDataProvider } from "@mui/x-charts/ChartsDataProvider";
import { PiecewiseColorLegend } from "@mui/x-charts/ChartsLegend";
import { ChartsSurface } from "@mui/x-charts/ChartsSurface";
import { ChartsWrapper } from "@mui/x-charts/ChartsWrapper";
import { ChartsXAxis } from "@mui/x-charts/ChartsXAxis";
import { ChartsYAxis } from "@mui/x-charts/ChartsYAxis";
import { useXScale, useYScale, useZColorScale } from "@mui/x-charts/hooks";

const t = window.ANYPLOT_TOKENS;

// Constants
const LEVEL_COUNT = 9; // filled bands between the field's minimum and maximum, evenly stepped
const ISOLINE_INK = "#1A1A17"; // fixed ink: the bands keep their colours in both themes

// Columns: set these to your data's column names
const EASTING = "Easting (km)"; // role: x
const NORTHING = "Northing (km)"; // role: y
const ELEVATION = "Elevation (km)"; // role: z

// Data: replace this block with your own records, one object per grid point
// Terrain of a 6 × 6 km survey square: two summits joined by a low diagonal ridge, sampled on a 100 × 100 grid
const data = (() => {
  const gridSize = 100;
  const halfSpan = 3;
  const rows: Record<string, number>[] = [];
  for (let j = 0; j < gridSize; j += 1) {
    const y = -halfSpan + (2 * halfSpan * j) / (gridSize - 1);
    for (let i = 0; i < gridSize; i += 1) {
      const x = -halfSpan + (2 * halfSpan * i) / (gridSize - 1);
      const northSummit = Math.exp(-((x - 1) ** 2 + (y - 0.5) ** 2) * 1.5);
      const southSummit = 0.75 * Math.exp(-((x + 1) ** 2 + (y + 1) ** 2) * 2.0);
      const ridge = 0.175 * Math.exp(-((x - y) ** 2) * 0.8);
      rows.push({ [EASTING]: x, [NORTHING]: y, [ELEVATION]: northSummit + southSummit + ridge });
    }
  }
  return rows;
})();

// Plot: reads only data and the constants above
// Regular grid rebuilt from the records: sorted coordinates, z indexed as zGrid[row][column]
const xs = [...new Set(data.map((d) => d[EASTING]))].sort((a, b) => a - b);
const ys = [...new Set(data.map((d) => d[NORTHING]))].sort((a, b) => a - b);
const xIndex = new Map(xs.map((v, i) => [v, i]));
const yIndex = new Map(ys.map((v, j) => [v, j]));
const zGrid = ys.map(() => xs.map(() => NaN));
data.forEach((d) => {
  zGrid[yIndex.get(d[NORTHING])!][xIndex.get(d[EASTING])!] = d[ELEVATION];
});
const zValues = data.map((d) => d[ELEVATION]).filter((v) => Number.isFinite(v));
const zMin = Math.min(...zValues);
const zMax = Math.max(...zValues);
const levelStep = (zMax - zMin) / LEVEL_COUNT;
const levels = Array.from({ length: LEVEL_COUNT }, (_, k) => zMin + k * levelStep);
const thresholds = levels.slice(1);

// Sequential Imprint ramp t.seq[0] -> t.seq[1], one step per band
const [seqLow, seqHigh] = t.seq.map((hex: string) => [16, 8, 0].map((shift) => (parseInt(hex.slice(1), 16) >> shift) & 255));
const bandColors = levels.map(
  (_, k) => `rgb(${seqLow.map((c: number, ch: number) => Math.round(c + ((seqHigh[ch] - c) * k) / (LEVEL_COUNT - 1))).join(", ")})`,
);

// Marching triangles: each grid cell splits into four triangles around its centre, which resolves
// saddles; per level, the part of every triangle at or above the level and the cut along the level
type Pt = { x: number; y: number; z: number };
const triangles: Pt[][] = [];
for (let j = 0; j < ys.length - 1; j += 1) {
  for (let i = 0; i < xs.length - 1; i += 1) {
    const sw = { x: xs[i], y: ys[j], z: zGrid[j][i] };
    const se = { x: xs[i + 1], y: ys[j], z: zGrid[j][i + 1] };
    const ne = { x: xs[i + 1], y: ys[j + 1], z: zGrid[j + 1][i + 1] };
    const nw = { x: xs[i], y: ys[j + 1], z: zGrid[j + 1][i] };
    const centre = { x: (sw.x + se.x) / 2, y: (sw.y + nw.y) / 2, z: (sw.z + se.z + ne.z + nw.z) / 4 };
    [[sw, se], [se, ne], [ne, nw], [nw, sw]].forEach(([a, b]) => {
      if ([a.z, b.z, centre.z].every((z) => Number.isFinite(z))) triangles.push([a, b, centre]);
    });
  }
}
const bandPolygons: { x: number; y: number }[][][] = [];
const isolines: { x: number; y: number }[][][] = [];
levels.forEach((level) => {
  const polys: { x: number; y: number }[][] = [];
  const cuts: { x: number; y: number }[][] = [];
  triangles.forEach((tri) => {
    const inside = tri.map((p) => p.z >= level);
    const count = inside.filter(Boolean).length;
    if (count === 0) return;
    if (count === 3) {
      polys.push(tri);
      return;
    }
    // Walk the three edges; keep inside vertices and the level crossing on every edge that changes side
    const ring: { x: number; y: number }[] = [];
    const cut: { x: number; y: number }[] = [];
    tri.forEach((p, k) => {
      const q = tri[(k + 1) % 3];
      if (inside[k]) ring.push(p);
      if (inside[k] !== inside[(k + 1) % 3]) {
        const r = (level - p.z) / (q.z - p.z);
        const crossing = { x: p.x + r * (q.x - p.x), y: p.y + r * (q.y - p.y) };
        ring.push(crossing);
        cut.push(crossing);
      }
    });
    polys.push(ring);
    cuts.push(cut);
  });
  bandPolygons.push(polys);
  isolines.push(cuts);
});

// Layout: equal px per km on both axes, the map centred with its colour bar beside it
const { width: W, height: H } = window.ANYPLOT_SIZE;
const HEADER_H = 84;
const X_AXIS_H = 60;
const Y_AXIS_W = 72;
const MARGIN = { top: 16, bottom: 20, left: 24, right: 28 };
const LEGEND_W = 140;
const xSpan = xs[xs.length - 1] - xs[0];
const ySpan = ys[ys.length - 1] - ys[0];
const plotH = Math.min(H - HEADER_H - X_AXIS_H - MARGIN.top - MARGIN.bottom, ((W - LEGEND_W - Y_AXIS_W - MARGIN.left - MARGIN.right) * ySpan) / xSpan);
const plotW = (plotH * xSpan) / ySpan;
const surfaceW = MARGIN.left + Y_AXIS_W + plotW + MARGIN.right;
const surfaceH = MARGIN.top + plotH + X_AXIS_H + MARGIN.bottom;

const TITLE = "Survey Terrain · contour-basic · javascript · muix · anyplot.ai";
const subtitle = `${xs.length} × ${ys.length} grid points · ${LEVEL_COUNT} levels evenly stepped by ${levelStep.toFixed(2)}`;

function ContourLayer() {
  const xScale = useXScale();
  const yScale = useYScale();
  // Band fills come from the zAxis piecewise colorMap, the same scale the colour bar reads
  const colorScale = useZColorScale()!;
  const toPath = (shapes: { x: number; y: number }[][], close: boolean) =>
    shapes
      .map((shape) => shape.map((p, k) => `${k === 0 ? "M" : "L"}${xScale(p.x)!.toFixed(1)},${yScale(p.y)!.toFixed(1)}`).join("") + (close ? "Z" : ""))
      .join("");
  return (
    <g>
      {bandPolygons.map((polys, k) => {
        const fill = String(colorScale(levels[k] + levelStep / 2));
        return <path key={`band-${k}`} d={toPath(polys, true)} fill={fill} stroke={fill} strokeWidth={0.75} />;
      })}
      {isolines.map((cuts, k) => (
        <path key={`iso-${k}`} d={toPath(cuts, false)} fill="none" stroke={ISOLINE_INK} strokeOpacity={0.6} strokeWidth={1.5} />
      ))}
    </g>
  );
}

export default function Chart() {
  return (
    <Box sx={{ width: W, height: H, bgcolor: t.pageBg, display: "flex", flexDirection: "column", alignItems: "center" }}>
      <Box sx={{ height: HEADER_H, display: "flex", flexDirection: "column", justifyContent: "center", alignItems: "center", gap: "6px", pt: "8px" }}>
        <Typography sx={{ fontSize: 22, fontWeight: 600, color: t.ink, lineHeight: 1.2 }}>{TITLE}</Typography>
        <Typography sx={{ fontSize: 15, color: t.inkSoft, lineHeight: 1.2 }}>{subtitle}</Typography>
      </Box>
      {/* The spare height below the header is split evenly above and below the map */}
      <Box sx={{ flex: 1, display: "flex", alignItems: "center", justifyContent: "center" }}>
        <ChartsDataProvider
          width={surfaceW}
          height={surfaceH}
          series={[]}
          skipAnimation
          margin={MARGIN}
          xAxis={[
            {
              id: "x",
              scaleType: "linear",
              min: xs[0],
              max: xs[xs.length - 1],
              label: EASTING,
              height: X_AXIS_H,
              labelStyle: { fontSize: 16, fill: t.ink },
              tickLabelStyle: { fontSize: 14, fill: t.inkSoft },
            },
          ]}
          yAxis={[
            {
              id: "y",
              scaleType: "linear",
              min: ys[0],
              max: ys[ys.length - 1],
              label: NORTHING,
              width: Y_AXIS_W,
              labelStyle: { fontSize: 16, fill: t.ink },
              tickLabelStyle: { fontSize: 14, fill: t.inkSoft },
            },
          ]}
          zAxis={[{ id: "z", colorMap: { type: "piecewise", thresholds, colors: bandColors } }]}
        >
          <ChartsWrapper
            legendPosition={{ vertical: "middle", horizontal: "end" }}
            legendDirection="vertical"
            sx={{ width: surfaceW + LEGEND_W, height: surfaceH }}
          >
            <Box sx={{ gridArea: "legend", width: LEGEND_W, display: "flex", flexDirection: "column", alignItems: "flex-start", gap: "10px" }}>
              <Typography sx={{ fontSize: 16, fontWeight: 500, color: t.ink }}>{ELEVATION}</Typography>
              <PiecewiseColorLegend
                axisDirection="z"
                axisId="z"
                direction="vertical"
                labelPosition="inline-end"
                markType="square"
                labelFormatter={({ min, max }) => `${Number(min ?? zMin).toFixed(2)} – ${Number(max ?? zMax).toFixed(2)}`}
                sx={{ fontSize: 14, color: t.inkSoft, gap: "6px" }}
              />
            </Box>
            <ChartsSurface
              sx={{
                "& .MuiChartsAxis-line": { stroke: t.inkSoft },
                "& .MuiChartsAxis-tick": { stroke: t.inkSoft },
              }}
            >
              <ContourLayer />
              <ChartsXAxis axisId="x" />
              <ChartsYAxis axisId="y" />
            </ChartsSurface>
          </ChartsWrapper>
        </ChartsDataProvider>
      </Box>
    </Box>
  );
}

Retrieve this implementation

Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/contour-basic/muix/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.

{
  "spec_id": "contour-basic",
  "language": "javascript",
  "library": "muix",
  "page": "https://anyplot.ai/contour-basic/javascript/muix",
  "hub": "https://anyplot.ai/contour-basic",
  "code_json": "https://api.anyplot.ai/specs/contour-basic/muix/code",
  "spec_json": "https://api.anyplot.ai/specs/contour-basic",
  "render_light_png": "https://storage.googleapis.com/anyplot-images/plots/contour-basic/javascript/muix/plot-light.png",
  "render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/contour-basic/javascript/muix/plot-dark.png",
  "interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/contour-basic/javascript/muix/plot-light.html",
  "interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/contour-basic/javascript/muix/plot-dark.html",
  "quality_score": 87.0,
  "license": "MIT",
  "guide": "https://anyplot.ai/llms.txt"
}

Part of Basic Contour Plot on anyplot.ai.
