Basic Contour Plot — plotnine

A contour plot displays isolines (level curves) of a 2D scalar field, connecting points of equal value across a surface. It transforms 3D data into an intuitive 2D representation, making it easy to identify regions of high and low values, gradients, and patterns. Contour plots are essential for visualizing continuous surfaces where the relationship between X, Y coordinates and a Z value needs to be understood.

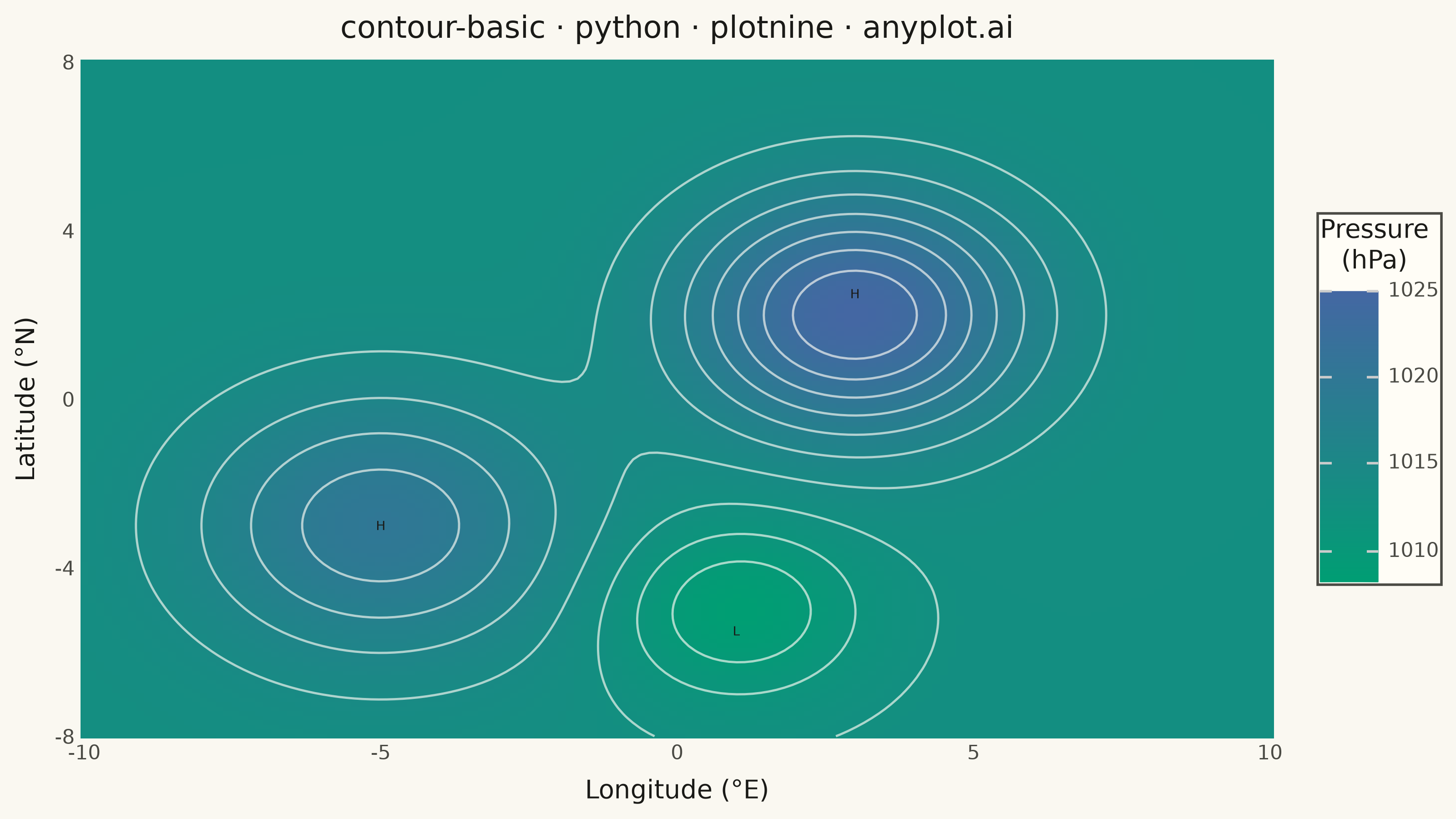

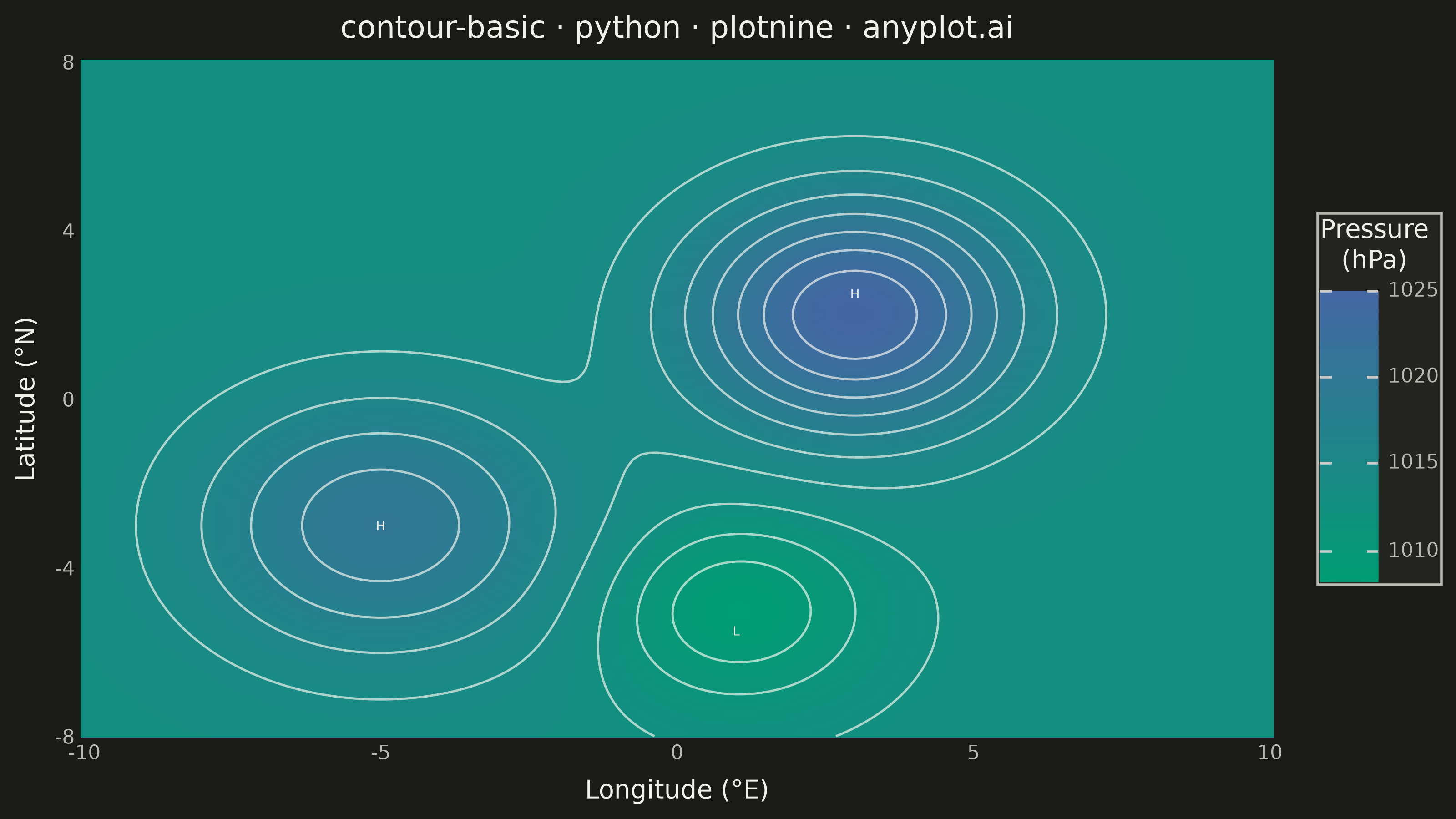

Basic Contour Plot rendered with plotnine

Python source (plotnine)

""" anyplot.ai
contour-basic: Basic Contour Plot
Library: plotnine 0.15.7 | Python 3.13.14
Quality: 86/100 | Created: 2026-06-25
"""

import os
import sys


# Prevent this file from shadowing the installed plotnine package
_here = os.path.dirname(os.path.abspath(__file__))
if _here in sys.path:
    sys.path.remove(_here)
if "" in sys.path:
    sys.path.remove("")

import contourpy
import numpy as np
import pandas as pd
from plotnine import (
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_path,
    geom_raster,
    geom_text,
    ggplot,
    labs,
    scale_fill_gradient,
    scale_x_continuous,
    scale_y_continuous,
    theme,
    theme_minimal,
)


THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"

# Atmospheric pressure field: two-cell anticyclone system over a regional domain
np.random.seed(42)
lon = np.linspace(-10, 10, 150)
lat = np.linspace(-8, 8, 150)
Lon, Lat = np.meshgrid(lon, lat)

pressure = (
    1013.0
    + 12.0 * np.exp(-((Lon - 3) ** 2 + (Lat - 2) ** 2) / 8)
    + 7.0 * np.exp(-((Lon + 5) ** 2 + (Lat + 3) ** 2) / 10)
    - 5.0 * np.exp(-((Lon - 1) ** 2 + (Lat + 5) ** 2) / 4)
)

raster_df = pd.DataFrame({"lon": Lon.ravel(), "lat": Lat.ravel(), "hpa": pressure.ravel()})

# Extract isoline segments via contourpy (plotnine 0.15 lacks geom_contour)
p_levels = np.linspace(pressure.min(), pressure.max(), 12)
generator = contourpy.contour_generator(x=Lon, y=Lat, z=pressure)
segments = [
    (np.asarray(seg), gid)
    for gid, seg in enumerate(s for lvl in p_levels for s in generator.lines(lvl))
    if np.asarray(seg).shape[0] >= 2
]
line_df = pd.concat(
    [pd.DataFrame({"lon": seg[:, 0], "lat": seg[:, 1], "group": gid}) for seg, gid in segments], ignore_index=True
)

# Pressure-centre labels: primary high (lon=3, lat=2), secondary high (lon=-5, lat=-3),
# and low-pressure trough (lon=1, lat=-5)
label_df = pd.DataFrame({"lon": [3.0, -5.0, 1.0], "lat": [2.5, -3.0, -5.5], "label": ["H", "H", "L"]})

anyplot_theme = theme(
    figure_size=(8, 4.5),
    plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
    panel_border=element_blank(),
    axis_line=element_blank(),
    panel_grid_major=element_line(color=INK, size=0.3, alpha=0.1),
    panel_grid_minor=element_line(color=INK, size=0.2, alpha=0.05),
    axis_title=element_text(color=INK, size=10),
    axis_text=element_text(color=INK_SOFT, size=8),
    plot_title=element_text(color=INK, size=12),
    legend_background=element_rect(fill=ELEVATED_BG, color=INK_SOFT),
    legend_text=element_text(color=INK_SOFT, size=8),
    legend_title=element_text(color=INK, size=10),
    legend_key=element_rect(fill=PAGE_BG, color=PAGE_BG),
)

plot = (
    ggplot()
    + geom_raster(raster_df, aes(x="lon", y="lat", fill="hpa"))
    + geom_path(line_df, aes(x="lon", y="lat", group="group"), color="#FFFDF6", size=0.5, alpha=0.65)
    + geom_text(label_df, aes(x="lon", y="lat", label="label"), color=INK, size=5)
    + scale_fill_gradient(low="#009E73", high="#4467A3", name="Pressure\n(hPa)")
    + scale_x_continuous(expand=(0, 0))
    + scale_y_continuous(expand=(0, 0))
    + labs(x="Longitude (°E)", y="Latitude (°N)", title="contour-basic · python · plotnine · anyplot.ai")
    + theme_minimal()
    + anyplot_theme
)

plot.save(f"plot-{THEME}.png", dpi=400, width=8, height=4.5, units="in")
