Basic Contour Plot — ggplot2

A contour plot displays isolines (level curves) of a 2D scalar field, connecting points of equal value across a surface. It transforms 3D data into an intuitive 2D representation, making it easy to identify regions of high and low values, gradients, and patterns. Contour plots are essential for visualizing continuous surfaces where the relationship between X, Y coordinates and a Z value needs to be understood.

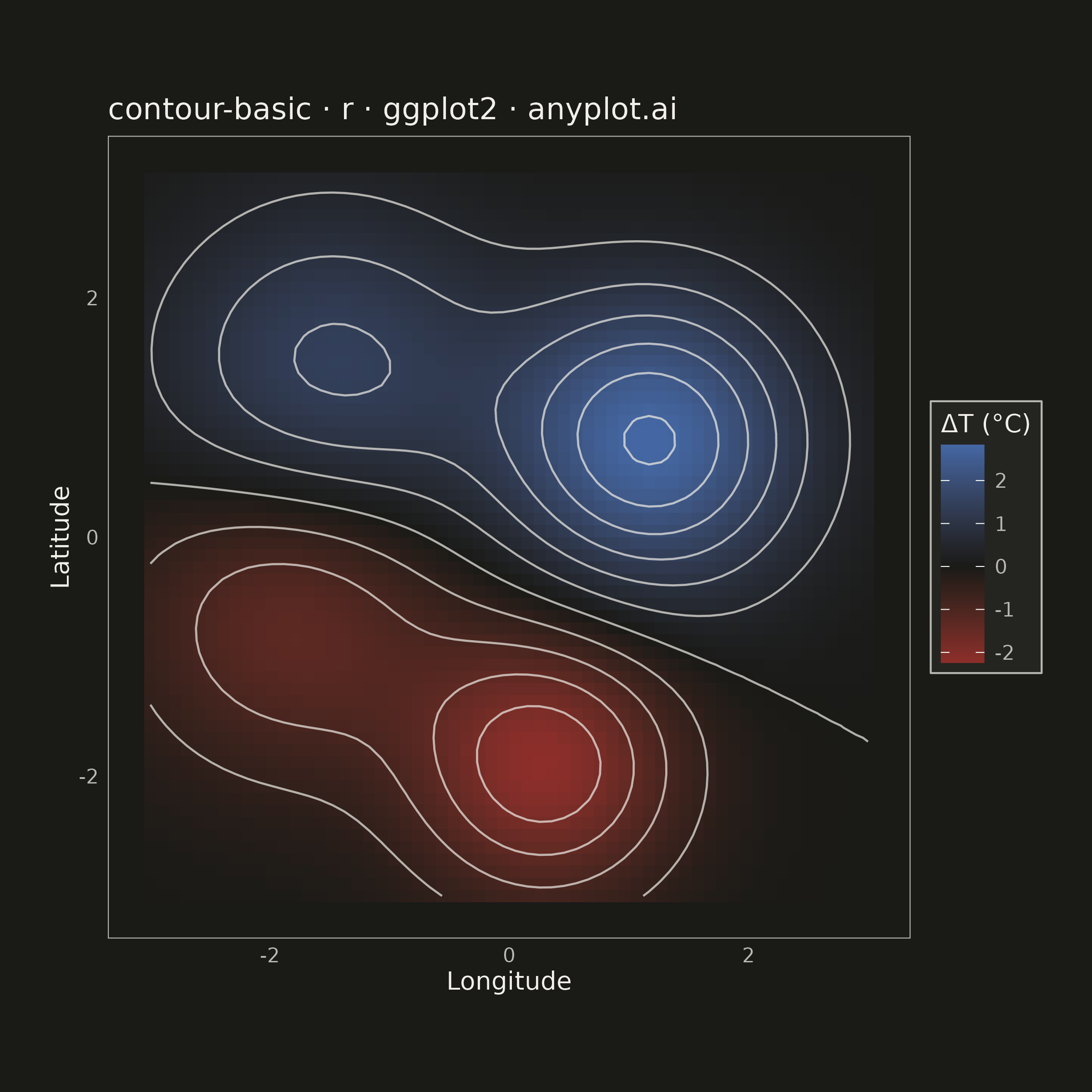

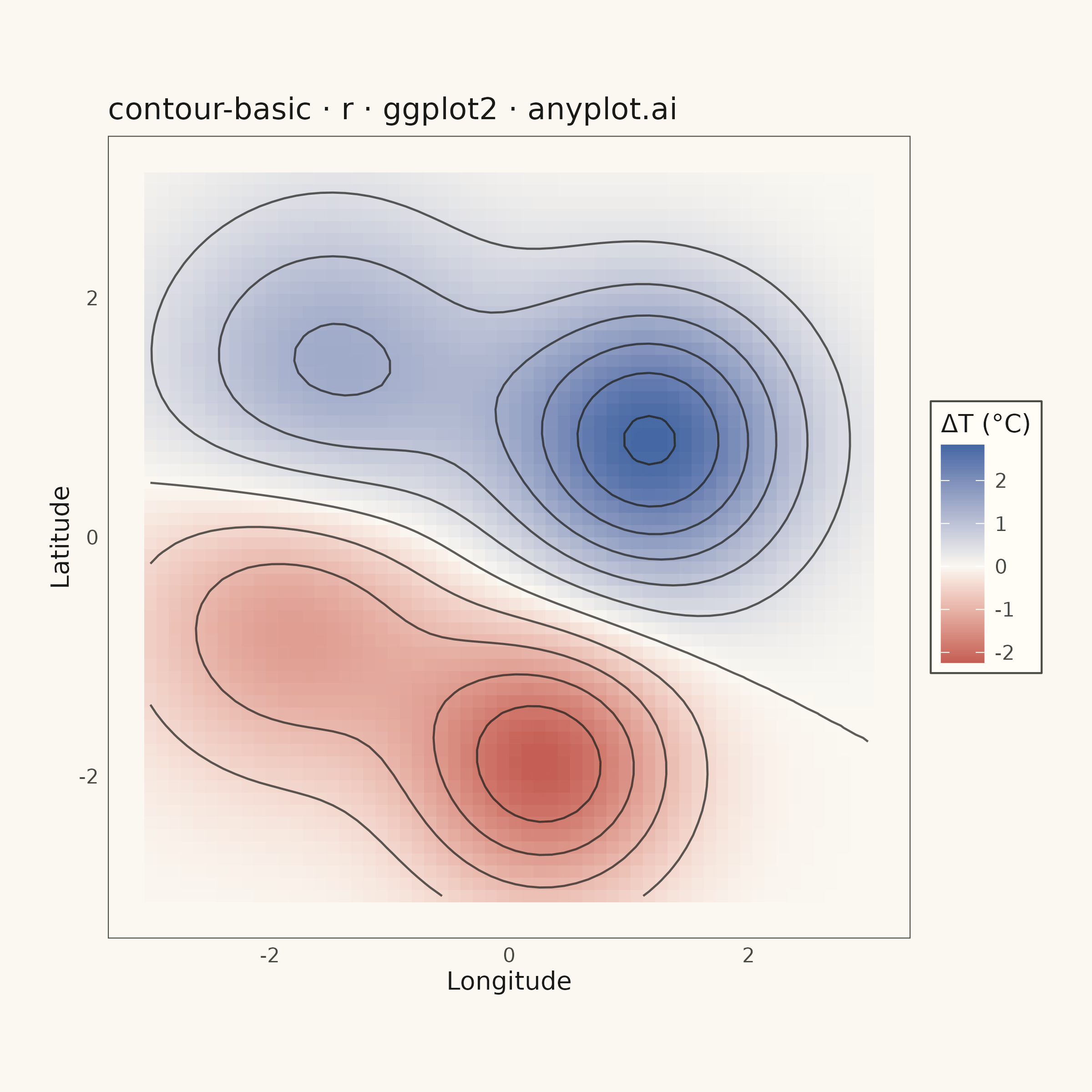

Basic Contour Plot rendered with ggplot2

Renders

R source (ggplot2)

#' anyplot.ai
#' contour-basic: Basic Contour Plot
#' Library: ggplot2 3.5.1 | R 4.4.1
#' Quality: 90/100 | Created: 2026-06-25

library(ggplot2)
library(ragg)

set.seed(42)

# Theme tokens
THEME       <- Sys.getenv("ANYPLOT_THEME", "light")
PAGE_BG     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"
ELEVATED_BG <- if (THEME == "light") "#FFFDF6" else "#242420"
INK         <- if (THEME == "light") "#1A1A17" else "#F0EFE8"
INK_SOFT    <- if (THEME == "light") "#4A4A44" else "#B8B7B0"
DIV_MID     <- if (THEME == "light") "#FAF8F1" else "#1A1A17"

# Data: ocean temperature anomaly on a 60x60 regular grid
resolution <- 60
x_vals <- seq(-3, 3, length.out = resolution)
y_vals <- seq(-3, 3, length.out = resolution)
grid   <- expand.grid(x = x_vals, y = y_vals)

grid$temp <- (
  2.8 * exp(-((grid$x - 1.2)^2 + (grid$y - 0.8)^2) / 1.5) +
  1.6 * exp(-((grid$x + 1.5)^2 + (grid$y - 1.3)^2) / 2.0) -
  2.2 * exp(-((grid$x - 0.3)^2 + (grid$y + 1.9)^2) / 1.2) -
  1.5 * exp(-((grid$x + 1.8)^2 + (grid$y + 0.6)^2) / 1.8)
)

# Title
title_text <- "contour-basic · r · ggplot2 · anyplot.ai"

# Plot
p <- ggplot(grid, aes(x = x, y = y)) +
  geom_tile(aes(fill = temp)) +
  geom_contour(aes(z = temp), color = INK, linewidth = 0.4, alpha = 0.7, bins = 12) +
  scale_fill_gradient2(
    low      = "#AE3030",
    mid      = DIV_MID,
    high     = "#4467A3",
    midpoint = 0,
    name     = "ΔT (°C)"
  ) +
  coord_fixed() +
  labs(
    title = title_text,
    x     = "Longitude",
    y     = "Latitude"
  ) +
  theme_minimal(base_size = 8) +
  theme(
    plot.background   = element_rect(fill = PAGE_BG, color = PAGE_BG),
    panel.background  = element_rect(fill = PAGE_BG, color = NA),
    panel.grid.major  = element_blank(),
    panel.grid.minor  = element_blank(),
    panel.border      = element_rect(color = INK_SOFT, fill = NA),
    axis.title        = element_text(color = INK,      size = 10),
    axis.text         = element_text(color = INK_SOFT, size = 8),
    plot.title        = element_text(color = INK,      size = 12),
    legend.background = element_rect(fill = ELEVATED_BG, color = INK_SOFT),
    legend.text       = element_text(color = INK_SOFT, size = 8),
    legend.title      = element_text(color = INK,      size = 10),
    plot.margin       = margin(20, 20, 20, 20)
  )

# Save (square canvas: 6×6 in @ 400 dpi = 2400×2400 px)
ggsave(
  filename = sprintf("plot-%s.png", THEME),
  plot     = p,
  device   = ragg::agg_png,
  width    = 6,
  height   = 6,
  units    = "in",
  dpi      = 400
)

Part of Basic Contour Plot on anyplot.ai.
