Basic Contour Plot — lets-plot

A contour plot displays isolines (level curves) of a 2D scalar field, connecting points of equal value across a surface. It transforms 3D data into an intuitive 2D representation, making it easy to identify regions of high and low values, gradients, and patterns. Contour plots are essential for visualizing continuous surfaces where the relationship between X, Y coordinates and a Z value needs to be understood.

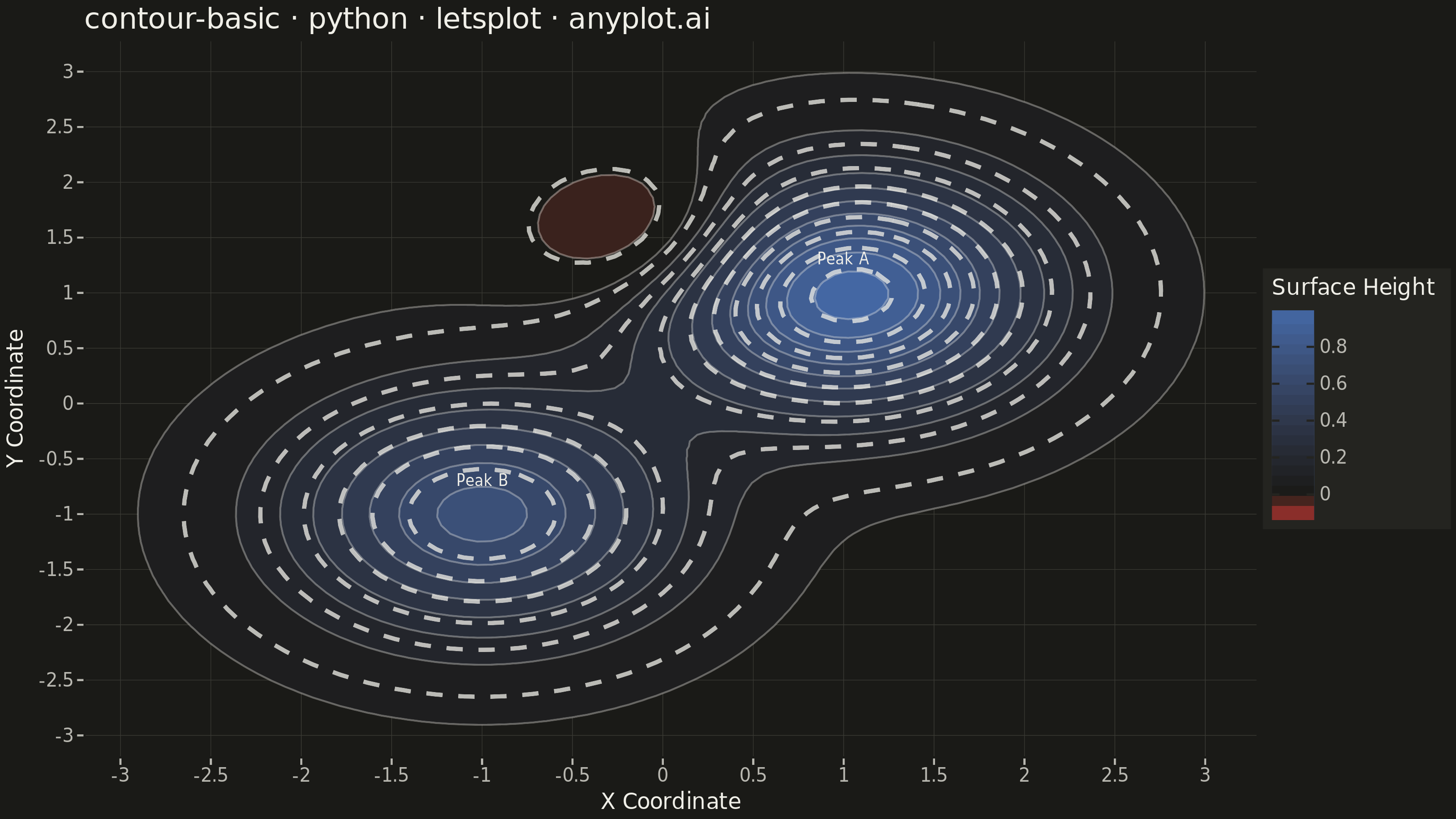

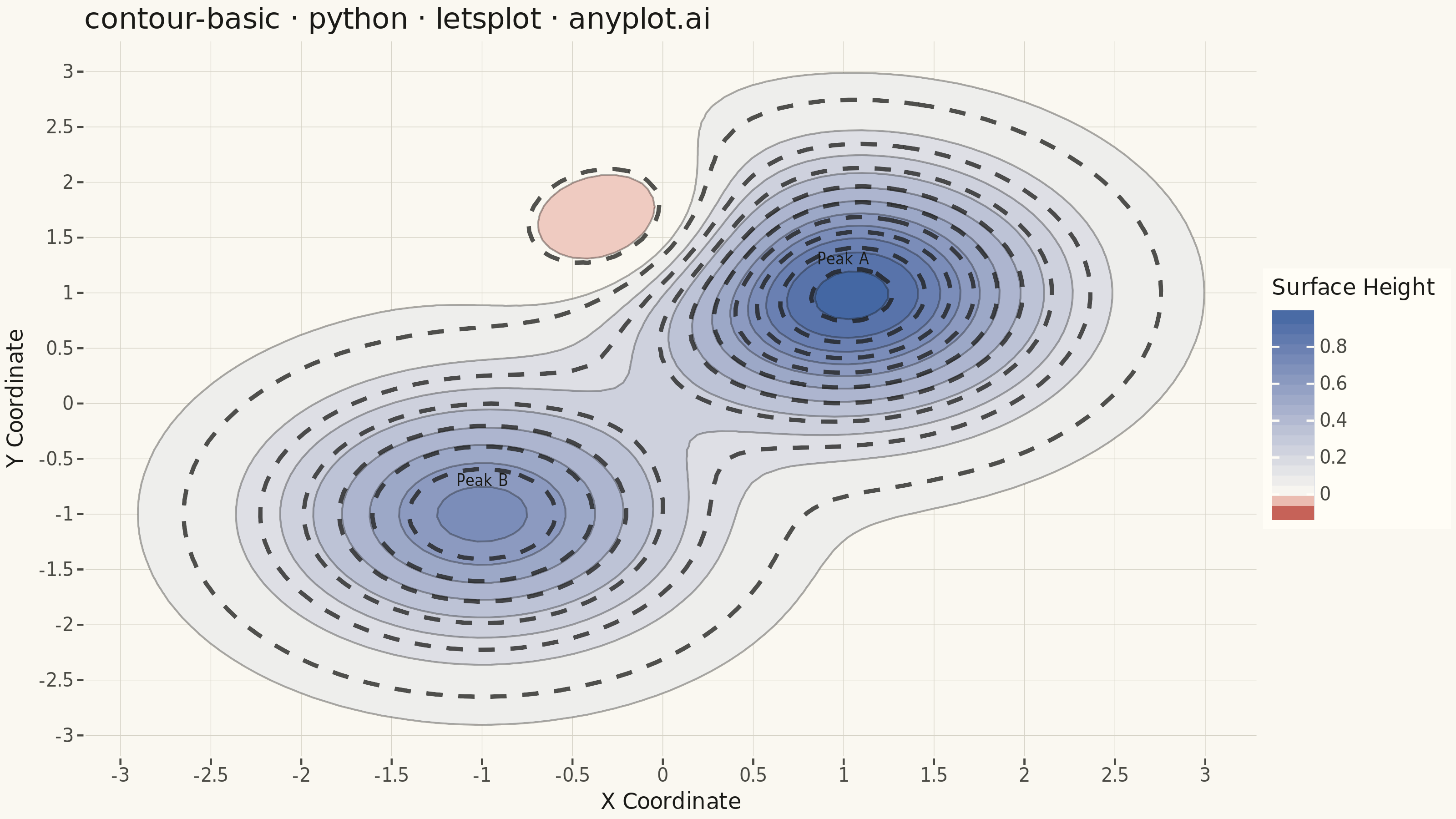

Basic Contour Plot rendered with lets-plot

Python source (lets-plot)

""" anyplot.ai
contour-basic: Basic Contour Plot
Library: letsplot 4.10.1 | Python 3.13.14
Quality: 86/100 | Updated: 2026-06-25
"""

import os

import numpy as np
import pandas as pd
from lets_plot import (
    LetsPlot,
    aes,
    element_blank,
    element_line,
    element_rect,
    element_text,
    geom_contour,
    geom_contourf,
    geom_text,
    ggplot,
    ggsize,
    labs,
    layer_tooltips,
    scale_fill_gradient2,
    theme,
    theme_minimal,
)
from lets_plot.export import ggsave


LetsPlot.setup_html()

# Theme tokens
THEME = os.getenv("ANYPLOT_THEME", "light")
PAGE_BG = "#FAF8F1" if THEME == "light" else "#1A1A17"
ELEVATED_BG = "#FFFDF6" if THEME == "light" else "#242420"
INK = "#1A1A17" if THEME == "light" else "#F0EFE8"
INK_SOFT = "#4A4A44" if THEME == "light" else "#B8B7B0"
RULE = "#D6D3C7" if THEME == "light" else "#3A3A34"

# Imprint diverging midpoint — theme-adaptive near-neutral (zero-crossing blends to bg)
MID = PAGE_BG

# Data — 2D Gaussian surface with two peaks and a depression
np.random.seed(42)
n_points = 80
x = np.linspace(-3, 3, n_points)
y = np.linspace(-3, 3, n_points)
X, Y = np.meshgrid(x, y)

Z = (
    np.exp(-((X - 1) ** 2 + (Y - 1) ** 2))
    + 0.7 * np.exp(-((X + 1) ** 2 + (Y + 1) ** 2))
    - 0.3 * np.exp(-(X**2 + (Y - 1.5) ** 2) / 0.5)
)

df = pd.DataFrame({"x": X.flatten(), "y": Y.flatten(), "z": Z.flatten()})

# Gaussian peak centers for annotation
peaks_df = pd.DataFrame({"x": [1.0, -1.0], "y": [1.3, -0.7], "label": ["Peak A", "Peak B"]})

# Title: 46 chars < 67 baseline → no shrink needed; size stays at 16
title = "contour-basic · python · letsplot · anyplot.ai"
title_size = 16

plot = (
    ggplot(df, aes(x="x", y="y", z="z"))
    # Filled contours with interactive tooltips — lets-plot distinctive feature
    + geom_contourf(aes(fill="..level.."), bins=12, tooltips=layer_tooltips().line("Surface height: @..level.."))
    # Subtle isocontour lines
    + geom_contour(color=INK, size=0.4, alpha=0.35, bins=12)
    # Zero-crossing boundary in bold dashed style to mark the diverging boundary
    + geom_contour(color=INK, size=1.0, alpha=0.75, breaks=[0], linetype="dashed")
    # Annotate the two positive peak centers
    + geom_text(data=peaks_df, mapping=aes(x="x", y="y", label="label"), size=4, color=INK)
    + scale_fill_gradient2(low="#AE3030", mid=MID, high="#4467A3", midpoint=0, name="Surface Height")
    + labs(x="X Coordinate", y="Y Coordinate", title=title)
    + theme_minimal()
    + theme(
        plot_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_background=element_rect(fill=PAGE_BG, color=PAGE_BG),
        panel_border=element_blank(),
        panel_grid_major=element_line(color=RULE, size=0.3),
        panel_grid_minor=element_blank(),
        axis_line=element_line(color=INK_SOFT, size=0.5),
        axis_ticks=element_line(color=INK_SOFT),
        axis_title=element_text(size=12, color=INK),
        axis_text=element_text(size=10, color=INK_SOFT),
        plot_title=element_text(size=title_size, color=INK),
        legend_background=element_rect(fill=ELEVATED_BG, color=ELEVATED_BG),
        legend_text=element_text(size=10, color=INK_SOFT),
        legend_title=element_text(size=12, color=INK),
    )
    + ggsize(800, 450)
)

ggsave(plot, f"plot-{THEME}.png", path=".", scale=4)
ggsave(plot, f"plot-{THEME}.html", path=".")

Part of Basic Contour Plot on anyplot.ai.
