Basic Donut Chart — Apache ECharts

A donut chart (ring chart) showing proportions of categorical data as segments of a ring, with a hollow center. Similar to pie charts but the empty center can display summary statistics or additional information. The ring format can be easier to read when comparing segment sizes.

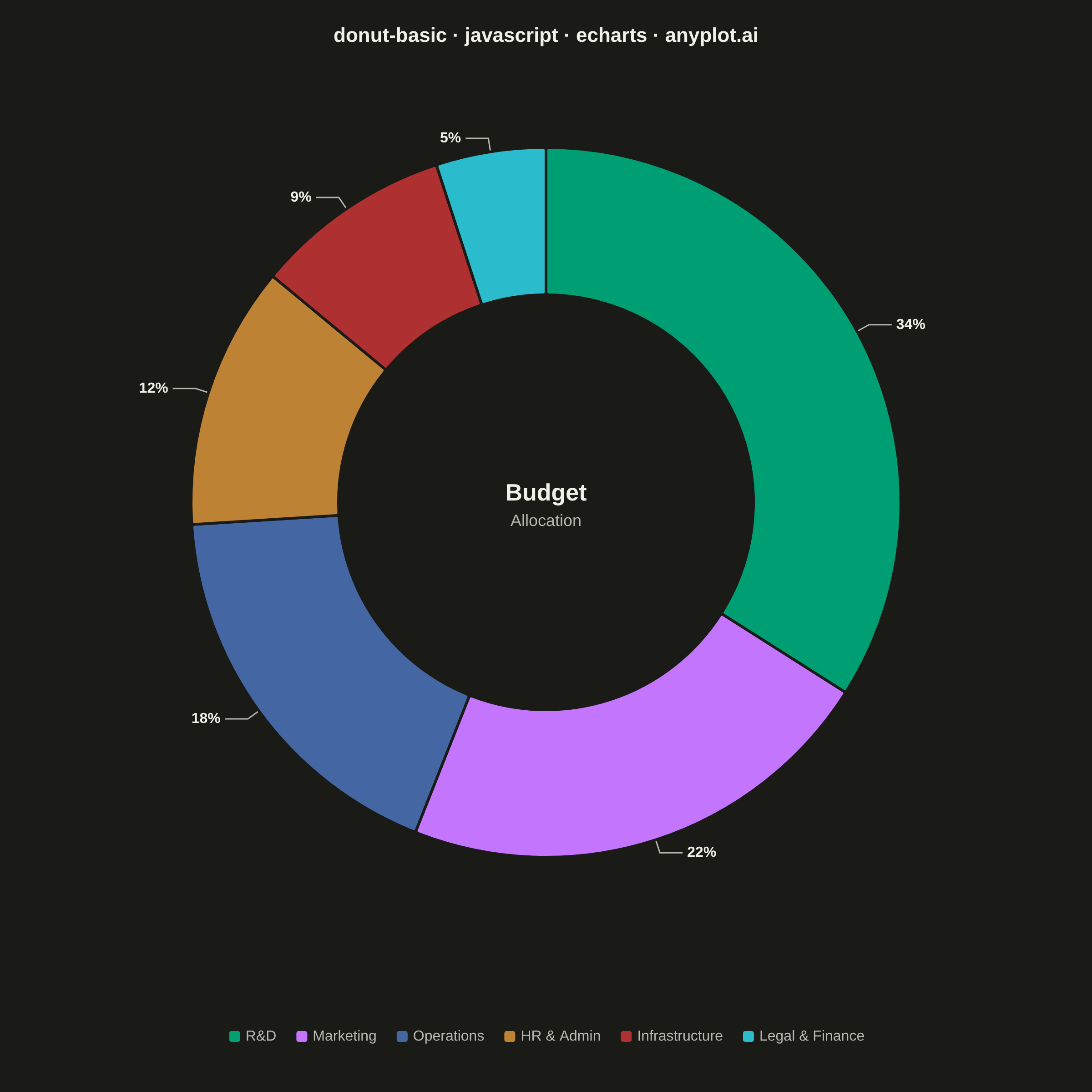

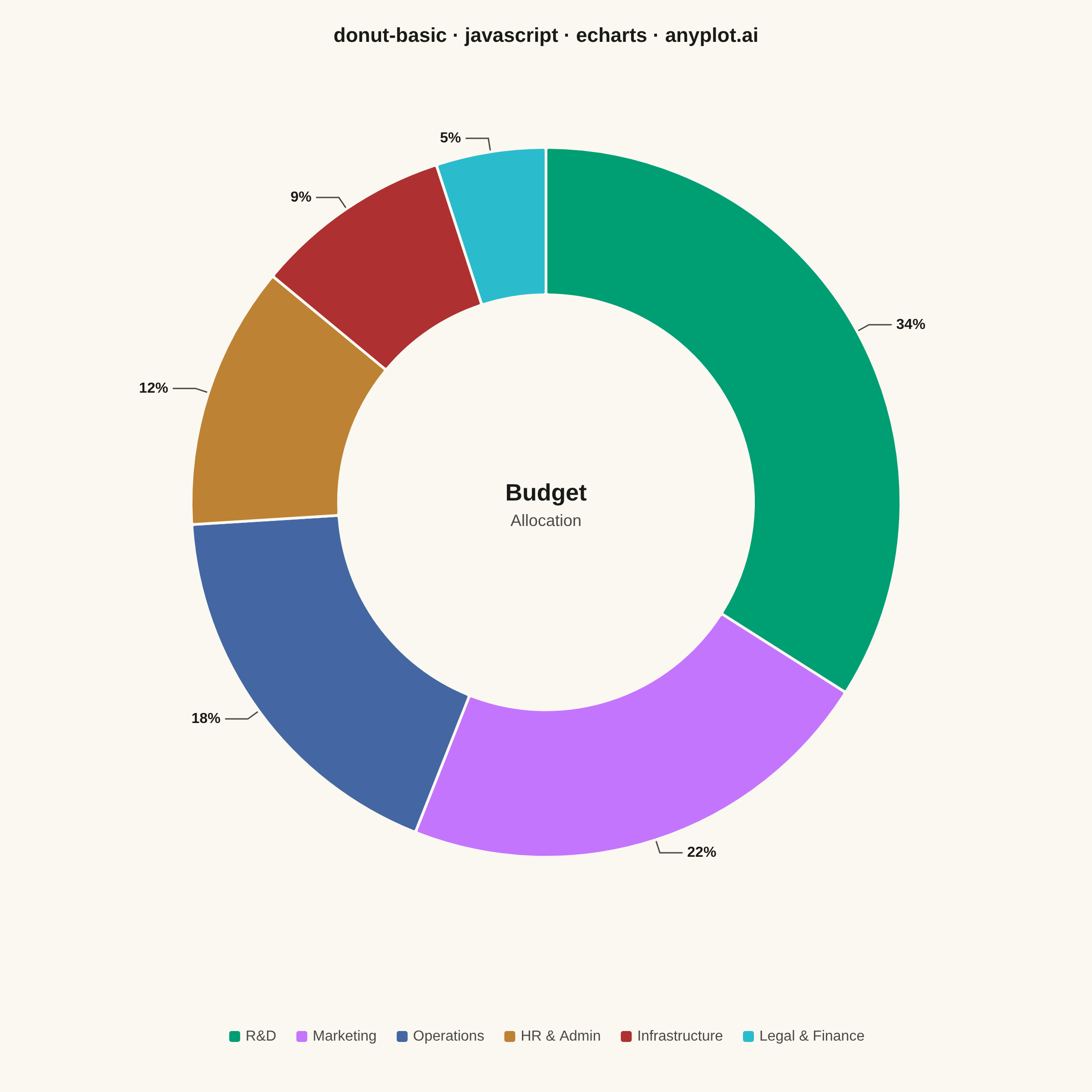

Basic Donut Chart rendered with Apache ECharts

Renders

JavaScript source (Apache ECharts)

// anyplot.ai
// donut-basic: Basic Donut Chart
// Library: echarts 5.5.1 | JavaScript 22.22.3
// Quality: 90/100 | Created: 2026-06-25
//# anyplot-orientation: square
// anyplot.ai
// donut-basic: Basic Donut Chart
// Library: echarts 5.5.1 | JavaScript 22
// Quality: pending | Created: 2026-06-25

const t = window.ANYPLOT_TOKENS;
const size = window.ANYPLOT_SIZE;

// Data — technology company annual budget allocation
const segments = [
  { name: "R&D", value: 34 },
  { name: "Marketing", value: 22 },
  { name: "Operations", value: 18 },
  { name: "HR & Admin", value: 12 },
  { name: "Infrastructure", value: 9 },
  { name: "Legal & Finance", value: 5 },
];

const cx = size.width * 0.50;
const cy = size.height * 0.46;

const chart = echarts.init(document.getElementById("container"));

chart.setOption({
  animation: false,
  color: t.palette,
  backgroundColor: "transparent",

  title: {
    text: "donut-basic · javascript · echarts · anyplot.ai",
    left: "center",
    top: 24,
    textStyle: { color: t.ink, fontSize: 22 },
  },

  legend: {
    orient: "horizontal",
    bottom: "4%",
    left: "center",
    itemWidth: 14,
    itemHeight: 14,
    itemGap: 20,
    textStyle: { color: t.inkSoft, fontSize: 16 },
  },

  graphic: [
    {
      type: "text",
      style: {
        text: "Budget",
        x: cx,
        y: cy - 22,
        textAlign: "center",
        fill: t.ink,
        fontSize: 26,
        fontWeight: "bold",
      },
    },
    {
      type: "text",
      style: {
        text: "Allocation",
        x: cx,
        y: cy + 12,
        textAlign: "center",
        fill: t.inkSoft,
        fontSize: 18,
      },
    },
  ],

  series: [
    {
      type: "pie",
      radius: ["38%", "65%"],
      center: ["50%", "46%"],
      avoidLabelOverlap: true,
      data: segments,
      label: {
        show: true,
        position: "outside",
        formatter: "{d}%",
        color: t.ink,
        fontSize: 16,
        fontWeight: "bold",
      },
      labelLine: {
        lineStyle: { color: t.inkSoft, width: 1.5 },
        length: 15,
        length2: 25,
      },
      itemStyle: {
        borderWidth: 3,
        borderColor: t.pageBg,
        borderRadius: 3,
      },
      emphasis: { disabled: true },
    },
  ],
});

Part of Basic Donut Chart on anyplot.ai.
