// anyplot.ai

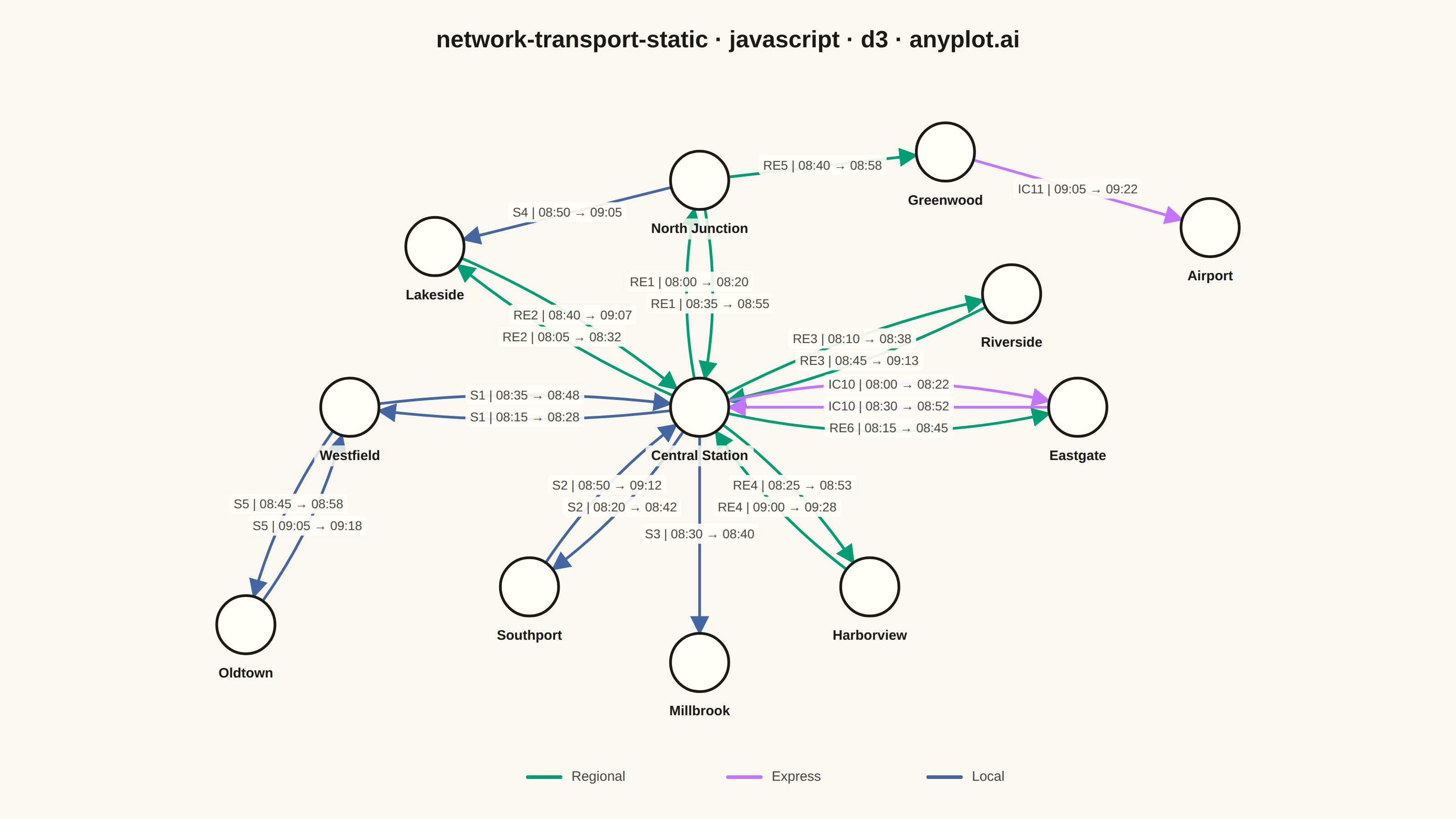

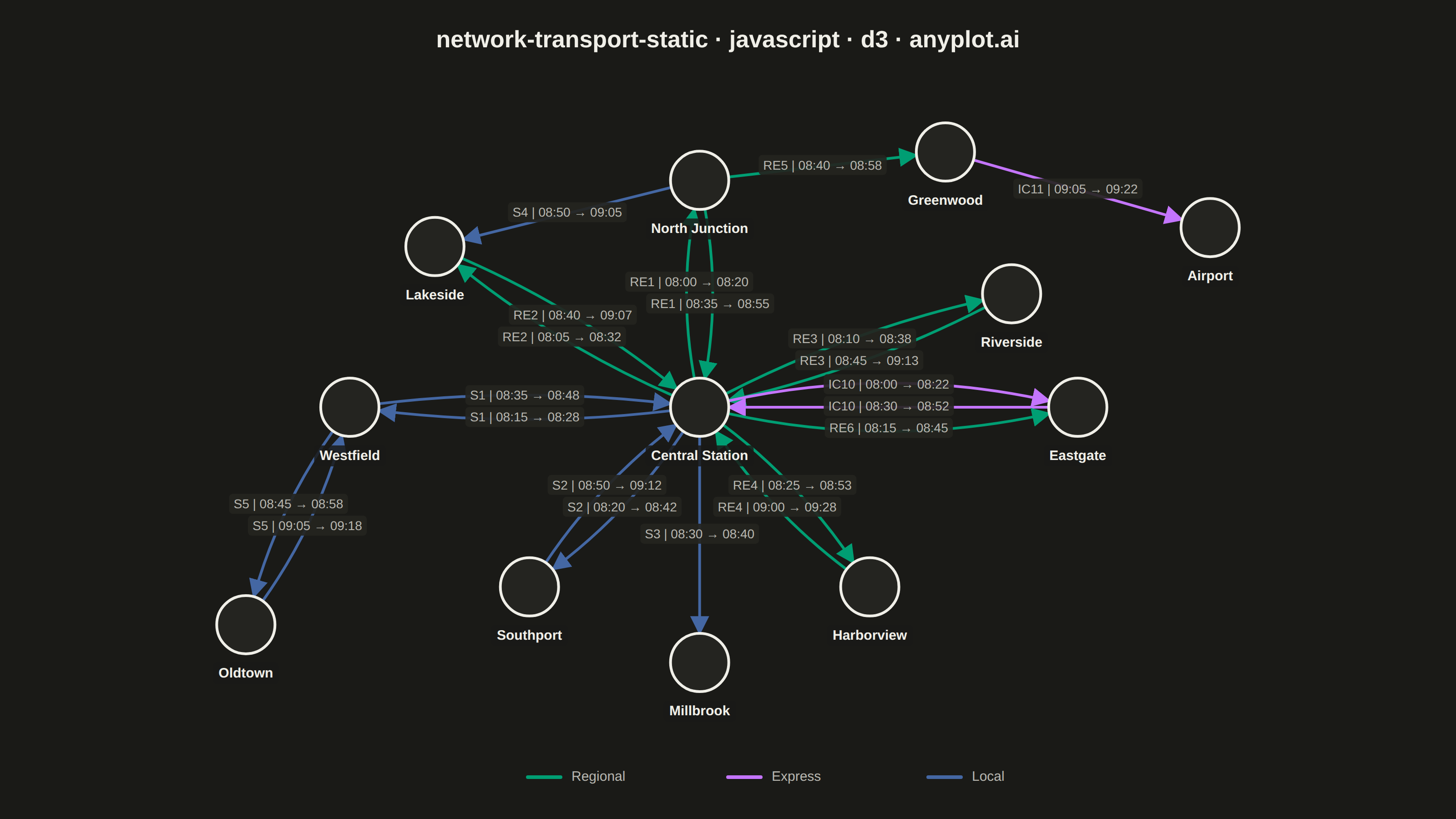

// network-transport-static: Static Transport Network Diagram
// Library: d3 7.9.0 | JavaScript 22.23.2
// Quality: 92/100 | Created: 2026-09-02
//# anyplot-orientation: landscape
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
const margin = { top: 90, right: 50, bottom: 95, left: 50 };
const iw = width - margin.left - margin.right;
const ih = height - margin.top - margin.bottom;
// --- Data: regional rail network (fixed layout, no force simulation) -------
const stations = [
{ id: "cen", label: "Central Station", x: 500, y: 330 },
{ id: "noj", label: "North Junction", x: 500, y: 90 },
{ id: "lak", label: "Lakeside", x: 220, y: 160 },
{ id: "riv", label: "Riverside", x: 830, y: 210 },
{ id: "egt", label: "Eastgate", x: 900, y: 330 },
{ id: "wfd", label: "Westfield", x: 130, y: 330 },
{ id: "spt", label: "Southport", x: 320, y: 520 },
{ id: "hbv", label: "Harborview", x: 680, y: 520 },
{ id: "mlb", label: "Millbrook", x: 500, y: 600 },
{ id: "apt", label: "Airport", x: 1040, y: 140 },
{ id: "olt", label: "Oldtown", x: 20, y: 560 },
{ id: "grw", label: "Greenwood", x: 760, y: 60 },
];
const routes = [
{ source: "cen", target: "noj", routeId: "RE1", dep: "08:00", arr: "08:20", type: "regional" },
{ source: "noj", target: "cen", routeId: "RE1", dep: "08:35", arr: "08:55", type: "regional" },
{ source: "cen", target: "lak", routeId: "RE2", dep: "08:05", arr: "08:32", type: "regional" },
{ source: "lak", target: "cen", routeId: "RE2", dep: "08:40", arr: "09:07", type: "regional" },
{ source: "cen", target: "riv", routeId: "RE3", dep: "08:10", arr: "08:38", type: "regional" },
{ source: "riv", target: "cen", routeId: "RE3", dep: "08:45", arr: "09:13", type: "regional" },
{ source: "cen", target: "egt", routeId: "IC10", dep: "08:00", arr: "08:22", type: "express" },
{ source: "egt", target: "cen", routeId: "IC10", dep: "08:30", arr: "08:52", type: "express" },
{ source: "cen", target: "egt", routeId: "RE6", dep: "08:15", arr: "08:45", type: "regional" },
{ source: "cen", target: "wfd", routeId: "S1", dep: "08:15", arr: "08:28", type: "local" },
{ source: "wfd", target: "cen", routeId: "S1", dep: "08:35", arr: "08:48", type: "local" },
{ source: "cen", target: "spt", routeId: "S2", dep: "08:20", arr: "08:42", type: "local" },
{ source: "spt", target: "cen", routeId: "S2", dep: "08:50", arr: "09:12", type: "local" },
{ source: "cen", target: "hbv", routeId: "RE4", dep: "08:25", arr: "08:53", type: "regional" },
{ source: "hbv", target: "cen", routeId: "RE4", dep: "09:00", arr: "09:28", type: "regional" },
{ source: "cen", target: "mlb", routeId: "S3", dep: "08:30", arr: "08:40", type: "local" },
{ source: "noj", target: "grw", routeId: "RE5", dep: "08:40", arr: "08:58", type: "regional" },
{ source: "grw", target: "apt", routeId: "IC11", dep: "09:05", arr: "09:22", type: "express" },
{ source: "noj", target: "lak", routeId: "S4", dep: "08:50", arr: "09:05", type: "local" },
{ source: "wfd", target: "olt", routeId: "S5", dep: "08:45", arr: "08:58", type: "local" },
{ source: "olt", target: "wfd", routeId: "S5", dep: "09:05", arr: "09:18", type: "local" },
];
const typeColor = { regional: t.palette[0], express: t.palette[1], local: t.palette[2] };
const typeLabel = { regional: "Regional", express: "Express", local: "Local" };
const nodeRadius = 32;
// --- Layout: map data coordinates into the drawing area, aspect preserved --
// (a single uniform `scale` keeps xScale/yScale slopes equal, so d3.scaleLinear
// can be used for both axes without distorting the network's shape)
const stationById = new Map(stations.map((s) => [s.id, s]));
const xExtent = d3.extent(stations, (d) => d.x);
const yExtent = d3.extent(stations, (d) => d.y);
const dataW = xExtent[1] - xExtent[0];
const dataH = yExtent[1] - yExtent[0];
const pad = nodeRadius + 45;
const scale = Math.min((iw - 2 * pad) / dataW, (ih - 2 * pad) / dataH);
const offsetX = (iw - dataW * scale) / 2;
const offsetY = (ih - dataH * scale) / 2;
const xScale = d3.scaleLinear().domain(xExtent).range([offsetX, offsetX + dataW * scale]);
const yScale = d3.scaleLinear().domain(yExtent).range([offsetY, offsetY + dataH * scale]);
for (const s of stations) {
s.cx = xScale(s.x);
s.cy = yScale(s.y);
}
// --- SVG mount --------------------------------------------------------------
const svg = d3
.select("#container")
.append("svg")
.attr("width", width)
.attr("height", height)
.style("font-family", "'Inter', 'Helvetica Neue', Arial, sans-serif");
const defs = svg.append("defs");
const g = svg.append("g").attr("transform", `translate(${margin.left},${margin.top})`);
// arrowhead markers, one per route type color
for (const [key, color] of Object.entries(typeColor)) {
defs
.append("marker")
.attr("id", `arrow-${key}`)
.attr("viewBox", "0 -5 10 10")
.attr("refX", 9)
.attr("refY", 0)
.attr("markerWidth", 7)
.attr("markerHeight", 7)
.attr("orient", "auto")
.append("path")
.attr("d", "M0,-5L10,0L0,5")
.attr("fill", color);
}
// --- Station nodes (drawn first so their footprint can repel edge labels;
// raised above the edges/labels layers at the very end for correct z-order) --
const nodeLayer = g.append("g").attr("class", "nodes");
const nodeObstacles = [];
const nodeCircles = nodeLayer
.selectAll("circle.station")
.data(stations)
.join("circle")
.attr("class", "station")
.attr("cx", (d) => d.cx)
.attr("cy", (d) => d.cy)
.attr("r", nodeRadius)
.attr("fill", t.elevatedBg)
.attr("stroke", t.ink)
.attr("stroke-width", 3);
nodeCircles.append("title").text((d) => d.label);
stations.forEach((s) => nodeObstacles.push({ x: s.cx, y: s.cy, hw: nodeRadius + 10, hh: nodeRadius + 10 }));
const nodeLabelGroups = nodeLayer
.selectAll("g.station-label")
.data(stations)
.join("g")
.attr("class", "station-label")
.attr("transform", (d) => `translate(${d.cx},${d.cy + nodeRadius + 22})`);
nodeLabelGroups
.append("text")
.attr("text-anchor", "middle")
.attr("dominant-baseline", "middle")
.style("font-size", "15px")
.style("font-weight", "600")
.attr("fill", t.ink)
.text((d) => d.label);
nodeLabelGroups.each(function (d) {
const group = d3.select(this);
const bbox = group.select("text").node().getBBox();
group
.insert("rect", "text")
.attr("x", bbox.x - 6)
.attr("y", bbox.y - 3)
.attr("width", bbox.width + 12)
.attr("height", bbox.height + 6)
.attr("rx", 4)
.attr("fill", t.pageBg)
.attr("opacity", 0.85);
nodeObstacles.push({ x: d.cx, y: d.cy + nodeRadius + 22, hw: bbox.width / 2 + 8, hh: bbox.height / 2 + 5 });
});
// --- Group routes by unordered station pair, so parallel routes fan out;
// trim endpoints so each path (and arrowhead) stops at the node's edge -----
const trim = (p, towards) => {
const vx = towards.x - p.x;
const vy = towards.y - p.y;
const len = Math.sqrt(vx * vx + vy * vy) || 1;
return { x: p.x + (vx / len) * nodeRadius, y: p.y + (vy / len) * nodeRadius };
};
const pairGroups = d3.group(routes, (r) => [r.source, r.target].sort().join("|"));
const routeGeometry = [];
for (const [key, group] of pairGroups) {
const [aId, bId] = key.split("|");
const a = stationById.get(aId);
const b = stationById.get(bId);
const dx = b.cx - a.cx;
const dy = b.cy - a.cy;
const dist = Math.sqrt(dx * dx + dy * dy) || 1;
const nx = -dy / dist;
const ny = dx / dist;
const step = 46;
group.forEach((route, i) => {
const offset = (i - (group.length - 1) / 2) * step;
const src = stationById.get(route.source);
const tgt = stationById.get(route.target);
const mid = { x: (src.cx + tgt.cx) / 2 + nx * offset, y: (src.cy + tgt.cy) / 2 + ny * offset };
const start = trim({ x: src.cx, y: src.cy }, mid);
const end = trim({ x: tgt.cx, y: tgt.cy }, mid);
// label anchored at the curve's midpoint (t=0.5 on the quadratic Bezier);
// exact placement is resolved below by the collision-avoidance pass, since
// labels from unrelated edges meeting at the same hub can also collide
const labelPoint = { x: 0.25 * src.cx + 0.5 * mid.x + 0.25 * tgt.cx, y: 0.25 * src.cy + 0.5 * mid.y + 0.25 * tgt.cy };
routeGeometry.push({ route, src, tgt, start, mid, end, labelPoint });
});
}
const edgeLayer = g.append("g").attr("class", "edges");
const edgePaths = edgeLayer
.selectAll("path.route")
.data(routeGeometry)
.join("path")
.attr("class", "route")
.attr("d", (d) => `M${d.start.x},${d.start.y} Q${d.mid.x},${d.mid.y} ${d.end.x},${d.end.y}`)
.attr("fill", "none")
.attr("stroke", (d) => typeColor[d.route.type])
.attr("stroke-width", 3)
.attr("stroke-linecap", "round")
.attr("marker-end", (d) => `url(#arrow-${d.route.type})`);
edgePaths
.append("title")
.text((d) => `${d.route.routeId}: ${d.src.label} → ${d.tgt.label} (${d.route.dep} → ${d.route.arr})`);
const edgeLabelLayer = g.append("g").attr("class", "edge-labels");
const edgeLabelGroups = edgeLabelLayer
.selectAll("g.edge-label")
.data(routeGeometry)
.join("g")
.attr("class", "edge-label");
edgeLabelGroups
.append("text")
.attr("text-anchor", "middle")
.attr("dominant-baseline", "middle")
.style("font-size", "14px")
.attr("fill", t.inkSoft)
.text((d) => `${d.route.routeId} | ${d.route.dep} → ${d.route.arr}`);
const edgeLabels = [];
edgeLabelGroups.each(function (d) {
const group = d3.select(this);
const bbox = group.select("text").node().getBBox();
group
.insert("rect", "text")
.attr("x", bbox.x - 5)
.attr("y", bbox.y - 3)
.attr("width", bbox.width + 10)
.attr("height", bbox.height + 6)
.attr("rx", 4)
.attr("fill", t.elevatedBg)
.attr("opacity", 0.92);
edgeLabels.push({ el: group, x: d.labelPoint.x, y: d.labelPoint.y, hw: bbox.width / 2 + 6, hh: bbox.height / 2 + 4 });
});
// declutter: nudge apart any edge labels whose padded boxes still overlap —
// happens when several edges from the same hub meet at similar angles — and
// push edge labels away from the (fixed) station circles/labels they land on.
// Run as separate phases (not interleaved) so obstacle pushes can't undo a
// pairwise fix (or vice versa) before the system settles.
const declutterPairs = () => {
for (let iter = 0; iter < 60; iter += 1) {
for (let i = 0; i < edgeLabels.length; i += 1) {
for (let j = i + 1; j < edgeLabels.length; j += 1) {
const p = edgeLabels[i];
const q = edgeLabels[j];
const dx = q.x - p.x || 1;
const dy = q.y - p.y || 1;
const overlapX = p.hw + q.hw - Math.abs(dx);
const overlapY = p.hh + q.hh - Math.abs(dy);
if (overlapX > 0 && overlapY > 0) {
if (overlapX < overlapY) {
const shift = (overlapX / 2) * Math.sign(dx);
p.x -= shift;
q.x += shift;
} else {
const shift = (overlapY / 2) * Math.sign(dy);
p.y -= shift;
q.y += shift;
}
}
}
}
}
};
const declutterObstacles = () => {
for (let iter = 0; iter < 20; iter += 1) {
for (const p of edgeLabels) {
for (const obstacle of nodeObstacles) {
const dx = p.x - obstacle.x || 1;
const dy = p.y - obstacle.y || 1;
const overlapX = p.hw + obstacle.hw - Math.abs(dx);
const overlapY = p.hh + obstacle.hh - Math.abs(dy);
if (overlapX > 0 && overlapY > 0) {
if (overlapX < overlapY) {
p.x += overlapX * Math.sign(dx);
} else {
p.y += overlapY * Math.sign(dy);
}
}
}
}
}
};
for (let round = 0; round < 5; round += 1) {
declutterPairs();
declutterObstacles();
}
for (const label of edgeLabels) {
label.el.attr("transform", `translate(${label.x},${label.y})`);
}
nodeLayer.raise();
// --- Legend: route type -> color, centered below the network ----------------
const legendItems = Object.keys(typeColor);
const legendGap = 220;
const legendStartX = width / 2 - ((legendItems.length - 1) * legendGap) / 2;
const legendY = height - 46;
const legend = svg.append("g").attr("class", "legend");
legendItems.forEach((key, i) => {
const lx = legendStartX + i * legendGap;
legend
.append("line")
.attr("x1", lx)
.attr("x2", lx + 36)
.attr("y1", legendY)
.attr("y2", legendY)
.attr("stroke", typeColor[key])
.attr("stroke-width", 4)
.attr("stroke-linecap", "round");
legend
.append("text")
.attr("x", lx + 48)
.attr("y", legendY)
.attr("dominant-baseline", "middle")
.style("font-size", "15px")
.attr("fill", t.inkSoft)
.text(typeLabel[key]);
});
// --- Title --------------------------------------------------------------------
svg
.append("text")
.attr("x", width / 2)
.attr("y", 52)
.attr("text-anchor", "middle")
.style("font-size", "26px")
.style("font-weight", "600")
.attr("fill", t.ink)
.text("network-transport-static · javascript · d3 · anyplot.ai");
Runnable source as JSON, for any HTTP client: https://api.anyplot.ai/specs/network-transport-static/d3/code. Any spec id and library id listed in llms-full.txt fit the same URL shape; every URL below is complete and callable.
{
"spec_id": "network-transport-static",
"language": "javascript",
"library": "d3",
"page": "https://anyplot.ai/network-transport-static/javascript/d3",
"hub": "https://anyplot.ai/network-transport-static",
"code_json": "https://api.anyplot.ai/specs/network-transport-static/d3/code",
"spec_json": "https://api.anyplot.ai/specs/network-transport-static",
"render_light_png": "https://storage.googleapis.com/anyplot-images/plots/network-transport-static/javascript/d3/plot-light.png",
"render_dark_png": "https://storage.googleapis.com/anyplot-images/plots/network-transport-static/javascript/d3/plot-dark.png",
"interactive_light_html": "https://storage.googleapis.com/anyplot-images/plots/network-transport-static/javascript/d3/plot-light.html",
"interactive_dark_html": "https://storage.googleapis.com/anyplot-images/plots/network-transport-static/javascript/d3/plot-dark.html",
"quality_score": 92.0,
"license": "MIT",
"guide": "https://anyplot.ai/llms.txt"
}Part of Static Transport Network Diagram on anyplot.ai.
