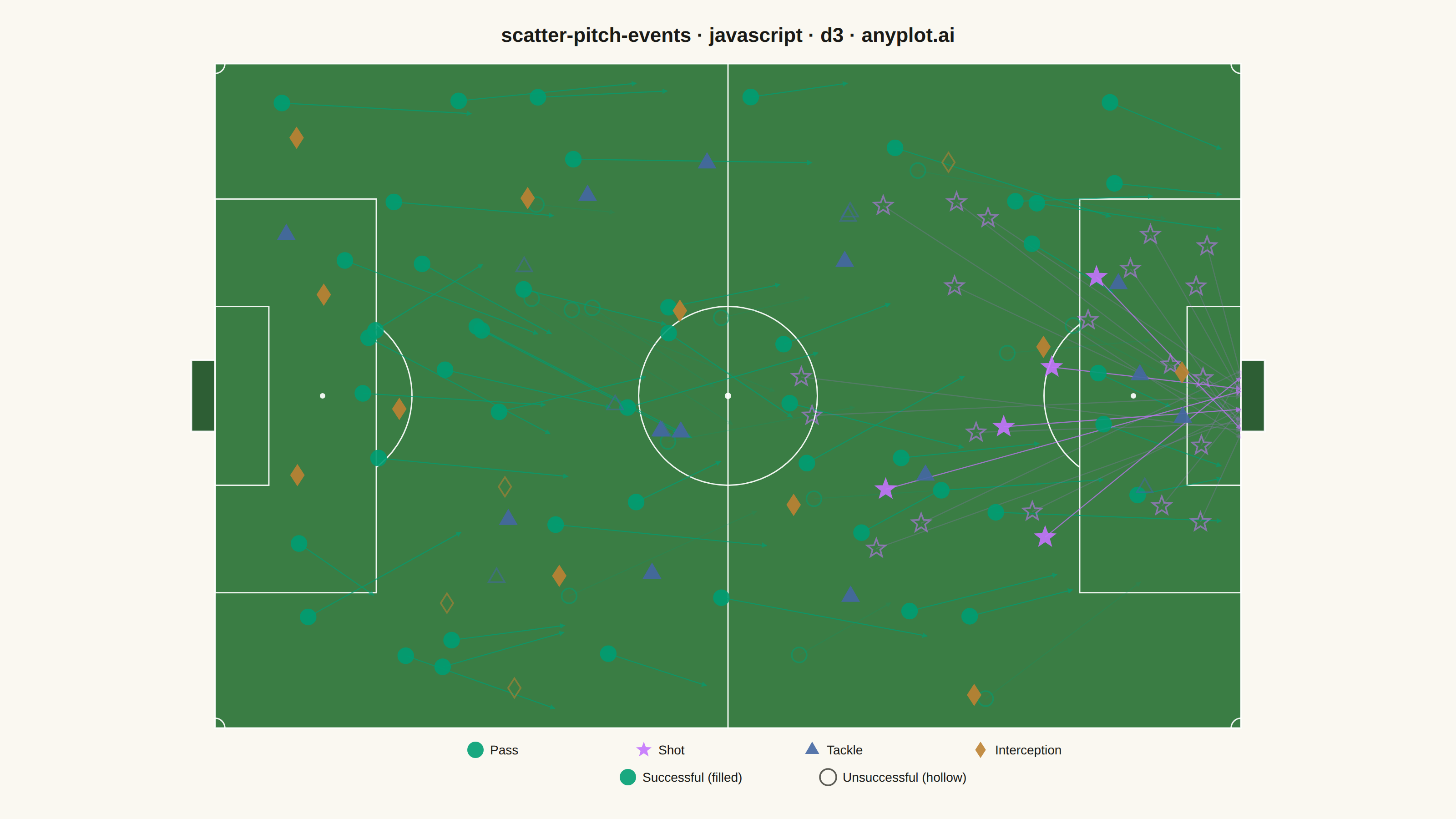

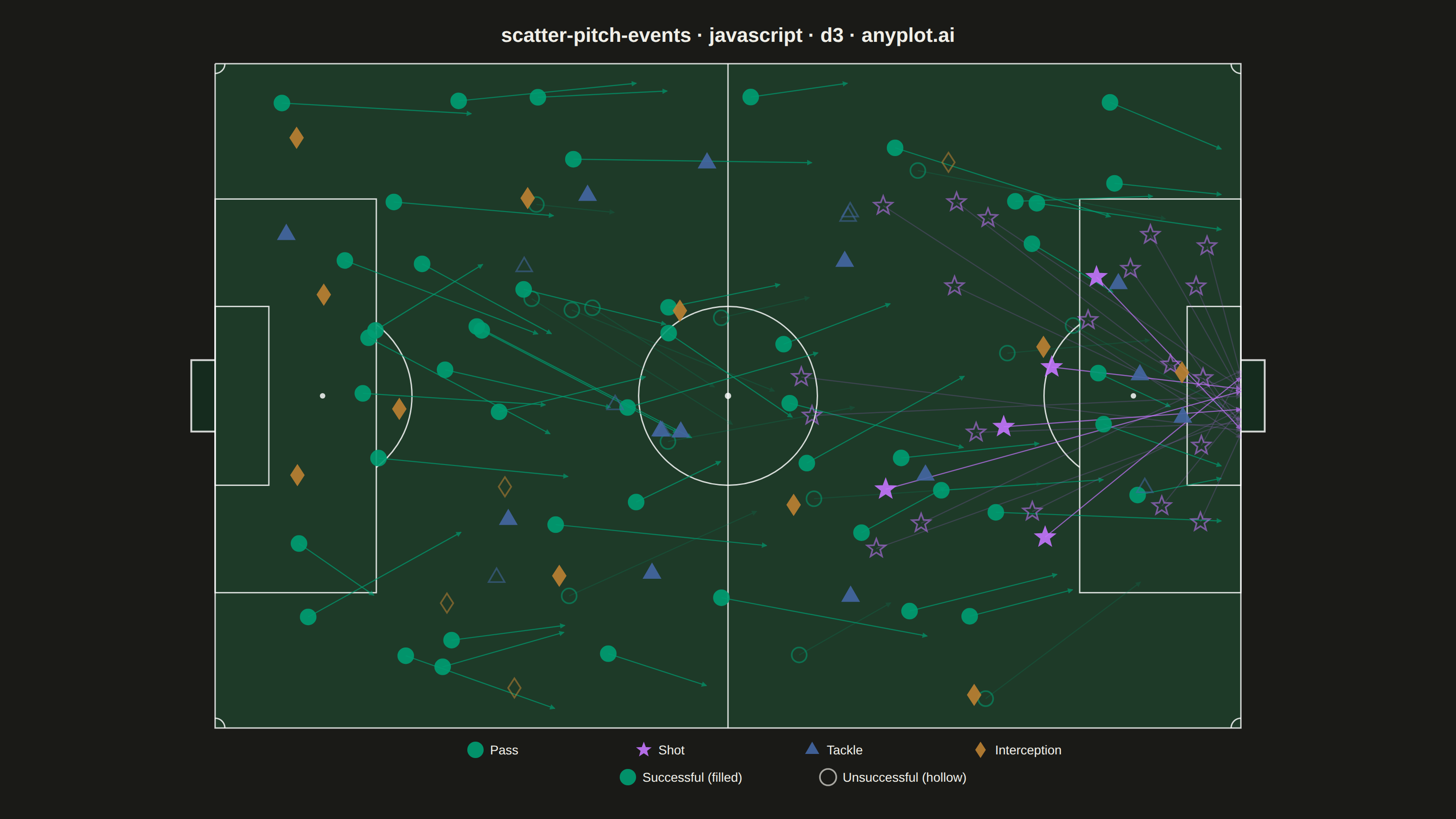

A soccer pitch event map positions match events (passes, shots, tackles, interceptions) as markers on an accurately scaled football pitch diagram. The pitch is drawn with standard markings including penalty areas, center circle, goal areas, and halfway line. Each event type uses distinct markers and colors, with directional arrows for passes and shots. This visualization is essential for tactical match analysis, scouting, and coaching in football analytics.
// anyplot.ai
// scatter-pitch-events: Soccer Pitch Event Map
// Library: d3 7.9.0 | JavaScript 22.22.3
// Quality: 91/100 | Created: 2026-06-21
const t = window.ANYPLOT_TOKENS;
const { width, height } = window.ANYPLOT_SIZE;
// Deterministic LCG for reproducible data
let _s = 12345;
function rand() { _s = (_s * 1664525 + 1013904223) >>> 0; return _s / 4294967295; }
function rr(lo, hi) { return lo + rand() * (hi - lo); }
// Theme
const isDark = window.ANYPLOT_THEME === "dark";
const PITCH_BG = isDark ? "#1e3a28" : "#3a7d44";
const PITCH_LINE_CLR = isDark ? "rgba(255,255,255,0.82)" : "rgba(255,255,255,0.92)";
const GOAL_BG = isDark ? "#152b1e" : "#2d5e34";
// Event colors — Imprint palette positions 1–4
const EC = {
pass: t.palette[0], // #009E73
shot: t.palette[1], // #C475FD
tackle: t.palette[2], // #4467A3
interception: t.palette[3], // #BD8233
};
// Data: 120 events (deterministic)
const events = [];
// 60 passes with end positions (arrows show direction)
for (let i = 0; i < 60; i++) {
const x = rr(5, 95), y = rr(3, 65);
const ang = rr(-0.65, 0.65);
const dist = rr(8, 26);
events.push({
type: "pass", x, y,
ex: Math.min(103, Math.max(2, x + Math.cos(ang) * dist)),
ey: Math.min(66, Math.max(2, y + Math.sin(ang) * dist)),
ok: rand() > 0.22,
});
}
// 25 shots toward right goal (arrows point to goal mouth)
for (let i = 0; i < 25; i++) {
const x = rr(60, 103), y = rr(14, 54);
events.push({ type: "shot", x, y, ex: 105, ey: rr(29.5, 38.5), ok: rand() > 0.72 });
}
// 20 tackles (no arrows)
for (let i = 0; i < 20; i++) {
events.push({ type: "tackle", x: rr(5, 100), y: rr(3, 65), ok: rand() > 0.4 });
}
// 15 interceptions (no arrows)
for (let i = 0; i < 15; i++) {
events.push({ type: "interception", x: rr(5, 100), y: rr(3, 65), ok: rand() > 0.35 });
}
// Layout — maintain 105:68 pitch aspect ratio within the drawing area
const margin = { top: 70, right: 50, bottom: 100, left: 50 };
const drawW = width - margin.left - margin.right;
const drawH = height - margin.top - margin.bottom;
const PITCH_RATIO = 105 / 68;
let pitchW, pitchH;
if (drawW / drawH > PITCH_RATIO) {
pitchH = drawH;
pitchW = pitchH * PITCH_RATIO;
} else {
pitchW = drawW;
pitchH = pitchW / PITCH_RATIO;
}
const offX = (drawW - pitchW) / 2;
const offY = (drawH - pitchH) / 2;
const mPx = pitchW / 105; // pixels per metre (same in x and y due to aspect ratio lock)
// Scales (pitch metres → SVG px within g)
const px = d3.scaleLinear().domain([0, 105]).range([0, pitchW]);
const py = d3.scaleLinear().domain([0, 68]).range([0, pitchH]);
// SVG root
const svg = d3.select("#container").append("svg")
.attr("width", width).attr("height", height);
const g = svg.append("g")
.attr("transform", `translate(${margin.left + offX},${margin.top + offY})`);
// D3 line generator for pitch outlines — idiomatic D3 shape generator
const lineGen = d3.line().x(d => px(d[0])).y(d => py(d[1]));
// Pitch drawing helpers
function prect(x, y, w, h, fill) {
g.append("rect")
.attr("x", px(x)).attr("y", py(y))
.attr("width", px(x + w) - px(x)).attr("height", py(y + h) - py(y))
.attr("fill", fill || "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
}
function parc(x1, y1, x2, y2, r, sweep) {
const rp = r * mPx;
g.append("path")
.attr("d", `M${px(x1)},${py(y1)} A${rp},${rp} 0 0,${sweep} ${px(x2)},${py(y2)}`)
.attr("fill", "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
}
// Pitch background
g.append("rect").attr("x", 0).attr("y", 0)
.attr("width", pitchW).attr("height", pitchH).attr("fill", PITCH_BG);
// Goals — 7.32 m wide, 2.44 m deep; extend beyond pitch boundary
const gy1 = (68 - 7.32) / 2, gy2 = gy1 + 7.32;
g.append("path")
.attr("d", `M${px(0)},${py(gy1)} L${px(-2.44)},${py(gy1)} L${px(-2.44)},${py(gy2)} L${px(0)},${py(gy2)}`)
.attr("fill", GOAL_BG).attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 2);
g.append("path")
.attr("d", `M${px(105)},${py(gy1)} L${px(107.44)},${py(gy1)} L${px(107.44)},${py(gy2)} L${px(105)},${py(gy2)}`)
.attr("fill", GOAL_BG).attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 2);
// Pitch outline via d3.line() — closed polygon from coordinate array
g.append("path")
.attr("d", lineGen([[0, 0], [105, 0], [105, 68], [0, 68], [0, 0]]))
.attr("fill", "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
// Halfway line via d3.line()
g.append("path")
.attr("d", lineGen([[52.5, 0], [52.5, 68]]))
.attr("fill", "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
// Centre circle and spot
g.append("circle").attr("cx", px(52.5)).attr("cy", py(34)).attr("r", 9.15 * mPx)
.attr("fill", "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
g.append("circle").attr("cx", px(52.5)).attr("cy", py(34)).attr("r", 3.5)
.attr("fill", PITCH_LINE_CLR);
// Penalty areas (FIFA: 16.5 m deep, 40.3 m wide; goal area: 5.5 m deep, 18.3 m wide)
prect(0, 13.85, 16.5, 40.3);
prect(0, 24.85, 5.5, 18.3);
prect(88.5, 13.85, 16.5, 40.3);
prect(99.5, 24.85, 5.5, 18.3);
// Penalty spots
g.append("circle").attr("cx", px(11)).attr("cy", py(34)).attr("r", 3).attr("fill", PITCH_LINE_CLR);
g.append("circle").attr("cx", px(94)).attr("cy", py(34)).attr("r", 3).attr("fill", PITCH_LINE_CLR);
// Penalty arcs via d3.arc() — shape generator with transform for positioning
// d3.arc() angles are clockwise from north; for point (dx,dy) in SVG: angle = atan2(dx, -dy)
const ady_m = Math.sqrt(9.15 * 9.15 - 5.5 * 5.5); // vertical reach at the penalty area edge
const pArcGen = d3.arc().innerRadius(9.15 * mPx).outerRadius(9.15 * mPx);
// Left arc: CW from upper-right intersection to lower-right (visible right of penalty spot)
g.append("path")
.attr("d", pArcGen.startAngle(Math.atan2(5.5, ady_m)).endAngle(Math.atan2(5.5, -ady_m))())
.attr("transform", `translate(${px(11)},${py(34)})`)
.attr("fill", "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
// Right arc: CW from lower-left intersection to upper-left (visible left of penalty spot)
const rArcStart = ((Math.atan2(-5.5, -ady_m) % (2 * Math.PI)) + 2 * Math.PI) % (2 * Math.PI);
const rArcEnd = ((Math.atan2(-5.5, ady_m) % (2 * Math.PI)) + 2 * Math.PI) % (2 * Math.PI);
g.append("path")
.attr("d", pArcGen.startAngle(rArcStart).endAngle(rArcEnd)())
.attr("transform", `translate(${px(94)},${py(34)})`)
.attr("fill", "none").attr("stroke", PITCH_LINE_CLR).attr("stroke-width", 1.5);
// Corner arcs (radius 1 m); sweep directions keep the arc inside the pitch
parc(1, 0, 0, 1, 1, 1);
parc(104, 0, 105, 1, 1, 0);
parc(0, 67, 1, 68, 1, 1);
parc(105, 67, 104, 68, 1, 0);
// Arrow marker definitions for passes and shots
const defs = svg.append("defs");
for (const tp of ["pass", "shot"]) {
defs.append("marker").attr("id", `arr-${tp}`)
.attr("viewBox", "0 -4 8 8").attr("refX", 7).attr("refY", 0)
.attr("markerWidth", 5).attr("markerHeight", 5).attr("orient", "auto")
.append("path").attr("d", "M0,-4L8,0L0,4Z")
.attr("fill", EC[tp]).attr("opacity", 0.9);
}
// Arrow lines — uniform 1.2px; wider opacity split (0.7/0.18) reduces shot-zone clutter
g.selectAll(".ev-arr")
.data(events.filter(e => e.type === "pass" || e.type === "shot"))
.join("line").attr("class", "ev-arr")
.attr("x1", d => px(d.x)).attr("y1", d => py(d.y))
.attr("x2", d => px(d.ex)).attr("y2", d => py(d.ey))
.attr("stroke", d => EC[d.type])
.attr("stroke-width", 1.2)
.attr("opacity", d => d.ok ? 0.7 : 0.18)
.attr("marker-end", d => `url(#arr-${d.type})`);
// Marker shape path builders
function starP(cx, cy, r) {
let d = "";
for (let i = 0; i < 10; i++) {
const a = i * Math.PI / 5 - Math.PI / 2;
const rad = i % 2 === 0 ? r : r * 0.42;
d += (i === 0 ? "M" : "L") + (cx + rad * Math.cos(a)) + "," + (cy + rad * Math.sin(a));
}
return d + "Z";
}
function triP(cx, cy, r) {
return `M${cx},${cy - r}L${cx + r * 0.866},${cy + r * 0.5}L${cx - r * 0.866},${cy + r * 0.5}Z`;
}
function diaP(cx, cy, r) {
return `M${cx},${cy - r}L${cx + r * 0.65},${cy}L${cx},${cy + r}L${cx - r * 0.65},${cy}Z`;
}
// Draw event markers — filled = successful, hollow = unsuccessful
const MR = mPx * 0.9;
for (const ev of events) {
const cx = px(ev.x), cy = py(ev.y), col = EC[ev.type];
let el;
if (ev.type === "pass") {
el = g.append("circle").attr("cx", cx).attr("cy", cy).attr("r", MR * 0.85);
} else if (ev.type === "shot") {
el = g.append("path").attr("d", starP(cx, cy, MR * 1.1));
} else if (ev.type === "tackle") {
el = g.append("path").attr("d", triP(cx, cy, MR * 1.05));
} else {
el = g.append("path").attr("d", diaP(cx, cy, MR * 1.1));
}
el.attr("fill", ev.ok ? col : "none")
.attr("stroke", col).attr("stroke-width", 1.8)
.attr("opacity", ev.ok ? 0.9 : 0.55);
}
// Legend — two rows centred under the pitch
const pitchLeft = margin.left + offX;
const pitchBot = margin.top + offY + pitchH;
const pcX = pitchLeft + pitchW / 2;
const lgY1 = pitchBot + 24;
const lgY2 = lgY1 + 30;
const LR = 9;
const typeItems = [
{ label: "Pass", tp: "pass", shape: "circle" },
{ label: "Shot", tp: "shot", shape: "star" },
{ label: "Tackle", tp: "tackle", shape: "tri" },
{ label: "Interception", tp: "interception", shape: "diam" },
];
const tSp = 185;
const tX0 = pcX - tSp * 1.5;
for (let i = 0; i < typeItems.length; i++) {
const { label, tp, shape } = typeItems[i];
const lx = tX0 + i * tSp, col = EC[tp];
const lg = svg.append("g");
if (shape === "circle") {
lg.append("circle").attr("cx", lx).attr("cy", lgY1).attr("r", LR).attr("fill", col).attr("opacity", 0.9);
} else if (shape === "star") {
lg.append("path").attr("d", starP(lx, lgY1, LR)).attr("fill", col).attr("opacity", 0.9);
} else if (shape === "tri") {
lg.append("path").attr("d", triP(lx, lgY1, LR)).attr("fill", col).attr("opacity", 0.9);
} else {
lg.append("path").attr("d", diaP(lx, lgY1, LR)).attr("fill", col).attr("opacity", 0.9);
}
lg.append("text").attr("x", lx + LR + 7).attr("y", lgY1 + 5)
.attr("fill", t.ink).style("font-size", "14px").text(label);
}
// Outcome row — filled circle uses palette[0] to communicate the encoding clearly
const oSp = 220;
const oX0 = pcX - oSp / 2;
svg.append("circle").attr("cx", oX0).attr("cy", lgY2).attr("r", LR)
.attr("fill", t.palette[0]).attr("opacity", 0.9);
svg.append("text").attr("x", oX0 + LR + 7).attr("y", lgY2 + 5)
.attr("fill", t.ink).style("font-size", "14px").text("Successful (filled)");
svg.append("circle").attr("cx", oX0 + oSp).attr("cy", lgY2).attr("r", LR)
.attr("fill", "none").attr("stroke", t.inkSoft).attr("stroke-width", 1.8).attr("opacity", 0.9);
svg.append("text").attr("x", oX0 + oSp + LR + 7).attr("y", lgY2 + 5)
.attr("fill", t.ink).style("font-size", "14px").text("Unsuccessful (hollow)");
// Title
svg.append("text").attr("x", width / 2).attr("y", 46)
.attr("text-anchor", "middle")
.attr("fill", t.ink).style("font-size", "22px").style("font-weight", "600")
.text("scatter-pitch-events · javascript · d3 · anyplot.ai");
Part of Soccer Pitch Event Map on anyplot.ai.
