Basic Slope Chart (Slopegraph) — Chart.js

A slope chart (slopegraph) visualizes changes between two or more time points by connecting values with lines across vertical axes. It emphasizes the direction and magnitude of change rather than absolute values, making it ideal for spotting increases, decreases, and rank changes at a glance. This chart type excels at before/after comparisons and highlighting which items improved or declined.

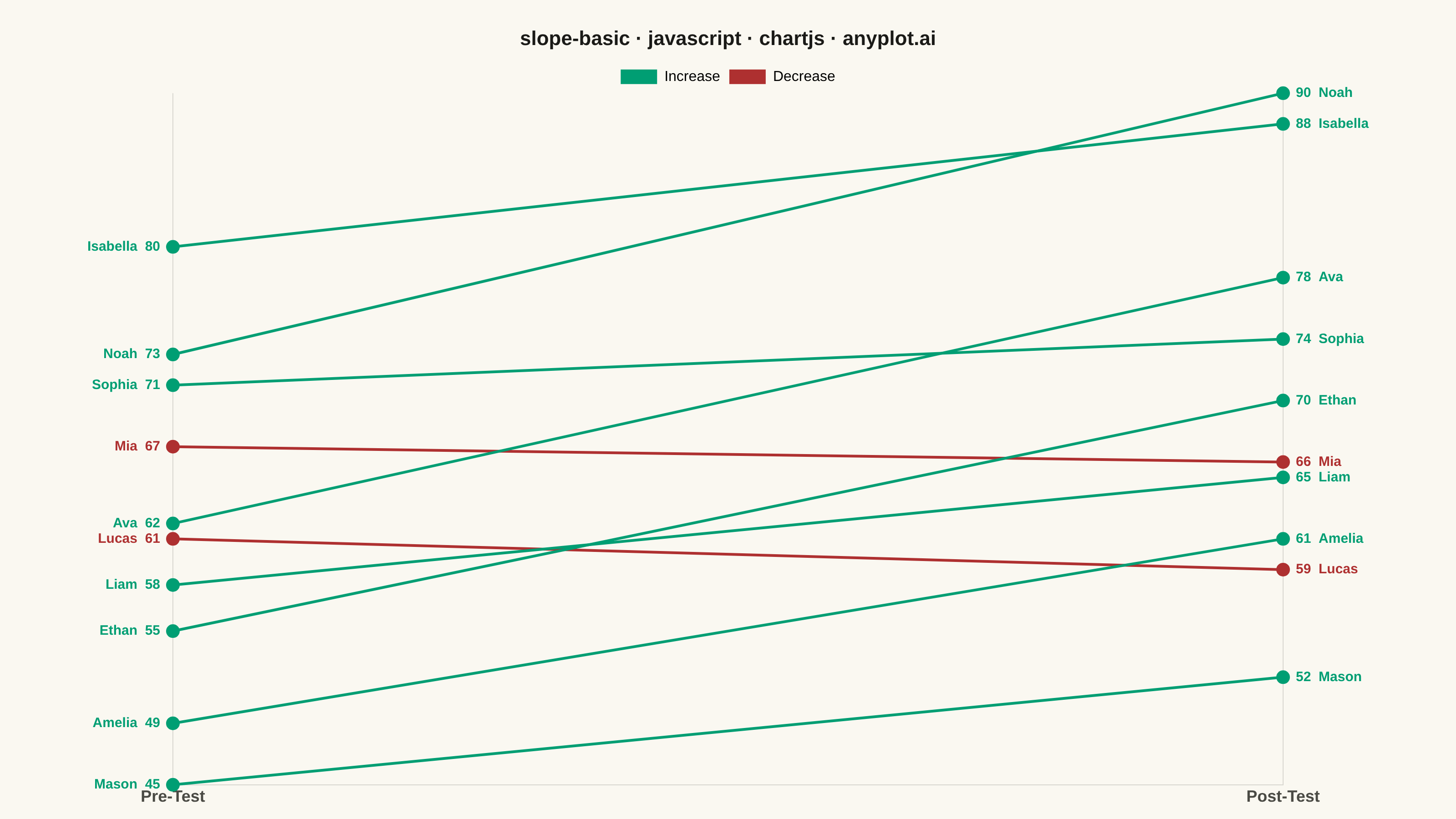

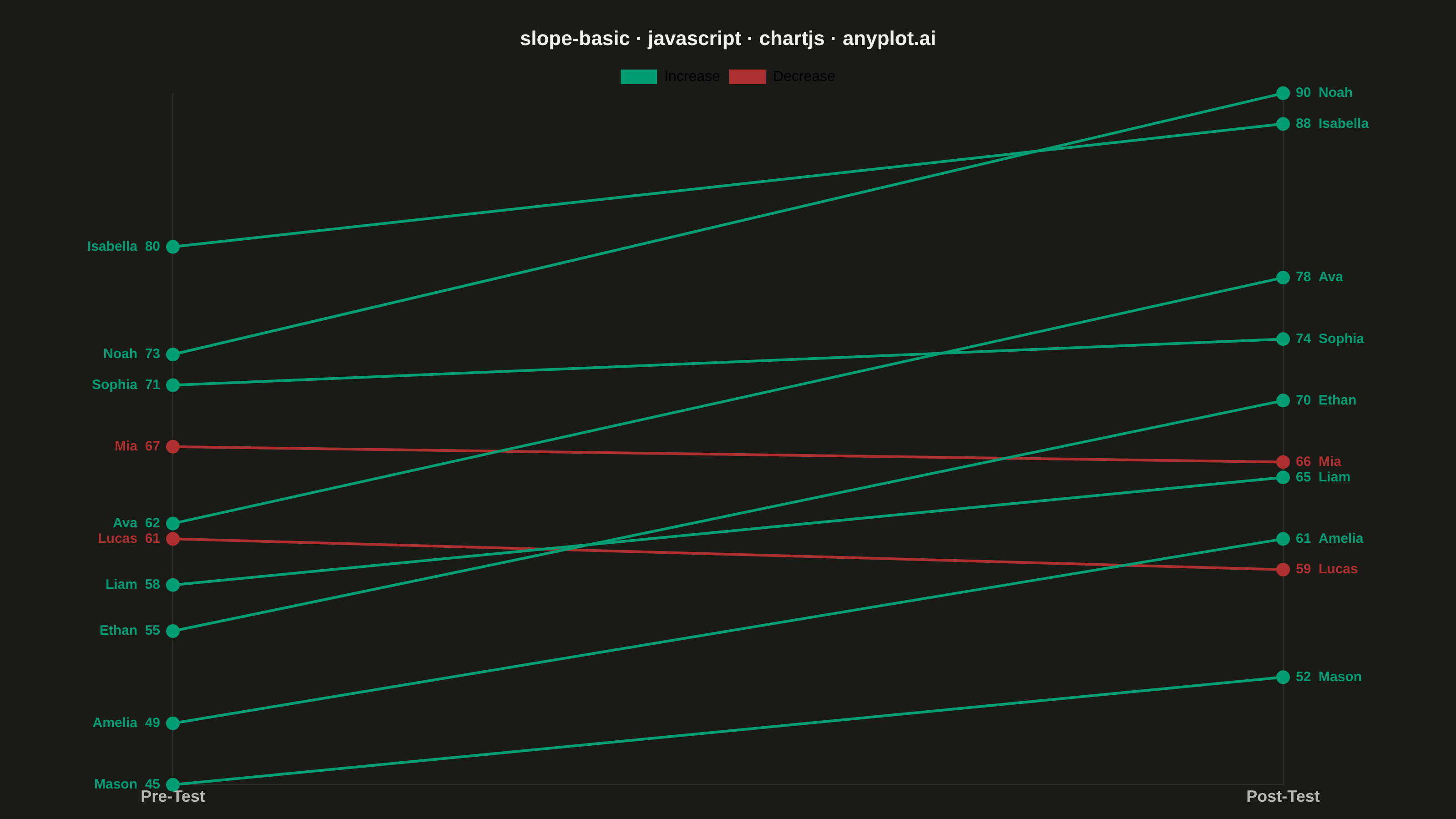

Basic Slope Chart (Slopegraph) rendered with Chart.js

JavaScript source (Chart.js)

// anyplot.ai
// slope-basic: Basic Slope Chart (Slopegraph)
// Library: chartjs 4.4.7 | JavaScript 22.23.1
// Quality: 93/100 | Created: 2026-07-25

const t = window.ANYPLOT_TOKENS;

// --- Data (in-memory, deterministic) ----------------------------------------
// Reading tutoring program: student scores (out of 100) before and after.
const students = [
  "Ava", "Liam", "Sophia", "Mason", "Isabella",
  "Ethan", "Mia", "Noah", "Amelia", "Lucas",
];
const preTest = [62, 58, 71, 45, 80, 55, 67, 73, 49, 61];
const postTest = [78, 65, 74, 52, 88, 70, 66, 90, 61, 59];

const INCREASE = t.palette[0]; // #009E73 brand green — up/gain (semantic exception)
const DECREASE = "#AE3030"; // matte red — down/loss (semantic anchor, slot 5)

const datasets = students.map((name, i) => {
  const color = postTest[i] >= preTest[i] ? INCREASE : DECREASE;
  return {
    label: name,
    data: [preTest[i], postTest[i]],
    borderColor: color,
    backgroundColor: color,
    pointBackgroundColor: color,
    pointBorderColor: color,
    pointRadius: 6,
    pointHoverRadius: 6,
    borderWidth: 3,
    tension: 0,
  };
});

// --- Mount -------------------------------------------------------------------
const canvas = document.createElement("canvas");
document.getElementById("container").appendChild(canvas);

// --- Endpoint label plugin (native Chart.js plugin API, no external deps) ---
// Draws entity name + value at both ends of each line, matching the spec's
// "labels at both endpoints" requirement while keeping the legend uncluttered.
const endpointLabels = {
  id: "slopeEndpointLabels",
  afterDatasetsDraw(chart) {
    const { ctx } = chart;
    ctx.save();
    ctx.font = "600 15px sans-serif";
    ctx.textBaseline = "middle";
    chart.data.datasets.forEach((ds, i) => {
      const meta = chart.getDatasetMeta(i);
      if (meta.hidden) return;
      const [p0, p1] = meta.data;
      ctx.fillStyle = ds.borderColor;
      ctx.textAlign = "right";
      ctx.fillText(`${ds.label}  ${ds.data[0]}`, p0.x - 14, p0.y);
      ctx.textAlign = "left";
      ctx.fillText(`${ds.data[1]}  ${ds.label}`, p1.x + 14, p1.y);
    });
    ctx.restore();
  },
};
Chart.register(endpointLabels);

// --- Chart ---------------------------------------------------------------
new Chart(canvas, {
  type: "line",
  data: {
    labels: ["Pre-Test", "Post-Test"],
    datasets,
  },
  options: {
    responsive: true,
    maintainAspectRatio: false,
    animation: false,
    layout: {
      padding: { left: 190, right: 190, top: 20, bottom: 10 },
    },
    plugins: {
      title: {
        display: true,
        text: "slope-basic · javascript · chartjs · anyplot.ai",
        color: t.ink,
        font: { size: 22 },
      },
      legend: {
        labels: {
          color: t.ink,
          font: { size: 16 },
          generateLabels: () => [
            { text: "Increase", fillStyle: INCREASE, strokeStyle: INCREASE, lineWidth: 0 },
            { text: "Decrease", fillStyle: DECREASE, strokeStyle: DECREASE, lineWidth: 0 },
          ],
        },
        onClick: () => {},
      },
      tooltip: { enabled: false },
    },
    scales: {
      x: {
        type: "category",
        offset: false,
        ticks: { color: t.inkSoft, font: { size: 18, weight: "600" } },
        grid: { color: t.grid, drawTicks: false },
        border: { color: t.grid },
      },
      y: {
        display: false,
      },
    },
  },
});

Part of Basic Slope Chart (Slopegraph) on anyplot.ai.
